The Advantages of Using IP23 Motors in Outdoor Applications

Understanding the safety standards of electric motors is essential for achieving maximum performance when choosing electric motors for usage outside. There is a balanced approach to environmental protection that IP23 motors provide, making them ideal for certain applications that take place outside. They are able to handle heavier solid particles and water spray from a variety of angles, which makes them suitable for covered outdoor installations or semi-protected places that are not completely exposed to the weather.



CONTACT US

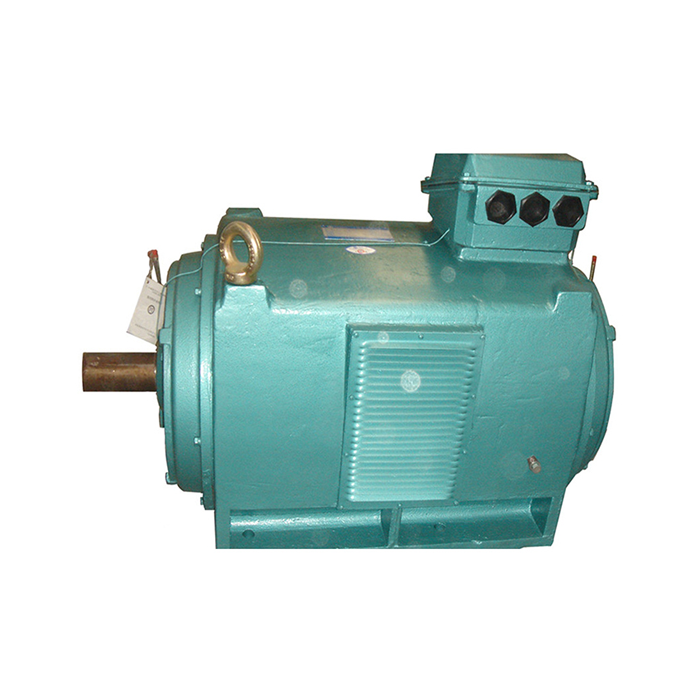

Series：Y
Voltage range: 380V±5%
Power range: 55~355 kW
Protection level：IP23
Application: This series of motors can be used to drive various machinery. Such as ventilators, compressors, water pumps, crushers, cutting machine tools and other equipment, and can be used as prime movers in coal mines, machinery industries, power plants and various industrial and mining enterprises.
Advantage: This series of motors has the advantages of high efficiency, energy saving, low noise, small vibration, light weight, reliable performance, and convenient installation and maintenance.
Certificate: The motor complies with JB5271-91
Others: SKF, NSK, FAG bearings can be replaced according to customer requirements.

Understanding IP23 Protection Standards and Key Parameters

The IP23 protection rating defines specific capabilities that industrial motors must meet under standardized testing conditions. The first digit "2" indicates protection against solid foreign objects with diameters exceeding 12.5mm, while the second digit "3" represents resistance to water spray within a 60-degree range from vertical.

Our IP23 motor specs make sure that they work reliably in a wide range of challenging situations. These motors meet the requirements of JB5271-91 and can work at 380V±5% with power levels between 55kW and 355kW. The amount of security makes sure that semi-outdoor areas are safe enough while still letting heat escape properly through open air systems.

The temperature rise stays below 80K (Class B), and the starting current stays between 6.5 and 10 times the rating current. The starting torque is at least 160% of the rated torque, and the highest torque is more than 200% of the quoted specs. These factors make sure that the motor works the same way no matter what the load is.

For better protection, the copper windings go through precise manufacturing steps, such as vacuum pressure impregnation. Vibration levels can be lowered with dynamic rotor balance, and customers can choose from high-quality bearings made by known companies like SKF, NSK, and FAG.

Core Benefits of IP23 Motors in Semi-Outdoor Applications

1. In comparison to completely enclosed motors, IP23 motors have a higher capacity for heat dissipation, which allows them to function effectively in areas that need moderate protection. This design of open ventilation helps to avoid an excessive increase in temperature in the windings, which in turn serves to prolong the lifetime of the motor without incurring the additional expenditures associated with greater protection ratings.

2. An important benefit is that it saves energy, and the better cooling system keeps motors running at the best rates all the time. This control over temperature immediately leads to less energy use and a longer operating life, which saves money over the life of the motor.

3. Accessibility to maintenance shines out as yet another important advantage provided. An easier examination of the interior components is made possible by the open design, which also makes it simpler to arrange preventative maintenance operations. Without having to completely disassemble the motor, technicians are able to check the conditions of the windings, the operation of the bearings, and the general health of the motor.

4. The decrease in weight, in comparison to alternatives that are completely enclosed, makes the installation and handling much more practical. The lighter structure brings about a reduction in the structural requirements for mounting systems, while still preserving the strong performance qualities.

5. Noise levels continue to be much lower as a result of improvements made to the design of the airflow and decreased temperatures during operation. This benefit in terms of acoustics tends to be useful in situations where there are issues about noise pollution, such as in close proximity to residential areas or in industrial settings that are sensitive to noise.

This results in an excellent cost-performance ratio when the protection needs are in line with the capabilities of IP23. The organizations are able to avoid paying charges for protection levels that are not essential while yet ensuring that they have enough environmental resilience for their particular uses.

XCMOTOR's IP23 Motor Advantages in Competitive Markets

• Throughout each and every step of production, our manufacturing method places an emphasis on precise engineering principles. The meticulous procedure begins with the die-casting of frames and components with accuracy, and then moves on to the automated winding of stator coils, which guarantees that the electrical properties remain constant throughout the manufacturing runs.
• Quality control measures exceed industry standards through comprehensive testing protocols. Each IP23 motor undergoes dynamic balancing verification, electrical testing, and performance validation before shipment. This attention to detail ensures reliable operation from initial startup through extended service periods.
• Component selection prioritizes proven reliability over cost minimization. The cast iron frame construction provides exceptional durability, while precision-wound copper windings deliver optimal efficiency and thermal characteristics. High-quality bearings significantly reduce operational vibration and acoustic emissions.
• Customization capabilities allow specification modifications to meet unique application requirements. Bearing selections can be tailored to specific operational conditions, while insulation classes can be upgraded when environmental conditions demand enhanced thermal performance.
• Technical support extends beyond initial sales, providing ongoing assistance for installation, commissioning, and operational optimization. Our engineering team collaborates with customers to ensure proper application matching and performance expectations.
• Delivery reliability ensures project timelines remain on schedule, while our 30-day return policy provides confidence in purchase decisions. Weekend technical support availability demonstrates our commitment to customer operational continuity.

Optimal Usage Guidelines for Maximum Performance Benefits

• Proper installation practices maximize IP23 motor performance and longevity. Mounting surfaces must provide adequate rigidity to prevent excessive vibration transmission. Electrical connections require proper torque specifications and environmental protection appropriate for the installation location.
• Ventilation clearances around the motor housing ensure adequate airflow for cooling purposes. Minimum clearance recommendations should be observed on all sides, with particular attention to air intake and exhaust areas. Obstructed airflow leads to elevated operating temperatures and reduced motor life.
• Environmental considerations include protection from direct precipitation exposure. While IP23 motors resist water spray from specific angles, direct rainfall or water jet exposure exceeds their protection capabilities. Covered installations or partial enclosures provide appropriate protection levels.
• Regular maintenance schedules should include bearing lubrication, electrical connection inspection, and ventilation pathway cleaning. Bearing lubrication intervals depend on operational hours and environmental conditions, typically ranging from 2000-8000 operating hours.
• Load matching ensures optimal efficiency and prevents premature wear. Operating motors significantly below rated capacity wastes energy, while consistent overloading reduces operational life. Variable frequency drives can optimize efficiency across varying load conditions.
• Ambient temperature monitoring prevents excessive thermal stress. IP23 motors operate effectively within specified temperature ranges, but extreme conditions may require additional cooling measures or derating calculations.

Strategic Applications Across Industrial Sectors

1. Manufacturing facilities utilize IP23 motors for conveyors, material handling equipment, and processing machinery where moderate environmental protection suffices. Automotive production lines, electronics manufacturing, and food processing operations benefit from the balanced protection and performance characteristics.

2. HVAC installations in semi-outdoor environments leverage the superior heat dissipation properties. Commercial rooftop units, parking garage ventilation systems, and industrial exhaust applications utilize IP23 motors effectively when proper weather protection exists.

3. Power generation facilities employ these motors for auxiliary equipment including cooling tower fans, fuel handling systems, and plant ventilation. The robust construction handles the demanding operational requirements while maintaining reliability standards.

4. Water treatment applications include pump drives, blower systems, and chemical feed equipment. The moderate water resistance provides adequate protection for covered installations while allowing efficient heat dissipation.

5. Process control systems in chemical plants, refineries, and manufacturing facilities rely on IP23 motors for pumps, compressors, and valve actuators. The reliable performance supports critical process equipment requirements.

6. Agricultural operations utilize these motors for grain handling equipment, irrigation systems, and processing machinery where weather protection structures exist. The durability and maintenance accessibility suit agricultural operational patterns.

Conclusion

IP23 motors deliver optimal performance for applications requiring moderate environmental protection without excessive cost premiums. The balanced approach to protection, combined with superior heat dissipation and energy efficiency, makes these motors ideal for semi-outdoor and industrial applications. Understanding proper application guidelines ensures maximum operational benefits and extended service life. When selecting motor solutions, matching protection requirements to actual environmental conditions provides the most cost-effective approach while maintaining reliable performance standards.

Frequently Asked Questions

Q1: What environments are suitable for IP23 motor installations?

A: IP23 motors perform optimally in covered outdoor areas, semi-enclosed buildings, and indoor industrial environments where moderate dust and limited water spray protection is adequate. They excel in applications like covered conveyors, warehouse ventilation, and sheltered pump installations.

Q2: How does the IP23 protection rating compare to higher-rated alternatives?

A: IP23 provides protection against objects larger than 12.5mm and water spray up to 60 degrees from vertical. Higher ratings like IP55 offer complete dust protection and water jet resistance but sacrifice heat dissipation efficiency and increase costs significantly.

Q3: What maintenance advantages do IP23 motors offer?

A: The open ventilation design allows easier access for inspection and maintenance. Technicians can monitor bearing conditions, check winding temperatures, and perform routine maintenance without complete motor disassembly, reducing maintenance time and costs.

Choose XCMOTOR for Reliable IP23 Motor Solutions

XCMOTOR stands ready to provide comprehensive IP23 motor supplier services tailored to your specific operational requirements. Our extensive experience across industrial applications ensures proper motor selection and application guidance. Technical expertise combined with quality manufacturing delivers dependable solutions for your most demanding applications. Contact us at xcmotors@163.com to discuss your project requirements and discover how our IP23 motor solutions can enhance your operational efficiency.
