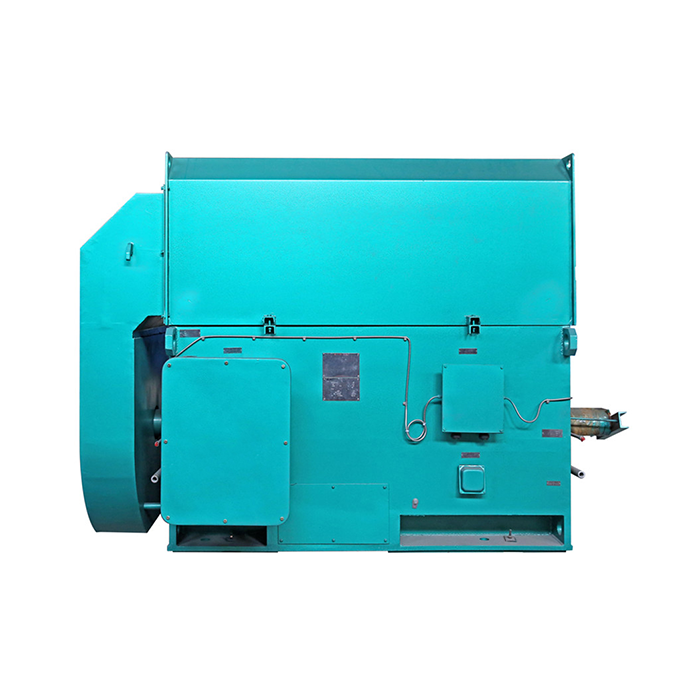

YPKK series high voltage frequency asynchronous motor
Power range：200-6300 kW
Application：fans, water pumps, compressors, crushers, cutting machine tools, transportation machinery, etc.
Advantage：low noise, low vibration, long service life, easy installation and maintenance.
Standard: This series of products complies with JJB/T12730 and JB/T12729 standards.
Others： SKF, NSK, FAG bearings can be replaced according to customer requirements.
- Product Description
YPKK Series High Voltage Frequency Asynchronous Motor
The YPKK series high voltage frequency aSynchronous Motor covers a power range of 200–6300 kW and supports six voltage levels from 3000 V to 11000 V (±5%), making it suitable for fans, pumps, compressors, and crushers in heavy industrial settings. Built to JB/T12730 and JB/T12729 standards, the series features a low-noise, low-vibration construction with selectable SKF, NSK, or FAG bearings. Shaanxi Qihe Xicheng Electromechanical Equipment Co., Ltd. (XCMOTOR) has supplied power equipment for over 20 years and manages production through an SAP factory management system.
Manufacturer Background
Shaanxi Qihe Xicheng Electromechanical Equipment Co., Ltd. (XCMOTOR) has been supplying power equipment solutions for over 20 years. The company maintains supply relationships with more than 30 motor manufacturers, including ABB, Siemens, Wolong, XEMC, SIMO, and PINXING.
Production scheduling and quality traceability are managed through an SAP factory management system. Certifications held include CCC, CE, ISO9001:2000, CRCC, CQC, UL, GOST, ZDHY environmental management, and China Energy Saving Production Certification, covering compliance requirements across multiple international markets.
Common Application Challenges
High-voltage variable frequency motors in heavy industry face predictable operating problems. The table below shows where the YPKK series is designed to help.
Challenge | YPKK Design Feature |
High vibration affecting connected equipment | Low-vibration construction with precision dynamic balancing |
Noise levels in enclosed facilities | Low-noise motor design for indoor plant environments |
Bearing failures under variable load | Replaceable SKF, NSK, or FAG bearings, selectable per application |
Voltage mismatch with existing infrastructure | Six rated voltage options: 3000 V, 3300 V, 6000 V, 6600 V, 10000 V, 11000 V |
Maintenance difficulty at remote sites | Disassembly structure suited for on-site servicing |
Overvoltage risk leading to magnetic saturation | ±5% tolerance built into each rated voltage option |
When supply voltage exceeds rated parameters, it disrupts magnetic flux and increases current draw. The ±5% tolerance range is intended to accommodate real-world supply variation at each rated level.
Technical Features
The YPKK series is designed for variable frequency drive (VFD) operation, which places higher thermal and electrical stress on insulation than fixed-frequency use.
Key specifications:
· Power range: 200 kW to 6300 kW
· Voltage options: 3000 V, 3300 V, 6000 V, 6600 V, 10000 V, 11000 V (each ±5%)
· Standards: JB/T12730 and JB/T12729
· Insulation: Reinforced insulation system evaluated for VFD environments
· Bearing options: SKF, NSK, or FAG — selectable based on load and operating conditions
· Cooling: Forced ventilation for thermal management under variable load
Technical Specifications
Parameter | Specification |
Power Range | 200–6300 kW |
Voltage Options | 3000 V / 3300 V / 6000 V / 6600 V / 10000 V / 11000 V |
Voltage Tolerance | ±5% |
Frequency Type | Variable frequency (VFD compatible) |
Applicable Standards | JB/T12730, JB/T12729 |
Bearing Brands | SKF, NSK, FAG (replaceable) |
Noise Level | Low-noise design |
Vibration Level | Low-vibration design |

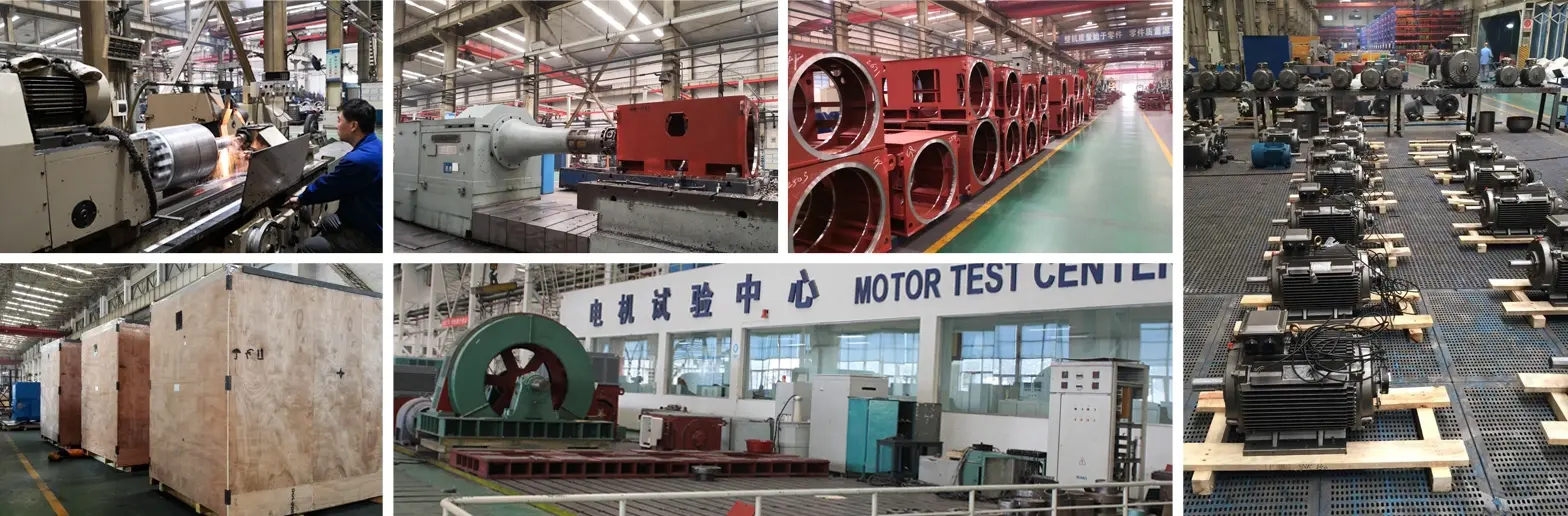

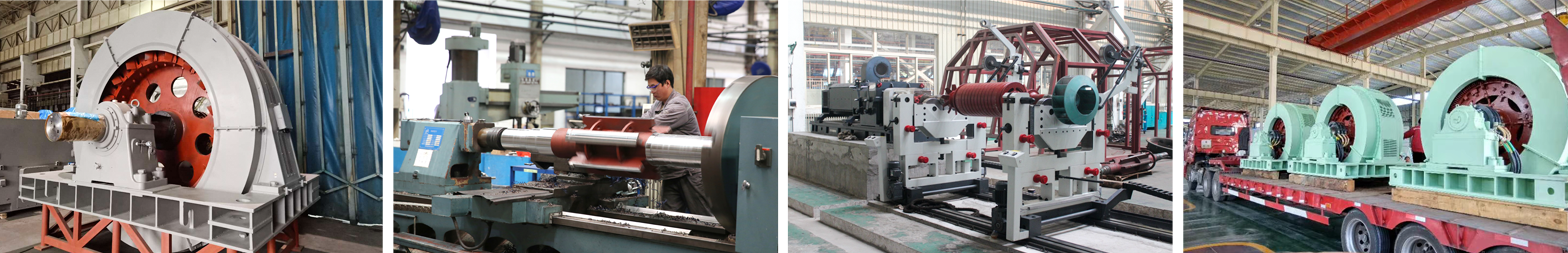

Production Process
Each unit follows a structured production sequence to maintain dimensional accuracy and electrical performance.
1. Raw material inspection — Core laminations, copper windings, and bearing housings are checked before entering production.
2. Winding and insulation — Coils are wound to specification and treated with insulation systems rated for VFD environments.
3. Assembly — Rotors and stators are assembled with precision tolerances to minimize air gap variation.
4. Bearing installation — Bearings from approved brands are installed and lubricated to load specifications.
5. Testing — Each unit undergoes electrical and mechanical performance testing before leaving the factory.
6. SAP system tracking — Production scheduling and quality records are maintained through the SAP platform.
Industry Applications
The YPKK series high voltage frequency asynchronous motor is used across heavy and process industries where variable speed control at high power is required.
· Fans — Mine ventilation, industrial HVAC, and power plant induced draft fans
· Water pumps — Municipal water supply, irrigation, and industrial cooling loops
· Compressors — Air separation, natural gas transmission, and refrigeration systems
· Crushers — Mining, cement production, and aggregate processing
· Cutting machine tools — Heavy metalworking and material processing
· Transportation machinery — Belt conveyors and material handling systems
Voltage and power ratings should be matched to the driven load. XCMOTOR's technical team can assist with motor selection based on your operating conditions.
Customization Options
XCMOTOR supports customization to fit specific project requirements:
· Voltage selection — Choose from six standard voltage levels; non-standard requirements can be discussed
· Bearing brand — Specify SKF, NSK, or FAG based on your maintenance preferences or spare parts inventory
· Dimensional adjustments — Shaft height, mounting configuration, and terminal box position can be modified per customer drawings
· Power rating — Configurable within the 200–6300 kW range to match your load profile
· Shipping — Sea freight, air freight, road transport, and multimodal options are available based on destination and timeline
To request a product recommendation, submit your project specifications and XCMOTOR will provide a targeted model and specification proposal.
Certifications
Certifications held for YPKK series motors include:
· CCC — China Compulsory Certification
· CE — European conformity
· ISO9001:2000 — International quality management system
· CRCC — Ministry of Railways certification
· CQC — China Quality Certification
· UL — North American safety certification
· GOST — Russian/CIS market certification
· ZDHY — Environmental management system certification
· China Energy Saving Production Certification
Why Work With XCMOTOR?
· Over 20 years of power equipment supply experience
· Supply relationships with 30+ manufacturers including ABB, Siemens, Wolong, and XEMC
· Certifications covering major international market requirements
· SAP-based factory management for production and quality traceability
· Genuine components from specified bearing and material suppliers
· Technical team available to support motor selection and application queries
FAQ
Q: What voltage options are available for the YPKK series?
A: Six voltage levels are supported: 3000 V, 3300 V, 6000 V, 6600 V, 10000 V, and 11000 V. Each rated voltage carries a ±5% tolerance to accommodate supply variation in real operating conditions.
Q: Is the YPKK motor compatible with variable frequency drives?
A: Yes. The series is specifically designed for VFD operation, with an insulation system evaluated under international standards for variable frequency environments.
Q: Which bearing brands are available?
A: SKF, NSK, and FAG bearings can be specified at the time of order or replaced in the field, based on your application load or existing maintenance inventory.
Q: What power range does the YPKK series cover?
A: The series spans 200 kW to 6300 kW, covering both mid-scale and large industrial drive requirements.
Q: What standards apply to the YPKK series?
A: The series complies with JB/T12730 and JB/T12729, the applicable Chinese industrial standards for high-voltage variable frequency motors.
Q: Can motor dimensions or configurations be adjusted?
A: Yes. Shaft dimensions, mounting configurations, and terminal box positions can be adjusted based on customer drawings or project specifications.
