3 Phase Induction Motor Slip Ring Manufacturer and Supplier

The 3 phase induction motor slip ring is a key element in high voltage wound rotor applications which allow for regulated starting and variable speed operation for heavy load applications. With the rising importance of specific electromechanical equipment in cement plants, mines and metallurgical plants, the choice of dependable slip ring technology directly affects the production efficiency and service life of equipment. In cases when your facility needs 24/7 continuous operation under high dust, moisture and temperature conditions, it becomes critical to understand the technical standards and the manufacturing capabilities to operational success.

Pain Points and Solutions

Your Challenge: Traditional open-type motors have slide rings that collect dust, leading to carbon build up, uneven wear, and frequent sparking resulting in unexpected downtime.

Our Solution: YRKK IP54 enclosed design with separately sealed slip ring chambers prevents external contaminants from entering critical components, reducing insulation breakdown failures by over 60%.

Your Challenge: High inrush currents during heavy-load startup strain electrical systems and reduce grid stability.

Our Solution: Wound rotor structure with external resistance control delivers high starting torque with 40-50% lower starting current compared to squirrel-cage designs.

Your Challenge: Maintenance requires complete motor shutdown and disassembly, resulting in costly production interruptions.

Our Solution: Modular slip ring design allows external access for brush replacement and carbon dust cleaning without full motor teardown, improving maintenance efficiency by 40%.

Technical Advantages of the 3 phase induction motor slip ring

Our product solutions are made up of precision manufactured components that give demonstrable performance improvements:

l IP54 high protection rating sealed structure efficiently inhibits dust particles and water splashes, prolonging component lifetime in cement, mining and chemical applications

l Air-Air Cooling System: Separate cooling channels exclude the introduction of contaminated ambient air to the stator windings and provide ideal operating temperatures in workplaces with temperatures over 45°C.

l High-quality bearing options: Standard with SKF, NSK or FAG bearings for low vibration and long service periods

l Contact Tech Optimized: Silver graphite or copper graphite brushes are used to provide a steady electrical contact for 360 degree rotation with very little wear.

l Low Noise Performance: Advanced electromagnetic design minimizes noise level in operation to below 85dB to fulfill stringent industrial environmental requirements

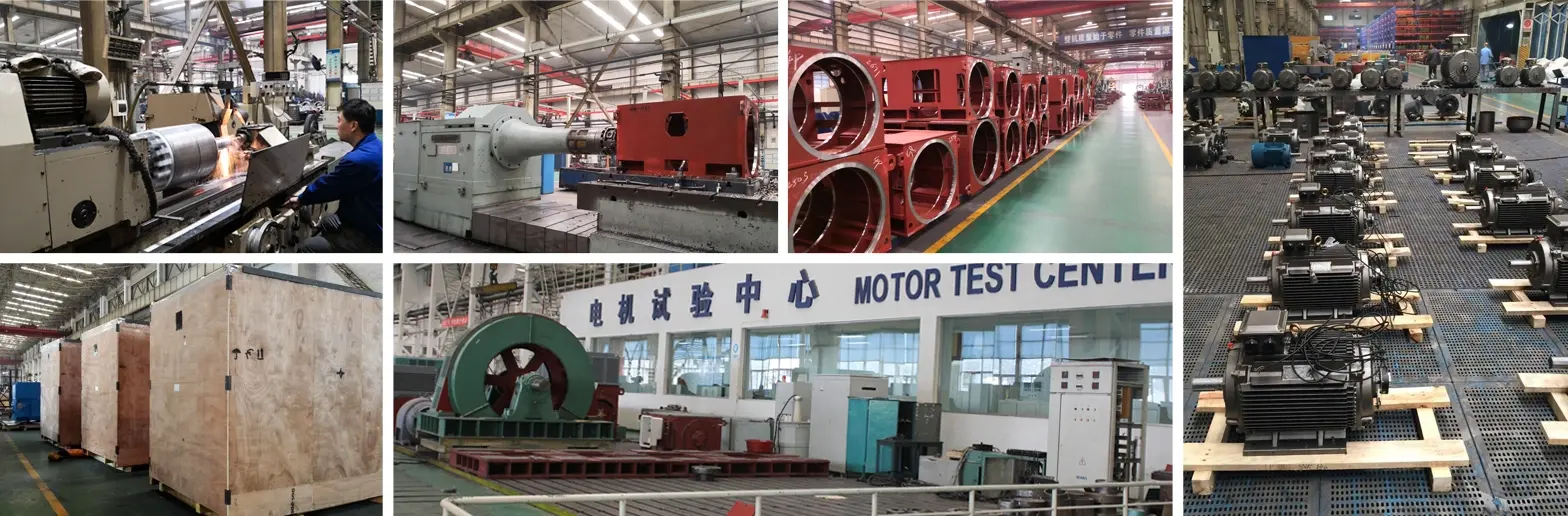

Production Process

Our manufacturing follows rigorous quality protocols backed by SAP factory management systems:

1. Material Selection: Only slip ring assemblies from certified suppliers meeting international conductivity and wear resistance standards

2. Precision Machining: CNC-controlled production ensures ring surface smoothness within 0.8μm Ra tolerance

3. Assembly & Testing: Each unit undergoes insulation resistance testing (≥1000MΩ), brush pressure calibration, and rotation balance verification

4. Quality Verification: Multiple checkpoints aligned with JB/T10314.2-2002 standards before shipment

5. Final Inspection: Full-load performance testing simulates actual operating conditions to validate torque characteristics

Industry Applications

The 3 phase induction motor slip ring technology excels in demanding sectors:

Mining Operations: Mine hoists and conveyor systems requiring reliable heavy-load starts in dusty underground conditions

Cement Production: Ball mills, vertical raw mills, and kiln drives operating continuously in high-temperature, high-dust environments

Metallurgy: Rolling mills and wire drawing machines needing precise speed control and consistent torque delivery

Power Generation: Large fans and pumps in thermal plants where smooth acceleration prevents mechanical stress

Material Handling: Port cranes and heavy-duty elevators demanding high starting torque without grid impact

Customization Capabilities

We adapt solutions to your specific operational requirements:

· Voltage Adjustment: Available in 3kV, 3.3kV, 6kV, 6.6kV, 10kV, 11kV configurations (±5% tolerance)

· Power Range: 200kW to 4500kW output options matching your load characteristics

· Dimensional Modifications: Custom mounting dimensions and shaft extensions upon request

· Bearing Upgrades: Selection from SKF, NSK, or FAG based on expected load cycles

· Climatic Adaptations: Enhanced sealing and coating for extreme humidity or corrosive atmospheres

· Control Integration: Compatible with liquid resistance cabinets or frequency converter systems

Reliability Testing & Certifications

All products undergo comprehensive validation:

· Quality Certifications: CCC, CE, ISO9001:2000, CRCC (Ministry of Railways), CQC quality management

· International Standards: UL, GOST certifications for global market compliance

· Performance Testing: Insulation resistance verification, thermal stability trials, vibration analysis

· Environmental Compliance: ZDHY environmental management system, China energy-saving production certification

These certificates are proof of our dedication to production quality and product dependability.

Why Choose XCMOTOR

20+ Years Industry Experience: Established collaborations with 30+ motor manufacturers like ABB, Siemens, Wolong and XEMC give access to quality components and technical knowledge.

Comprehensive Support: Fast answer to your technical inquiries before sales and any problems after installation, even over the weekend.

Supply Chain Strength: We have direct contacts with key manufacturers that assure the authenticity of components, competitive pricing and reduced delivery cycles.

Application Expertise: Instead of generic specs, our technical staff evaluates your real operating circumstances to provide the best motor series, voltage ratings, and protection levels.

Total Solution Approach We don’t only offer motors, we design a specific transportation strategy that fits your project’s timing and financial needs (ocean, land, air, multimodal).

Lifecycle Value: Standard components and accessible design provide predictable operating budget with 6-9% annual maintenance expenditures of purchase price.

FAQ

Q：What is YRKK IP54 air-air-cooled high voltage wound rotor motor?

A：YRKK IP54 series are enclosed box-type high voltage three-phase wound rotor aSynchronous Motors with rated voltage 6kV/10kV, equipped with independent air-to-air cooling system and IP54 protection grade, and integrated slip ring & brush assembly at rear end.

Q：Which industries benefit most from this technology?

A：Cement, mining, metallurgy, coal, and chemical industries—especially equipment requiring 24-hour continuous heavy-load operation in dusty or humid environments.

Q：What causes serious sparking on slip rings?

A：Common issues include carbon powder accumulation, unbalanced brush pressure, loose external resistance connections, moisture ingress through damaged seals, or inadequate cooling causing localized overheating.

Q：What regular maintenance does the motor require?

A：Periodically remove slip ring covers to clean carbon dust, polish ring surfaces, replace worn brushes, clean air-cooler fins, check bearing temperatures, test insulation resistance, inspect sealing strips, and verify external resistance cabinet connections.

Q：Can you modify standard specifications?

A：Yes, we adjust voltage ratings, power outputs, mounting dimensions, bearing brands, and protection levels based on your operational requirements.

Contact Us

Ready to solve your 3 phase induction motor slip ring heavy-duty motor challenges with proven slip ring technology? Our technical team will evaluate your application and recommend the optimal configuration within 24 hours.
