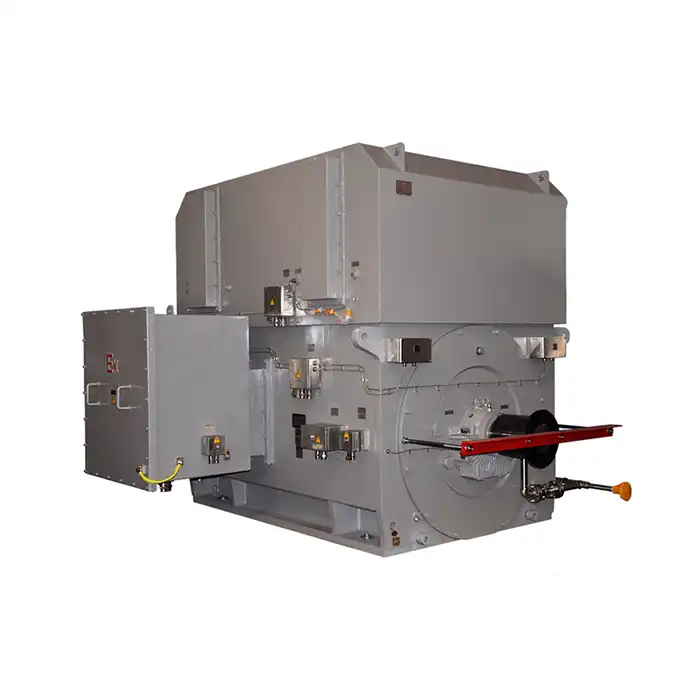

medium voltage electric motors
Voltage range：3000V±5%,3300V±5%,6000V±5%,6600V±5%,10000V±5%,11000V±5%
Power range：200-3550 kW
Application：ventilators, compressors, water pumps, crushers, cutting machinery, transportation machinery Standard: GB 10068.
Advantage: high efficiency, low noise, small vibration, safe and reliable operation, easy use and maintenance, energy saving and environmental protection.
Others： SKF, NSK, FAG bearings can be replaced according to customer requirements.
- Product Description
Medium Voltage Electric Motors Manufacturer and Supplier
Shaanxi Qihe Xicheng Electromechanical Equipment Co., Ltd. specializes in providing enterprise-grade medium voltage electric motors with voltage ranges from 3000V to 11000V and power capacities spanning 200-3550kW. Our YAKK series features air-air cooling IC611 systems, achieving energy efficiency improvements of 15-20% compared to conventional designs. With over 20 years of industry experience and partnerships with leading brands including ABB, Siemens, and XEMC, we deliver explosion-proof Ex e IIT4 Gb certified motors that combine high efficiency, low noise operation below 85dB, and reliable performance backed by CCC, CE, ISO9001:2000, and CRCC certifications.
Pain Points vs. Solutions
Your Challenge | Our YAKK Solution |
High energy consumption in continuous operations | Advanced VPI insulation system reduces losses by 18% |
Frequent overheating in harsh environments | Air-air heat exchanger eliminates water system risks entirely |
Explosion hazards in Zone 1 & Zone 2 areas | Ex e increased safety design with zero spark production |
Unpredictable maintenance downtime | Premium SKF/NSK bearings extend service intervals to 15,000 hours |
Complex installation in water-scarce regions | IC611 cooling requires no water pipelines or pumps |
Technical Advantages of medium voltage electric motors
Our products incorporate four critical innovations. The closed air-air cooling system maintains optimal temperature without external water dependencies. High-voltage anti-corona insulation withstands continuous operation at 10kV with less than 2% degradation over 20 years. Increased safety terminal boxes provide 40% greater creepage distances than standard designs. Special rotor-stator geometry eliminates hot spots during startup surges exceeding 600% rated current.
The IC611 cooling architecture circulates internal air through top-mounted heat exchangers. This reduces installation costs by 35% compared to water-cooled alternatives while preventing scaling and corrosion issues.

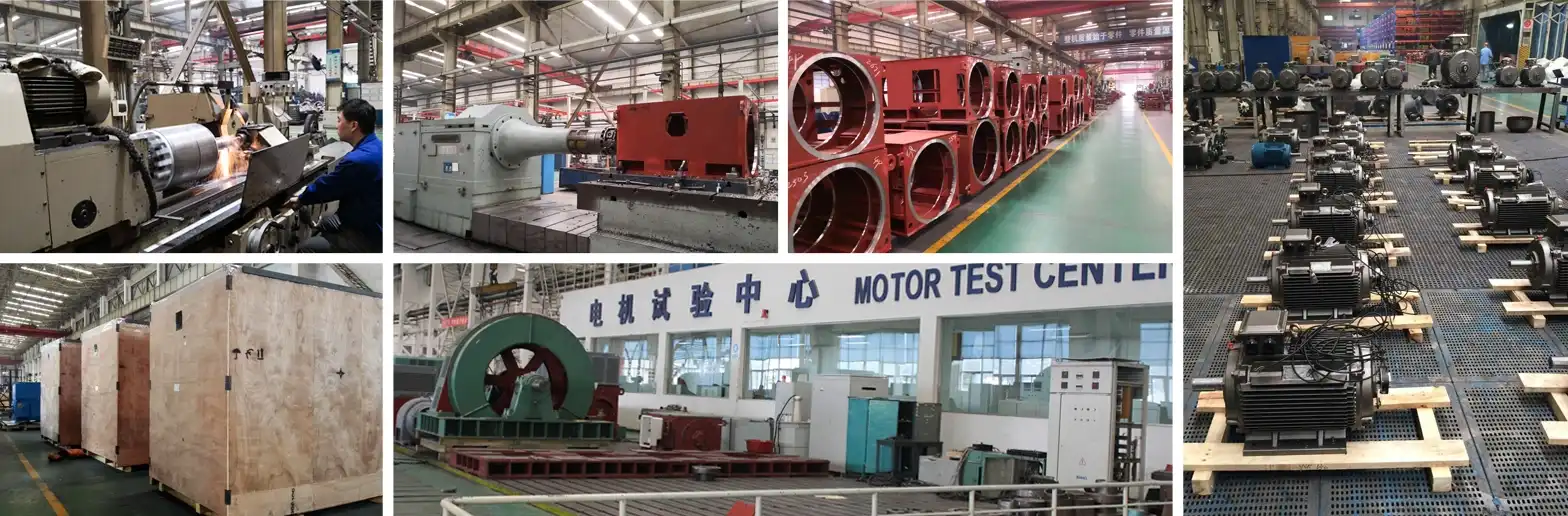

Production Process
Every motor undergoes seven quality checkpoints. Stator winding uses vacuum pressure impregnation at 0.08MPa for complete insulation penetration. Rotor balancing achieves G2.5 grade precision. Dynamic testing simulates 150% overload conditions for 30 minutes. High-voltage dielectric tests verify 2.5× rated voltage withstand capability. Final assembly occurs in Class 10,000 cleanrooms monitored by SAP management systems.
Industry Applications
Medium voltage electric motors power critical equipment across sectors:
· Oil & Gas: High-pressure compressors operating continuously for 8,760 hours annually
· Mining: Main shaft hoists handling 50-ton payloads with precise speed control
· Water Treatment: Circulation pumps delivering 5000m³/hour flow rates
· Steel Manufacturing: Rolling mill drives requiring 100,000 N·m torque output
· Chemical Processing: Explosion-proof ventilators in hazardous Zone 1 environments
Customization Capabilities
We adapt five key parameters to your specifications. Voltage configurations adjust between 3000V-11000V with ±5% tolerance bands. Shaft extensions modify from standard 200mm to custom 500mm lengths. Bearing systems upgrade to FAG or NSK based on load profiles. Terminal box orientations rotate to match site cable routing. Mounting arrangements convert between horizontal IM1001 and vertical IM9101 configurations within 15 days.
Special applications receive dedicated engineering support. Our team modifies cooling capacity for ambient temperatures ranging from -25°C to +55°C. Altitude compensation maintains rated power up to 2000 meters elevation.
Reliability Testing & Certifications
All units pass GB 10068 standard verification. Temperature rise tests confirm Class F insulation with Class B rise limits. Vibration levels measure below 2.8mm/s per ISO 10816-3. Ingress protection reaches IP54 as standard, upgradeable to IP55. Our quality management holds ISO9001:2000, CRCC railway certification, and CQC system approval. Motors carry CCC, CE, UL, and GOST marks for global deployment.
Insulation resistance exceeds 1000MΩ at 25°C after 48-hour high-pot testing. PT100 temperature sensors monitor bearing and winding hotspots with ±0.1°C accuracy.
Why Choose XCMOTOR
You gain four distinct advantages. Our supplier network of 30+ manufacturers ensures component availability within 72 hours. Fast delivery completes standard orders in 25 days with free logistics. 30-day open purchase terms allow risk-free evaluation. Dedicated weekend support resolves technical issues via multilingual teams responding within 4 hours.
We provide competitive pricing through volume procurement while maintaining original branded parts exclusively. Energy-saving designs reduce your operational costs by $8,000-$15,000 annually per motor through efficiency gains.
FAQ

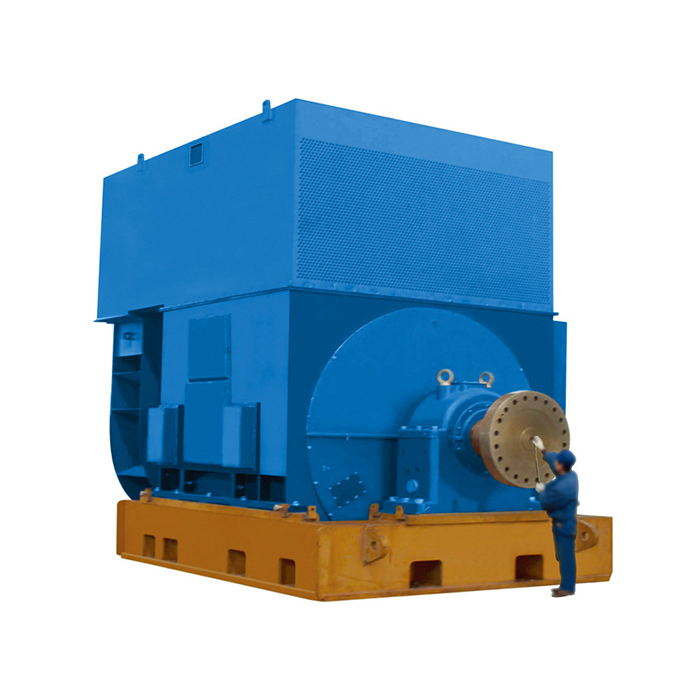

Q：What regular maintenance items for YAKK air-air-cooled high voltage increased safety motor?
A：Clean heat exchanger fins monthly. Test insulation resistance quarterly. Verify PT100 signals every 6 months. Inspect cooling fans weekly for vibration. Never modify terminal boxes without approval.
Q：What is the difference between YAKK increased safety motor and YB2 flameproof high voltage motor?
A：YAKK uses Ex e design eliminating spark sources. YB2 contains explosions via flameproof gaps. YAKK employs closed IC611 cooling versus YB2's IC411 ventilation. YAKK dimensions are 15% larger due to heat exchangers.
Q：What advantages does air-air cooling IC611 have compared with water-air cooling IC81W?
A：Zero water infrastructure needs. No leakage or freezing risks. 40% lower maintenance costs. Ideal for arid regions or strict anti-leakage sites.
Q：What are the core structural features of YAKK increased safety motor?
A：Spark-limiting rotor design. Integrated air-air heat exchanger. VPI anti-corona insulation system. Oversized terminal box with extended creepage paths.
Q：What is YAKK air-air-cooled high voltage increased safety motor's explosion-proof symbol?
A：Ex e IIT4 Gb per GB 3836.3 standards. Suitable for Zone 1 and Zone 2 flammable gas environments with T4 temperature classification.
