How to Choose the Best 5 hp Three Phase Induction Motor for Your Needs
Understanding your operating needs, efficiency standards, and equipment integration are key to choosing the proper 5hp 3 phase induction motor. Energy costs, productivity, and dependability are affected by the choice. Well-selected three-phase induction motors deliver consistent torque, operate efficiently in demanding environments, and reduce maintenance. This book covers technical requirements and procurement tactics to help you make an educated investment that supports your industrial or commercial activities for years.

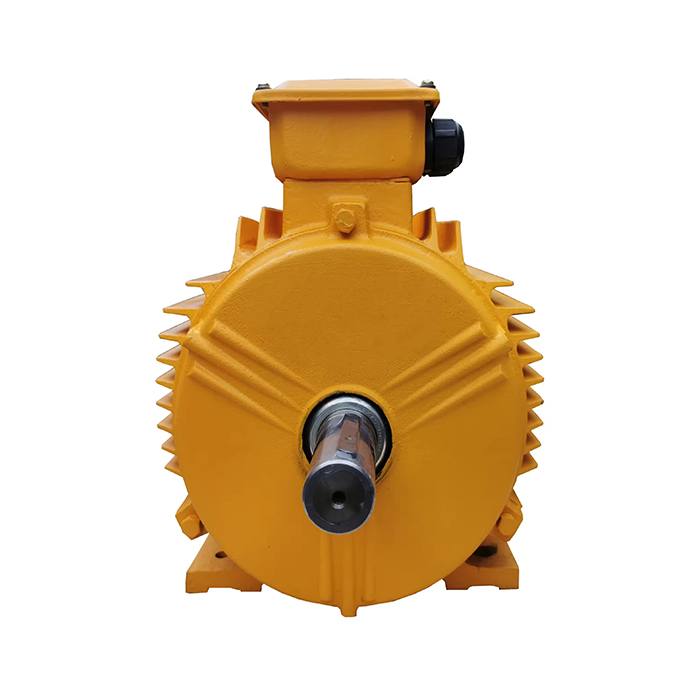

Series：YE5
Frame number: 80-450
Power range：
Protection level：IP55
Energy efficiency class: IE5
Voltage range: 380V,400V,415V, 660V，etc.
Application:can be used in various fields of the national economy, such as machine tools,water pumps,fans,compressors,and can also be used in transportation, mixing, printing, agricultural machinery, food and other occasions that do not contain flammable, explosive or corrosive gases.
Certificate: international standard IEC60034-30 "Efficiency Classification of Single-speed Three-Phase Squirrel Cage Induction Motors".
Advantage:The high quality of the electric motor guarantees high operational reliability.
Others: SKF, NSK, FAG bearings can be replaced according to customer requirements.
Understanding the Fundamentals of a 5 HP Three Phase Induction Motor
What Defines a Three Phase Induction Motor?
A 5hp 3 phase induction motor turns electricity into mechanical power through electromagnetic induction. When the motor is hooked up to a three-phase power source, the stator creates a spinning magnetic field that lets the rotor carry electricity. Torque is made by this exchange, which turns the rotor and drives gear that is connected to it. There is a better power factor for three-phase motors compared to single-phase motors. They also work more easily. That is why they are great for heavy-duty use in industry, HVAC systems, and process control.
This motor has 5 horsepower, which is about 3.7 kilowatts. It can run fans, pumps, compressors, and lifts, among other things. Frame sizes range from 80 to 450 pixels, and IP55 protection keeps water and dust out. These motors can handle values of 380V, 400V, 415V, and 660V, which means they can be used with a number of different industrial power lines.
Core Operating Mechanics and Performance Metrics
The rotor of a 5hp 3 phase induction motor spins a little more slowly than the stator's magnetic field. This is called asynchronous speed. We need torque to move things, and this slip makes it. The torque-speed curve of the motor shows its breakdown torque, starting torque, and pull-up torque. For jobs that need a lot of starting force or extra space, these numbers are very important.
Very important are metrics for how well something works. These days' motors are as efficient as IEC60034-30 says they should be, which means they waste less energy and cost less to run. The more electricity that premium efficiency motors turn into useful mechanical work, the less heat they make and the longer they last. Coatings made of high-quality silicon steel and copper make the transmission better, and the loss of eddy current is lessened.
Industrial Applications and Advantages Over Single-Phase Alternatives
In many fields, like transportation, farming, manufacturing, HVAC, water treatment, and food processing, 5hp 3 phase induction motors work well. They keep drills, mixing tools, printing presses, and farm machinery running in places where there are no gases that could catch fire or blow up. Precision die-cast frames and cutting-edge winding technology make them strong so they will work reliably even in rough conditions.
Three-phase motors are easy to start, have more power, and run more quietly than single-phase motors. They work better and don't need as much maintenance because they don't need batteries or rotating gears. The balanced three-phase supply also keeps movements to a minimum. This keeps industrial settings quieter and makes bearings last longer.
Key Criteria for Choosing the Best 5 HP Three Phase Induction Motor
Defining Your Operational Requirements
First, take a close look at the load curve for your application to find the best 5hp 3 phase induction motor. Check to see if the load changes or stays the same and if the motor needs a lot of power to start. Motors and pumps often need a lot of power to start up, but fans and elevators can work with less. When you know these things about the motor, you can better match its specs to how it needs to work in real life.
Environmental factors matter. The engine you pick depends on temperature, humidity, altitude, and pollution. The IP55 rating prevents dust and water jets, making it suitable for most businesses. Electric motors with class F insulation may spin at greater temperatures. This makes them live longer in hot or airless locations. If the motor will be positioned near corrosive chemicals, vibration sources, or high temperatures, it may require special characteristics.
Evaluating Efficiency Ratings and Starting Methods
How much energy is used has a direct effect on how much it costs to own. Motors with an IE5 rating use less power than motors with an IE4 rating, an IE3 rating, or older standard ratings. About 97% of the costs that come up over the life of a motor are for electricity, while only 1% to 2% are for the purchase itself. If you use a 5hp 3 phase induction motor for more than eight hours a day, it will generally pay for itself in four years because it uses less power.
How you start a motor changes how much power it takes and how long it lasts. Direct-on-line starting works best when there is no trouble with inrush current. Setting up a star-delta or soft-start, on the other hand, lowers the initial current need and mechanical stress. Find out how much electricity your building can handle and how sensitive it is to load. This is the best place to start. This way, the integration will go well, and the voltage won't drop or the breakers will trip.
Compatibility and Frame Size Considerations
Based on the frame size, the mounting sizes and shaft specs are given. There are different ways to place motors with frames that range from 80 to 450, and they can be connected in different ways. Making upgrades is easier and cheaper when mounting bases and drive systems don't need to be changed. This is because compatible equipment works with existing equipment. To make sure the shaft works with your machine, check that its diameter, height, and keyway dimensions are all the same.
The wiring has to match how the power is spread out in your building. The phases must be in the right order for 5hp 3 phase induction motors to turn in the right direction. It can work with voltages of 380V, 400V, 415V, or 660V, so it can be used anywhere in the world and with any power standard. By making sure of these details again before you buy, you can avoid installation delays and make sure the launch goes without a hitch.
Making Informed Procurement Decisions for 5 HP Three Phase Induction Motors
Sourcing Strategies: Direct Manufacturer Engagement Versus Marketplaces
People who work in procurement can use online industrial markets or talk to manufacturers directly. When you deal directly with manufacturers, you can make changes, get technical support, and save money by buying in bulk. When it comes to bearings, suppliers like XCMOTOR can change the types (like SKF, NSK, or FAG) to fit the needs of each application. This makes them useful when standard catalogue items don't meet certain operational needs.
Each item costs less when you buy in bulk, and it's easier to move the goods around. This is especially helpful for places that are in charge of a lot of setups or planned equipment upgrades. Managing wait times is very important when production plans depend on getting motors on time. It is less likely that your business will be shut down because of late shipments or problems in the supply chain if you work with suppliers you can trust at all times.
Total Cost of Ownership Analysis
If you merely consider the price of a 5hp 3 phase induction motor, you fail to consider its long-term cost. Total cost of ownership includes expected service life, energy use, and maintenance. High-efficiency motors consume 2–5% less energy. Repeating this may save you a lot of money. To understand how much money high efficiency saves, calculate its annual energy cost based on hours worked, load factor, and local power prices.
The motor's maintenance cost depends on its usage and performance. Precision die-cast motor frames, vacuum-impregnated windings, and dynamically adjustable blades save maintenance. Less frequent repairs save labour costs and minimise work stops. By considering these factors, you can fairly compare motor options and choose the long-term solution that saves the most money.
Supplier Reliability and After-Sales Support
The fact that the 5hp 3 phase induction motor comes with a warranty shows that the company that made it is sure of its quality. Sources you can trust offer full warranties that cover problems with both the work and the products for at least three years. After the sale, help is just as important as the promise time. When processes go wrong, they can be fixed quickly with expert help, replacement parts, and service networks.
Facilities that are always open can rest easy knowing that they have support teams that work every day, even on the weekends. Commissioning, troubleshooting, and upgrades go more smoothly when suppliers care about how well their customers do. You can find partners who will always provide value after the sale by looking at how well they've done in the past, their certifications (like ISO 9001:2015), and customer reviews.
Maintenance Tips and Fault Diagnosis to Prolong Motor Life
Routine Maintenance Protocols
Planning helps motors live longer and function better. Dust and other obstructions that block airflow and heat up are typically removed during cleaning. Check air openings, fan covers and cooling fins monthly for clogs. This optimises airflow. Grease timing depends on bearing type. Motors with sealed bearings seldom require maintenance. However, motors with re-greasable bearings should be oiled regularly with manufacturer-recommended grades.
Check electrical connections for tightness regularly. A megohmmeter should test insulation resistance and verify the 5hp 3 phase induction motor and driven equipment's location. Out-of-line bearings wear quicker and cause friction. The couplings show indicators of wear and corrosion, so they may be changed before they harm the motor. Maintenance job logs help you identify patterns and plan future maintenance.
Common Faults and Troubleshooting Techniques
Overheating is a common motor issue. Insufficient airflow, load, or electricity may cause it. Heat issues may be detected early by checking winding resistance and bearing temperature. Eliminating airflow blockers or adjusting phase voltages may prevent difficulties. This prevents premature breakdown. Thermal imaging techniques detect temperatures without harming anything and locate hot areas before they worsen.
Too much shaking indicates damaged bearings, an unbalanced rotor, or a bad location. Researchers use vibration intensity and frequency tools to diagnose problems. Realigning, changing bearings, and correcting the disc may cure the issue. A failed bearing might generate varied noises and shift the 5hp 3 phase induction motor shaft. Replace your bearings with SKF, NSK, or FAG on time to restore machine performance and prevent shaft or housing damage.
Balancing DIY Maintenance with Professional Service
The correct equipment make cleaning, eye examinations, and measurements easier for in-house maintenance personnel. If you need to re-insulate the windings, balance the rotor, or test the 5hp 3 phase induction motor's electricity, employ an expert. You might damage yourself or make things worse by fixing complex items without training. Professional experts can do complex repairs and overhauls when you hire a trustworthy service provider.
Repair or replacement depends on cost. Rewinding a broken motor is less safe and efficient than installing a new high-efficiency unit. Lifecycle cost analyses usually recommend replacing something, particularly if the new 5hp 3 phase induction motors save enough energy to pay for themselves in a few years. Professionals weigh short-term and long-term costs and benefits to help people choose the best action.
Advantages of Choosing an Energy-Efficient 5 HP Three Phase Induction Motor
Economic and Environmental Benefits
Motors that are energy-efficient use less electricity to make the same amount of power, which cuts costs. Older ones that aren't as efficient cost a lot more than a 5hp 3 phase induction motor that is listed as IE5 efficient. Over a normal working life of more than ten years, the energy savings are more than what the eco-friendly technology costs. Facilities that keep motors running all the time usually get their extra money back in three to four years, which is faster than other facilities.
Motors that use less energy not only save businesses money, but they also help the environment by cutting down on carbon emissions. It is in line with government rules and stakeholder expectations that using less electricity has a direct effect on having less of an effect on the environment. When businesses try to get green licenses or reporting systems, they use less energy. This makes their brand look better and puts them ahead of the competition.
Performance Comparisons and Real-World ROI
Older motors use more energy than IE5 motors. Exact manufacturing, high-quality silicon steel laminations, and the best winding configurations minimise hysteresis, eddy current, and resistance losses. The 5hp 3 phase induction motors consume less energy due to these improvements, but all of them do. Energy savings and longer maintenance intervals indicate investment success. Case studies from factories and water treatment demonstrate this.
Because of their reliability, premium-efficiency motors have less unplanned downtime. The durable design withstands water, grime, and muscle tension. It features dynamically balanced blades and vacuum pressure impregnation. Insulation lasts longer at low temperatures. You'll save money by replacing or restarting the 5hp 3 phase induction motor less frequently. Since the equipment is more reliable, it can be used more often, allowing work goals and customer promises to be met.
Regulatory Trends and Market Drivers
Low-efficiency motors are being moved out by governments around the world that have set base standards for how well they work. There are IEC60034-30 classes that help you buy 5hp 3 phase induction motors in the IE3, IE4, and IE5 tiers, and rules are changing in a way that makes things even more efficient. You can avoid fines and keep your goods from going out of date by staying on top of legal requirements. Companies that use new motor technologies early on will be seen as leaders in their fields because they are open to new ideas and care about the environment.
More and more people are buying motor systems that are built in and have smart controls, condition tracking, and frequency drives that can be changed. Motors work better with these technologies because they change speed and power based on the load at any given time. An extra 5hp 3 phase induction motor can be added to smart systems to make them even more useful and allow predictive maintenance. Keeping up with these trends saves investments for the future and makes operations more flexible in fields that are always changing.
Conclusion
If you want to find the best 5hp 3 phase induction motor, you should look at its technical specs, how efficient it is, and how reliable the seller is. To make sure something works well and lasts a long time, you should know what the working needs are, figure out the total cost of ownership, and use preventative maintenance plans. Cars and trucks that use less fuel are better for the environment and the budget. During their whole life, they lower costs and help reach environmental goals. Buying things is easier and things run more quickly when you work with dependable manufacturers who offer tailoring, expert support, and quick service. Today, smart decisions have led to reliable, low-cost power options that help many types of businesses make more money and increase output.
FAQ
1. Can a 5hp 3 phase induction motor replace a single-phase motor?
You need to make sure that your building has three-phase power before you can switch out a single-phase motor for a 5hp 3 phase induction motor. Three-phase motors are better upgrades because they work better, last longer, and use less energy. The shaft specs and mounting sizes must match what is already there. They can help you get the best speed gains and make sure that everything works together.
2. How do I select the correct frame size for my application?
How big the fastening area and shaft are depend on the size of the frame. See how the 5hp 3 phase induction motor dimensions match up with the fitting base on your gear by looking at the motor's dimensions. There are a lot of different ways to install motors with frames that range from 80 to 450. Being able to use current couplings, belts, or direct-drive setups makes upgrading easier and saves you money by avoiding having to make big changes.
3. What warranty terms should I expect from reputable suppliers?
Most companies that make good motors back them up with warranties that cover problems with the parts or the work for one to three years. You trust the product to last if you offer full guarantees. Support after the sale, like expert help and easy access to spare parts, keeps the 5hp 3 phase induction motor reliable over the long run. It's important to think about the supplier's reputation and service promise before you buy something.
Partner with XCMOTOR for Reliable Motor Solutions
Shaanxi Qihe Xicheng Electromechanical Equipment Co., Ltd. knows how to help you find the right power equipment for your business. Our 5hp 3 phase induction motors are IE5 efficient and made to last. You can protect them with IP55 and they are very strong, so they work well in farming, industry, HVAC, and water treatment. We are a reputable company that makes and sells motors. We offer different power choices that can be adjusted to fit your needs. We also provide high-quality bearings from SKF, NSK, or FAG and full support for the entire motor's life. Shipping is quick, you have 30 days to return items, and you can get expert help every day. You can get specific technical help for your next project by emailing us at xcmotors@163.com to look at our carefully chosen selection of high-efficiency motors for sale and receive personalized technical guidance for your next project.
