ye3 160m 4
Frame number: 80-450
Power range：0.75-1000kW
Protection level：IP55
Energy efficiency class: IE3
Voltage range: 380V,400V,415V,660V， etc.
Application:can be used in various fields of the national economy, such as machine tools,water pumps,fans,compressors,and can also be used in transportation, mixing, printing, agricultural machinery, food and other occasions that do not contain flammable, explosive or corrosive gases.
Certificate: international standard IEC60034-30 "Efficiency Classification of Single-speed Three-Phase Squirrel Cage Induction Motors".
Advantage:The high quality of the electric motor guarantees high operational reliability.
Others: SKF, NSK, FAG bearings can be replaced according to customer requirements.
- Product Description
YE3 160M 4 Three-Phase Induction Motor — IE3 Efficiency for Industrial Drive Applications
The YE3 160M 4 is a three-phase squirrel cage induction motor built to the IE3 (China Grade 1) energy efficiency standard defined in IEC60034-30. Configured with a 160M frame and 4-pole design, it delivers stable output across a broad range of general industrial drive applications. Rated voltages include 380V, 400V, 415V, and 660V. The motor carries IP55 protection, making it suitable for dusty and moderately wet operating environments where standard IP44 motors may perform poorly.
Manufacturer and Supplier
Shaanxi Qihe Xicheng Electromechanical Equipment Co., Ltd. (XCMOTOR) is a power equipment supplier with long-term cooperative relationships with multiple motor manufacturers, including ABB, Siemens, Wolong, NEC, SIMO, PINXING, XEMC, and CHANGSHA. The company uses an SAP-based factory management system and works with a dedicated R&D team to support product selection and technical requirements.
Products supplied by XCMOTOR are backed by certifications including CCC, CE, ISO9001, CRCC, CQC, UL, and GOST, covering compliance requirements for China, European, North American, and Russian markets.
Replacing Older Y-Series Motors
Many facilities still operate on Y-series or Y2-series motors that consume more electricity and require more frequent maintenance. The product addresses these issues in practical ways:
Challenge | How the YE3 160M 4 Addresses It |
Higher energy consumption | IE3 efficiency class reduces losses compared to Y-series motors |
Overheating under continuous load | High-temperature insulation combined with an improved cooling structure |
Mounting incompatibility during upgrades | Dimensional compatibility with Y and Y2 series — no base modification needed |
Vibration and mechanical stress | High-strength cast iron frame with resistance to impact and vibration |
The 160M frame in 4-pole configuration is rated at 11 kW, a common size for pumps, fans, compressors, and conveyor drives where efficiency improvements have a direct effect on operating costs.
Technical Advantages
The product uses upgraded materials and manufacturing processes that improve on the Y and Y2 generations in several measurable areas.
Energy Efficiency: Meets IE3 / China Grade 1 classification per IEC60034-30. The IE3 standard requires lower electrical losses than the IE2 (Y2-series equivalent) class, which translates to reduced electricity consumption in continuous-duty applications.
Insulation System: Stator windings use Class F insulation materials together with an improved cooling structure, reducing the risk of thermal degradation under sustained load.
Frame Construction: The high-strength cast iron frame provides mechanical rigidity and resistance to vibration, suited to production environments with high-frequency load changes or external mechanical stress.
Bearing Options: SKF, NSK, or FAG bearings can be specified based on your maintenance schedules and spare parts sourcing requirements.
Key Technical Specifications
Parameter | Value |
Series | YE3 |
Frame | 160M |
Poles | 4 |
Rated Power (this model) | 11 kW |
Series Power Range | 0.75 – 1000 kW |
Series Frame Range | 80 – 450 |
Voltage Options | 380V / 400V / 415V / 660V |
Protection Level | IP55 |
Efficiency Class | IE3 (China Grade 1) |
Insulation Class | F |
Applicable Standard | IEC60034-30 |
Certifications | CCC, CE, ISO9001, CRCC, CQC, UL, GOST |
Bearing Options | SKF / NSK / FAG |
YE3 160M 4 Three-Phase Induction Motor — IE3 Efficiency for Industrial Drive Applications
The YE3 160M 4 is a three-phase squirrel cage induction motor built to the IE3 (China Grade 1) energy efficiency standard defined in IEC60034-30. Configured with a 160M frame and 4-pole design, it delivers stable output across a broad range of general industrial drive applications. Rated voltages include 380V, 400V, 415V, and 660V. The motor carries IP55 protection, making it suitable for dusty and moderately wet operating environments where standard IP44 motors may perform poorly.
Manufacturer and Supplier
Shaanxi Qihe Xicheng Electromechanical Equipment Co., Ltd. (XCMOTOR) is a power equipment supplier with long-term cooperative relationships with multiple motor manufacturers, including ABB, Siemens, Wolong, NEC, SIMO, PINXING, XEMC, and CHANGSHA. The company uses an SAP-based factory management system and works with a dedicated R&D team to support product selection and technical requirements.
Products supplied by XCMOTOR are backed by certifications including CCC, CE, ISO9001, CRCC, CQC, UL, and GOST, covering compliance requirements for China, European, North American, and Russian markets.
Replacing Older Y-Series Motors
Many facilities still operate on Y-series or Y2-series motors that consume more electricity and require more frequent maintenance. The product addresses these issues in practical ways:
Challenge | How the YE3 160M 4 Addresses It |
Higher energy consumption | IE3 efficiency class reduces losses compared to Y-series motors |
Overheating under continuous load | High-temperature insulation combined with an improved cooling structure |
Mounting incompatibility during upgrades | Dimensional compatibility with Y and Y2 series — no base modification needed |
Vibration and mechanical stress | High-strength cast iron frame with resistance to impact and vibration |
The 160M frame in 4-pole configuration is rated at 11 kW, a common size for pumps, fans, compressors, and conveyor drives where efficiency improvements have a direct effect on operating costs.
Technical Advantages
The product uses upgraded materials and manufacturing processes that improve on the Y and Y2 generations in several measurable areas.
Energy Efficiency: Meets IE3 / China Grade 1 classification per IEC60034-30. The IE3 standard requires lower electrical losses than the IE2 (Y2-series equivalent) class, which translates to reduced electricity consumption in continuous-duty applications.
Insulation System: Stator windings use Class F insulation materials together with an improved cooling structure, reducing the risk of thermal degradation under sustained load.
Frame Construction: The high-strength cast iron frame provides mechanical rigidity and resistance to vibration, suited to production environments with high-frequency load changes or external mechanical stress.
Bearing Options: SKF, NSK, or FAG bearings can be specified based on your maintenance schedules and spare parts sourcing requirements.
Key Technical Specifications
Parameter | Value |
Series | YE3 |
Frame | 160M |
Poles | 4 |
Rated Power (this model) | 11 kW |
Series Power Range | 0.75 – 1000 kW |
Series Frame Range | 80 – 450 |
Voltage Options | 380V / 400V / 415V / 660V |
Protection Level | IP55 |
Efficiency Class | IE3 (China Grade 1) |
Insulation Class | F |
Applicable Standard | IEC60034-30 |
Certifications | CCC, CE, ISO9001, CRCC, CQC, UL, GOST |
Bearing Options | SKF / NSK / FAG |

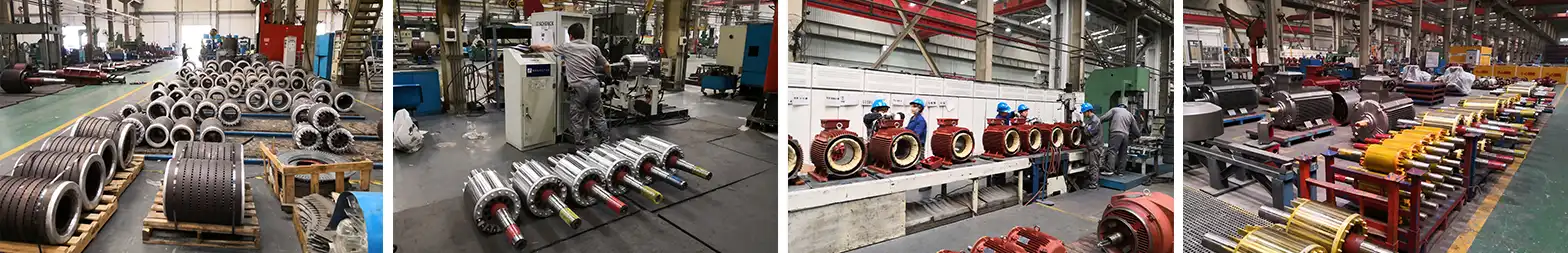

Manufacturing and Quality Process
XCMOTOR’s supply chain is driven by a manufacturer group with factory management based on SAP and an active R&D team. YE3 series motors process control contains winding, insulation treatment, frame casting and final assembly.
The stator windings are made from insulated wire and are vacuum pressure impregnated to withstand the operating temperature. Machined cast iron frame to dimensional tolerances that preserve mounting compatibility with Y and Y2 series equipment bases.
Each motor is tested before shipment to check electrical performance, vibration levels and noise output to specification.
Industry Applications
The YE3 160M 4 is designed for general-purpose industrial drive use across multiple sectors:
· Machine Tools — Consistent torque output for milling, turning, and drilling machines
· Water Pumps — Stable 4-pole speed characteristics for centrifugal pump drives
· Fans and Ventilation — IE3 efficiency reduces long-term energy costs in continuous fan operation
· Compressors — Consistent power delivery under variable load conditions
· Conveyors and Mixers — Handles continuous-duty cycles without thermal overload
· Printing, Food Processing, Agricultural Machinery — Suitable for environments free of flammable, explosive, or corrosive gases
The IP55 rating ensures reliable performance in dusty or wet industrial settings where lower-rated motors may fail prematurely.
Customization Options
Standard specifications do not always match every project requirement. Based on your application details, XCMOTOR can:
· Adjust relevant product dimensions to fit specific mounting configurations
· Recommend a suitable series, frame, and model based on load profile and duty cycle
· Specify bearing brand (SKF, NSK, or FAG) according to your maintenance preferences
· Arrange logistics including sea freight, land transport, air freight, or multimodal options to match your delivery schedule and budget
Certifications
All YE3 series motors supplied by XCMOTOR carry the following certifications:
· CCC and CE — Safety compliance for China and European markets
· ISO9001 — International quality management system
· CRCC — Ministry of Railways certification
· CQC — Quality certification
· UL and GOST — North American and Russian market compliance
· IEC60034-30 — International efficiency classification standard applicable to the YE3 series
FAQ
Q: What is the rated power of the product?
A: The 160M frame in 4-pole configuration is rated at 11 kW. The full YE3 series covers 0.75 kW to 1000 kW across frame sizes 80 to 450, so other outputs are available if your application requires a different rating.
Q: Can the product directly replace an existing Y-series motor?
A: Yes. The YE3 series shares mounting dimensions with Y and Y2 series motors. No modification to the equipment base is required for a direct replacement.
Q: What voltage options are supported?
A: The motor is available in 380V, 400V, 415V, and 660V to match different power supply standards across markets.
Q: Which bearing brands can be specified?
A: SKF, NSK, or FAG bearings are available depending on your maintenance requirements and local parts availability.
Q: What certifications does the product carry?
A: The motor meets IEC60034-30 IE3 efficiency requirements and is supported by CCC, CE, ISO9001, CQC, UL, and GOST certifications.
Q: Does XCMOTOR offer customized shipping arrangements?
A: Yes. XCMOTOR can arrange sea freight, air freight, land transport, and multimodal logistics based on your project timeline and destination.
Contact Us
Send your inquiry about the YE3 160M 4 or other motor requirements to xcmotors@163.com. Our team will respond with product details, availability, and pricing.
