YBX5 Explosion-Proof Motor Protection Grades Explained
In businesses where unstable environments are a consistent concern, choosing the right engine can be the distinction between smooth operations and potential catastrophe. The ybx5 explosion-proof motor arrangement stands out as a dependable arrangement for these challenging situations. But what precisely makes these engines "explosion-proof," and how can you guarantee you're selecting the right assurance review for your particular needs? Let's plunge into the world of explosion-proof engine security and disentangle the complexities encompassing the YBX5 series.

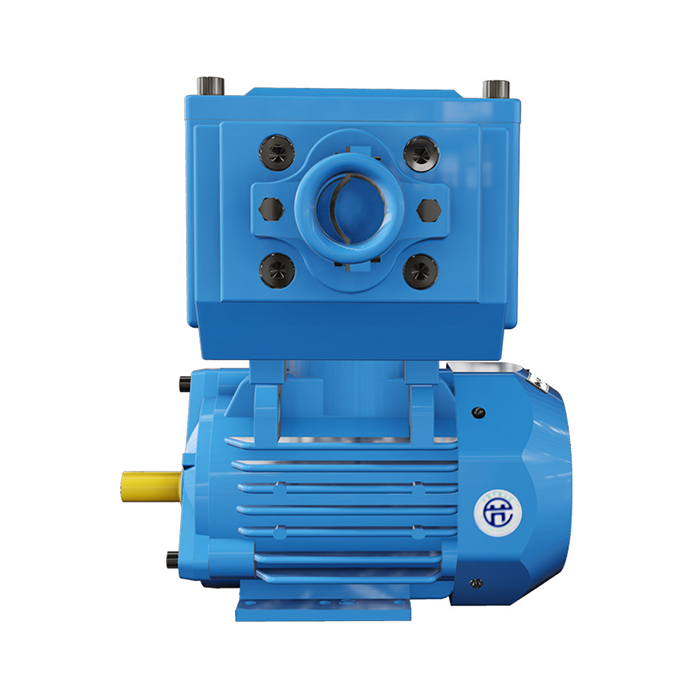

Series：YBX5
Voltage range：380V，660V，415V，380/660V，660/1140V
Power range：0.55-630 kW
Application：places where explosive gas mixtures exist in petroleum, chemical, mining, metallurgy, electric power, machinery and other industries.
Advantage: fully enclosed, self-fan cooling, squirrel cage type, high efficiency.
Explosion-proof mark: Ex d I Mb, Ex d IIB T4 Gb, Ex d IIC T4 Gb
Others： SKF, NSK, FAG bearings can be replaced according to customer requirements.
Decoding the IP Rating: What Does Ingress Protection Mean for YBX5 Motor Durability?
When it comes to explosion-proof engines, understanding the Entrance Assurance (IP) rating is vital. This two-digit code gives imperative data on a motor's capacity to withstand natural challenges, directly affecting its durability and reasonableness for particular applications.
Breaking Down the IP Code
The IP rating comprises two numbers. The first digit (extending from 0 to 6) shows security against strong particles, whereas the moment (extending from 0 to 8) speaks to assurance against fluids. For example, an IP66 rating implies the engine is dust-tight and secured against capable water jets.
YBX5 Motors and IP Ratings
YBX5 explosion-proof motors typically boast high IP ratings, often IP55 or IP56. This means they're protected against dust ingress and can withstand water jets, making them suitable for harsh industrial environments where dust and moisture are prevalent.
The Impact on Motor Longevity
A tall IP rating interprets to way better assurance against natural components that can compromise engine execution and life expectancy. By avoiding tidy and dampness from entering the engine compartment, YBX5 engines can keep up their effectiveness and unwavering quality over amplified periods, indeed in challenging conditions.
Choosing the Right IP Rating
When selecting a YBX5 engine, consider the particular natural challenges of your application. Whereas a higher IP rating for the most part offers way better security, it may moreover come with expanded taken a toll. Adjusting assurance needs with budget imperatives is key to making an educated decision.
A Detailed Guide to ATEX and IECEx Zone Classifications for Hazardous Areas
Understanding ATEX and IECEx zone classifications is essential when selecting an appropriate YBX5 explosion-proof motor for hazardous areas. These classifications help identify the level of risk present in different environments, ensuring that the chosen motor meets the necessary safety standards.
ATEX Zones Explained
ATEX, determined from the French "Atmosphères Explosibles," is a European Union order for hardware utilized in possibly unstable environments. ATEX zones are categorized as follows:
· Zone 0: A zone where an unstable environment is shown ceaselessly or for long periods.
· Zone 1: A region where a dangerous climate is likely to happen in ordinary operation.
· Zone 2: A range where a hazardous air is not likely to happen in ordinary operation, and if it does happen, it will continue for a brief period only.
IECEx Classification System
The International Electrotechnical Commission (IEC) has developed the IECEx system, which is globally recognized. IECEx zones align with ATEX zones but are applicable worldwide:
· Zone 0 (IECEx) = Zone 0 (ATEX)
· Zone 1 (IECEx) = Zone 1 (ATEX)
· Zone 2 (IECEx) = Zone 2 (ATEX)
Implications for YBX5 Motor Selection
When choosing a YBX5 engine, it's significant to coordinate the motor's security review with the zone classification of the expected working environment. Engines outlined for Zone 1, for example, may not be reasonable for use in Zone 0 ranges due to the higher chance of dangerous atmospheres.
Certification and Compliance
YBX5 engines come with particular certifications demonstrating their reasonableness for diverse zones. Continuously confirm that the motor's certification matches or surpasses the prerequisites of your operational range to guarantee compliance with security regulations.
Understanding Temperature Class (T-Code) and Its Critical Role in Motor Selection
Temperature classification, often referred to as T-Code, is a crucial factor in selecting the right YBX5 explosion-proof motor for hazardous environments. This classification system helps ensure that the motor's surface temperature remains below the ignition point of surrounding flammable substances.
T-Code Basics
T-Codes range from T1 to T6, with each code representing a maximum surface temperature:
· T1: 450°C (842°F)
· T2: 300°C (572°F)
· T3: 200°C (392°F)
· T4: 135°C (275°F)
· T5: 100°C (212°F)
· T6: 85°C (185°F)
Importance in YBX5 Motor Selection
Selecting a YBX5 engine with the fitting T-Code is basic for anticipating start in unsafe ranges. The chosen engine must have a T-Code rating lower than the start temperature of any combustible gases or vapors displayed in the working environment.
Factors Affecting Temperature Class
Several factors can influence a motor's temperature class, including:
· Motor design and efficiency
· Ambient temperature
· Load conditions
· Ventilation and cooling systems
Understanding these factors helps in selecting a YBX5 motor that maintains safe operating temperatures under all conditions.
How Protection Grades (Ex d, Ex e) Correlate with Specific YBX5 Motor Enclosures？
Protection grades for explosion-proof motors, such as Ex d and Ex e, define the specific methods used to prevent ignition in hazardous areas. Understanding these grades is crucial when selecting the appropriate YBX5 explosion-proof motor for your application.
Ex d: Flameproof Enclosures
Ex d assurance alludes to flameproof walled in areas. YBX5 engines with this review are planned to contain any blast inside the engine lodging, anticipating it from igniting the encompassing climate. Key highlights include:
· Robust development to withstand inner explosions
· Carefully designed fireways to cool ggases etting away gases
· Suitable for Zones 1 and 2 in gas atmospheres
Ex e: Increased Safety
Ex e assurance, or expanded security, centers on avoiding the event of circular segments, sparkles, or intemperate temperatures that seem cause start. YBX5 engines with Ex e security regularly feature:
· Enhanced insulation systems
· Reduced operating temperatures
· Simplified internal design to minimize potential ignition sources
· Generally suitable for Zone 1 and 2 applications
Choosing Between Ex d and Ex e for YBX5 Motors
The choice between Ex d and Ex e protection depends on various factors, including:
· Specific hazardous zone requirements
· Type of flammable substances present
· Operational needs (e.g., starting current, efficiency)
· Maintenance considerations
Consulting with explosion-proof motor experts can help determine the most suitable protection grade for your specific application.
Matching the Correct YBX5 Motor Protection Grade to Your Operational Environment
Selecting the right protection grade for your YBX5 explosion-proof motor is crucial for ensuring safe and efficient operations in hazardous environments. This process involves carefully evaluating your operational conditions and matching them with the appropriate motor specifications.
Assessing Your Operational Environment
Begin by thoroughly analyzing your operational environment, considering factors such as:
· Presence and type of flammable gases, vapors, or dust
· Frequency and duration of explosive atmosphere occurrence
· Ambient temperature ranges
· Potential for mechanical damage or corrosion
Mapping Environmental Factors to YBX5 Motor Specifications
Once you've assessed your environment, you can match these factors to specific YBX5 motor features:
· Zone classification: Select an engine certified for your particular ATEX or IECEx zone
· Temperature course: Select a T-Code that guarantees secure operation with the show of combustible substances
· Protection review: Decide whether Ex d or Ex e is more appropriate for your application
· IP rating: Select a fitting entrance assurance level based on the clean and dampness exposure
Considering Operational Requirements
Beyond security considerations, ensure the chosen YBX5 engine meets your operational needs:
· Power output and efficiency
· Starting and running current characteristics
· Speed and torque requirements
· Mounting and installation constraints
Seeking Expert Guidance
Given the complexity of explosion-proof engine determination, it's prudent to counsel with specialists or the producer when choosing a YBX5 engine. They can give profitable experiences and guarantee you select a engine that meets both security prerequisites and operational needs.
Conclusion
Navigating the world of explosion-proof engines can be complex, but understanding the security grades and determinations of YBX5 engines is significant for guaranteeing security and effectiveness in perilous situations. From translating IP appraisals to coordinating temperature classes and security grades with particular operational needs, each viewpoint plays a crucial part in selecting the right engine for your application.
Remember, the key to making an educated choice lies in altogether surveying your operational environment, understanding the different security benchmarks, and coordinating these with the capabilities of ybx5 explosion-proof motors. By doing so, you not as it were guarantee compliance with security directions but moreover optimize your operations for unwavering quality and longevity.
As businesses proceed to advance and confront modern challenges in dangerous regions, the significance of choosing the right explosion-proof engine cannot be exaggerated. The YBX5 arrangement, with its range of security grades and determinations, offers flexible arrangements for differing applications. By leveraging this information and collaborating with experienced providers, you can unquestionably select a engine that meets your particular needs whereas prioritizing security and performance.
FAQ
1. What makes YBX5 motors explosion-proof?
YBX5 engines are planned with particular highlights that prevent them from emitting hazardous air pollutants. These incorporate vigorous walled-in areas, carefully designed fireways, and temperature control instruments. The correct strategies depend on the security review (e.g., Ex d or Ex e) and are certified to meet strict security benchmarks for use in dangerous areas.
2. How do I know which YBX5 motor protection grade is right for my application?
Selecting the right assurance review depends on a few variables, counting the particular unsafe zone classification of your operational environment, the sorts of combustible substances displayed, and your operational necessities. It's best to survey your environment completely and consult with explosion-proof engine specialists to guarantee you select a YBX5 engine that meets both security guidelines and execution needs.
3. Can YBX5 explosion-proof motors be used in all hazardous environments?
While ybx5 explosion-proof motors are outlined for use in unsafe situations, they are not generally appropriate for all circumstances. Each engine is certified for particular zones and conditions. It's vital to coordinate the motor's certifications (including ATEX or IECEx zone classifications, temperature limits, and assurance review) with the necessities of your particular operational environment to guarantee secure and compliant use.
Experience the XCMOTOR Difference: Your Trusted YBX5 Explosion-Proof Motor Supplier
At XCMOTOR, we understand the fundamental importance of selecting the right explosion-proof engine for your hazardous environment applications. Our group of specialists is devoted to giving you custom-made arrangements that prioritize security, effectiveness, and unwavering quality. With our comprehensive range of explosion-proof motors, we offer security grades suitable for various hazardous zones and operational requirements.
Don't compromise on safety or performance. Choose XCMOTOR as your trusted YBX5 explosion-proof motor supplier. Our commitment to quality and customer satisfaction ensures that you receive not just a product, but a complete solution backed by expert support. Ready to enhance your operations with the right explosion-proof motor? Contact us today at xcmotors@163.com to discuss your specific needs and discover how we can help safeguard your operations while maximizing productivity.
