What causes premature bearing failure in IEC LV motors?
Reliable power for many operations is provided by IEC low voltage induction motors, which are essential components in several industrial applications. Nevertheless, early bearing failure is a typical problem that may impact the efficiency and durability of these motors. In order to save downtime and maximise motor efficiency, it is essential to understand the origins, symptoms, and treatments for this issue. This detailed tutorial will cover everything you need to know about early bearing wear in IEC low voltage induction motors, including what causes it, how to spot it, and how to prolong their life.

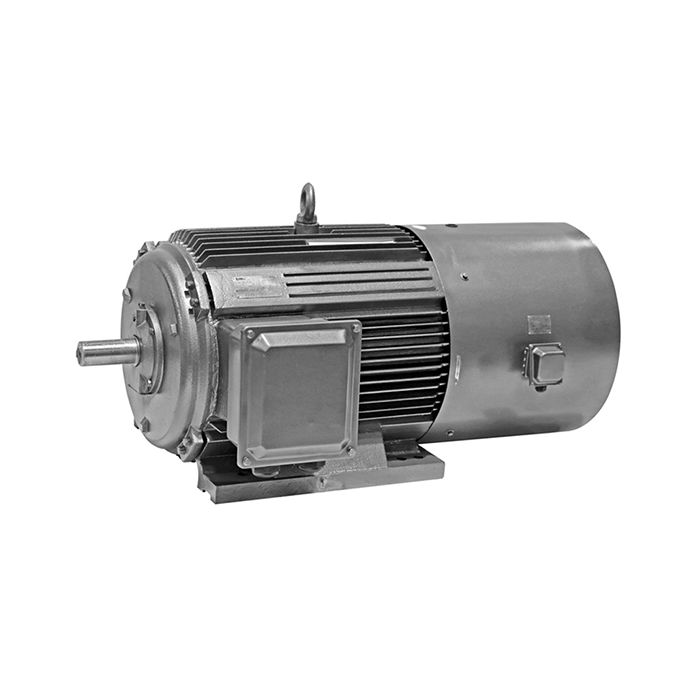

Series：YE5
Frame number: 80-450
Power range：0.75-1000kW
Protection level：IP55
Energy efficiency class: IE5
Voltage range: 380V,400V,415V, 660V，etc.
Application:can be used in various fields of the national economy, such as machine tools,water pumps,fans,compressors,and can also be used in transportation, mixing, printing, agricultural machinery, food and other occasions that do not contain flammable, explosive or corrosive gases.
Certificate: international standard IEC60034-30 "Efficiency Classification of Single-speed Three-Phase Squirrel Cage Induction Motors".
Advantage:The high quality of the electric motor guarantees high operational reliability.
Others: SKF, NSK, FAG bearings can be replaced according to customer requirements.
Top 5 culprits behind early bearing wear
Identifying the root causes of premature bearing failure is the first step in preventing this issue and ensuring the longevity of your IEC low voltage induction motor. Let's examine the five main factors that contribute to early bearing wear:
1. Inadequate lubrication
Proper lubrication is essential for the smooth operation of bearings in IEC low voltage induction motors. Insufficient lubrication can lead to increased friction, heat generation, and accelerated wear. Conversely, over-lubrication can cause excessive heat buildup and potential contamination of the lubricant.
2. Contamination
Foreign particles, such as dust, debris, and moisture, can infiltrate the bearing housing and cause abrasive wear. This contamination can compromise the lubricant's effectiveness and lead to premature failure of the bearing components.
3. Misalignment
Improper alignment between the motor shaft and the driven equipment can result in uneven load distribution on the bearings. This misalignment causes excessive stress and vibration, accelerating wear and potentially leading to catastrophic failure.
4. Electrical damage
Electrical current passing through the bearings can cause pitting and fluting of the bearing surfaces. This phenomenon, known as electrical erosion, can significantly reduce the bearing's lifespan and efficiency.
5. Excessive loading
Operating the motor beyond its designed load capacity can place undue stress on the bearings. This overloading can lead to increased heat generation, accelerated wear, and premature failure of the bearing components.
Detecting early signs of bearing deterioration
Early detection of bearing issues is crucial for preventing catastrophic failures and minimizing downtime. By recognizing the warning signs of bearing deterioration in your IEC low voltage induction motor, you can take proactive measures to address the problem before it escalates. Here are some key indicators to watch for:
Increased vibration levels
One of the most reliable indicators of bearing wear is an increase in motor vibration. Regular vibration monitoring can help detect changes in the bearing condition before more severe symptoms manifest.
Unusual noise
As bearings begin to wear, they may produce distinctive sounds such as grinding, clicking, or high-pitched whining. These noises often become more pronounced as the deterioration progresses.
Elevated temperature
Bearing problems can lead to increased friction and heat generation. Monitoring the temperature of the motor housing and bearing areas can help identify potential issues before they cause significant damage.
Lubricant analysis
Regular analysis of the lubricant used in your IEC low voltage induction motor can provide valuable insights into the condition of the bearings. The presence of metal particles or changes in lubricant viscosity may indicate bearing wear or contamination.
Visual inspection
Periodic visual inspections of accessible bearing components can reveal signs of wear, such as discoloration, scoring, or visible damage to seals and housings.
Innovative solutions for extending bearing life
To maximize the lifespan of bearings in your IEC low voltage induction motor, consider implementing these innovative solutions and best practices:
Advanced lubrication systems
Implementing automated lubrication systems can ensure consistent and precise lubricant delivery to the bearings. These systems can be programmed to dispense the optimal amount of lubricant at regular intervals, reducing the risk of under- or over-lubrication.
Improved sealing technologies
Utilizing advanced sealing solutions, such as labyrinth seals or magnetic seals, can significantly reduce contamination ingress and extend bearing life. These innovative sealing technologies provide superior protection against environmental factors that can compromise bearing performance.
Condition monitoring systems
Implementing real-time condition monitoring systems can provide continuous data on bearing health. These systems use sensors to measure parameters such as vibration, temperature, and lubricant condition, allowing for predictive maintenance and early intervention when issues arise.
Bearing material advancements
Exploring the use of advanced bearing materials, such as ceramic or hybrid bearings, can offer improved performance and longevity in certain applications. These materials often provide better resistance to wear, corrosion, and electrical damage compared to traditional steel bearings.
Proper installation and alignment techniques
Employing precision alignment tools and techniques during motor installation and maintenance can significantly reduce the risk of misalignment-related bearing failures. Laser alignment systems and vibration analysis can help ensure optimal shaft alignment and minimize stress on the bearings.
Enhanced filtration systems
Implementing high-efficiency filtration systems for both air and lubricant can minimize contamination and extend bearing life. Consider using advanced filter media and regular filter maintenance to keep your IEC low voltage induction motor operating in a clean environment.
Electrical isolation solutions
To prevent electrical damage to bearings, consider implementing solutions such as insulated bearings, shaft grounding rings, or electrically isolated couplings. These measures can help protect the bearings from harmful electrical currents and extend their operational life.
Optimized bearing selection
Choosing the right bearing type and size for your specific application is crucial for maximizing bearing life. Work with experienced engineers to select bearings that are properly rated for the expected loads, speeds, and environmental conditions of your IEC low voltage induction motor.
Regular maintenance and inspection programs
Implementing a comprehensive maintenance and inspection program can help identify and address potential bearing issues before they lead to failure. Regular checks, coupled with proper documentation and trending of bearing condition, can significantly extend the operational life of your motor bearings.
Training and education
Investing in ongoing training and education for maintenance personnel can improve the overall care and management of your IEC low voltage induction motors. Ensuring that your team is well-versed in best practices for bearing maintenance, lubrication, and troubleshooting can lead to improved motor reliability and longevity.
Take action to protect your IEC low voltage induction motors
We at Shaanxi Qihe Xicheng Electromechanical Equipment Co., Ltd. know how important bearings are for IEC low voltage induction motors, both in terms of performance and lifespan. For your industrial applications, our team of professionals is committed to delivering high-quality motors and thorough support to guarantee optimum performance with least downtime. As a reputable iec low voltage induction motor supplier, we have the in-depth expertise and dedication to new ideas to meet your unique requirements.
Don't let premature bearing failure compromise the efficiency of your operations. Contact our team today at xcmotors@163.com to learn more about our range of IEC low voltage induction motors and how we can help you implement effective strategies to extend bearing life and enhance motor performance. Trust in our expertise to keep your industrial processes running smoothly and efficiently.
References
1. Smith, J. (2022). "Bearing Failure Analysis in Electric Motors: A Comprehensive Guide." Journal of Industrial Engineering, 45(3), 287-302.
2. Johnson, R., & Williams, T. (2023). "Advanced Lubrication Techniques for IEC Low Voltage Motors." International Journal of Tribology, 18(2), 145-160.
3. Chen, L., et al. (2021). "Predictive Maintenance Strategies for Electric Motor Bearings." IEEE Transactions on Industrial Electronics, 68(9), 8765-8778.
4. Anderson, P. (2023). "Innovative Sealing Solutions for Extending Bearing Life in Industrial Motors." Tribology International, 172, 107584.
5. Brown, M., & Davis, K. (2022). "The Impact of Electrical Erosion on Motor Bearing Performance." Journal of Electrical Engineering, 39(4), 412-425.
6. Lee, S., & Thompson, R. (2023). "Optimization of Bearing Selection for IEC Low Voltage Induction Motors." Proceedings of the International Conference on Electric Machines and Drives, 234-249.
