Z Series Medium DC Motor

Z Series Medium DC Motor - Industrial-Grade DC Power Solutions with Advanced Speed Control

The Z Series Medium DC Motor represents industrial-grade power transmission technology specifically engineered for heavy-duty applications requiring precise speed regulation. Manufactured under JB/T9577-1999 standards, this DC motor series delivers power outputs ranging from 59kW to 1600kW, making it ideal for metallurgical rolling mills, metal cutting machine tools, papermaking, dyeing and weaving, cement production, and plastic extrusion machinery. With multiple excitation modes including shunt, compound, and separate excitation configurations, the product provides exceptional torque characteristics and speed control capabilities for demanding industrial environments.

Z Series Medium DC Motor Manufacturer and Supplier

Shaanxi Qihe Xicheng Electromechanical Equipment Co., Ltd. has maintained strategic partnerships with over 30 renowned motor manufacturers globally for more than 20 years. We have connections with the industry giants such as ABB, Siemens, Wolong, NEC and others which enables us to provide genuine high performance DC motors with full technical support. We focus on matching the proper power equipment to your individual operating needs, providing optimum energy economy and dependable performance.

Pain Points vs. Solutions

Challenge: Speed control under different load circumstances is not consistent

Digital DC speed controllers with individually stimulated Z motors provide consistent rpm under changing loads.

Problem: Excessive heat when used at low speed for a long time

Solution: Separate forced-air cooling systems are used to keep the operating temperature at the optimum level under continuous heavy-load situations.

Challenge : Compatibility with current voltage systems

Solution: With many voltage variants (110V, 160V, 220V, 400V, 440V DC) it is a perfect fit for your existing infrastructure.

Technical Specifications

​​​​​​​

Technical Advantages

The Z Series Medium DC Motor features advanced armature design with precision-wound field coils for superior electromagnetic efficiency. Series connection of armature and field windings generates high starting torque, essential for overcoming initial inertia in heavy machinery. The motor's current-squared behavior enables automatic torque adjustment based on load demands.

Terminal identification follows industry standards with A1/A2 armature leads, S1/S2 series field connections, and F1/F2 shunt field terminals, simplifying installation and maintenance procedures. Standard protection grades IP21/IP23 ensure reliable operation in typical industrial environments while preventing contamination ingress.

Production Process

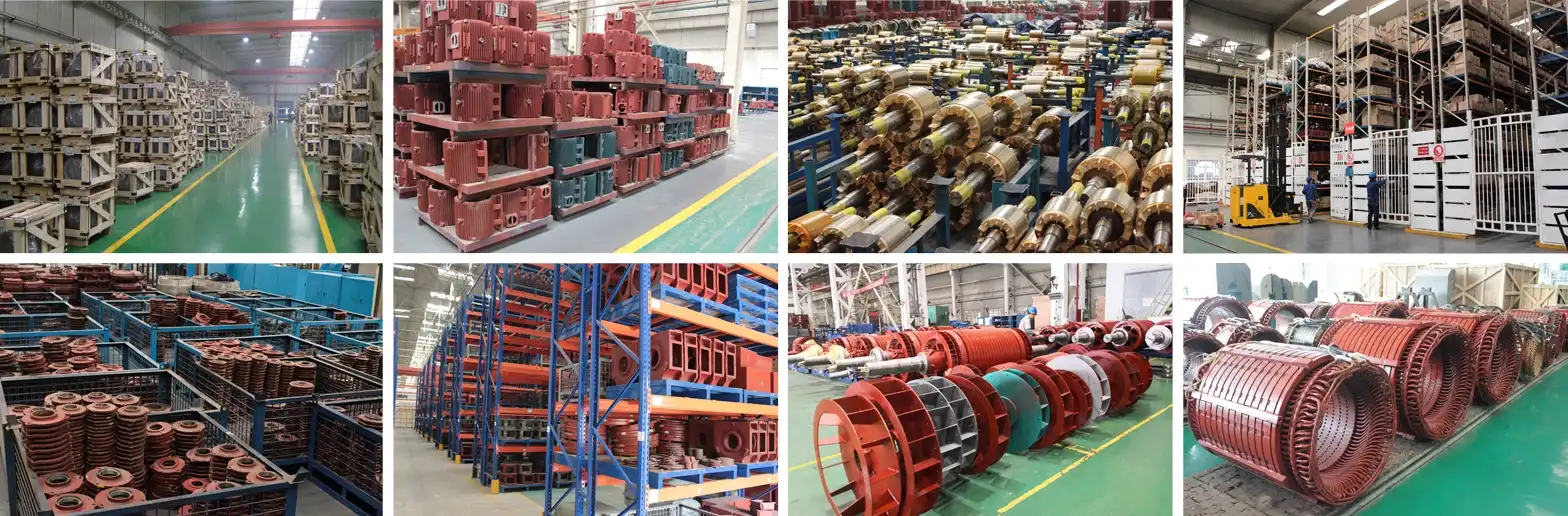

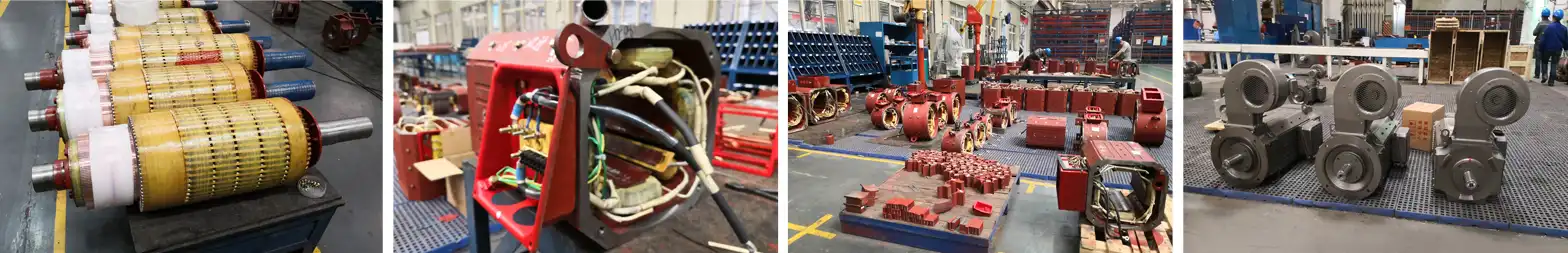

Our manufacturing partners employ SAP-integrated factory management systems ensuring quality consistency throughout production. Each motor undergoes rigorous winding accuracy verification, magnetic field balance testing, and thermal performance evaluation. Dynamic balancing procedures minimize vibration, while insulation resistance testing guarantees electrical safety compliance.

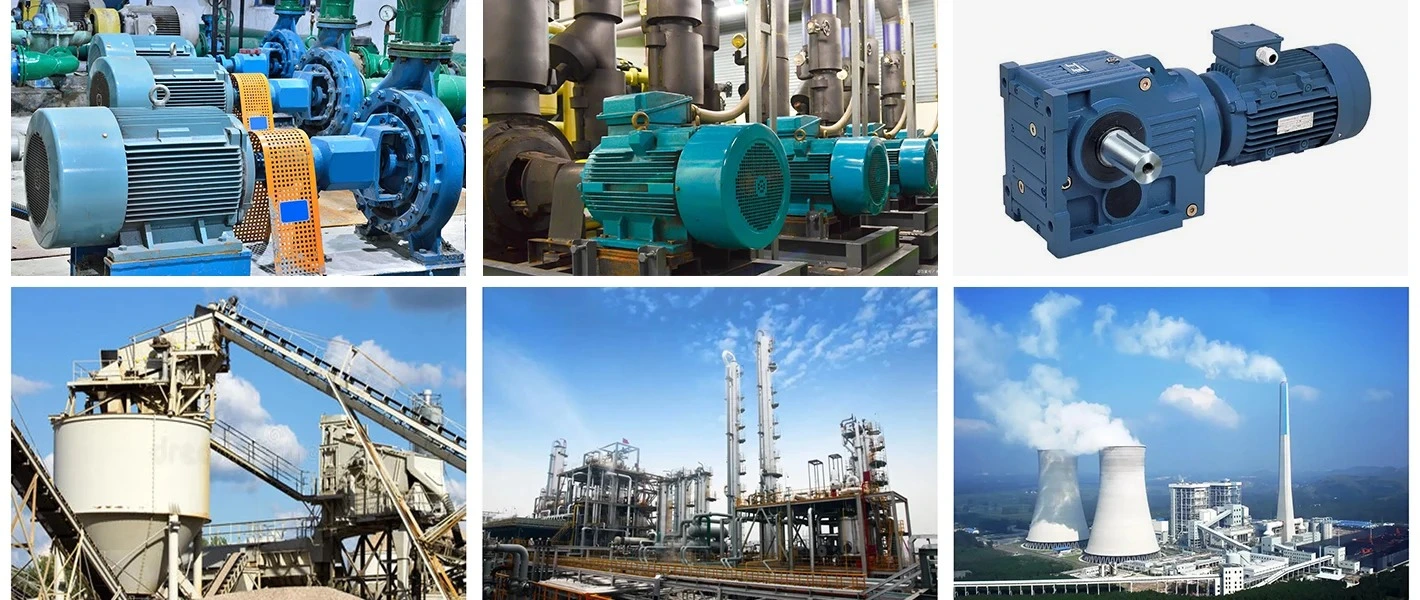

Industry Applications

Metallurgical Rolling Mills: High torque characteristics handle massive inertial loads during metal forming

Metal Cutting Machine Tools: Precise speed regulation maintains consistent cutting parameters

Papermaking Equipment: Variable speed control accommodates different paper grades and production rates

Cement Manufacturing: Robust construction withstands abrasive environments in grinding and mixing operations

Plastic Extrusion: Stable rotational speed ensures uniform material flow and product consistency

Customization Capabilities

We adjust mounting dimensions, shaft configurations, and terminal box orientations to match your equipment specifications. Voltage ratings can be customized for proprietary control systems. Cooling methods—self-fan, forced air, or water cooling—are selected based on your duty cycle requirements. Special environmental protection modifications accommodate challenging operating conditions.

Reliability Testing & Certifications

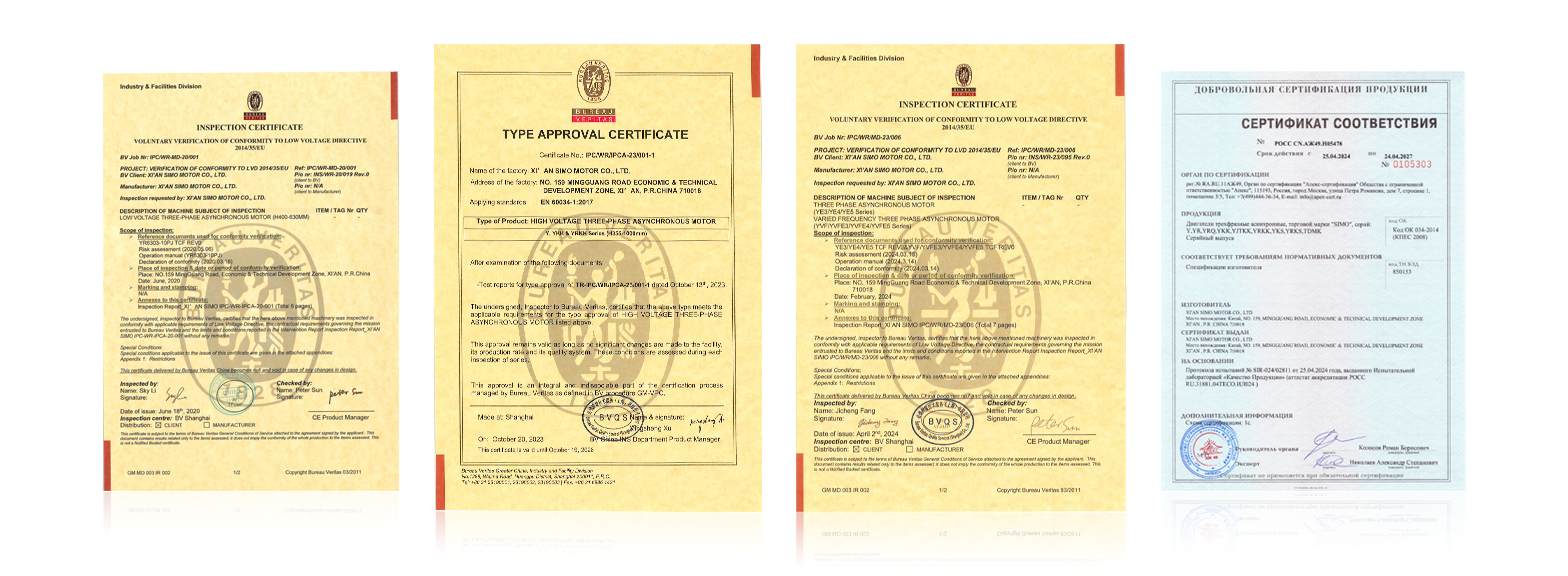

All products carry CCC, CE, ISO9001:2000, and CRCC certifications. Our quality management systems comply with CQC standards, while environmental credentials include ZDHY certification and China energy-saving production approval. International certifications such as UL and GOST validate global quality benchmarks, ensuring your investment meets both domestic and international standards.

Why Choose XCMOTOR

Authentic Components: Only genuine parts from verified manufacturers

Rapid Fulfillment: Streamlined logistics with complimentary delivery

Flexible Returns: 30-day open purchase policy protects your investment

Continuous Support: Seven-day technical assistance covering pre-sales consultation through after-sales service

Competitive Pricing: Direct manufacturer relationships eliminate intermediary markups

Optimized Lead Times: Production schedules tailored to your project timelines

Our team analyzes your end-use requirements to recommend specific brands, series, and models that maximize operational efficiency while minimizing energy consumption. Customized transportation solutions—including maritime, land, air, and multimodal options—ensure timely delivery regardless of your location.

FAQ

Q：What does the letter Z represent for Z series DC motors?

A：Z is the national standard code for general DC motors in China, short for "Zhi Liu", meaning DC. This general series includes Z2, Z4 and other derivative models.

Q：What excitation modes are available for Z series DC motors?

A：Common types include shunt excitation, compound excitation and separate excitation. Separately excited Z motors are most commonly matched with digital DC speed regulators.

Q：What are the main voltage grades of standard Z DC motors?

A：Classic voltages cover 110V, 160V, 220V, 400V, 440V DC. Different voltage models are selected according to the output voltage of the speed controller.

Q：What cooling structures do general Z DC motors adopt?

A：Standard self-fan cooling, independent forced air cooling and water cooling optional. For long-time low-speed heavy load, separate forced air cooling is recommended.

Q：What's the applicable working environment for Z series DC motors?

A：Suitable for indoor dry, dust-free and non-corrosive gas environment; standard protection grade IP21/IP23, not suitable for flammable and explosive sites without explosion-proof modification.

Contact Us

Ready to enhance your industrial operations with reliable Z Series Medium DC Motor solutions? Reach our technical team at XCMOTORs@163.com">xcmotors@163.com  for application-specific recommendations and competitive quotations.
