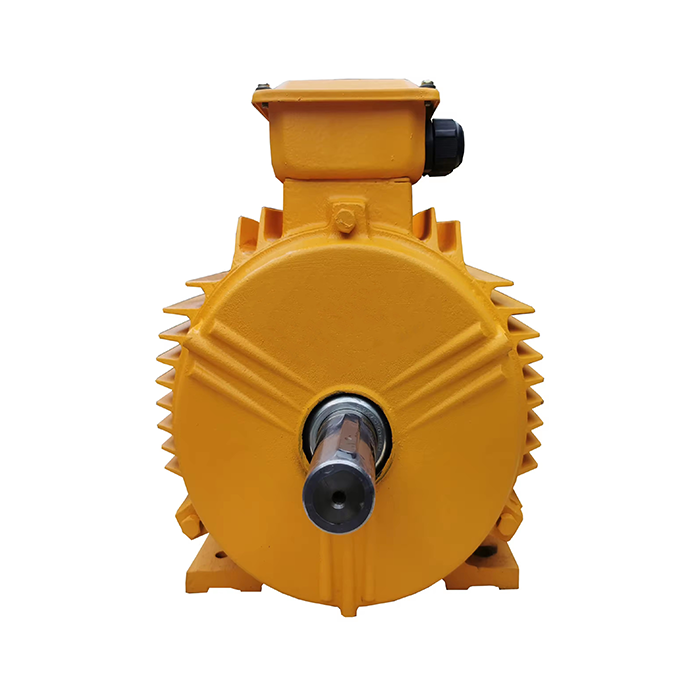

Top-rated 5hp 3 phase induction motors for industrial use
When looking for solid power tools, the 5hp 3 phase induction motor stands out as a useful option in the energy, farm, manufacturing, and HVAC fields. The 5hp 3 phase induction motor provides constant torque, high efficiency, and simple upkeep needs, making it essential in tough settings where downtime is expensive. Modern 5hp 3 phase induction motor units combine durability and energy savings with IE5 efficiency scores and IP55 protection levels. The 5hp 3 phase induction motor offers operating reliability that supports production goals without sacrificing performance or budget.
Series：YE5
Frame number: 80-450
Power range：
Protection level：IP55
Energy efficiency class: IE5
Voltage range: 380V,400V,415V, 660V，etc.
Application:can be used in various fields of the national economy, such as machine tools,water pumps,fans,compressors,and can also be used in transportation, mixing, printing, agricultural machinery, food and other occasions that do not contain flammable, explosive or corrosive gases.
Certificate: international standard IEC60034-30 "Efficiency Classification of Single-speed Three-Phase Squirrel Cage Induction Motors".
Advantage:The high quality of the electric motor guarantees high operational reliability.
Others: SKF, NSK, FAG bearings can be replaced according to customer requirements.
Understanding 5hp 3 Phase Induction Motors: Working Principles and Key Specifications
A simple but useful idea lies at the heart of every 5hp 3-phase induction motor: electromagnetic induction between the stator and rotor creates spinning force. A spinning magnetic field is made when alternating current runs through the stator windings. This field causes current to flow through the rotor's wires. This creates torque, which moves mechanical loads like pumps, compressors, and elevators.
Core Operating Principles
Because the stator and rotor work together, there is no need for brushes or slip rings. This cuts down on wear and tear and increases the service life. Three-phase motors produce more stable power with less shaking than single-phase designs, which is very important in precise uses. Because the rotor is made of a squirrel cage, it has a strong starting power and stable performance even when the load changes. This means that these motors can be used continuously in factories, water treatment plants, and business buildings.
Critical Technical Parameters
Several details must be considered when selecting a 5hp 3 phase induction motor. Power rating indicates output capability. Voltage options (380V, 400V, 415V, 660V) must match facility electrical systems. Current ratings affect cable sizing. Speed ratings from 500 to 3000 rpm determine driven equipment compatibility. Torque characteristics influence acceleration and load handling for high-inertia systems. Frame size ranges 80–450 mm. IP55 rating protects 5hp 3 phase induction motor from dust and water.
Wiring and Electrical Integration
Proper wiring for a 5hp 3 phase induction motor ensures safe, efficient operation. Standard color codes simplify installation: brown, black, or gray for phase wires; green-yellow for ground. Connection diagrams show delta or star configurations meeting voltage requirements. Delta provides higher starting torque; star reduces inrush current. Terminal blocks accommodate various wire sizes. Grounding terminals on a 5hp 3 phase induction motor protect personnel and equipment from electrical faults. These basics help managers select appropriate motors.
Comparing Top-Rated 5hp 3 Phase Induction Motors: Brands, Models, and Performance
To get around in the motor market, you have to look at performance measures that affect long-term value. Different makers give different scores for efficiency, noise, and starting, which affects how well they work in certain situations. Even though luxury brands cost more up front, their advanced tech often makes them more reliable and lowers their costs over time.
Efficiency and Energy Consumption
IE5 rated 5hp 3 phase induction motor achieves highest efficiency converting electrical input to mechanical output with minimal losses. High-grade silicon steel laminations reduce eddy current losses. Precision winding techniques optimize magnetic flux distribution. Copper windings conduct better than aluminum, improving efficiency under partial loads common in variable demand applications. Energy savings from a 5hp 3 phase induction motor can exceed purchase cost over lifetime, especially in facilities operating multiple shifts or year-round.
Noise and Vibration Control
Motors that are designed to run quietly are better for use in industrial settings. Dynamic rotor balancing reduces the amount of energy that gets transferred to the mounting surfaces. This lowers noise and makes bearings last longer. Precision die-casting makes sure that the frame shape is the same all the way around, which stops reverberation that raises sound levels. Low-emission motors keep working conditions comfortable while meeting government standards in places where noise is a problem, like food processing plants or healthcare facilities.
Starting Torque and Load Handling
Motors must easily speed up loads without drawing too much inrush current. High-quality designs have strong starting power because the rotor slot geometry and stator winding patterns are adjusted. This feature is very important in situations where there is a lot of breaking friction, like on full conveyors or positive-displacement pumps. Variable frequency drives can improve starting even more by providing a soft-start feature that lowers electricity demand and motor stress.
Pricing and Long-term Value
Purchasers weigh initial cost against long-term performance for a 5hp 3 phase induction motor. Budget models attract some buyers, but quality-focused purchasers find premium 5hp 3 phase induction motor worth the investment through longer warranties, better materials, and technical support. True value emerges from total ownership cost including energy consumption, maintenance frequency, and expected service life. Motors with CE, ISO 9001:2015, and GOST certifications provide manufacturing quality assurance for a 5hp 3 phase induction motor.
Procurement Best Practices: How to Choose and Buy the Right 5hp 3 Phase Induction Motor?
To buy motors successfully, you must first understand what the application needs. Specification choices are based on load characteristics, job cycles, and environmental conditions. Supplier review makes sure that the quality of the product and continued support.
Aligning Motor Specifications with Application Needs
Determine power requirements using driven equipment specifications for a 5hp 3 phase induction motor. Load torque type—constant, variable, or intermittent—affects sizing and thermal capacity. Speed requirements determine whether direct-drive or gearbox configurations optimize machinery performance. Ambient temperature, humidity, and contamination levels influence protection class and insulation system selection for a 5hp 3 phase induction motor. Voltage availability determines motor rating: 380V, 400V, and 415V suit standard commercial installations while 660V benefits long cable runs.
Evaluating Supplier Reliability and Support
Supplier credentials impact procurement risk and long-term satisfaction with a 5hp 3 phase induction motor. Verify manufacturing certifications, quality control systems, and compliance with IEC60034-30 standards. Authorized distributors supply genuine 5hp 3 phase induction motor with factory warranties. Direct manufacturer relationships may offer customization opportunities and better pricing for volume orders. After-sale support distinguishes great suppliers—technical help with installation, troubleshooting, and maintenance extends 5hp 3 phase induction motor life and reduces unnecessary downtime.
Purchasing Channels and Quality Assurance
Online sites make it easier to find sellers around the world and let you compare prices and look over product specifications. But buyers should check the seller's credibility by looking at their credentials, customer reviews, and return policies. Local authorized distributors let you view the product in person and bring it right away, which is helpful for jobs that need to be done quickly or to check the fit and finish before committing.
Direct purchases from the plant are best for big orders that need to be customized. Changes in voltage, special fitting flanges, or longer shaft configurations can be made to meet specific application needs. Talk about warranty terms that cover flaws in the making process and performance promises. This will give you options if the motors don't work as expected. Documentation like CE marks and test papers that prove compliance with regulations is very important in businesses that are regulated.
These best practices help engineers and buying professionals choose motors that meet technical needs while also staying within budget and meeting delivery dates. Companies get power equipment that helps them meet their business goals and keep up production efficiency by putting provider reliability and full support at the top of their list of priorities.
Troubleshooting, Maintenance, and Technical Support for 5hp 3 Phase Induction Motors
5hp 3-phase induction motor efficiency is kept up by proactive upkeep and effective troubleshooting, and expensive breakdowns are avoided. Understanding common problems and putting preventative measures into action will help you get the most out of your tools and your investment.
Diagnosing Common Motor Problems
Most of the time, overheating is caused by not enough air flow, too much current, or uneven voltage. Use thermal monitors or infrared imaging to keep an eye on the working temperature and make sure it stays within the manufacturer's guidelines. Make sure the cooling fan is working and clean the breathing paths to keep it going. Measurements of voltage across stages should be within a five percent error range. If they are too far off, it means there are problems with the power source that need to be fixed.
Noises, vibrations, or high temperatures near bearing housings are all signs that a bearing is failing. Lack of grease, contamination, or imbalance are common reasons why things wear out too quickly. During routine maintenance, check the bearings and listen for sounds like grinding or rolling that could mean damage. Quickly replace old bearings to avoid major failures that could harm rotors or stators.
Wiring problems can cause the motor to work unevenly or not at all. When end connections aren't tight, they create resistance and heat, which could damage the insulator. Regularly check the terminal blocks and make sure the screws are tightened to the manufacturer's torque specs. Insulation resistance testing finds winding insulation that is breaking down before it actually does, so it can be replaced on time instead of having to be fixed quickly.
Preventative Maintenance Practices
Establish lubrication schedules for a 5hp 3 phase induction motor based on operating hours and environmental conditions. Follow manufacturer specifications for grease type and quantity—over-lubrication causes friction buildup while under-lubrication accelerates wear. Sealed bearings require no maintenance, simplifying upkeep in clean environments. Thermal overload protection on a 5hp 3 phase induction motor prevents damage during abnormal operating conditions. Verify relay settings match motor full-load current values. Test protection devices regularly and replace defective components before motor safety is compromised.
Technical Accessories and Upgrades
Facilities using power factor correction may need capacitor replacement for a 5hp 3 phase induction motor. Aging capacitors reduce correction effectiveness, increasing reactive power charges. Regularly monitor power factor and replace capacitors showing signs of degradation. Variable frequency drives add flexibility to a 5hp 3 phase induction motor by enabling speed adjustment matching process demands. Motors must be inverter-duty rated with upgraded insulation systems to handle voltage spikes from pulse-width modulation. Retrofitting VFDs to existing fans and pumps reduces energy consumption.
Future Trends and Innovations in 5hp 3 Phase Induction Motors for Industry
As technology keeps getting better, 5hp 3-phase induction motor design and use are changing too. New innovations meet the changing needs of the market while also making things smarter, more efficient, and better for the environment.
Smart Sensors and Predictive Maintenance
Embedding sensors within a 5hp 3 phase induction motor enables condition monitoring and predictive analytics. Vibration sensors detect bearing wear before failure. Temperature monitors identify cooling system or electrical issues. Cloud-based platforms analyze data using machine learning algorithms, predicting maintenance needs for a 5hp 3 phase induction motor during scheduled outages. These features reduce unexpected downtime and extend equipment life by addressing problems early. Predictive maintenance transforms reactive repairs into proactive management, lowering costs and improving production efficiency for facilities.
Energy Efficiency and Environmental Compliance
Stricter regulations drive demand for a 5hp 3 phase induction motor exceeding current IE5 efficiency standards. Manufacturers invest in advanced materials and design optimization to improve efficiency, reducing carbon footprint and operating costs. Rare-earth-free rotor designs eliminate supply chain vulnerabilities without compromising performance for a 5hp 3 phase induction motor, addressing sustainability concerns. Quieter motor variants meet emerging noise regulations in urban areas. High-torque designs improve power density while reducing physical footprint and installation costs where space is limited.
Enhanced Customization and Support
Suppliers can meet a wider range of customer needs by expanding their skills. Online configurators let buyers choose choices for power, mounting, and gear, and they quickly generate unique quotes. Digital twins help you make sure your choice of motor works well in the situations you want it to work in before you buy it.
Videoconferencing and augmented reality are used for remote technical help to walk maintenance staff through fixing steps without having to go to the site. This flexibility cuts down on downtime and trip costs, which is especially helpful for businesses that do business across borders. Having a lot of digital information, like 3D models, repair videos, and interactive guides, makes integration and ongoing care easier.
These new ideas put buyers in a position to take advantage of improvements in technology that make things more reliable and cheaper. Companies can protect their investments in power tools for the future while also improving practical excellence by using smart monitoring, energy-efficient designs, and better support services.
Conclusion
To choose the best 5hp 3 phase induction motor, you need to weigh the technical specs, the dependability of the provider, and the long-term value. A 5hp 3 phase induction motor works consistently over its entire service life if you understand how it works, evaluate performance metrics, and follow the right repair procedures. New technologies such as predictive tracking and higher efficiency standards promise continued reliability and sustainability improvements for the 5hp 3 phase induction motor. Procurement professionals get power equipment that meets strict industrial standards while keeping costs low and minimizing downtime risks by working with reputable sources offering full support and certified 5hp 3 phase induction motor products.
FAQ
1. What distinguishes three-phase motors from single-phase alternatives?
Three-phase motors are more efficient and have more power than single-phase motors. The constant flow of power from three alternate stages makes operation smoother and less shaky, which increases the life of mechanical parts. Higher starting power can handle heavy loads without the need for extra starting devices, which makes installation easier and cuts costs. Because they use less energy, three-phase motors are cost-effective in places with the right power infrastructure, even though they might cost more at first.
2. How can operators boost motor efficiency through maintenance?
Lubricating bearings regularly stops friction losses, and cleaning cooling tubes keeps them at the right temperature for operation. Fixing voltage imbalances cuts down on power loss and burning. When you align the shafts, you get rid of mechanical drag and early bearing wear. When you upgrade to variable frequency drives, you can match the speed to the load needs, which greatly reduces the amount of energy used in situations with changing demand. These techniques make motors last longer and cost less to run because they make them more efficient.
3. What factors should influence price comparisons?
Along with the buy price, you should look at the warranty coverage, the availability of expert help, and the certification compliance. Premium motors often come with longer guarantees and quick service after the sale, which lowers the overall cost of ownership by making the motor more reliable. Check the scores for effectiveness and the quality of the materials. Higher-quality parts are worth the extra cost because they last longer and use less energy. Think about the name of the seller and how reliable their delivery is. Delays or problems with the quality of the product may be more important than small price savings when you add up the total cost of ownership.
Partner with XCMOTOR for Premium Industrial Motor Solutions
Shaanxi Qihe Xicheng Electromechanical Equipment Co., Ltd. (XCMOTOR) is a reliable 5hp 3 phase induction motor supplier that can help you with your manufacturing, HVAC, and industrial automation needs. There are IE5 efficiency-rated types with IP55 protection, frame sizes 80–450, and voltage setups that can be changed from 380V to 660V among our 5hp 3-phase induction motor choices. We are a well-known provider, and the motors we sell are approved to meet international standards. They come with high-quality SKF, NSK, and FAG bearings to make them as reliable as possible.
We know how hard it can be to buy things, so we offer dedicated support seven days a week, fast delivery on all goods, and a return policy that protects your investment for 30 days. Email our knowledgeable sales team at xcmotors@163.com to talk about your particular application needs, get personalized product suggestions, and get low bulk prices.
