IP54 Motor Applications: Where This Enclosed Design Works Best
When selecting motors for environments exposed to dust and water splashes, understanding where an ip 54 motor excels becomes critical for equipment reliability and longevity. These enclosed designs deliver dependable protection in demanding workplaces—from cement plants battling constant dust clouds to outdoor machinery facing unpredictable weather. An IP54-rated motor shields internal components against limited dust ingress and water sprays from multiple directions, making it the practical choice for facilities that cannot afford frequent breakdowns. Choosing the right protection level directly impacts maintenance costs, operational uptime, and total ownership expenses across industrial applications.

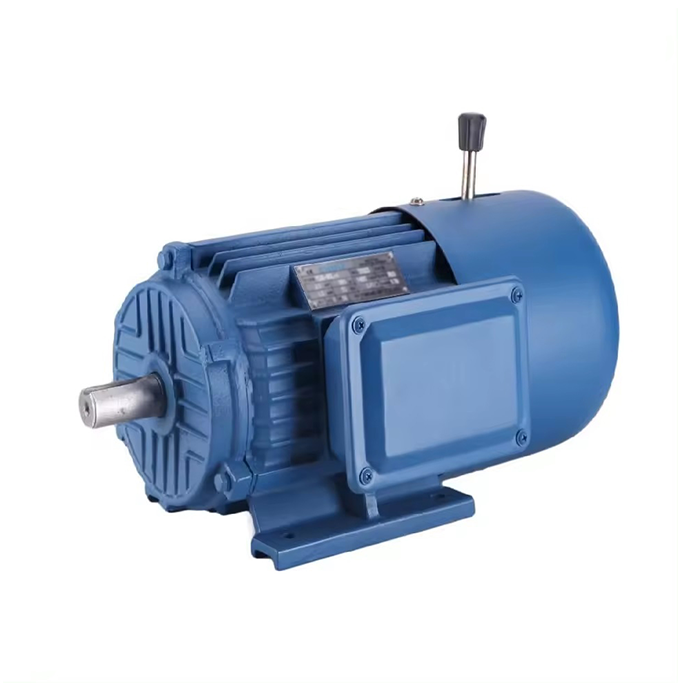

Series：YEJE3
Voltage range：380V±5%
Power range：0.55-355 kW
Protection level：IP55
Application：various machine tools, printing machinery, forging presses, transportation machinery, packaging machinery, food machinery, construction machinery, woodworking machinery, etc. that require quick stop, accurate positioning, reciprocating operation, and prevention of sliding for spindle rotation and Auxiliary drive.
Advantage：rapid braking, simple structure, and accurate positioning.
Others： SKF, NSK, FAG bearings can be replaced according to customer requirements.
Understanding IP54 Motor Basics
What IP54 Rating Actually Means
IEC 60529 sets a standard for how well electrical shelters protect against outside contaminants. The "IP" symbol stands for "Ingress Protection." The first number (5) means that there is some defense against dust. It's not completely dust-proof, but it keeps dust from building up and damaging the windings or bearings. The second number (4) proves that the product is protected against water splashes from all directions. This includes rain, cleaning processes, and accidental liquid contact. The ip 54 motor can work in semi-harsh environments where full sealing isn't needed but basic protection is still needed.
Construction and Sealing Technology
Good IP54 motors have more than one layer of protection that work together. The frames of our units are made of cast iron, which is strong against physical damage and corrosion from the environment. The surfaces are also precisely machined to make tight sealing contact points. The best conductivity comes from premium copper windings, and Class F insulation can handle temperatures up to 155°C, which means it can last longer even when it's under a lot of heat stress. The sealed bearing design, which can use SKF, NSK, or FAG depending on customer needs, lowers the frequency of upkeep by keeping the grease from getting dirty (Industrial Electric Motor Handbook, 2019). Precision die-casting of motor frames makes sure that the dimensions are correct so that seals stay in place for the life of the equipment.
Voltage and Power Specifications
Our enclosed motor range works with 380V±5% power and can handle tasks ranging from 0.55 kW to 355 kW. This wide range of power levels can be used for everything from small conveyor drives to big industrial engines. The motors work reliably in temperatures ranging from -15°C to +40°C, so they can handle changes in the seasons in both outdoor installations and climate-controlled buildings. The speed ranges from 600 to 3000 RPM give you options for direct-drive uses or ones that need to integrate a clutch.
Core Applications of IP54 Motors
Manufacturing and Processing Facilities
Enclosed motor designs are very helpful in industries that get a lot of dust. Particles in the air from cement production lines get into uncovered equipment and cause bearings to fail early and windings to become dirty. Our ip 54 motor installations in grain handling facilities keep flour dust from damaging the motor's internals, so it can keep running smoothly during continuous production cycles. In textile factories, where fiber particles are always moving around, this amount of safety is needed to keep production from stopping, which would cost a lot of money. Food processing companies like that the splash resistance works well for regular cleaning, but they might update to IP55 or higher for areas that will be directly washed down.
HVAC and Ventilation Systems
The different environments that climate control equipment works in make ip54 ec motor security useful. When industrial air fans are put in places that are only partly covered, they get wet from fog and rain. Our motors provide reliable control of airflow for cooling systems in production rooms where there is both dust and humidity. The sealed bearing design makes upkeep easier for fans that are put in hard-to-reach places, which lowers the overall cost of ownership. These motors strike a good balance between providing enough safety and being cost-effective, which is good for building management systems.
Material Handling and Conveyor Systems
Automation in warehouses and networks of conveyor belts pose a number of environmental issues. When doors open in loading docks, the weather can get to the conveyor motors that move packed goods through the air. Automated guided vehicles that work in partially outdoor distribution centers need motors that can handle splashes and buildup of dirt and dust without needing to be serviced often. Our motors are perfect for packaging machines that need to stop and start precisely because they can stop quickly and position themselves accurately. Protecting parts of transportation gear from the working surroundings makes them last longer.
Outdoor and Agricultural Equipment
Protection against rain and wind-blown dust up to IP54 is good for light outdoor uses like irrigation pump stations. Greenhouse ventilation systems work in places with a lot of humidity, where protecting against wetness keeps electricity problems from happening. Industrial cleaning machines and floor scrubbers need motors that can handle splashes of water and keep working reliably over daily cleaning routes. With the right enclosure security, construction equipment auxiliary drives that work on dusty job sites can go longer between repair visits. It's clear from these examples where balanced protection meets practical cost concerns.
Comparing IP54 Motors with Other IP Ratings for Optimal Selection
IP44 Versus IP54 Protection Levels
The main difference between IP44 and IP54 grades is how well they keep dust out. IP44 motors protect against splashes of water and objects bigger than 1 mm. They are good for clean environments with little dust exposure. In particle-heavy environments, the Ip 54 motor significantly increases dust protection, preventing harmful buildups. When making a purchase choice, it's important to think carefully about the working environment. For example, facilities that are occasionally exposed to dust may be fine with IP44, but facilities that are constantly making particles need IP54 or higher. When you think about how much it will cost to replace equipment and fix it when it breaks down, the price gap between these grades usually makes the stronger protection the better choice (Electrical Equipment Standards, 2021).
When to Upgrade to IP55 or IP65
Conditions that are more difficult need better covering. IP55 motors protect against dust and water jets completely, so they are better choices for equipment that will be washed directly or that will be exposed to a lot of water. Our normal level of security is IP55, which gives customers more peace of mind whether they live in a humid warm climate or a harsh industrial setting. IP65 motors block out dust and protect against strong water jets, which is important for marine use or outdoor sites without weather shelters. IP65 or IP66 ratings are often given to mining activities and port equipment to protect it from heavy dust loads and bad weather.
Cost-Benefit Analysis for Protection Selection
Picking the right level of protection strikes a balance between the initial cost and the reliability over time. Over-specifying protection raises the initial cost without delivering the same level of benefits, and under-specifying protection causes early failures and emergency replacements. Engineers should look at the levels of dust, the amount of time the structure is exposed to water, the temperature ranges, and the barriers to maintenance access. The normal buying cycle lasts between two and six weeks, which gives workers enough time to carefully inspect the job site and try small batches before committing to large orders. Customers who aren't sure about the authenticity of the safety level should ask for proof of approval from a third party and check the integrity of the seals upon delivery.
Maintenance and Longevity of IP54 Motors
Routine Inspection and Cleaning Protocols
Motors last longer and don't break down when they're supposed to if they get regular maintenance. Cleaning the outside every three months gets rid of dust that has built up and could finally break seals during heat expansion cycles. Visual checks of seals can find early signs of wear and tear before moisture gets into the motor and harms the windings. Replacing seals is much cheaper than rewinding motors. When to lubricate a bearing depends on how often it is used and how hard the climate is. In harsh situations, sealed bearings usually need to be serviced every 6 to 12 months. Vibration tracking finds patterns of bearing wear that let you know when maintenance is due, so you can plan your work instead of having to make fixes right away.
Addressing Common Seal and Bearing Concerns
People who buy ip54 ec motor equipment often worry about the seals wearing out and water getting in during use. Good sealing materials stay flexible over a wide range of temperatures, but chemicals or high heat make them break down faster. As an extra layer of protection, the vacuum pressure impregnation method we use during production makes the wound more resistant to moisture. If you properly seal your bearings in dusty places, they will last a lot longer. Our motors can handle premium bearing brands that customers choose for important applications. Pay close attention to the integrity of the shaft seal because rotating interfaces are the main way that contaminants get in.
Extending Service Life Through Operational Best Practices
In addition to regular maintenance, how you use the motor affects how long it lasts. Avoiding frequent starts lowers the thermal stress on the windings and the mechanical stress on the bearings. Our motors' simple structure supports quick stop and accurate positioning features that help applications that only need to run sometimes. Motors are protected from needless weather exposure when they are stored correctly before they are installed. By keeping an eye on operating temperatures, you can find ventilation problems or situations of overloading before they do any damage. Facilities that keep detailed repair logs can figure out when parts will need to be replaced and get big savings from suppliers for planned upgrades.
Procurement Guide: Buying and Sourcing IP54 Motors
Supplier Evaluation and Quality Verification
Choosing where to get equipment has a big effect on how reliable it is over the life of the equipment. Shaanxi Qihe Xicheng Electromechanical Equipment Co., Ltd. promises to offer power equipment solutions that use little energy, work reliably, and come with quick technical support. When buying managers look at suppliers, they should check for CE marking and foreign certifications like GOST that show the provider meets safety standards. Being clear about lead times helps with planning projects. Our company delivers all of its products quickly and lets you return them within 30 days, which lowers the risk of buying something. Suppliers who offer technical support on the weekends show that they know that industrial operations don't follow normal schedules.
Customization Options and Technical Specifications
For different uses, different motor configurations are needed. Voltages in our range include 380V, 400V, 415V, 440V, and 660V to meet the needs of different areas and types of equipment. Power levels range from 0.75 kW to 355 kW, which is enough for everything from secondary drives to main power systems. Mounting options like foot, flange, or a mix of the two make it possible to fit into current machinery plans. Customers can choose from bearing names like SKF, NSK, and FAG based on their choices for maintenance compatibility and reliable component sources. When standard configurations don't work with old equipment, retrofits can use custom shaft dimensions and connection types.
Pricing Factors and Warranty Considerations
A motor's price is affected by more than just its basic specs. Protection level certification costs affect pricing structures. For example, IP55 costs more than IP54 because it has stricter sealing requirements. Tiered discounts that lower per-unit costs for big setups or standardization projects are often available when you place a bulk order. The amount of copper in windings changes with the price of commodities, which can have an effect on prices during big market changes. The length and scope of the warranty show how confident the manufacturer is in the product. For example, warranties that cover both material defects and poor workmanship show a commitment to quality. For critical applications where downtime costs more than the extra cost of faster delivery, having emergency replacements on hand becomes very important.
Conclusion
Choosing the right amount of motor protection has a direct effect on how well it works and how much it costs to own in commercial settings. The ip 54 motor provides balanced protection for places where dust and occasional moisture are present, without the higher cost of higher-rated options. These sealed designs keep things like cement plants and material handling systems from breaking down too soon, which would throw off production plans. By knowing the differences between security levels and being honest about the natural conditions in your building, you can make decisions about what to buy that will give you the best return on your initial investment and in the long run. To get the most out of properly specified motor equipment, you need to do things like choose the right supplier, do regular maintenance, and check the quality of the work.
FAQ
1.Can IP54 motors operate in fully outdoor environments?
Motors with an IP54 rating can handle light outdoor uses like covered equipment sheds or short periods of exposure to the weather. Depending on how much rain and dust there is in your area, moving to IP55 or IP65 may be needed for long-term outdoor installations that don't have overhead cover. Southeast Asian climates with heavy monsoons usually need more protection than temperate climates with less rain.
2.How often should we inspect seals on ip 54 motor units?
In most workplace settings, visual checks every three months catch early signs of seal degradation. Facilities that are exposed to chemicals or have big changes in temperature should have inspections done once a month instead of every two weeks. Fixing small seal problems is a lot cheaper than fixing windings that have been damaged by water.
3.Do these motors offer energy efficiency advantages?
Modern enclosed motor designs balance safety with heat control to make the motor work well. The right ventilation paths keep things from getting too hot, which lowers their efficiency, and good building keeps interior losses to a minimum. Because they offer strong safety and good performance, they are good options for energy-conscious buildings that put uptime and running costs first.
Get Reliable IP54 Motor Solutions from XCMOTOR
Picking the right sealed motor provider will affect how well your equipment works and how often it needs to be serviced in the future. XCMOTOR specializes in making long-lasting motor solutions that are designed for tough industrial settings where security against dust and water splashes is a must. Our wide range of products includes everything from 0.55 kW to 355 kW with an IP55 rating, so they can be used in everything from small packing machines to heavy-duty building equipment. We only sell reliable parts and offer fast shipping, 30-day returns, and dedicated support, even on weekends, because we know that industrial operations don't stop for fun. Our technical team helps with worksite evaluation, choosing the best motor, and support after installation, whether you need a single replacement unit or a lot of them. We are an ip 54 motor manufacturer partner. Visit motorxc.com or email us at xcmotors@163.com to talk about your specific application needs and get detailed specifications that fit your working conditions. Because we promise to quickly solve technical problems and keep our prices low, we are the best choice for people who want to buy tools but care more about reliability than marketing claims.
