Slip Ring Induction Motor - High Voltage Wound Rotor Solutions

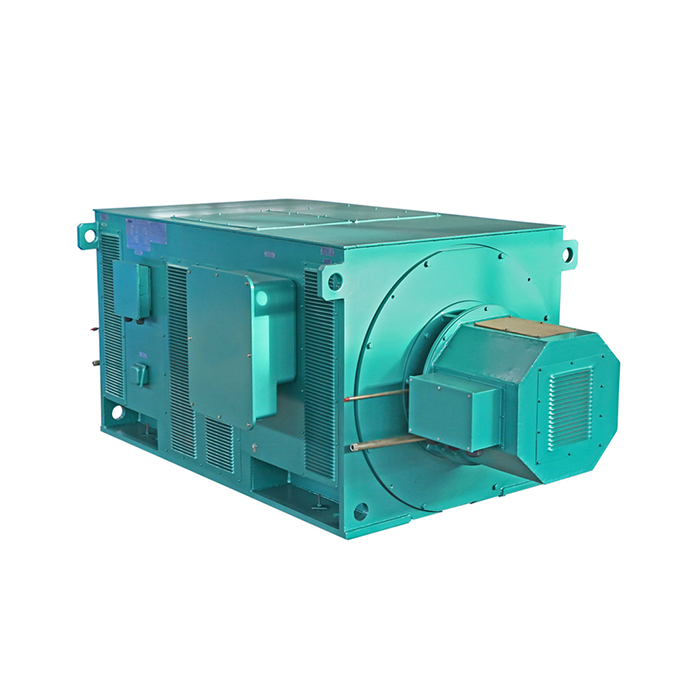

The slip ring induction motor addresses these critical needs through its unique wound rotor design and external resistance control system. With this sort of motor, crushers, ball mills, hoists and rolling mills can start up smoothly under severe load situations with little grid effect. These motors are offered in voltage ratings ranging from 3kV to 11kV and power ratings from 200kW to 4500kW. They operate better in cement plants, mining and metallurgical activities where normal squirrel-cage motors fail.

Slip Ring Induction Motor Manufacturer and Supplier

Shaanxi Qihe Xicheng Electromechanical Equipment Co., Ltd. brings over 20 years of expertise in power equipment solutions. We maintain strategic partnerships with 30+ leading motor manufacturers including ABB, Siemens, Wolong, and XEMC. Our focus remains on delivering high-efficiency motors that meet demanding industrial requirements.

All products carry CCC, CE, ISO9001:2000, CRCC, and industry-specific certifications. You benefit from our mature R&D team, SAP factory management system, and robust supply chain that ensures quality at every production stage.

Pain Points vs. Solutions

Your Challenge: Heavy-load equipment struggles during startup, causing grid instability and production delays.

Our Solution: Wound rotor structure allows starting current control at 2-3× rated current while delivering 1.8-2.5× starting torque through external resistance adjustment.

Your Challenge: Harsh environments with dust, moisture, and high temperatures damage motor internals.

Our Solution: IP54 protection grade with sealed air-to-air cooling prevents contamination while maintaining optimal operating temperatures in challenging conditions.

Your Challenge: Motor maintenance requires complete disassembly, resulting in extended downtime.

Our Solution: External slip ring and brush assembly enables quick inspection and replacement without full motor teardown, reducing maintenance time by 40%.

Technical Advantages

The slip ring induction motor incorporates several engineering innovations:

· Controlled Starting Performance: External rotor resistance provides flexible current and torque adjustment during startup phases

· Enhanced Protection: IP54 sealed enclosure blocks dust and water ingress while independent cooling prevents external contamination

· Separated Slip Ring Chamber: Isolated design prevents carbon powder from entering the main motor cavity

· Wide Voltage Range: Available in 3kV, 6kV, and 10kV configurations with ±5% tolerance

· Superior Heat Management: Independent air-to-air cooling system operates effectively regardless of ambient temperature

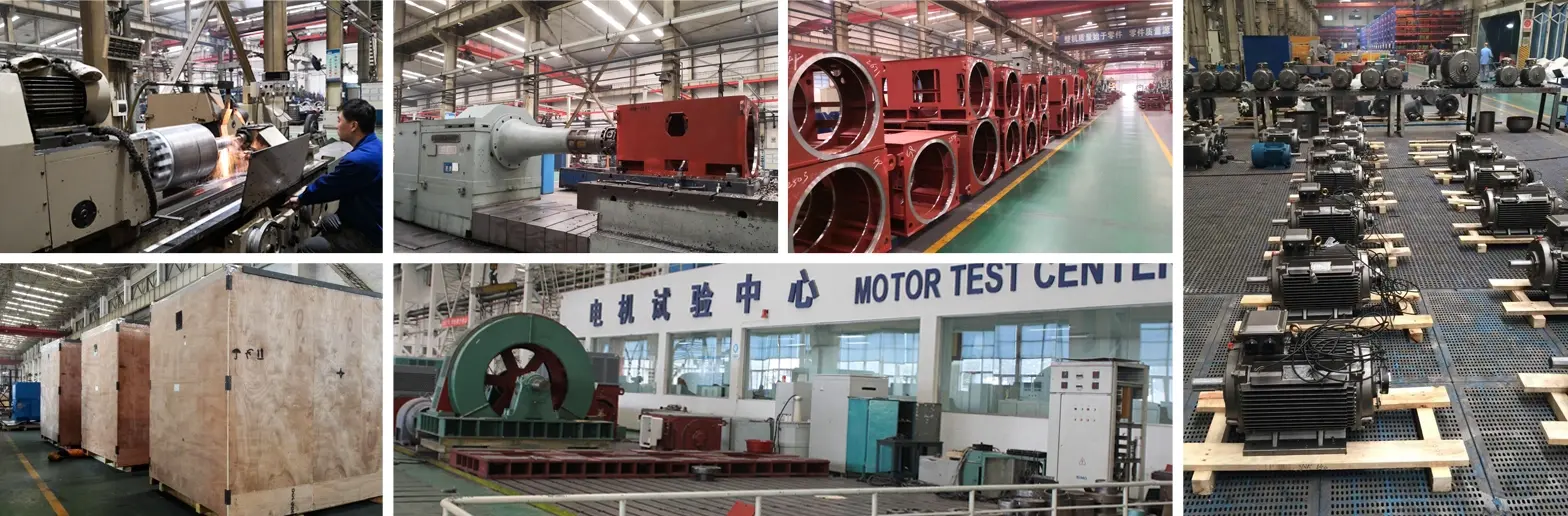

Production Process

Your motor undergoes rigorous manufacturing stages:

1. Material Selection: Only components from trusted brands like SKF, NSK, and FAG bearings

2. Precision Assembly: SAP-managed production ensures dimensional accuracy and quality control

3. Insulation Testing: Multi-point verification of stator and rotor windings

4. Load Testing: Full-capacity trials simulate real operating conditions

5. Sealing Verification: IP54 protection confirmation before shipment

Industry Applications

These motors excel in demanding sectors:

· Mining Operations: Mine hoists and heavy-duty conveyors requiring constant torque

· Cement Production: Ball mills, vertical raw mills, and main belt drives

· Metallurgy: Rolling mills, wire drawing machines, and continuous casting equipment

· Chemical Processing: Large pumps and compressors with variable load requirements

· Material Handling: Cranes and elevators needing precise speed control

Customization Capabilities

We adapt motors to your specific requirements:

· Voltage adjustment within 3kV-11kV range

· Power output customization from 200kW to 4500kW

· Dimensional modifications for unique installation spaces

· Bearing brand selection (SKF, NSK, FAG) based on preference

· Custom cooling solutions for extreme environments

· Specialized mounting configurations

Reliability Testing & Certifications

Every unit complies with JB/T10314.2-2002 standards and undergoes comprehensive validation. Our quality management systems meet international requirements, ensuring you receive motors built for longevity and consistent performance.

Why Choose XCMOTOR

Original Components: Only parts from verified manufacturers

Fast Delivery: Streamlined logistics with flexible shipping options including sea, land, and air transport

30-Day Returns: Open purchase policy for your confidence

Continuous Support: Technical assistance available weekends included

Competitive Pricing: Direct manufacturer relationships reduce costs

Rapid Response: Quick resolution of pre-sales and after-sales inquiries

Annual maintenance costs remain just 6-9% of purchase price due to standardized component design and high parts interchangeability.

FAQ

Q：What is YRKK IP54 air-air-cooled high voltage wound rotor motor?

A：YRKK IP54 series are enclosed box-type high voltage three-phase wound rotor aSynchronous Motors rated at 6kV/10kV. They feature independent air-to-air cooling systems with IP54 protection and integrated slip ring assemblies. This design combines high starting torque with complete dustproof and moistureproof sealing for heavy-load continuous production.

Q：What core advantages does YRKK IP54 motor own compared with ordinary open-type high voltage wound rotor motors?

A：IP54 sealing blocks dust and water vapor effectively. Sealed air circulation prevents external contamination from reaching stator windings. The wound rotor provides low starting current with high torque output. Independent cooling operates unaffected by ambient temperatures. Separated slip ring chambers reduce carbon powder contamination in main motor cavities.

Q：Which industries and equipment is YRKK IP54 HV wound rotor motor suitable for?

A：These motors serve cement, mining, metallurgy, coal, and chemical industries. Common applications include mine hoists, large ball mills, vertical raw mills, heavy-duty belt drives, and rolling equipment. They excel in dusty environments with water vapor and continuous 24-hour heavy-load operation.

Q：What are common causes of serious sparking on slip rings and brushes?

A：Carbon powder accumulation causes uneven slip ring wear. Unbalanced brush spring pressure or worn brushes create poor contact. Loose external resistance connections interrupt circuits. Moisture infiltration through aging seals leads to oxidation. Inadequate cooling airflow causes localized overheating and oxidation.

Q：What key regular maintenance items for YRKK IP54 air-air cooled wound rotor motor?

A：Remove slip ring covers regularly to clean carbon powder and replace brushes. Clean air-cooler fins to maintain heat exchange efficiency. Monitor cooling fan operation and bearing temperatures. Test insulation resistance and rotor DC resistance during annual shutdowns. Inspect and replace aged IP54 sealing strips. Maintain rotor starting resistance cabinets for terminal integrity.
