Slip, in induction motors, is defined as the percentage by which the actual rotor speed differs from the synchronous speed. Because slip ring rotor motors provide for finer control over starting characteristics and speed management than squirrel cage types, this calculation takes on even more significance when dealing with these motors. Engineers who grasp this connection may be able to maximize motor performance in a wide variety of industrial settings.

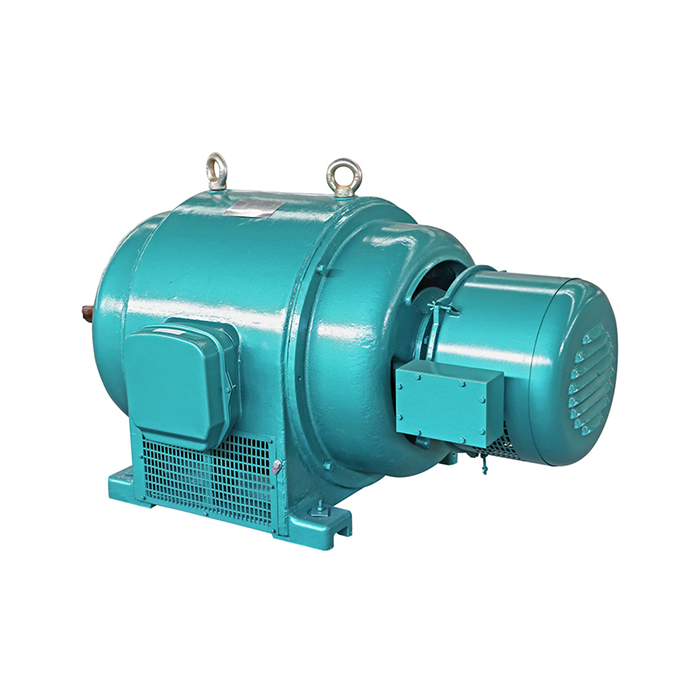

Series：YRQ
Voltage range：380V±5%
Power range：45-800kW
Protection level：IP23
Application：YRQ(JR) series medium-sized motors can drive a variety of different machinery, such as fans, compressors, water pumps, crushers, ball mills, cutting machine tools, transportation machinery and other equipment, and can be used in coal mines, machinery industries, power plants and various industrial and mining enterprises. Used as prime mover.
Advantage: The JR series medium-sized motors have very powerful driving capabilities and can not only drive conventional mechanical equipment, but also some complex mechanical equipment. For example, it can drive heavy machinery such as ships, cranes, and wind turbines, as well as small household appliances, purifiers, compressors, etc.
Others： SKF, NSK, FAG bearings can be replaced according to customer requirements.
Understanding Slip in Induction Motors
Slip speaks to a principal characteristic of acceptance engine operation that straightforwardly impacts execution and proficiency. When an acceptance engine works, the attractive field made by the stator windings pivots at synchronous speed, whereas the rotor follows at a somewhat slower pace. This speed differential makes the electromagnetic torque essential for engine operation.
The synchronous speed depends on the supply frequency and the number of posts in the engine. The equation for synchronous speed is Ns = 120f/P, where f speaks to recurrence in hertz and P represents the number of poles. At no stack, slip approaches zero, whereas beneath full stack conditions, slip ordinarily ranges from 2% to 8% depending on engine plan and application requirements.
Understanding slip becomes vital when selecting engines for particular applications. Fabricating offices requires exact control over transport speeds, whereas HVAC frameworks require steady wind stream rates. The slip characteristics specifically impact these operational parameters, makingan exact calculation basic for framework optimization.
Formula for Calculating Slip
The slip calculation preparation includes direct numerical steps that give important bits of knowledge into engine execution. The essential equation requires three key estimations: synchronous speed, real rotor speed, and the coming about rate calculation.
Consider a down-to-earth illustration from a fabrication environment. A four-pole acceptance engine working at 60Hz has a synchronous speed of 1,800 RPM. Beneath stack, the real rotor speed measures 1,740 RPM. Utilizing the slip equation: s = (1,800 - 1,740) / 1,800 × 100% = 3.33%. This slip esteem shows ordinary working conditions for most mechanical applications.
Another calculation strategy includes utilizing the slip recurrence approach. Slip recurrence rises to the contrast between supply recurrence and rotor recurrence. This strategy is especially valuable when analyzing engine execution beneath variable stack conditions or when executing speed control systems.
Slip vs Efficiency in Induction Motors
The relationship between slip and engine productivity illustrates basic execution characteristics that influence operational costs and vitality utilization. Higher slip values by and large relate to decreased productivity, expanded warm era, and raised vitality costs over mechanical applications.
Low slip engines ordinarily work between 1% to 3% slip beneath evaluated stack conditions. These engines convey prevalent productivity appraisals, regularly surpassing 95% in premium plans. The decreased slip minimizes rotor misfortunes, resulting in cooler operation and expanded component life expectancy. Fabricating offices utilizing Moo Slip Engines encounter critical energy savings, especially in persistent operation scenarios.
High slip engines, working over 5% slip, create expanded rotor warming and expend more electrical control for identical mechanical yield. Be that as it may, these engines give preferences in particular applications requiring high starting torque or visit start-stop cycles. Coal mining operations and overwhelming apparatus applications regularly benefit from tall slip characteristics in spite of diminished effectiveness ratings.
Energy utilization investigation uncovers that lessening slip from 5% to 3% can progress generally engine productivity by 1-2 percentage focuses. This change translates to significant stored reserve funds in huge mechanical establishments, making slip optimization a need for vitality administration programs.
Advantages of Low Slip in Motors
Low slip operation gives various benefits that upgrade engine execution, unwavering quality, and operational costs. These focal points ended up especially articulated in applications requiring ceaseless operation or exact speed control.
The center preferences of Moo slip engines incorporate improved efficiency, decreased working temperatures, improved speed control, and extended benefit life. These characteristics straightforwardly address the operational challenges confronted by mechanical offices looking to optimize their control systems.
- Enhanced Efficiency: Low-slip motors waste less energy as heat, converting more electrical input into useful mechanical work. This efficiency improvement reduces operational costs and supports sustainability initiatives across manufacturing operations.
- Superior Speed Regulation: Reduced slip provides more stable speed characteristics under varying load conditions. This stability proves essential for applications requiring consistent output speeds, such as conveyor systems and processing equipment.
- Extended Component Life: Lower operating temperatures resulting from reduced slip minimize thermal stress on windings, bearings, and insulation systems. This thermal management extends maintenance intervals and reduces unexpected downtime.
- Improved Power Factor: Low slip motors typically demonstrate better power factor characteristics, reducing reactive power consumption and improving overall electrical system efficiency.
These advantages collectively contribute to reduced total cost of ownership, making low slip ring rotor motors attractive for applications where initial investment can be justified by long-term operational savings.
Slip in Single-Phase vs Three-Phase Motors
Slip characteristics shift essentially between single-phase and three-phase engine plans, affecting their appropriateness for distinctive mechanical applications. Understanding these contrasts makes a difference when engineers select suitable engine sorts for particular operational requirements.
Three-phase engines for the most part show lower slip values and more reliable torque characteristics compared to single-phase plans. The adjusted three-phase control supply makes a uniform turning attractive field, resulting in smoother operation and decreased slip variety beneath changing stack conditions. Mechanical applications ordinarily favor three-phase engines for their predominant execution characteristics and productivity ratings.
Single-phase engines illustrate higher slip values, especially at beginning conditions. These engines require assistant beginning strategies, such as capacitor-start or split-phase setups, which can impact slip characteristics. In any case, single-phase engines stay appropriate for smaller applications where three-phase control is inaccessible or unnecessary.
The torque-slip relationship varies between engine sorts, influencing their application appropriateness. Three-phase engines give more straight torque characteristics, whereas single-phase engines may show torque varieties that affect slip steadiness. This distinction becomes vital when selecting engines for applications requiring exact speed control or steady yield characteristics.
Best Practices for Reducing Slip
Implementing viable slip decrease techniques requires a comprehensive understanding of engine plan, establishment, and upkeep methods. These procedures offer assistance to maximize engine effectiveness while guaranteeing solid operation over different mechanical environments.
Proper engine measuring speaks to the establishment of slip optimization. Larger-than-average engines work at decreased stack components, possibly expanding slip and decreasing effectiveness. On the other hand, undersized engines may involve excessive slip beneath ordinary working conditions. Stack examination and cautious engine choice guarantee ideal slip characteristics for particular applications.
Maintenance honors the overall impact of slip execution through engine benefit life. Standard assessment and calibration offer assistance to keep up ideal working conditions and avoid slip and fall accidents over time.
- Voltage Optimization: Maintaining proper voltage levels within specified tolerances prevents excessive slip caused by voltage variations. Voltage monitoring systems help identify and correct supply issues before they impact slip ring rotor motor performance.
- Bearing Maintenance: Properly lubricated and aligned bearings reduce mechanical friction, minimizing slip increases caused by mechanical resistance. Regular bearing inspection and replacement prevent slip degradation due to mechanical wear.
- Winding Condition: Clean, dry motor windings maintain optimal electrical characteristics. Regular cleaning and insulation testing prevent slip increases caused by electrical deterioration or contamination.
- Load Analysis: Periodic load monitoring identifies changes in mechanical requirements that may affect slip characteristics. This analysis helps optimize motor selection and identify potential mechanical issues.
These maintenance practices, when implemented systematically, help maintain optimal slip characteristics throughout motor service life while preventing unexpected performance degradation.
XCMOTOR: Leading Provider of Slip-Optimized Motors
Shaanxi Qihe Xicheng Electromechanical Gear Co., Ltd. (XCMOTOR) specializes in giving comprehensive control hardware arrangements that address the complex necessities of advanced mechanical applications. Our skill in engine innovation empowers us to provide high-efficiency, low-slip engine arrangements that optimize execution over differing operational environments.
Our YRQ(JR) arrangement medium-sized engines join progressed plan standards that minimize slip while maximizing operational productivity. These engines work inside a voltage extend of 380V±5% and give control yields from 45kW to 800kW, making them suitable for a wide range of mechanical applications. The IP23 assurance level guarantees solid operation in challenging natural conditions.
The JR arrangement illustrates remarkable flexibility, capable of driving customary mechanical gear as well as complex mechanical apparatus. These engines control fans, compressors, water pumps, crushers, ball plants, cutting machine apparatuses, and transportation apparatuses over coal mines, control plants, and different mechanical undertakings. The strong plan empowers operations with overwhelming apparatus including ships, cranes, and wind turbines.
Conclusion
Understanding slip calculation in acceptance engines empowers engineers to optimize engine choice, move forward operational effectiveness, and decrease fuel consumption over mechanical applications. The relationship between slip and engine execution influences everything from beginning characteristics to operational costs, making precise slip evaluation essential for framework optimization.
Proper slip administration through suitable engine choice, establishment costs, and support strategies conveys noteworthy benefits including moved forward efficiency, decreased operating costs, and extended hardware life. Whether working with standard squirrel cage plans or progressed slip ring rotor motors, understanding slip characteristics empowers educated choices that improve the overall framework's execution and reliability.
Frequently Asked Questions
Q1: What factors influence slip in induction motors?
A: Several factors affect motor slip including load conditions, supply voltage variations, rotor resistance, and motor design characteristics. Environmental factors such as temperature and mechanical condition also influence slip values. Proper motor selection and maintenance help optimize slip performance across varying operational conditions.
Q2: How does slip affect motor starting characteristics?
A: During motor starting, slip approaches 100% as the rotor begins from standstill. High starting slip enables maximum torque production but also creates significant current draw. Slip ring rotor motors provide better starting control through external resistance insertion, allowing optimized starting characteristics for specific applications.
Q3: Can slip be controlled in standard induction motors?
A: Standard squirrel cage motors have fixed slip characteristics determined by rotor design. However, slip ring rotor motors allow external control through rotor circuit resistance variation. Variable frequency drives also provide slip control by adjusting supply frequency and voltage to achieve desired speed characteristics.
Optimize Your Operations with XCMOTOR Slip Ring Rotor Motors
No matter the stack circumstances, dependable, proficient, and reliable working engine arrangements are crucial for mechanical operations. Applications in the vitality, mechanical, and fabricating businesses require exact control and long-term operation, which XCMOTOR's slip ring rotor motor innovation offers.
Our broad item catalog has everything you might conceivably require, including vitality era, HVAC frameworks, and mechanical mechanization, among numerous other things. The versatility and bearing adjustment alternatives of XCMOTOR engines make them well-suited to a wide extend of mechanical settings. For items to stay solid and of high quality throughout their life expectancy, we as it were utilize true components sourced from legitimate sources.
Fast delivery capabilities and dedicated support services, including weekend availability, demonstrate our commitment to customer success. Our 30-day return policy and comprehensive technical support ensure confident purchasing decisions. Whether you need a slip ring rotor motor supplier for ongoing projects or specific motor solutions for new installations, our team provides expert guidance throughout the selection and implementation process.
Contact us at xcmotors@163.com to discuss your motor requirements and discover how our slip-optimized solutions can enhance your operational efficiency. Visit motorxc.com for detailed product specifications and technical resources.
