Common Uses of Medium Voltage Electric Motors
Medium voltage electric motors work with voltages between 1kV and 35kV. They are presently vital hardware in numerous mechanical areas. These engines control imperative frameworks in production lines, vitality plants, water treatment plants, and transportation systems. Since they can keep working well indeed in intense conditions, they are valuable for errands that require reliable torque and consistency. These engines are critical for numerous sorts of businesses, from petrochemicals to renewable vitality, to keep their operations running smoothly and efficiently.

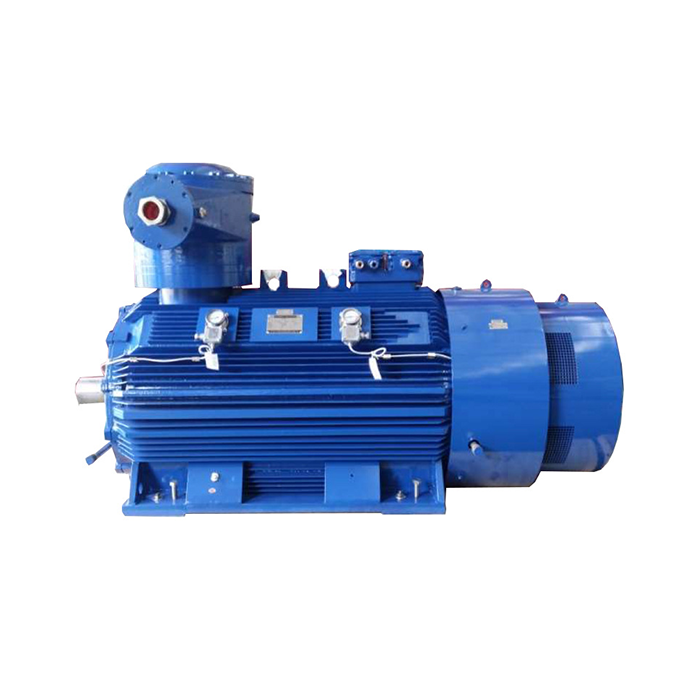

Series：YBBP-HV
Voltage range：3000V±5%,3300V±5%,6000V±5%,6600V±5%,10000V±5%,11000V±5%
Power range：185-1800 kW
Application：compressors, water pumps, crushers, cutting machine tools, transportation machinery.
Advantage: wide modulation range, high efficiency and energy saving, low noise, long life, high reliability.
Others： SKF, NSK, FAG bearings can be replaced according to customer requirements.
Understanding Medium Voltage Electric Motors and Their Industrial Role
What Makes Medium Voltage Motors Distinct
Medium voltage electric motors operate between 3kV and 11kV, delivering power from 200kW to 3550kW. This range allows them to drive heavy industrial equipment without the complexity of high-voltage systems. Designs like the YAKK series offer flexible voltage options and grid tolerance. Durable construction includes Class F or H insulation and protection ratings such as IP55 or IP65. Vacuum pressure impregnation ensures uniform insulation, while high-quality bearings enhance reliability. These features make medium voltage electric motors suitable for demanding environments requiring long service life.
Why Industries Choose Medium Voltage Solutions
Industries lean toward these engines for their steadiness in persistent operations. Beginning streams of 5–7 times evaluated values bolster high-inertia loads, whereas control variables between 0.85 and 0.92 make strides vitality productivity. Torque capacity up to 150% guarantees flexibility amid stack changes. When matched with variable speed drives, they give smooth speeding up and diminish mechanical stretch. Warm checking utilizing cover limits makes a difference avoid disappointments.These capabilities make medium voltage electric motors ideal for processes where reliability directly impacts productivity.
Common Applications Across Industrial Sectors
Pumping Systems in Water Management
Medium voltage electric motors are widely used in water treatment and irrigation systems. Motors ranging from 500kW to 2000kW maintain pressure in large municipal pipelines. They drive centrifugal pumps at optimized speeds for efficiency. Custom protection ratings handle humid and chemically aggressive environments. In agriculture, low-speed, high-torque motors support deep-well pumps and adapt to seasonal demand changes. Proper selection of duty cycles and starting methods ensures reliable performance and long equipment life.
Compressor Drives in Process Industries
Process industries rely on these motors to power compressors in gas processing and petrochemical plants. Stable operation under high temperatures and continuous duty is essential. Balanced rotor designs reduce vibration and extend equipment life. Smaller motors also drive centrifugal chillers in buildings, ensuring efficient climate control. Proper insulation selection allows frequent start-stop cycles without thermal damage. These characteristics make medium voltage electric motors dependable for both industrial processing and commercial cooling systems.
Material Handling and Conveyor Systems
In mining and bulk material handling, these motors power conveyors transporting ore, coal, and aggregates. Consistent torque output ensures smooth material flow under varying loads. High-speed motors combined with gear systems regulate conveyor speed. Strong construction withstands vibration and shock in harsh environments. In cement plants, they drive crushers and mills requiring high starting torque. Proper alignment and monitoring extend bearing life, making medium voltage electric motors essential for continuous heavy-duty operations.
Power Generation and Energy Distribution
Power plants use these motors for auxiliary systems like fuel handling, boiler feed, and cooling water circulation. High reliability is critical since failures impact overall plant performance. Advanced monitoring systems track temperature and vibration for preventive maintenance. Renewable energy systems also use them in wind and solar applications. Efficiency directly affects plant energy consumption, making optimized designs valuable. Medium voltage electric motors ensure dependable operation across both conventional and renewable energy sectors.
Manufacturing and Production Equipment
In manufacturing, these motors drive systems requiring stable and continuous operation. Automotive paint booths use them to maintain airflow for consistent coating quality. Food processing plants rely on them for refrigeration and freezing systems, where precise temperature control is critical. Designs must withstand frequent cleaning and maintain hygienic standards. Proper sealing and surface finishes prevent contamination. Medium voltage electric motors provide reliability and performance in production environments where consistency is essential.
Selecting the Right Motor for Your Operation
Assessing Application Requirements
Selecting the right motor starts with understanding load characteristics and duty cycles. Constant and variable torque applications require different designs. Frequent starts, continuous operation, or cyclic loads influence thermal ratings and construction. Environmental factors like temperature, altitude, and exposure conditions affect derating requirements. Electrical supply stability must match motor tolerances. Proper coordination with protection systems ensures safety without unnecessary shutdowns. Careful analysis helps optimize medium voltage electric motors for reliable and efficient operation.
Evaluating Technical Specifications
Frame size selection balances thermal performance with installation constraints. Larger frames dissipate heat better and support higher ratings but require more space. Speed choice affects both motor size and driven equipment design. Cooling methods vary, with enclosed designs protecting against contaminants and open types simplifying maintenance. Insulation class determines allowable temperature rise and lifespan. Operating motors below maximum limits extends service life, making medium voltage electric motors more reliable in critical applications.
Comparing Quality and Support Factors
Manufacturing quality strongly influences motor reliability and maintenance intervals. Precision machining reduces vibration and extends bearing life. Advanced insulation processes improve resistance to moisture and electrical stress. Optimized electromagnetic design enhances efficiency and starting performance. After-sales support is equally important, including access to skilled technicians and spare parts. Warranty terms reflect product confidence. Strong supplier relationships ensure dependable service and reduce operational risks when using medium voltage electric motors.
Maintenance Practices That Extend Motor Life
Routine Inspection Protocols
Visual inspections that are done on a regular basis find problems before they become major ones. By listening for strange noises, vibrations, or heat while the machine is running, you can find problems like worn bearings, misaligned parts, or clogged cooling systems. Checking the ends of cables and the connections to the ground stops electrical problems from arcing or contacts coming loose. Writing down what was found during an inspection gives you a starting point for analyzing trends, which shows how performance is slowly getting worse.Managing lubrication keeps bearings in good shape for the life of a motor. Both under- and over-greasing failures can be avoided by following the manufacturer's instructions for lubricant type, amount, and intervals between re-greasing. By taking samples of the lubricant on a regular basis, you can find contamination or degradation early on. Automatic lubrication systems make sure that lubrication practices are always the same while cutting down on maintenance work.
Diagnostic Testing Methods
Insulation resistance testing checks the condition of the winding and finds signs of moisture getting in or insulation wearing down. Trending resistance values over time shows patterns of decline that need to be fixed. Measurements of the polarization index can tell the difference between surface contamination and real insulation degradation. Testing after long periods of inactivity makes sure the motor is ready before it is turned on, which keeps the insulation from getting damaged. Vibration analysis lets you know about the condition of a machine without taking it apart. By looking at the frequency patterns of vibrations, you can find problems with bearings, rotor imbalance, and alignment. Setting baselines for vibrations during commissioning makes it possible to make meaningful comparisons during later measurements. Ultrasonic testing finds early-stage bearing failures and electrical discharge phenomena, which is added to vibration monitoring.
Addressing Common Failure Modes
Failures of bearings are often caused by not lubricating them well enough, contamination, or bad installation. By using condition-based monitoring, bearings can be replaced before they fail in a catastrophic way. Preventing premature wear is done by choosing the right bearing types for the loads and speeds that will be used. By keeping the shaft properly aligned, you can stop the abnormal loading that speeds up bearing wear.Insulation failure is often the cause of electrical problems like ground faults and turn-to-turn shorts. Keeping motors within their thermal limits extends the life of the insulation. Insulation stress can be avoided by using surge arresters that work together properly to protect against voltage surges. Regularly cleaning the inside of motors keeps them clean and stops conductive dust from building up, which can affect electrical clearances.
Future Developments in Motor Technology
Efficiency Standards and Performance Optimization
Motor efficiency keeps getting better because of rules and regulations. Moving from the IE3 to the IE4 efficiency classes lowers the amount of energy used in industrial settings. Modern electromagnetic design methods improve flux distribution while reducing core losses. Better rotor designs keep the mechanical strength while lowering stray load losses. These improvements save energy in a way that can be measured, and the higher costs of the equipment at first are recouped over the motor's lifetime.Material innovations help make things more efficient and better for the environment. Core performance is better with electrical steel grades that have lower hysteresis losses. Using environmentally friendly materials in insulation systems keeps their performance while lowering their impact on the environment. Using recycled materials in manufacturing processes helps the environment without lowering the quality of the products.
Integration of Monitoring Technologies
Adding smart sensors lets you check on their condition in real time and plan ahead for maintenance. Temperature sensors built into motor windings give accurate temperature readings, which improves protection. Vibration sensors send data all the time to analytics platforms, which find faults that are starting to form. Because of this connectivity, maintenance teams can plan their visits based on the actual condition of the equipment instead of set times.Protocols for communication between motors and plant control systems help improve operations. By keeping an eye on power use, torque output, and efficiency, process changes can be made that use less energy. Data analytics can find patterns of use that put stress on equipment. This information can be used to change procedures that make parts last longer. With these features, motors go from being passive pieces of equipment to being smart parts of systems.
Conclusion
medium voltage electric motors are very important in the process, energy, manufacturing, and water management industries. Their power range, from 200kW to 3550kW, covers uses that need to work continuously and reliably in tough conditions. When choosing the right motor for an application, it's important to think about the load, the environment, and the support needs. The YAKK series shows how reliable performance can be achieved with modern manufacturing methods, high-quality materials, and features that can be changed to fit your needs. Inspection, lubrication, and diagnostic testing are all part of routine maintenance that keeps motor assets in good shape and cuts down on unplanned downtime. As standards for efficiency get stricter and monitoring technologies get better, these motors keep changing to meet new needs in the industry while still providing reliable service.
Frequently Asked Questions
1. What voltage levels define medium voltage motors?
medium voltage electric motors usually work between 1kV and 35kV, but 3kV, 6kV, and 10kV motors are often used in industrial settings. They are different from low-voltage motors (less than 1kV) and high-voltage motors (more than 35kV) because of this classification. The YAKK series has voltages of 3000V, 6000V, and 10000V, with a ±5% tolerance for grid changes. This covers the useful industrial range.
2. How do I determine the correct motor size for my application?
Find the power that is needed by multiplying the load's torque by its speed, and then add 10-15% to account for sudden changes. Think about how the duty cycle, starting method, and environment affect thermal performance. Talking to experienced suppliers can help you make sure your choices are correct and spot any problems that might arise. XCMOTOR offers technical support to make sure that the motor's specs match the needs of the application.
3. What maintenance frequency do these motors require?
The frequency of inspections depends on how the system is being used, but visual checks every three months and full inspections once a year are good for most situations. Manufacturers set schedules for lubricating bearings, which are usually between 2000 and 8000 operating hours. Electrical testing, which includes measuring insulation resistance, is done once a year or after long periods of shutdown. Monitoring may need to happen more often in harsh environments or for critical applications to avoid failures that come up out of the blue.
Partner with XCMOTOR for Reliable Medium Voltage Electric Motors
XCMOTOR has been providing power equipment solutions for demanding industrial environments for more than twenty years. Made to GB 10068 standards, our YAKK series medium voltage electric motors offer power outputs ranging from 200kW to 3550kW and voltage ranges that work for your needs. We keep relationships with top bearing makers so that we can offer SKF, NSK, and FAG options that fit your maintenance needs and load conditions. Every motor goes through strict quality control, from choosing the materials to testing their final performance. This makes sure that you get equipment that is ready to be used right away. Our technical team helps you choose the right motor by taking into account things like the application's insulation class, protection rating, and speed configurations. We stand behind our products with full support that includes consultations before the sale and quick service after the sale. Email our team at xcmotors@163.com to talk about your needs with experienced medium voltage electric motors suppliers who know the problems your industry faces. You can find out more about our solutions and how they can help you reach your sustainability goals by going to motorxc.com and reading through the detailed specifications.
