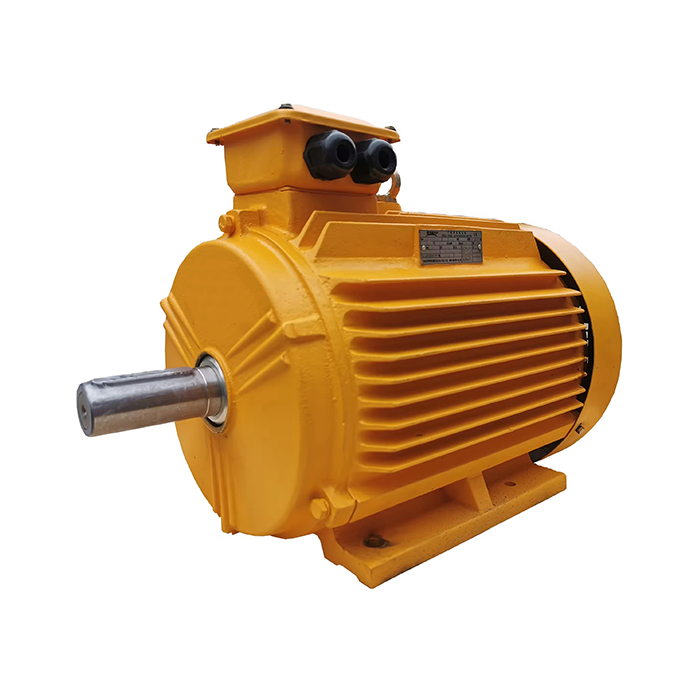

induction motor 3 phase
Frame number: 80-450
Power range：0.75-1000kW
Protection level：IP55
Energy efficiency class: IE3
Voltage range: 380V,400V,415V,660V， etc.
Application:can be used in various fields of the national economy, such as machine tools,water pumps,fans,compressors,and can also be used in transportation, mixing, printing, agricultural machinery, food and other occasions that do not contain flammable, explosive or corrosive gases.
Certificate: international standard IEC60034-30 "Efficiency Classification of Single-speed Three-Phase Squirrel Cage Induction Motors".
Advantage:The high quality of the electric motor guarantees high operational reliability.
Others: SKF, NSK, FAG bearings can be replaced according to customer requirements.
- Product Description
High-Performance Induction Motor 3 Phase - YE3 Series
Looking for reliable power solutions for your industrial applications? Our induction motor 3 phase YE3 series delivers exceptional performance with superior energy efficiency. These motors offer considerable cost advantages while satisfying contemporary industrial standards. Our three-phase motors offer the perfect balance of performance, efficiency, and dependability for your business's needs, whether you are updating your power systems or replacing antiquated machinery.
Product Description
The YE3 series represents the latest advancement in three-phase motor technology. These motors continuously generate power while maintaining exceptional energy efficiency ratings because they are built with premium materials and state-of-the-art engineering.
Product Specifications
| Frame: | H80~H450 |
| Voltage range: | 380V, 400V, 415V, 460V, 490V, 660V, 690V |
| Power output: | 0.75kW to 1000kW |
| Speed: | 3000rpm, 1500rpm, 1000rpm, 750rpm, 600rpm, 500rpm |
| Number of Poles: | 2P, 4P, 6P, 8P, 10P, 12P |
| Efficiency class: | IE3 |
| Protection class: | IP55 (standard), IP56, IP65 (optional) |
| Insulation class: | F(155℃), H(180℃) |
| Mounting Type: | B3/ B5/ B35/ V1 |
Product Details
Our product features robust cast iron construction for maximum durability. The advanced stator winding design uses high-temperature insulating materials to provide reliable performance even under the most severe conditions. Premium bearings from SKF, NSK, or FAG may be your choice, depending on your particular requirements.
The motor housing offers superior defense against water and dust intrusion. The motor's lifespan is greatly increased by the optimal ventilation design, which maintains optimal working temperatures. Get a customized quote！
Production Process:
Frame
Compact and robust iron casting frame.
Universal IEC installation dimensions.
Customizable.
Stator
99.9% pure copper winding for stator to ensure the output power and efficiency.
Excellent insulation system with 5 more processing flows.
All the windings are fitted in by handwork to ensure all slots are full and avoid any winding flaw.
Rotor
Aluminum casting rotor with silicon steel rotor core to assure induction efficiency.
Precisely machined shafts with good capacity of strength and toughness.
Testing
All motors must pass the piece testing before painting and packaging.
Type tests will be regularly performed for each series, more often for new developed series and variants.
Package and delivery
All motors will be packaged well before delivery.
Plastic cover inside, vacuum tin foil outer and then solid wood box.
Applications
The YE3 Series LV Motor is commonly used to drive water pumps, compressors, conveyors and other transmission machinery in different areas.
Certifications:
XCMOTOR's products are certified to meet international standards, including:
- CE marking
- ISO 9001:2015
- GOST certification
Why Choose XCMOTOR
XCMOTOR offers more than 20 years of power equipment solutions experience. We still work together with leading manufacturers like ABB, Wolong, and Siemens. Our commitment to quality ensures that you will receive motors that offer long-lasting value and dependable performance.
From the first consultation to installation and upkeep, we provide all-inclusive assistance. For your particular applications, our technical staff assists you in choosing the appropriate motor specifications.
Qualification Certification
All our motors meet strict international quality standards. The IE3 efficiency grade ensures optimal energy use, which lowers operating expenses and promotes environmental sustainability objectives.
FAQ
Q: Can these motors replace existing Y-series motors?
A: Yes, the YE3 series maintains compatibility with Y and Y2 series mounting dimensions for easy replacement.
Q: What energy savings can I expect?
A: Our product typically provides 8-10% efficiency improvement over traditional motors, resulting in significant electricity cost reductions.
Q: What warranty do you provide?
A: We offer comprehensive warranty coverage with dedicated technical support throughout the motor's lifespan.
Q: Do you offer custom voltage configurations?
A: Yes, we can accommodate special voltage requirements based on your application needs.
Contact Us
Ready to upgrade your induction motor 3 phase power systems? To assist you in choosing the ideal motor solution, our technical specialists are available. Contact Us at xcmotors@163.com right now for comprehensive technical help, price, and specs. Allow us to assist you in identifying the best power option for your company.
