Choosing a Three Phase Slip Ring Induction Motor for Industry

September 14, 2026

When your ball mill stalls at startup or your hoist trips the breaker under full load, the motor selection decision becomes very consequential. A three phase slip ring induction motor solves these problems by delivering controlled high starting torque while keeping inrush current within manageable limits. Unlike squirrel cage alternatives, this wound rotor design connects external resistance through slip rings, letting engineers tune the torque-speed curve to match actual load conditions. This guide walks procurement engineers and equipment designers through everything needed to specify, source, and maintain the right wound rotor motor for demanding industrial applications.

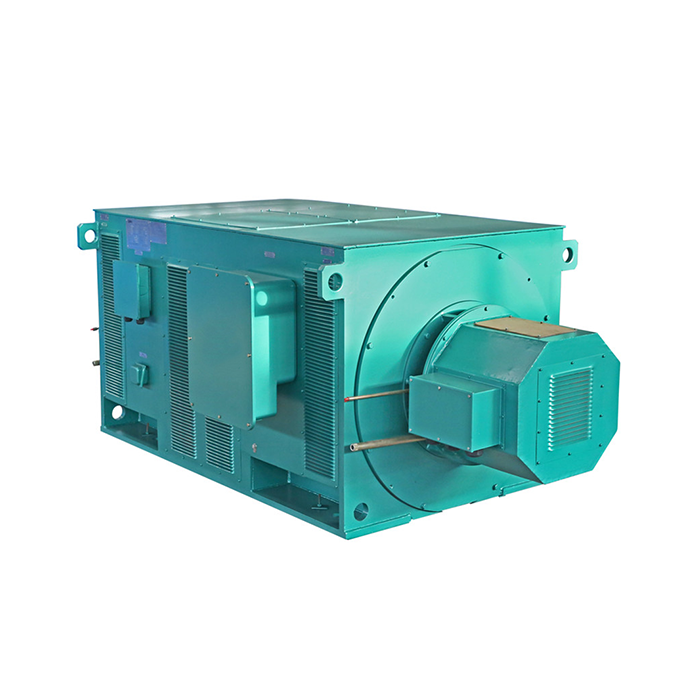

Series：YR
Protection level：IP23
Voltage range：3000V±5%,3300V±5%,6000V±5%,6600V±5%,10000V±5%,11000V±5%
Power range：200-5600 kW
Application：hoist, rolling mill, wire drawing machine.
Advantage：low noise, small vibration, reliable performance, easy installation and maintenance.
Standard: This series of products complies with JB/T10314.1-2002 and JB/T7594 standards.
Others： SKF, NSK, FAG bearings can be replaced according to customer requirements.

Understanding Three Phase Slip Ring Induction Motors

There is electromagnetic induction in a three phase slip ring induction motor, but the rotor windings can be reached from the outside by carbon brushes that ride on conductive rings. Because of its layout, it can do something that fixed-rotor designs can't: it can insert external resistance for starting control.

How the Wound Rotor Architecture Works

The three-phase windings on the rotor come to an end at slip rings on the shaft. These rings are pressed against by stationary brushes, which connects the rotor circuit to an outside resistance bank. High resistance limits the starting torque to 1.8–2.2 times the rated torque and the inrush current to about 2.5–3 times the rated current. As the speed goes up, the resistance is slowly taken away until the motor works at its best. The three phase slip ring induction motor is the standard choice when heavy loads need to speed up smoothly without putting a lot of stress on the power grid because of this mechanism.

Why Heavy Industry Relies on This Motor Type

In order to work, mining hoists, ball mills, rolling mills, and wire drawing tools all need a lot of escape torque when they are fully loaded. According to data from mineral processing plants, squirrel cage motors that are used in ball mills often break down when they first start up because of too much heat. This type of failure can't happen with a wound rotor because it spreads energy loss across the external resistance bank instead of focusing heat in the stator windings.

Key Considerations When Choosing a Three Phase Slip Ring Induction Motor

If you choose the wrong motor for a heavy-duty job, you'll have to pay a lot of money for repairs, downtime, and process interruptions. Here are the main factors that go into making a good pick choice.

Matching Torque-Speed Characteristics to Your Load

Every machine that is driven has a clear torque-speed curve. For a ball mill grinding circuit, the peak torque must be delivered at zero speed. For a wire drawing machine, the torque must be delivered smoothly across a speed range. Get the load's torque-speed curve from the equipment maker before choosing a three phase slip ring induction motor, and make sure the motor's characteristic, along with the planned external resistance steps, crosses that curve at every working point. Most failed starts and burnouts in heavy industry are caused by curves that don't match up.

Power Rating, Voltage, and Environmental Fit

XCMOTOR's YR Series three phase slip ring induction motor can handle voltages of 3,000 V, 3,300 V, 6,000 V, 6,600 V, 10,000 V, and 11,000 V, with a range of ±5% for each. It can produce power between 200 kW and 5,600 kW. Because of this, one family of products can be used for a cement mill drive, a steel rolling mill, and a mine hoist all in the same project. If there are airborne particles and light water spray in a workshop or semi-enclosed area, IP23 protection can handle it. The open design also lets 15–20% more heat escape than fully covered motors, which is a big benefit for continuous-duty uses.

Insulation Quality and Construction Standards

When it's hot, dusty, or high up, the winding insulation class directly affects how long a motor lasts. The YR Series meets the requirements of JB/T10314.1-2002 and JB/T7594, which is a well-known technical standard. Choice of bearings is also important. Asking for SKF, NSK, or FAG bearings when placing the order removes any doubts about compatibility during servicing and makes it easy to find extra parts.

Procurement Guide: How to Buy the Right Three Phase Slip Ring Induction Motor

You can't just pick out a high-voltage wound rotor motor from a catalog to buy for a big project. Before a batch order is confirmed, the procurement cycle usually lasts between one and three months and includes checking the startup conditions, going over the technical proposal, and sometimes building a pilot unit.

Evaluating Suppliers and Certifications

A reliable three phase slip ring induction motor supplier has a number of well-known certifications, such as CCC, CE, ISO 9001, UL, and GOST, which cover most international project needs. In the beginning, ask for proof. Ask the maker for test results on motors with similar power and voltage ratings, and make sure that every unit is tested regularly before it is shipped. In XCMOTOR's production process, this stage requires thorough testing, which gives buyers a quality checkpoint that can be seen and checked.

Preparing Your Technical Specification

In your question document, you should list the rated power, supply voltage, supply frequency, load type, outdoor temperature, altitude, starting method, and any brand preferences you have for the bearings. The more detailed this specification is, the faster a manufacturer can check to see if the two products work together or find a problem. If you want to replace an imported motor, you should include the nameplate data and dimensional drawing of the old motor so that the supplier can make sure that the new motor will work with the old one mechanically and electrically before starting production.

Troubleshooting and Maintenance Best Practices for Slip Ring Induction Motors

One real benefit of the three phase slip ring induction motor over sealed versions is that it is easier to keep up with. Technicians can test the insulation resistance and find faults without taking the whole machine apart because the rotor winding leads end at the slip ring assembly.

Brush and Slip Ring Service

The H44 series swing check valves from XCMOTOR, along with their three phase slip ring motor offerings, are made according to GB/T12236 production standards. They come in sizes from DN20 to DN600 and have pressure values of PN16, 25 or 40. The flange standards can be customized to meet ASME B16.5 and EN 1092 requirements. We can make 12 swing check valves that you can trust, and we can deliver bulk orders of 100 or more units within 15 to 30 days with full API 6D, ISO 9001, and NACE MR-0175 documentation.

Bearing and Thermal Monitoring

Most unplanned outages on high-voltage motors are caused by bearing failures and windings that get too hot. Vibration trending and temperature logging can find wear and tear before they fail, even with simple instruments. The open IP23 design of the YR Series allows for natural convection cooling, but wind paths must not be blocked. Make sure that the fitting clearances are the same as shown on the manufacturer's plan drawings. Also, make sure that you use the right type of oil and that you re-grease it at the right time every time.

Future Trends and Performance Optimization of Three Phase Slip Ring Induction Motors

Integration of Industry 4.0 is making small changes to how wound rotor motors work. Predictive maintenance platforms now get data from thermal monitors and vibration detectors that are built in. This lets maintenance teams switch from service based on the calendar to service based on conditions. This change cuts down on the use of unnecessary parts and increases the time between major overhauls.

On the materials side, improvements in winding insulation compounds are making thermal class ratings longer without making the motor frame bigger, which is important for retrofit uses where mounting measurements are set. Smart resistance control systems are also being put into use. These systems replace human resistance banks with solid-state switching and offer better power control during the multiple stages of starting up big ball mills and hoists. Because of these changes, the three phase slip ring induction motor is becoming a more useful tool and not an old technology that needs to be replaced.

Conclusion

For heavy industrial use, picking the right three phase slip ring motor requires careful matching of torque and speed, choosing the right voltage and power size, evaluating suppliers in a structured way, and making a maintenance plan that you can stick to. The YR Series covers all of these areas with a list of specifications, compliance with accepted standards, choice of bearing names, and XCMOTOR's 20-year history of service. The wound rotor platform gives high-inertia loads the controlled starting performance they need, whether you are setting up a new ball mill drive, replacing a foreign motor in a rolling mill, or choosing equipment for an EPC project.

FAQ

1. What distinguishes a slip ring induction motor from a squirrel cage motor?

The starting current and torque of a squirrel cage motor are set by the motor's own impedance because the rotor is sealed and has no connections to the outside world. Engineers can lower the starting current to 2.5–3 times the rated value and raise the starting power to 1.8–2.2 times the rated value in a three phase slip ring induction motor. This is done by connecting the rotor circuit to external resistance with slip rings. Because they are easy to control, wound rotor motors are usually chosen for loads with a lot of inertia.

2. How do I select the correct power rating for my application?

Find out how much power your driven machine needs at full load, then use a service factor that is based on duty cycle and starting frequency. Compare your supply voltage to the voltage values for the motors that are accessible. The YR Series has six voltage levels and power ranges from 200 kW to 5,600 kW, so it can handle most heavy-duty industrial tasks without the need for special building.

3. Can the YR Series motor replace an imported motor on an existing machine?

Yes, as long as the key's size, power rating, voltage, and starting torque curve are checked against the motor's labels and plans. The technical team at XCMOTOR looks over this information before confirming compatibility.
