5 Reasons Why IE5 Motors Are a Smart Investment
When industrial operations face mounting pressure to reduce energy costs while maintaining peak performance, upgrading to ultra-premium efficiency motors becomes more than just a consideration—it becomes a necessity. An IE 5 motor delivers exceptional energy efficiency that surpasses previous standards, offering businesses measurable savings and operational advantages. At XCMOTOR, we've seen manufacturers, HVAC contractors, and energy managers transform their facilities by adopting motors certified to IEC60034-30 standards. These motors provide reliability, compliance with environmental regulations, and a clear pathway toward sustainable industrial operations that benefit both profitability and environmental stewardship.

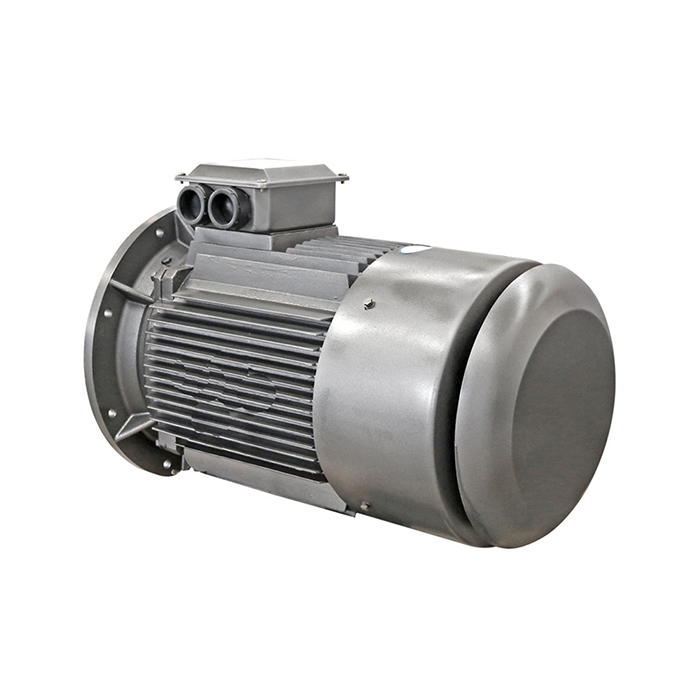

Series：YE5
Frame number: 80-450
Power range：0.75-1000kW
Protection level：IP55
Energy efficiency class: IE5
Voltage range: 380V,400V,415V, 660V，etc.
Application:can be used in various fields of the national economy, such as machine tools,water pumps,fans,compressors,and can also be used in transportation, mixing, printing, agricultural machinery, food and other occasions that do not contain flammable, explosive or corrosive gases.
Certificate: international standard IEC60034-30 "Efficiency Classification of Single-speed Three-Phase Squirrel Cage Induction Motors".
Advantage:The high quality of the electric motor guarantees high operational reliability.
Others: SKF, NSK, FAG bearings can be replaced according to customer requirements.
Unmatched Energy Efficiency Leading to Significant Cost Savings
Efficiency That Translates to Real Dollar Savings
Energy use is one of the biggest costs of doing business in all kinds of industries. An IE 5 motor can be up to 96.5% efficient, which means it uses a lot less electricity than IE3 or even IE4 similar motors. Think about a 110 kW motor that is always on in a water treatment plant. Depending on your area's electricity rates, the difference in yearly energy use between an IE3 motor and an IE5 unit can be more than 15,000 kWh. This can save you thousands of dollars every year.
Our motors, which range from 0.75 kW to 1000 kW, have improved designs for the stator windings and lower rotor losses that keep energy use to a minimum. The better magnetic materials make electromagnetic conversion better, so more electrical input turns into mechanical output instead of heat. When factories use multiple motors for things like fans, compressors, and conveyor systems, they save a lot of money over time, which has a big effect on their annual budgets.
Payback Periods That Make Financial Sense
Many buying teams don't expect the starting cost of an IE 5 motor to pay for itself so quickly. Payback times depend on the number of hours worked and the cost of energy in the area, but are usually between 12 and 24 months. For example, a 75 kW motor that works 6,000 hours a year in a food processing plant can pay for itself in 18 months just by saving energy. Once that point is reached, every hour of operation results in a pure cost decrease for the next 10 to 15 years of the motor's life.
The IE 5 motors from XCMOTOR are compliant with the international standard IEC60034-30, which means that their performance has been checked and meets strict energy standards. This certification gives people who work in buying faith that the savings that are said to be possible will actually happen in the real world. Businesses that are in states that charge for energy based on when it is used save even more money because they use less power during busy hours.
Alignment With Environmental Regulations and Corporate Goals
Regulatory systems around the world are requiring industrial tools to be more efficient more and more. The U.S. Department of Energy is continuing to make energy standards stricter, which means that IE5-level performance will soon be not only helpful but also required for compliance. Companies that spend now escape having to pay for repairs and possible fines in the future and get ahead of the regulatory curve.
In addition to legal requirements, companies' vows to sustainability increase the need for equipment that clearly lowers carbon impacts. When compared to older IE3 units, an IE 5 motor usually cuts CO2 emissions by 20–40%, which makes a real difference in meeting environmental goals. Companies that work with renewable energy know how important it is to be efficient in all of their activities. Their main goal is to use less energy to make, send, or use power, so they do it.
Advanced Technology Enhancing Motor Performance and Reliability
Engineering Innovations That Deliver Superior Performance
Ultra-premium economy motors today use new technologies that motors from the past just couldn't match. The IE 5 motors from XCMOTOR use better magnetic materials that keep the right flux density even when the load changes. This design makes sure that the motor works the same way whether it's running at 25% capacity during times of low demand or at full load during times of high production.
Another important improvement is better heat disposal systems. Our motors run smoother because they have better ventilation and use modern bearing technology from well-known brands like SKF, NSK, and FAG. Lower working temperatures make parts last longer and put less stress on insulation systems, which usually use Class F insulation but can be upgraded to Class H for harsh conditions.
Compared to past models, the motors are quieter and have less shaking. Better working conditions are good for factories because noise and vibrations that are too high make workers tired and equipment wears out faster. Installing a quieter IE 5 motor in a home's HVAC system also stops noise complaints that property managers get from older, louder equipment.
Versatility Across Diverse Industrial Applications
With a power range of 0.75 kW to 1000 kW, it can be used in almost any business setting. Machine tools and farm equipment are powered by small motors, while industrial compressors and water pumps in public services are powered by bigger motors. The IP55 grade means that the protection is resistant to dust and water, making it ideal for tough settings like outdoor installations and food processing areas that need to be cleaned often.
Voltage flexibility lets different area standards and application needs be met. XCMOTOR has motors that can work with 380V, 400V, 415V, and 660V, so you can be sure that the equipment you choose will work in normal North American facilities as well as in specialised uses that need higher voltages. Speed ranges from 500 to 3000 rpm make it possible to precisely match equipment to the needs of an application without having to oversize it or give up effectiveness.
Reduced Maintenance Requirements and Operational Savings
The total cost of ownership goes down when something is durable. An IE 5 motor is subjected to less heat stress, which means that the insulator lasts longer and needs less maintenance. Modern greasing technologies and tight manufacturing standards make bearing systems less likely to stick because of friction. As a result, there will be fewer unexpected breakdowns, lower upkeep labour costs, and fewer breaks in production.
Power factors above 0.9 lower the amount of reactive power that is needed by the electrical grid. This could mean lower energy bills for buildings that are subject to power factor penalties. Low harmonic distortion makes sure that sensitive control systems can work with the system and lowers the stress on the electrical parts upstream. Because of these features, IE 5 motors are very useful in data centers, healthcare facilities, and other places where power quality is important.
Smart Investment Backed by Proven Technology and Support
Quality Manufacturing Ensures Reliable Performance
Precision die-casting of rotor and stator parts is the first step in XCMOTOR's pledge to quality. Each IE 5 motor goes through advanced wrapping methods that make the best use of copper, which increases conductor efficiency while keeping heat performance. At every stage of production, strict quality control checks find any problems before the motors leave the building. This makes sure that customers get equipment that is ready for tough industrial use.
Final performance testing under different loads makes sure that each motor meets the economy goals that were set. As part of this testing procedure, power use, temperature rise, vibration levels, and noise outputs are all measured. The paperwork that comes with each motor proves that it meets the requirements of IEC60034-30 standards. This helps with auditing and qualifying equipment.
The high quality construction ensures operating dependability, which is important to procurement teams. Shaanxi Qihe Xicheng Electromechanical Equipment Co., Ltd. stands behind its goods by answering technical questions and giving advice for as long as the equipment is in use. We care about our customers' success after the sale, making sure that everything works well together and that they are happy.
Access to Technical Expertise and Responsive Service
Working with a manufacturer that provides specialised help adds value that goes beyond the motor itself. Help is available from XCMOTOR both before and after the sale. They help buyers choose the right specs for their needs. Our team knows the ins and outs of each industry. For example, what works for mixing drugs is different from what is needed in rocket manufacturing or transportation systems.
Because industrial activities don't always happen during normal business hours, we offer 30-day returns and help that is available on weekends. Fast delivery keeps project schedules as close to normal as possible, and original parts from reputable bearing makers guarantee their accuracy and performance. Customers who need certain kinds of bearings can ask for options from SKF, NSK, or FAG, depending on their tastes or the way they normally do maintenance.
Streamlined Installation and Integration Process
Standardized Specifications Simplify Engineering Selection
Motor specifications are easy to understand when makers stick to standard placement and size patterns. The IE 5 motors from XCMOTOR have frame sizes ranging from 80 to 450, which are standard sizes that make it easy to replace old equipment. Standard designs are used for the shaft's sizes, mounting holes, and junction boxes' places. This means that expensive custom clamps or alignment processes are not needed.
Engineers can match motors to applications without having to do a lot of research when voltage levels and speed specs are clear. If a facilities manager needs to replace a pump motor, they can quickly find the right IE 5 motor by looking at the speed, voltage, and amount of power needed. They can be sure that the chosen unit will work perfectly with the current system. Standardisation cuts down on the number of hours engineers have to spend on work and the number of picking mistakes that cause equipment to be sent back or performing poorly.
Compatibility With Existing Control Systems
Complex motor control systems, variable frequency drives, and automation platforms are used in modern factories. IE 5 motors work with these devices without having to change the hardware. Standard wire layouts and electrical properties make sure that they work with current soft-starters and VFDs. This lets facilities improve motor efficiency while keeping the control investments they've already made.
The low harmonic distortion and high power factor of the motors work well with drive systems to make the whole system more efficient and reduce electrical stress. Facilities can use soft-start features to lower mechanical stress during starting. This makes equipment last longer and lowers high demand charges. Integration with industrial SCADA platforms or building management systems goes easily, allowing tracking and planned repair to happen without the need for special connections.
Accelerated Time-to-Operation
Less complicated installations mean faster approval and return to production. Clear material includes setup instructions and wiring pictures that help keep mistakes to a minimum and cut down on the time needed to fix problems. Maintenance teams that know how to install motors normally don't find installing an IE 5 motor any different or difficult. This helps keep projects on schedule.
This makes installation very easy, which is especially helpful for places that are upgrading multiple motors at the same time. A factory that needs to replace twenty motors on different production lines can finish the job faster if they use the same steps for each installation. Less delay means less lost production, which increases the overall return on investment and keeps customers who rely on steady output from being interrupted as little as possible.
Future-Proofing Your Operations With IE5 Motor Advantages
Lower Total Cost of Ownership Over Equipment Lifetime
There are more things to consider when evaluating car investments than just the buying price. These include how much energy the vehicles use, how much they cost to maintain, and how long they last. There are several ways that an IE 5 motor lowers the total cost of ownership. Because less energy is used, money is saved over the course of the 10-15 year operating life. When repair needs are lower, labour and extra parts costs go down. The longer the life of an item, the later it will need to be replaced, which makes financial planning more flexible.
Think about a business HVAC system where motors are always running. Over a decade, the energy savings can be more than the cost of the tools itself many times over. The financial benefit is huge when you consider that you won't have to do as much upkeep and won't have to pay for as many emergency fixes. When procurement professionals see things from this bigger picture, they make choices that are good for their companies in the long run instead of just focusing on the lowest original cost.
Eligibility for Incentives and Subsidies
A lot of utilities and government bodies give money to people who make changes to their energy efficiency. When facilities install ultra-high-efficiency motors, they can often get refunds that cover the initial costs of the investment. These programs know that lowering the amount of energy used by factories is good for both the environment and the security of the power grid. This makes subsidies a win-win situation for everyone.
XCMOTOR helps customers find reward programs that are right for them and gives them the paperwork they need to apply for rebates. Our motors are certified to meet well-known efficiency standards. This makes the qualification process easier, since program managers easily accept IEC60034-30 compliance as proof of performance. These programs help some customers get back 15 to 25 percent of the cost of their tools, which greatly improves the economics of the project and shortens the time it takes to pay for itself.
Readiness for Industry 4.0 and Smart Manufacturing
The business world is moving more and more toward data-driven, linked processes. IE 5 motors help with this change by working with monitoring tools that let you plan ahead for repair. Vibration sensors, temperature monitors, and current analysis systems can spot problems before they happen. This means that fixes can be planned for planned breaks instead of having to be done in the middle of production.
When used in a smart manufacturing setting, an IE 5 motor gives performance data that improves the general efficiency of the system. Analytics platforms find chances to change working parameters, evenly distribute loads across equipment, or plan repair based on the current state instead of random intervals. Early users of these technologies have a competitive edge because they can lower costs, improve efficiency, and respond more quickly to market needs.
Competitive positioning is improved by putting your business at the cutting edge of efficiency standards and technology capabilities. Companies that are behind on updating their tools will be at a bigger disadvantage as rules get stricter and customers look for providers that care about the environment. Upgrading to IE5 efficiency levels shows a dedication to business quality and sustainability, which is noticed by people all along the value chain.
Conclusion
Buying ultra-high-efficiency motors takes care of several practical issues at the same time. Lowering energy costs saves money right away, and making things more reliable cuts down on interruptions caused by fails. Following the changing efficiency rules lowers the risk of fines from the government, and better performance helps reach productivity goals in many areas, such as manufacturing, HVAC, energy production, and many more. The IE 5 motors from XCMOTOR have power ranges from 0.75 kW to 1000 kW, IP55 protection, and a variety of voltage choices to meet a wide range of industry needs. When you put together advanced technology, proven dependability, and full support, you get a lot of value for money as a procurement worker looking for equipment that gives you both short-term returns and long-term strategic benefits.
FAQ
1.What efficiency improvements can I expect from upgrading to an IE 5 motor?
How much efficiency is gained depends on what equipment is being changed. In comparison to IE3 motors, which are widely found in current installations, IE 5 motors usually use 20 to 40 percent less energy. Depending on the energy rates in your area, a 110 kW motor that runs for 6,000 hours a year could save 15,000 to 20,000 kWh, which is about $1,500 to $3,000. It is possible to tell that IE5 units are 5–10% better than IE4 motors, which adds up to a big difference over years of use.
2.Are these motors suitable for harsh industrial environments?
The IE 5 motors from XCMOTOR have IP55 security ratings, which means they can handle dust and water in tough circumstances. The strong construction can handle the wide ranges of temperatures, vibrations, and contaminants that are common in factories, outdoor sites, and farms. If you need more environmental protection for a specific purpose, you can ask for higher security ratings.
3.How long does installation typically take?
Installation time depends on how complicated the job is, but standard specs and common mounting arrangements cut down on the time needed. Changing an old motor in a pump or fan usually takes two to four hours, which includes taking the old motor out, putting the new one in, aligning it, and connecting the wires. Facilities that are upgrading more than one IE 5 motor can usually finish projects during planned repair times, which means that production doesn't have to stop for long periods of time.
Partner With XCMOTOR for Your IE 5 Motor Requirements
To get your facility's motor fleet to ultra-premium levels of efficiency, you need a trusted IE 5 motor provider who knows how your business works and can give you full support. XCMOTOR offers certified goods that meet international standards for efficiency along with quick service and professional know-how. Our motors are used in industrial, HVAC, green energy, water treatment, and many other fields where dependability and economy are important.
Contact our team at xcmotors@163.com to talk about the specifics of your idea. We will help you find the right specifications, give you thorough technical information, and answer your questions about how to install it, make sure it works with other things, and what kind of speed you can expect. We make sure your motor upgrade project goes smoothly from specification to commissioning by offering fast shipping, a variety of bearing choices, and special weekend support.
You can look at our full line of ultra-high efficiency motors at motorxc.com and learn how XCMOTOR's solutions can help your business in a real way.
