lv induction motor
Frame number: 80-450
Power range：0.75-1000kW
Protection level：IP55
Energy efficiency class: IE3
Voltage range: 380V,400V,415V,660V， etc.
Application:can be used in various fields of the national economy, such as machine tools,water pumps,fans,compressors,and can also be used in transportation, mixing, printing, agricultural machinery, food and other occasions that do not contain flammable, explosive or corrosive gases.
Certificate: international standard IEC60034-30 "Efficiency Classification of Single-speed Three-Phase Squirrel Cage Induction Motors".
Advantage:The high quality of the electric motor guarantees high operational reliability.
Others: SKF, NSK, FAG bearings can be replaced according to customer requirements.
- Product Description
LV Induction Motor Manufacturer and Supplier
At Shaanxi Qihe Xicheng Electromechanical Equipment Co., Ltd. (XCMOTOR), we're proud to be a leading manufacturer and supplier of high-quality LV induction motors. With over two decades of experience, we've perfected our craft, offering superior energy efficiency, unparalleled reliability, and exceptional performance. Our products stand out for their robust design, minimal maintenance requirements, and seamless integration into various industrial applications.
LV Induction Motor Description:
| Frame: | H80~H450 |
| Voltage range: | 380V, 400V, 415V, 460V, 490V, 660V, 690V |
| Power output: | 0.75kW to 1000kW |
| Speed: | 3000rpm, 1500rpm, 1000rpm, 750rpm, 600rpm, 500rpm |
| Number of Poles: | 2P, 4P, 6P, 8P, 10P, 12P |
| Efficiency class: | IE3 |
| Protection class: | IP55 (standard), IP56, IP65 (optional) |
| Insulation class: | F(155℃), H(180℃) |
| Mounting Type: | B3/ B5/ B35/ V1 |
Product Details:
Our LV induction motors are built with die-cast aluminum frames, offering a perfect balance of lightweight design and robust durability. The stator and rotor are constructed from high-grade silicon steel, effectively minimizing core losses and boosting overall efficiency. Standard Class F insulation is used, providing excellent heat resistance and contributing to the motor's extended lifespan. These features work together to ensure that our products not only perform reliably but also withstand the rigors of demanding industrial environments, offering long-term value and performance. Get a customized quote！
Technical Data:
| Power factor: | 0.80 to 0.89 |
| Torque: | From 5 Nm to 2400 Nm |
| Ambient temperature: | -10°C to +40°C |
| Altitude: | Up to 1000m above sea level |
Production Process:

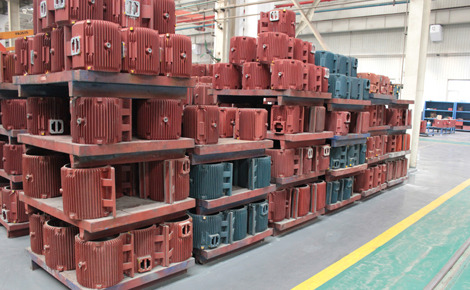

Frame
Compact and robust iron casting frame.
Universal IEC installation dimensions.
Customizable.

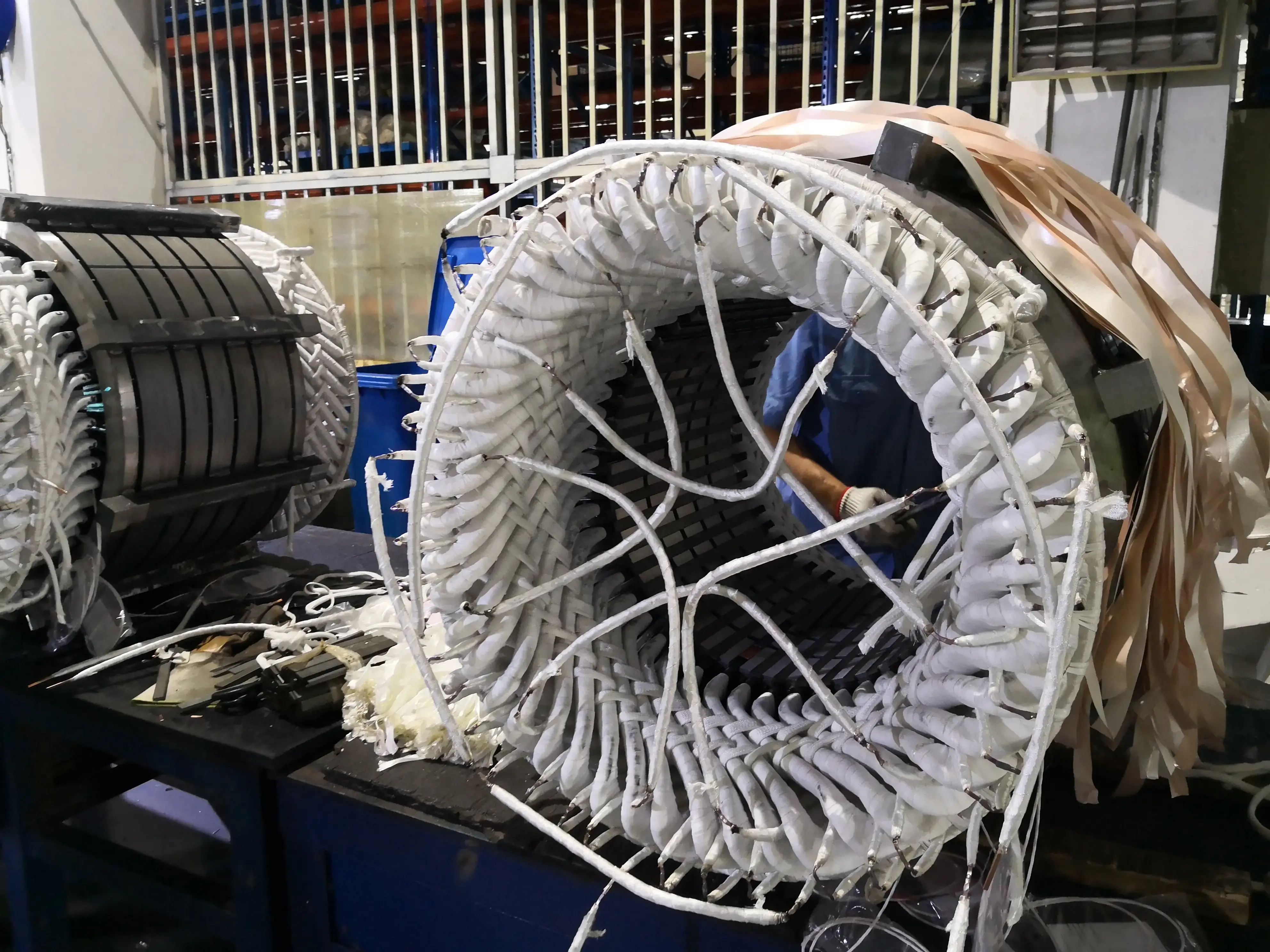

Stator
99.9% pure copper winding for stator to ensure the output power and efficiency.
Excellent insulation system with 5 more processing flows.
All the windings are fitted in by handwork to ensure all slots are full and avoid any winding flaw.

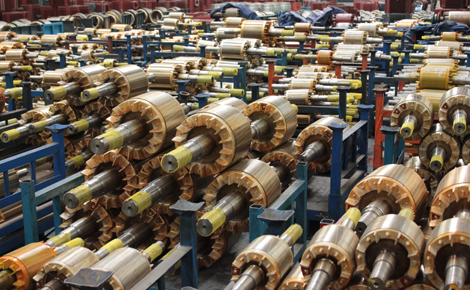

Rotor
Aluminum casting rotor with silicon steel rotor core to assure induction efficiency.
Precisely machined shafts with good capacity of strength and toughness.

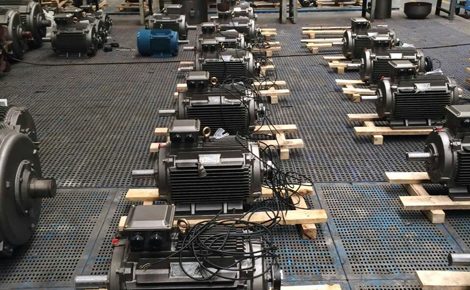

Testing
All motors must pass the piece testing before painting and packaging.
Type tests will be regularly performed for each series, more often for new developed series and variants.

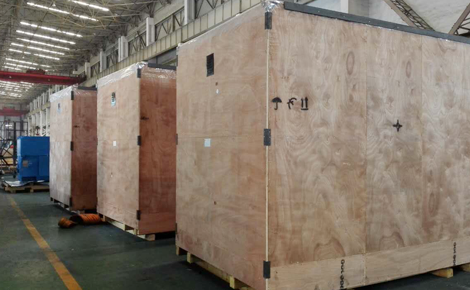

Package and delivery
All motors will be packaged well before delivery.
Plastic cover inside, vacuum tin foil outer and then solid wood box.

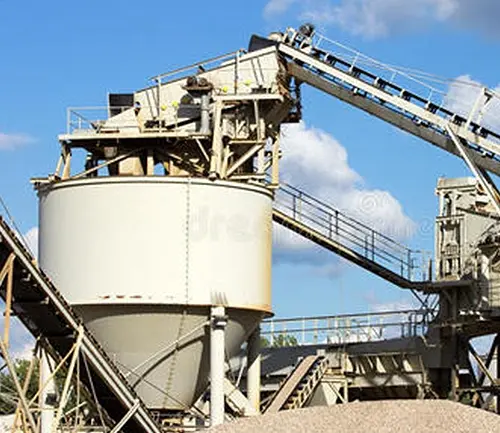

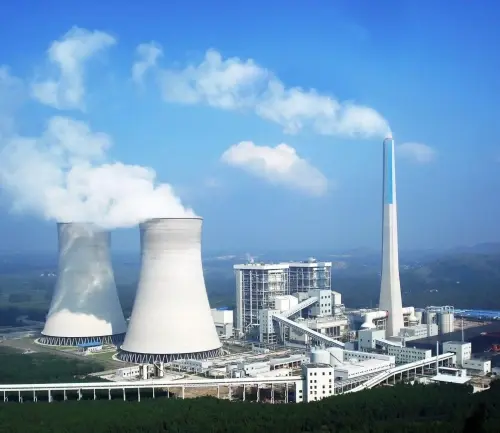

Applications

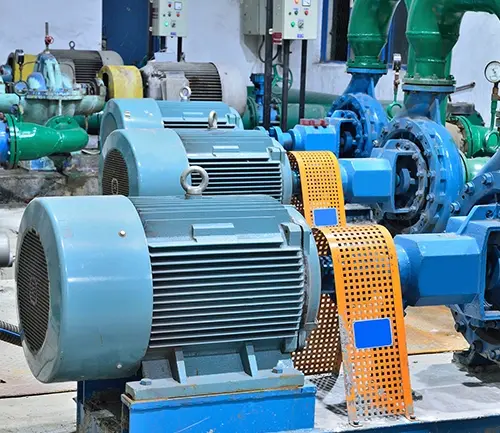

The YE3 Series LV Motor is commonly used to drive water pumps, compressors, conveyors and other transmission machinery in different areas.
Certifications:
XCMOTOR's products are certified to meet international standards, including:
- CE marking
- ISO 9001:2015
- GOST certification
Why Choose XCMOTOR?
- 20+ years of industry experience
- Partnerships with global motor brands
- Customization options to meet specific needs
- Excellent after-sales support
- Competitive pricing without compromising quality
FAQ:
Q: What's the warranty on your products?
A: We offer a standard 12-month warranty from the date of shipment.
Q: Can you provide custom solutions?
A: Absolutely! We specialize in tailoring our motors to meet your specific requirements.
Q: How energy-efficient are your products?
A: Our motors meet and often exceed IE3 and IE4 efficiency standards, helping you reduce energy costs.
Q: What's the lead time for orders?
A: Typical lead times range from 2-4 weeks, depending on the specifications and quantity.
Q: Do you offer installation support?
A: Yes, we provide comprehensive installation guidance and can arrange on-site support if needed.
Contact us
At XCMOTOR, we're committed to powering your success with our top-tier LV induction motors. Experience the perfect blend of performance, efficiency, and reliability. Contact Us today at xcmotors@163.com to discuss how we can elevate your power systems to new heights!
