Explosion Proof Motor Enclosure | High-Voltage Flameproof Design for Hazardous Industrial Environments

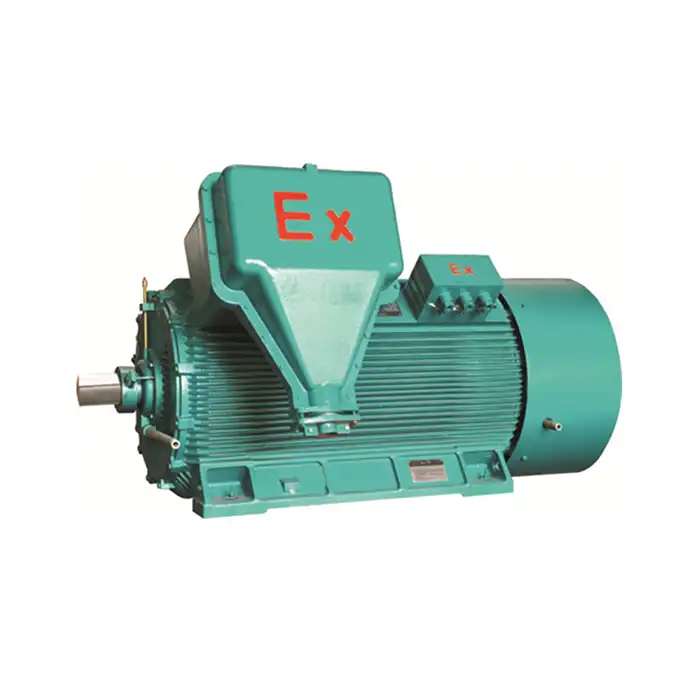

Industrial plants working in hazardous areas need protective housings to prevent ignition sources from causing catastrophic explosions. Shaanxi Qihe Xicheng Electromechanical Equipment Explosion Proof Motor enclosure delivers high-voltage motors with flameproof containment in explosive atmospheres. The YB2-HV series enclosures are made of reinforced cast iron with flameproof joints machined to perfection. They are certified to GB3836 with a rating of Ex d IIB/IIC T4 Gb. The enclosures support voltage ranges of 3kV to 11kV and power outputs up to 1800kW to help assure safe operation in petrochemical plants, mining facilities and gas processing activities.

Explosion Proof Motor Enclosure Manufacturer and Supplier

Shaanxi Qihe Xicheng Electromechanical Equipment Co., Ltd. delivers comprehensive power equipment solutions with over 20 years of industry experience. We are partnered with more than 30 top motor manufacturers like ABB, Siemens, Wolong and XEMC. Our enclosures are CCC, CE, ISO9001:2000, CRCC and UL certified, which comply with international safety criteria. The production system, administered by SAP, maintains the consistency of quality control throughout the production process.​​​​​​​

Pain Points vs. Solutions

Your Challenges:

· Standard housings fail in flammable gas environments

· High-voltage insulation breakdowns cause equipment damage

· Corrosion compromises flameproof joint integrity

· Temperature extremes reduce operational reliability

Our Solutions:

· Flameproof containment prevents external ignition

· Anti-corona insulation systems withstand medium/high voltage stress

· Corrosion-resistant coatings protect joint surfaces

· T4 temperature classification maintains safe surface temperatures

Technical Advantages

Our enclosures incorporate enterprise-grade protection features:

· High-Voltage Insulation: Thickened winding layers with vacuum impregnation prevent partial discharge

· Flameproof Joints: Precision-machined surfaces contain internal explosions within 0.2mm tolerance

· Thermal Management: Built-in PT100 sensors monitor winding temperatures continuously

· Premium Bearings: SKF, NSK, FAG options ensure extended service life

· Sealed Junction Boxes: Isolated wiring structures prevent gas accumulation and electric breakdown

Production Process

1. Material Selection: High-strength cast iron meets mechanical impact requirements

2. Precision Machining: CNC-processed flameproof surfaces achieve required flatness

3. Insulation Treatment: Multi-layer impregnation creates high-voltage barriers

4. Assembly: Controlled torque sequences maintain joint integrity

5. Testing: Each unit undergoes insulation resistance and pressure verification

Industry Applications

Customization Capabilities

We adapt explosion proof motor enclosure to your specific operational requirements:

· Voltage modifications within 3kV-11kV range (±5% tolerance)

· Custom mounting dimensions for retrofit installations

· Alternative bearing specifications for extreme conditions

· Modified terminal configurations for regional standards

· Special coatings for corrosive environments

Reliability Testing & Certifications

Every enclosure undergoes rigorous validation:

· Insulation Resistance Testing: Verifies high-voltage integrity before deployment

· Explosion Containment: Pressure tests confirm flameproof joint effectiveness

· Temperature Rise Analysis: Ensures T4 classification compliance

· Environmental Simulation: Salt spray and humidity exposure testing

Certified compliance certifications include CCC, CE, ISO9001:2000, CRCC, CQC, ZDHY, and China Energy Saving.

Why Choose XCMOTOR

Verified Supply Chain: Authentic components and competitive pricing with direct ties with global manufacturers.

Technical Skills: With 20 years of experience in power equipment, we can offer the perfect application for your needs.

Rapid Response: Free delivery with 30-day return policy ensures minimal downtime. Weekend technical support resolves urgent issues immediately.

Quality Assurance: SAP-managed production tracking and multi-certification compliance deliver consistent, reliable protection for your critical equipment.

FAQ

Q：What key operation and maintenance precautions apply to YB2 high-voltage explosion-proof motors?

A：Certified electricians must perform all high-voltage inspections. Regularly test insulation resistance to detect aging. Protect flameproof joints from impacts and corrosion. Inspect junction box seals to prevent gas accumulation. Maintain complete grounding to eliminate static risks.

Q：What distinguishes YB2 from YBX3/YBX4 motors?

A：YB2 provides standard efficiency, while YBX3 (IE3) and YBX4 (IE4) deliver higher efficiency with reduced losses. YB2 remains widely used for equipment renovations due to comprehensive high-voltage specifications.

Q：What special insulation design handles high voltage?

A：Anti-corona insulation prevents partial discharge. Thickened stator windings use reinforced vacuum impregnation. High-voltage terminal boxes feature isolated wiring. Optional PT100 sensors monitor temperatures continuously.

Q：What is the explosion-proof rating of YB2 high voltage motors?

A: The standard markings are Ex d IIB T4 Gb and Ex d IIC T4 Gb, which conform to the GB3836 flameproof specifications for hazardous regions in Zone 1 and Zone 2.

Q: What voltage requirements are available?

A: The normal values are 3 kV, 6 kV and 10 kV at 50 Hz. The full YB2 series includes the low voltage 380V/660V.

Contact Us

Need customized explosion-proof explosion proof motor enclosure solutions? Email XCMOTORs@163.com">xcmotors@163.com  for technical consultation and rapid quotations tailored to your hazardous environment requirements.
