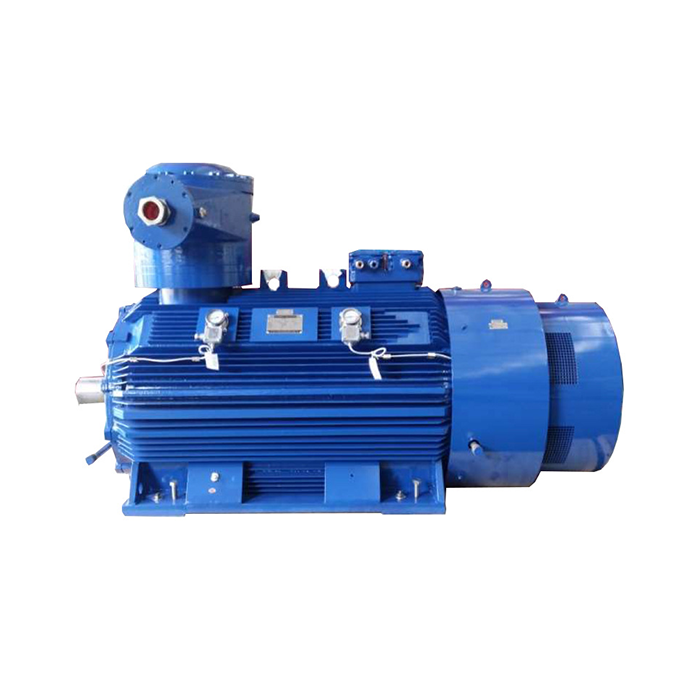

YBBP high-voltage explosion-proof frequency motors-The reliable power choice for hazardous locations
When your operation runs inside a petrochemical plant, a coal mine, or a chemical processing facility, a motor failure is never just a maintenance problem — it can be a safety incident. The YBBP high-voltage explosion-proof frequency motor was built specifically for those conditions. It combines flameproof enclosure design with variable frequency speed control in a single unit, covering power from 185 kW to 1800 kW across six voltage levels: 3000V, 3300V, 6000V, 6600V, 10000V, and 11000V. For procurement managers tracking energy savings as a direct KPI, this motor delivers verified reductions of 20–40% in electricity consumption compared to fixed-speed explosion-proof motors.
Voltage range：3000V±5%,3300V±5%,6000V±5%,6600V±5%,10000V±5%,11000V±5%
Power range：185-1800 kW
Application：compressors, water pumps, crushers, cutting machine tools, transportation machinery.
Advantage: wide modulation range, high efficiency and energy saving, low noise, long life, high reliability.
Others： SKF, NSK, FAG bearings can be replaced according to customer requirements.
Understanding YBBP High-Voltage Explosion-Proof Frequency Motors
The YBBP line solves a problem that many plant engineers have: you need to control speed and keep explosions under control, but most products only let you use one or both of two different pieces of equipment. That problem is solved by this motor, which combines both functions into a single certified unit.
How the Flameproof Structure Works
The motor case is carefully made to keep any arcs or sparks inside. The flameproof (Ex d) design requirements are met by the explosion-proof joint surface, which keeps internal fires from spreading to the outside air. This design works for IIA, IIB, and IIC gas groups that are found in chemical plants, oil factories, and deep mines.
Voltage and Power Coverage
The YBBP high-voltage explosion-proof frequency motor can handle six different voltage ranges: 3000V±5%, 3300V±5%, 6000V±5%, 6600V±5%, 10000V±5%, and 11000V±5%. It can also handle 185 to 1800 kW of power. The stator windings have Class F insulation that has been treated with vacuum pressure impregnation (VPI), which gives them a breakdown voltage above 30 kV. This keeps the purity of the winding safe from harmonic distortion caused by variable frequency drives.
Bearing Specifications and Maintenance
A big part of motor downtime in harsh environments is caused by bearing failure. The YBBP line can use SKF, NSK, or FAG bearings, depending on what the customer wants. All three brands are known for their high quality around the world. Shaft insulation arrangements help ease worries about electrical damage to bearings caused by VFD-generated shaft currents, which increases service intervals and lowers the number of unplanned stops with explosion proof motor price china.
Advantages of Choosing YBBP Explosion-Proof Frequency Motors for Hazardous Locations
It is not just a compliance upgrade to switch from a fixed-speed explosion-proof motor to a YBBP high voltage explosion-proof frequency motor. It changes the way your business makes money in ways that can be measured.
What makes this motor series better in terms of performance are these:
- Wide modulation range: The motor supports a broad speed regulation band, making it suitable for variable-load applications like centrifugal compressors and large water pumps where flow demand changes throughout the day. Speed control directly reduces input power during partial-load operation.
- Low acoustic output: The variable frequency design reduces mechanical stress and vibration, producing lower noise levels than comparable fixed-speed units. This supports workplace safety standards in enclosed industrial facilities.
- Long service life: Precision-balanced rotors, quality bearing options, and VPI-treated windings collectively extend operating life. Units undergo full electrical and mechanical testing before shipment.
- High operational reliability: Every YBBP high-voltage explosion-proof frequency motor passes comprehensive pre-delivery testing through an SAP-managed quality system, with traceability at each production stage.
These features directly address three common issues that come up when buying things for dangerous places: following safety rules, the cost of energy, and unplanned downtime. The mix is more important than any single standard for a project manager whose job is to meet goals for saving energy.
Comparing YBBP High-Voltage Explosion-Proof Frequency Motors with Alternatives
When people are looking at YBBP high-voltage explosion-proof frequency motors, they often also look at standard VFD-rated motors with flameproof enclosures on the outside, or they look at fixed-speed explosion-proof motors that don't have frequency capability.
Combined Unit vs. Separate Components
When paired with a variable frequency drive, running a standard motor inside an external explosion-proof enclosure costs more, takes up more space, and makes certification more difficult. The YBBP series combines both tasks into a single approved assembly, which makes it easier to keep track of compliance paperwork and plan installations.
Harmonic Compatibility
Electrical experts are always worried about VFD harmonic interference, which can damage bearings and windings. The YBBP high-voltage explosion-proof frequency motor has Class F insulated windings with VPI treatment and shaft current reduction methods to deal with this. The motor is made so that it can join directly to variable frequency drives in most normal setups, without the need for extra filtering.
Total Cost of Ownership
A mixed explosion-proof VFD motor usually costs more up front than a simple fixed-speed unit. Nevertheless, it has been shown that energy savings of 20–40% in pump and compressor uses have payback times of 18–36 months, based on working hours and local energy rates. This is what most petrochemical and mining companies figure. That number is pretty close to the normal time frame for approving a big project.
Application Areas and Industry Use Cases for YBBP Explosion-Proof Motors
The YBBP high-voltage explosion-proof frequency motor is made for places where there is a risk of exploding gas or dust during normal or abnormal operation. When it comes to uses, it can be used in a number of tough areas.
Oil, Gas, and Petrochemical Operations
In chemical plants and factories, compressors and booster pumps often run all the time with changing loads. Using a YBBP high-voltage explosion-proof frequency motor on these drives lets you change the speed to match the needs of the process. This lowers the amount of energy needed without affecting safety or output with explosion proof motor price china.
Coal Mine Ventilation and Hoisting
Mine hoists and ventilation fans that work in underground coal mines need motors that can handle methane-filled air. This line of fans meets the Ex d classification standards for these kinds of places, and because they can be set to different speeds, ventilation systems can match airflow to shift-based demand instead of running at full load all the time.
Chemical Park Energy Retrofit Projects
As a straight replacement for old fixed-speed explosion-proof motors, the YBBP high voltage explosion-proof frequency motor is often chosen by contractors in charge of energy upgrade projects in chemical industrial parks. The retrofit gets rid of the need for separate drive housings, shortens the time it takes to install, and makes it eligible for energy-saving rebate programs in several areas.
Buying Guide — Procuring YBBP High-Voltage Explosion-Proof Frequency Motors
It takes more than picking out a specification sheet to buy a motor for a hazardous-location upgrade job. In general, this is what buying teams do.
Certification Verification
Before putting a motor in a dangerous area, make sure it has the certifications your facility's compliance framework requires. There are certifications for the YBBP high-voltage explosion-proof frequency motor from China Energy Saving, CE, ISO 9001, CQC, and the CCC. When working on projects with people in other countries, make sure that the ATEX or IECEx paperwork you need is valid for your zone classification.
Customization and Lead Times
Most standard voltage setups are sent out within 4 to 8 weeks. Lead time is longer when dimensions are customized, bearing grades are unique, or voltage tolerances are not standard. The XCMOTOR team confirms the dimensions and looks over the application before the order is placed to avoid mismatches that cause expensive delays during installation.
After-Sales and Spare Parts Support
XCMOTOR offers expert help seven days a week and keeps new bearings and winding parts in stock. All sales come with free shipping, and you have 30 days to return items that were made wrong. There are regional installation partners who can help with commissioning on-site.
Conclusion
The YBBP high-voltage explosion-proof frequency motor answers a specific industrial need: safe, speed-controlled power in locations where ignition risk cannot be accepted. With a power range of 185 to 1800 kW, six certified voltage options, Class F VPI insulation, and bearing flexibility through SKF, NSK, or FAG options, it covers the majority of high-voltage retrofit applications in petrochemical, mining, and chemical processing environments. For project managers under pressure to deliver measurable energy savings while keeping operations safely certified, this motor represents a technically sound and economically defensible choice.
FAQ
1.What explosion-proof certification does the YBBP motor carry?
The YBBP high-voltage explosion-proof frequency motor carries CCC, CE, ISO 9001, CQC, and China Energy Saving certifications. For project-specific requirements, XCMOTOR can provide documentation confirming compatibility with ATEX and IECEx zone classifications. Always verify that the certification scope matches your facility's gas group and temperature class requirements before finalizing procurement.
2.Can the motor operate directly with a variable frequency drive?
Yes. The YBBP high-voltage explosion-proof frequency motor is designed for direct VFD connection. Class F insulation with VPI treatment and appropriate shaft current management address the harmonic and electrical erosion concerns that arise in standard motors when paired with variable frequency drives.
3.What voltage ratings are available?
Available voltage levels are 3000V±5%, 3300V±5%, 6000V±5%, 6600V±5%, 10000V±5%, and 11000V±5%, covering the most common high-voltage industrial supply configurations in global markets.
4.Can XCMOTOR customize specifications for specific projects?
Yes. XCMOTOR adjusts dimensional and electrical specifications based on project requirements while maintaining applicable safety certifications. Buyers should contact the team early in the design phase to confirm feasibility before locking in procurement schedules.
5.What is the typical installation downtime for a retrofit?
Retrofit downtime depends on existing motor frame dimensions and drive compatibility. XCMOTOR provides pre-installation engineering review to align the YBBP high-voltage explosion-proof frequency motor with your existing infrastructure, reducing the risk of extended outages during the changeover window.
Get a Quote for the YBBP High-Voltage Explosion-Proof Frequency Motor — Contact XCMOTOR Today
For your next energy retrofit project, you should only use equipment that meets all safety and performance standards. The YBBP high-voltage explosion-proof frequency motor is sold directly by XCMOTOR to purchasing teams, engineering companies, and industrial workers all over the world. You can look at the full specs at motorxc.com or email xcmotors@163.com with the details of your project to get a personalized quote. Our tech support team is available seven days a week, even on weekends.
