What is the function of the terminal box of an Exd motor?
When it comes to dependable and safe operation in potentially dangerous conditions, the terminal box of an Exd motor is very critical. In addition to protecting the motor's internal windings from external ignition sources, this crucial component connects the motor to the power source. This article will help you comprehend the value of Exd motor terminal boxes in explosion-proof applications by examining their many roles and characteristics.

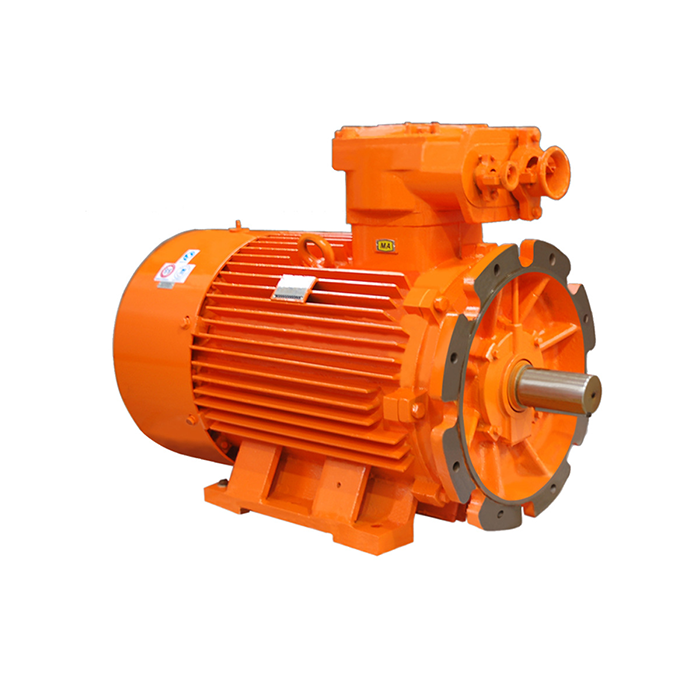

Series：YBK3
Voltage range：380V，660V，415V，380/660V，660/1140V
Power range：0.75-315 kW
Application：used in underground mining working surfaces in coal mines where there is a risk of methane mixture and coal dust explosion.
Advantage: high efficiency, large torque, strong overload capacity, low noise, small vibration, easy installation and maintenance.
Others： SKF, NSK, FAG bearings can be replaced according to customer requirements.
Explosion-proof mark: Ex d I Mb.
Key Components of Exd Motor Terminal Boxes
To fully grasp the function of an Exd motor terminal box, it's important to understand its key components and their roles in maintaining safety and performance.
Enclosure
The enclosure is the outer shell of the terminal box, designed to withstand internal explosions and prevent the propagation of flames to the surrounding atmosphere. It's typically made of cast iron or steel and features robust construction to ensure maximum protection.
Terminal Block
The terminal block is where the motor's internal windings are connected to the external power supply. It consists of sturdy, insulated terminals that can securely hold and isolate electrical connections.
Cable Glands
Cable glands are used to seal the entry points of power cables into the terminal box. They provide a secure and flame-proof connection, preventing the ingress of flammable gases or dust into the enclosure.
Grounding Terminal
A dedicated grounding terminal is provided within the terminal box to ensure proper grounding of the motor, which is essential for safety and protection against electrical faults.
Gaskets and Seals
High-quality gaskets and seals are used to maintain the integrity of the terminal box, preventing the ingress of moisture, dust, and potentially explosive atmospheres.
Ensuring Safety: Terminal Box Design Features
The design of an Exd motor terminal box incorporates several features that contribute to its explosion-proof capabilities and overall safety.
Flame Path
One of the most critical design elements of an Exd terminal box is the flame path. This is a carefully engineered gap between the box and its cover that allows gases to escape in the event of an internal explosion while preventing the flame from propagating to the external atmosphere.
Increased Safety (Ex e) Design
Some Exd motors incorporate an increased safety (Ex e) design in their terminal boxes. This approach focuses on preventing the occurrence of arcs, sparks, or excessive temperatures that could ignite an explosive atmosphere.
Thermal Protection
Terminal boxes often include thermal protection devices to monitor and control the temperature inside the enclosure, preventing overheating that could lead to ignition.
Pressure Relief
In some cases, terminal boxes may include pressure relief mechanisms to safely vent excess pressure in the event of an internal explosion, further enhancing safety.
Anti-Condensation Features
To prevent the accumulation of moisture that could compromise electrical connections, some terminal boxes incorporate anti-condensation features such as drain holes or heaters.
Proper Wiring Techniques for Exd Motor Terminals
Correct wiring of an Exd motor terminal box is crucial for maintaining its explosion-proof integrity and ensuring safe operation. Here are some important considerations and techniques:
Cable Selection
Choose cables that are appropriate for the hazardous area classification and compatible with the motor's voltage and current ratings. Ensure that the cables have suitable insulation and mechanical protection.
Cable Entry
Use certified explosion-proof cable glands that match the area classification and cable type. Properly tighten the glands to maintain the flame-proof seal and prevent the ingress of flammable substances.
Terminal Connections
Make secure connections at the terminal block, ensuring that all conductors are properly tightened and insulated. Use the correct torque settings to prevent loose connections that could lead to arcing or overheating.
Grounding
Properly connect the motor's ground wire to the designated grounding terminal within the box. Ensure that the grounding system is adequate for the installation and complies with relevant standards.
Clearances and Creepage Distances
Maintain appropriate clearances and creepage distances between live parts and the enclosure to prevent electrical breakdown or tracking.
Sealing
After wiring is complete, ensure that the terminal box cover is properly sealed with all bolts tightened to the specified torque. This maintains the integrity of the flame path and prevents the ingress of potentially explosive atmospheres.
Documentation
Maintain accurate records of the wiring configuration, including cable types, connection details, and any modifications made during installation or maintenance.
Conclusion
The terminal box of an Exd motor is a critical component that ensures safe and reliable operation in hazardous environments. By understanding its key components, design features, and proper wiring techniques, you can maximize the safety and performance of your explosion-proof motor installations. Regular inspection and maintenance of terminal boxes are essential to maintain their protective functions and comply with safety regulations.
FAQ
1. What is the difference between Exd and Exe terminal boxes?
Exd terminal boxes are designed to contain an internal explosion, while Exe terminal boxes focus on preventing ignition sources through enhanced safety measures.
2. How often should Exd motor terminal boxes be inspected?
Inspection frequency depends on the specific application and environment, but generally, a thorough inspection should be conducted at least annually or as recommended by the manufacturer.
3. Can I modify an Exd motor terminal box?
Modifications to Exd motor terminal boxes should only be performed by authorized personnel and in accordance with applicable standards and certifications to maintain their explosion-proof integrity.
