What Is a 3.3 kV Motor & Its Key Features
A 3.3 kV motor is a high-voltage electric motor designed to operate at 3,300 volts, specifically engineered for industrial applications requiring substantial power output and reliable performance. These motors feature robust construction, advanced insulation systems, and optimized cooling mechanisms that make them ideal for heavy-duty operations in manufacturing, power generation, and process control environments. Key features include exceptional durability, energy-efficient operation, minimal maintenance requirements, and the ability to handle power ranges from 160 kW to 1600 kW while maintaining consistent performance across various industrial applications.nUnderstanding these powerful electric motors becomes crucial when your operations demand reliable, high-performance solutions. Whether you're managing a manufacturing facility, overseeing power generation systems, or maintaining critical process equipment, the right motor selection can significantly impact your operational success and bottom line.

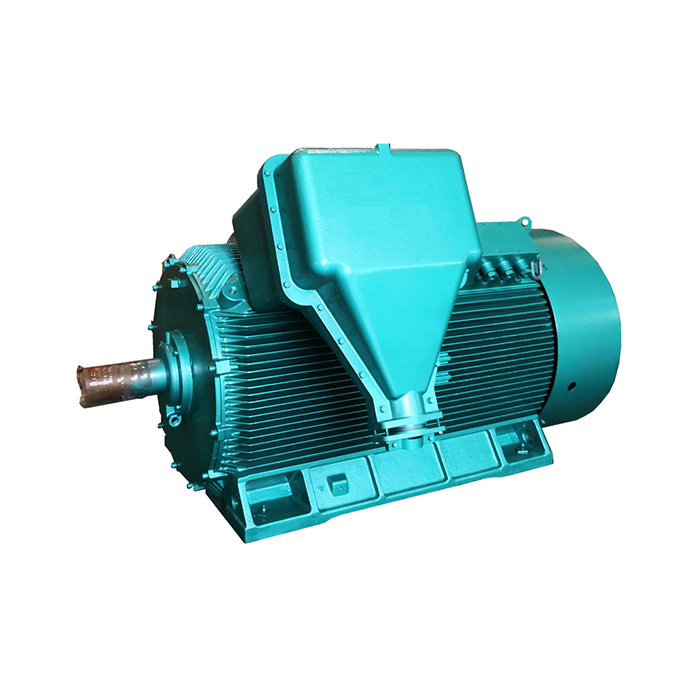

Series：Y2
Protection level：IP54
Voltage range：3000V±5%,3300V±5%,6000V±5%,6600V±5%,10000V±5%,11000V±5%
Power range：160-1600 kW
Application：fans, water pumps, compressors, crushers, cutting machine tools, transportation machinery, etc.
Advantage：compact structure, light weight, low noise, small vibration, long service life, easy installation and maintenance.
Standard: This series of products complies withJB/T10444-2004 standards.
Others： SKF, NSK, FAG bearings can be replaced according to customer requirements.
What Is a 3.3 kV Motor?
Defining Medium Voltage Operation and Core Principles
A 3.3 kV engine speaks to a advanced piece of mechanical hardware that works inside the medium voltage run, particularly outlined to handle requesting applications where standard low-voltage engines drop brief. The "kV" assignment alludes to kilovolts, showing that these engines work at 3,300 volts, which places them in the medium voltage category concurring to industry standards. These engines utilize progressed electromagnetic standards to change over electrical vitality into mechanical vitality at higher voltage levels. The expanded voltage permits for more productive control transmission over longer separations and empowers the engine to convey considerable torque and control yield. The plan joins specialized separator materials and winding arrangements that can securely handle the raised electrical push related with medium voltage operation.
Engineering Design for Strength and Consistent Performance
The development of a 3.3 kV engine includes accuracy building to guarantee solid operation beneath challenging conditions. The stator windings utilize high-grade cover materials that can withstand the electrical and warm stresses characteristic in medium voltage applications. The rotor plan equalizations quality and effectiveness to convey steady execution over changing stack conditions.
Managing Heat and Environmental Protection Systems
Modern 3.3 kV engines join advanced cooling frameworks to oversee the warm produced amid operation. These cooling instruments guarantee that the engine keeps up ideal working temperatures, expanding benefit life and keeping up productivity. The walled in area plan gives security against natural variables whereas permitting satisfactory warm dissipation.
Integrating Intelligent Control and Protection Features
The control frameworks for these engines frequently incorporate progressed security highlights such as warm observing, vibration investigation, and current checking. These frameworks offer assistance avoid harm and guarantee secure operation whereas giving important demonstrative data for support arranging. The integration of shrewd innovations permits for inaccessible observing and prescient support capabilities.
The Industrial Challenges These Motors Address
Overcoming Limitations of Low-Voltage Systems
Industrial facilities require high-performance 3.3 kV motors capable of handling complex operational demands. Traditional low-voltage systems often face voltage drops, high energy losses, and increased installation costs. Motors must deliver consistent torque across variable loads, integrate seamlessly with process control systems, and operate reliably in harsh environments.
Ensuring Efficiency, Reliability, and Continuous Operation
Energy efficiency, low maintenance, and reduced noise and vibration are essential to minimize downtime, lower operational costs, and ensure safe, continuous operation across manufacturing, water treatment, and power generation applications. Motors must maintain stable torque under varying load conditions, supporting equipment like compressors, pumps, and industrial fans while minimizing energy costs and optimizing productivity.
Supporting Precision Control and Operational Stability
Precise speed regulation and rapid load response are critical in chemical, water treatment, and power generation applications, ensuring seamless operation with sophisticated control systems. Motors must operate quietly with minimal vibration to protect structural components, reduce maintenance, and maintain a safe, compliant working environment.
Core Features & Advanced Engineering
Integrating Materials and Design for Reliable Operation
A 3.3 kV motor combines advanced materials, precise construction, and intelligent cooling to ensure reliable performance. Multi-layer insulation protects against partial discharge and thermal stress, while stator and rotor designs optimize magnetic field distribution and torque delivery.
Maintaining Thermal Stability Through Advanced Cooling Systems
Cooling systems—air or liquid—prevent hot spots and maintain uniform temperatures. Premium bearings and lubrication systems extend service life, while monitoring sensors provide early warnings of potential issues. Robust housings resist corrosion, allow proper ventilation, and facilitate maintenance, ensuring long-term reliability in industrial environments.
Enhancing Durability with Precision Components and Construction
Multi-layer insulation and optimized winding techniques enhance thermal stability, reduce electrical stress, and maintain reliable performance under medium-voltage operation. Precision rotor construction minimizes vibration and losses, while advanced cooling designs—internal air, external air, or liquid—maintain consistent operating temperatures. High-quality bearings, advanced lubrication, and durable housings provide long service life, reduce maintenance needs, and protect the motor from environmental damage.
Understanding the Technology Behind Performance
Optimizing Electromagnetic Design for Maximum Efficiency
The electromagnetic plan of a 3.3 kV engine utilizes progressed computer modeling to optimize attractive field conveyance and minimize misfortunes. Limited component investigation makes a difference engineers plan attractive circuits that maximize effectiveness whereas lessening fabric necessities. The cautious determination of attractive materials guarantees ideal flux thickness whereas minimizing center misfortunes that can diminish proficiency and create overabundance heat.
Advancing Control Through Power Electronics Integration
Power hardware integration empowers advanced engine control capabilities that upgrade execution and secure the engine from harming working conditions. Variable recurrence drives particularly planned for medium voltage applications give exact speed control whereas keeping up tall proficiency over the working extend. These control frameworks incorporate progressed calculations that optimize engine execution based on stack conditions and working requirements.
Managing Heat and Mechanical Stability for Longevity
Thermal administration innovation joins progressed materials and plan strategies to productively evacuate warm from basic engine components. Warm modeling makes a difference optimize cooling entries and warm exchange surfaces to keep up uniform temperatures. Temperature checking frameworks give real-time input that empowers defensive activities if working temperatures surpass secure limits. Vibration control innovation utilizes exactness fabricating and adjusting strategies to minimize mechanical vibrations that can cause untimely wear and clamor. Progressed adjusting methods guarantee smooth operation over the whole speed run. Vibration checking frameworks can identify creating mechanical issues some time recently they result in engine disappointment or harm to associated equipment.
Ensuring Protection and Smart System Integration
The assurance frameworks coordinated different checking innovations to defend the engine against different blame conditions. Current observing recognizes electrical flaws such as stage awkward nature or over-burden conditions. Temperature checking secures against warm harm from cooling framework disappointments or blocked ventilation. Vibration checking distinguishes mechanical issues such as bearing wear or misalignment. Communication interfacing empower integration with plant control frameworks and give get to to symptomatic data for support arranging. Advanced engine control frameworks can communicate operational information, caution conditions, and execution measurements to supervisory frameworks. This network empowers farther checking and prescient support techniques that diminish impromptu downtime.
Key Advantages for Industrial Operations
Delivering Exceptional Reliability in Demanding Environments
Operational unwavering quality stands as the essential advantage of executing a 3.3 kV engine in requesting mechanical applications. These engines illustrate uncommon solidness when appropriately kept up, regularly working ceaselessly for a long time without requiring major benefit mediations. The vigorous development and high-quality components stand up to the wear and push related with challenging working conditions, decreasing the probability of unforeseen disappointments that can disturb generation schedules.
Maximizing Space Efficiency and Installation Flexibility
The compact plan relative to control yield gives noteworthy establishment points of interest, especially in offices with constrained space. The higher working voltage permits for more control conveyance in a littler bundle compared to proportionate low-voltage arrangements. This space effectiveness deciphers to diminished establishment costs and more noteworthy adaptability in gear format and office design. Installation adaptability obliges different mounting arrangements and association strategies to suit distinctive application prerequisites. The engine plan permits for even or vertical mounting with suitable bearing setups. Different terminal box positions give alternatives for optimizing cable directing and support access.
Reducing Costs Through Energy Efficiency and Low Maintenance
Energy proficiency characteristics contribute to decreased operational costs whereas supporting maintainability activities. The optimized electromagnetic plan minimizes misfortunes all through the working extend, keeping up tall productivity indeed beneath changing stack conditions. Progressed control frameworks can assist improve proficiency by optimizing engine operation based on real stack prerequisites or maybe than working at settled parameters. Maintenance prerequisites stay negligible when engines work inside plan parameters and get fitting preventive care. The quality orientation and vigorous development decrease the recurrence of major support mediations. Prescient support capabilities empowered by coordinates observing frameworks offer assistance recognize potential issues some time recently they require crisis repairs, permitting support exercises to be planned amid arranged downtime periods.
Enhancing Workplace Conditions with Low Noise and Vibration
The moo clamor and vibration characteristics make more comfortable working situations whereas diminishing wear on associated gear and supporting structures. Progressed fabricating methods and accuracy adjusting minimize mechanical unsettling influences that can engender all through the office. Commotion decrease contributes to administrative compliance and moved forward laborer satisfaction.
Comparing Medium Voltage Motor Technologies
Evaluating Complexity and Performance Across Motor Types
When evaluating motor technologies for high-power applications, synchronous motors present an alternative to squirrel cage induction designs like the 3.3 kV motor. Synchronous motors offer the advantage of power factor correction and slightly higher efficiency at full load conditions. However, they require more complex control systems and may need periodic maintenance of the excitation system. The increased complexity translates to higher initial costs and more specialized maintenance requirements.
Assessing Maintenance Demands and Reliability Trade-Offs
Wound rotor induction motors provide another option for applications requiring high starting torque or speed control capabilities. These motors allow for external resistance insertion during starting, which can reduce starting current and provide torque control. However, the slip ring and brush assembly requires regular maintenance and creates a potential point of failure. The maintenance requirements and reduced reliability make wound rotor motors less attractive for continuous operation applications.
Highlighting the Practical Advantages of 3.3 kV Motors
The 3.3 kV motor offers advantages in applications where simple, reliable operation is prioritized over specialized performance characteristics. The squirrel cage rotor design eliminates sliding contacts and reduces maintenance requirements compared to wound rotor alternatives. The robust construction provides excellent reliability for continuous operation applications without the complexity of synchronous motor control systems.
Comparing Starting Methods, Efficiency, and Control Integration
Starting characteristics differ among motor technologies, with implications for both electrical system design and mechanical equipment protection. The 3.3 kV motor typically uses reduced voltage starting methods or variable frequency drives to limit starting current and provide smooth acceleration. This approach protects both the motor and connected equipment while minimizing electrical system disturbances. Efficiency comparisons must consider not only full-load efficiency but also performance across the entire operating range. The 3.3 kV motor maintains good efficiency characteristics across varying load conditions, making it suitable for applications with fluctuating power requirements. The consistent efficiency helps minimize energy costs while reducing heat generation and thermal stress. Control system requirements vary significantly among motor technologies, affecting both initial costs and operational complexity. The 3.3 kV motor integrates well with standard variable frequency drive technology, providing precise speed control and protection features. The straightforward control requirements reduce engineering complexity and maintenance training requirements.
Target Industries and Applications
Driving Efficiency in Manufacturing and Production Facilities
Manufacturing industries represent a primary market for 3.3 kV motors, particularly in automotive, aerospace, and electronics production facilities. These industries require reliable motor performance for critical production equipment such as large compressors, material handling systems, and process equipment. The automotive industry utilizes these motors for paint booth ventilation systems, stamping press hydraulic pumps, and assembly line conveyors where reliable operation directly impacts production efficiency.
Supporting Continuous Operation in Power and Process Industries
Power generation facilities depend on 3.3 kV motors for auxiliary equipment including cooling water pumps, fuel handling systems, and air handling equipment. These applications demand reliable operation to support continuous power generation while meeting stringent safety and environmental requirements. The motors must operate in challenging environments with temperature variations, humidity, and potential contamination while maintaining consistent performance. Process industries including chemical processing, petroleum refining, and water treatment rely on these motors for pumps, compressors, and mixing equipment. These applications often involve continuous operation with minimal planned downtime, making reliability and longevity critical selection factors. The motors must resist corrosion and contamination while providing precise control for process optimization.
Expanding Use Across HVAC, Mining, and Transportation Systems
HVAC applications in large commercial and industrial facilities utilize 3.3 kV motors for centrifugal chillers, cooling tower fans, and large air handling units. These applications benefit from the high efficiency and reliable operation characteristics while requiring integration with building automation systems for optimal energy management. The quiet operation contributes to occupant comfort in commercial applications. Mining operations employ these motors for ore processing equipment, material conveyors, and ventilation systems. The challenging environment includes dust, moisture, and mechanical vibration that tests motor durability. The reliable operation becomes critical for maintaining production schedules and ensuring worker safety in underground applications. Transportation infrastructure including airports, seaports, and rail facilities uses 3.3 kV motors for baggage handling systems, cargo conveyors, and facility ventilation. These applications require reliable operation to maintain schedules and ensure safety while often operating in outdoor environments with temperature extremes and weather exposure.
Conclusion
The 3.3 kV motor represents a proven solution for industrial applications requiring reliable high-power performance with minimal maintenance requirements. Understanding the key features, advantages, and application considerations enables informed decisions that optimize both performance and total cost of ownership. These motors continue evolving through technological advances that enhance efficiency, reliability, and integration capabilities. The careful evaluation of application requirements against motor characteristics ensures successful implementation that supports long-term operational goals while providing the flexibility to adapt to changing industrial demands.
Frequently Asked Questions
Q1: What maintenance schedule should I follow for optimal 3.3 kV motor performance?
A: Routine maintenance should include monthly visual inspections for unusual noise, vibration, or heating. Quarterly checks should examine bearing temperatures, lubrication levels, and electrical connections. Annual maintenance typically involves insulation testing, bearing inspection, and comprehensive vibration analysis. The specific schedule may vary based on operating conditions and manufacturer recommendations. Proper maintenance records help identify trends and optimize maintenance intervals.
Q2: How does the IP54 protection rating affect installation requirements?
A: IP54 protection provides dust protection and splash water resistance, making it suitable for most indoor industrial environments and some outdoor applications with appropriate weather protection. Installation should ensure proper ventilation for cooling while preventing direct water spray on the motor. Outdoor installations may require additional weather protection depending on local conditions. Regular inspection of sealing integrity helps maintain the protection rating throughout the motor's service life.
Q3: What factors determine the appropriate power rating selection for my application?
A: Power rating selection depends on the driven equipment requirements, including starting torque, running load, and duty cycle characteristics. Consider the mechanical load characteristics, such as constant torque, variable torque, or constant power requirements. Environmental factors like altitude and ambient temperature may require derating. Consulting with application engineers ensures proper sizing while avoiding over-specification that increases costs unnecessarily.
Choose XCMOTOR for Your Industrial Motor Solutions
XCMOTOR delivers premium 3.3 kV motor solutions engineered for demanding industrial applications across manufacturing, power generation, and process control industries. Our comprehensive product line features power ranges from 160 kW to 1600 kW with exceptional reliability and efficiency characteristics. As a trusted 3.3 kV motor supplier, we combine advanced engineering expertise with responsive customer support to ensure optimal solutions for your specific requirements. Contact our technical team at xcmotors@163.com to discuss your application needs and discover how our motor solutions can enhance your operational performance.
