The Key Factors in Selecting YKK Motors for Large Pumps and Fans
If you want to buy a motor for a big pump or fan, you need to carefully consider its technical specs, dependability, and long-term value. One thing that makes the YKK motor stand out is that it was designed to work well in harsh industrial settings where power output, longevity, and reliability are very important. These high-voltage motors can handle voltages from 3 kV to 11 kV and power outputs from 200 kW to 6300 kW. This means they can be used in places like mines, water treatment plants, process manufacturing, and industrial HVAC systems. By knowing what factors affect motor choice, buying teams can avoid expensive mistakes and make sure equipment works well for as long as it's supposed to.

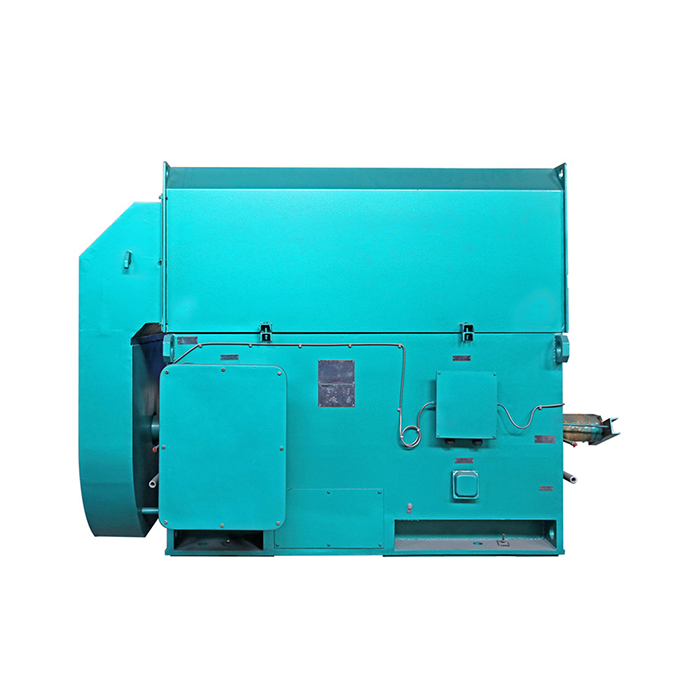

Series：YKK
Protection level：IP54
Voltage range：3000V±5%,3300V±5%,6000V±5%,6600V±5%,10000V±5%,11000V±5%
Power range：200-6300 kW
Application：fans, water pumps, compressors, crushers, cutting machine tools, transportation machinery, etc.
Advantage：low noise, low vibration, long service life, easy installation and maintenance.
Standard: This series of products complies with JB/T 12730 and JB/T 12729 standards.
Others： SKF, NSK, FAG bearings can be replaced according to customer requirements.
Understanding YKK Motors and Their Technical Excellence
Core Engineering Principles Behind High-Voltage Motor Performance
In order to turn electrical energy into mechanical motion, high-voltage motors use electromagnetic induction. Advanced winding designs and magnetic circuit optimization are used in the YKK motor line to get better power and heat control. These motors meet the standards set by JB/T 12730 and JB/T 12729, which means that the quality of the making meets well-known standards in the business. The normal insulation class F, along with the optional H-grade insulation, guards windings against thermal stress in situations where they are constantly used, like in water pumping stations and industrial ventilation systems.
Power Range and Voltage Configuration Options
In industrial settings, the motor's powers and load requirements must be perfectly matched. Power ranges from 200 kW to 6300 kW, which can handle a wide range of tasks, from medium-sized cooling tower fans to big centrifugal pumps that move millions of gallons of water every day. With voltage ranges of 3000V, 3300V, 6000V, 6600V, 10000V, and 11000V (all with ±5% error), it is possible to connect to existing power systems without having to make expensive changes to the transformers. This voltage flexibility is helpful when updating older buildings or growing businesses in places where power source standards are different.
Efficiency Ratings and Energy Consumption Impact
The biggest cost over the life of a motor is its operating costs, which are often many times the original purchase price. Modern high-voltage motors are as efficient as or more efficient than IE3 norms, which means they use fewer kilowatt-hours. When compared to older versions, a properly stated YKK motor that runs for 8,000 hours a year can save a lot of money. Optimized rotor design, low-loss magnetic steel, and precise manufacturing all work together to lower heat production. This makes the system even more efficient and extends the life of its parts.
Core Considerations When Selecting YKK Motors for Large Pumps and Fans
Matching Motor Characteristics to Application Requirements
Different mechanical needs are put on drive motors by pumps and fans. To fight static head pressure and speed up the flow of fluid, centrifugal pumps usually need a lot of starting torque. Fans, on the other hand, have smaller starting loads but need to be able to keep their speed stable while they're running. The YKK motor design has a high starting power and a high overload capacity, so it works well in both situations. Process engineers should look at the load profile—whether it's constant torque, changing torque, or constant power—to make sure that the motor voltage and frame size they choose meet the mechanical needs.
Environmental Protection and Operational Conditions
Motors are exposed to dust, water, high temperatures, and chemical fumes in industrial settings. The IP54 grade protects well against solid objects and water splashing from many directions. It is good for most industrial installations inside and many outdoor uses that need weather protection. This amount of safety is especially helpful for mining activities, wastewater treatment plants, and factories that make chemicals. Checking the integrity of the seals and the safety of the bearings is very important when selecting motors for seaside installations or facilities with corrosive atmospheres to avoid early failures.
Noise and Vibration Control for Workplace Compliance
Occupational health rules are putting more and more limits on how loud industrial settings can be. To reduce noise and mechanical shaking, the YKK motor includes design features. Compared to traditional designs, noise signals are lower when precision-balanced rotors, improved fan blade geometry, and vibration-dampening mounting options are used. These traits are helpful for businesses that are near residential areas or work multiple shifts because they help them stay in line with noise laws while also reducing worker tiredness and the need for hearing protection.
Maintenance Accessibility and Service Life Optimization
Equipment performance has a direct effect on how much can be made and how much money can be made. Motor designs that make regular upkeep easier cut down on the average time it takes to fix something and increase the time between major overhauls. The YKK motor has easy-to-reach terminal boxes, simple processes for replacing bearings, and can work with high-quality bearing names like SKF, NSK, and FAG if the customer asks. Setting up preventive maintenance plans that include things like tracking vibrations, thermal imaging, and managing greasing extends the life of a machine. Procurement teams should look at more than just the initial cost of the equipment. They should also look at how much it will cost to maintain and whether new parts are available through approved distribution networks.
Comparing YKK Motors with Other Market Options
Performance Benchmarking Across Key Metrics
Procurement workers look at how long a motor will last, how loud it is when it's running, how well it handles heat, and how easy it is to start. When made to work continuously in harsh settings, high-voltage motors must show steady performance across a wide range of atmospheric temperatures and load conditions. These YKK motors have a wide speed regulation range, which makes them useful for uses that need changeable power. Manufacturers' claims about efficiency, noise level, and temperature stability during long-term operation can be backed up by testing data and field performance records.
Total Cost of Ownership Analysis
The price of buying something is only one part of how much it will cost over its lifetime. To find the total cost of ownership, you have to multiply the amount of energy used by the expected service life, the cost of planned upkeep, the availability of spare parts, and the cost of any downtime that might happen. A motor that uses 5% less energy than other options will save you money over the course of 15 to 20 years of use. The normal guarantee covers manufacturing flaws for one year, but you can choose to extend it for longer. Looking at the terms of the guarantee, how quickly technical support can respond, and the service skills of the distributor can help you figure out the risk and any unexpected costs that might come up.
Global Support Infrastructure and Technical Resources
Industrial processes take place in many places and at different times, so supply support infrastructure is an important thing to think about. Access to expert documents, help with application engineering, and replacement parts affects both the time it takes to complete a job and the continuity of operations. Making sure that suppliers keep enough stock on hand, offer acceptable wait times (usually two to four weeks for standard specifications), and offer helpful customer service helps make sure that purchasing choices don't cause future supply chain weaknesses. To avoid delays in getting their tools, international buyers should make sure that the seller can ship their items and help them with their customs paperwork.
Streamlining Procurement of YKK Motors: Best Practices
Navigating Supplier Selection and Verification
To find trusted suppliers, you need to check their authorization documents and look at their business skills. Shaanxi Qihe Xicheng Electromechanical tools Co., Ltd. is a company that offers solutions and is dedicated to providing high-performance power tools with full expert support. When looking for high-voltage motors, making sure that wholesalers carry original parts and keep in touch with manufacturers is the best way to avoid buying fakes that don't have the right certifications or performance promises. Asking the maker for proof of manufacture, testing licenses, and compliance records can help you make sure the product is real.
Inquiry Process and Technical Specification Communication
For procurement to work well, application needs must be made clear to providers. It is easier to get accurate quotes when you give more information about the load characteristics, job cycles, ambient conditions, mounting setups, and any other unique features. Technical teams should talk to manufacturers early on in the planning stages of a project to talk about custom changes that may need longer production times, like special shaft extensions, different bearing setups, or better sealing systems. Putting these details in official buy orders stops confusion and makes it clear what is expected of the contractor.
Logistics Coordination for International Delivery
The physical assets that high-voltage motors are are very large and need special shipping and handling plans. Many people are involved in coordinating freight transfer, customs clearance, and final delivery to project areas. When suppliers offer shipping help and recording, it makes things easier for procurement teams to do their work. Knowing when to ship something, especially when it's from another country, helps project managers plan installation work and work with other building trades. Insurance coverage during travel keeps things safe from damage or loss while they're being moved.
Case Studies and Real-World Applications of YKK Motors
Water Treatment Facility Pump Replacement Project
Pump motors installed in the 1990s were not reliable at a local water treatment plant that served 250,000 people. Six main circulation pumps were running all the time at the plant, and energy costs made up 40% of operational costs. After doing technical checks, plant workers chose YKK motor units with a total output of 1,250 kW and a voltage of 6,600V. The humid conditions inside the pump house worked well with the IP54 security. After the equipment was installed, the building reported lower amounts of vibration and noise compared to the old equipment. Measuring energy use showed that operations continued to save money, which helped support the capital investment by lowering electricity costs.
Industrial Ventilation System Upgrade in Manufacturing Complex
A company that makes parts for cars and has multiple production lines needed to improve their ventilation fans to meet their needs for more capacity and to follow new environmental rules. The old fan motors made too much noise, which was too much for the workplace to handle during busy times. YKK motor units with improved acoustic performance traits were suggested by engineering experts. The eight-kilowatt motors spread out over six ventilation towers moved the air as needed while lowering the noise level by eight decibels. Maintenance teams liked how easy it was to get to the bearings and how well they worked with standard replacement parts. This cut down on the need for inventory and made scheduling preventive maintenance easier.
Mining Operation Compressor Station Implementation
In order to help with deep digging, a copper mine in the southwestern United States put in new compressed air systems. The compressor powers the needed motors, which must be able to handle dusty conditions and changes in temperature while still providing reliable starting force. Four YKK motor units with a 2,500 kW rating were chosen for the job because they are strong and have been shown to handle overloading. As mining operations spread to new parts of the land, the motors' wide speed control range kept up with changing needs. The easy buying process and quick technical support during the design phase were appreciated by the procurement teams and kept the project on track.
Conclusion
It's important to think about long-term worth, technical specs, and operational needs when choosing motors for large pumps and fans. The YKK motor line meets these needs with tried-and-true types that range from 200 kW to 6300 kW and voltages from 3 kV to 11 kV. These motors are good choices for water treatment, industrial, mining, and HVAC because they are protected by IP54, operate quietly, work with high-quality bearings, and meet known standards. To make smart purchasing choices that support operational goals and responsible capital investment management, it's important to look at the total cost of ownership, which includes things like energy use, upkeep needs, and supplier support capabilities.
FAQ
1. What voltage range should I select for my pump application?
The voltage you choose will depend on the electricity system in your building and the power needs of the motor. Different power supply setups can be accommodated by options ranging from 3 kV to 11 kV. Higher volts work best with bigger motors (above 2,000 kW) because they lower the current draw, which means that smaller cables are needed and less electricity is lost. Talk to electrical experts about how to match the voltage of the motor to the abilities of the existing switchgear and transformers so that you don't have to make expensive changes to the infrastructure.
2. How does IP54 protection compare to other ratings?
IP54 protection keeps dust and water from coming in from any direction. It's good for most industrial settings inside and covered outdoor setups. Applications that will be submerged or hit by direct water jets need higher ratings, like IP55 or IP56. When figuring out what amount of protection is needed, you should look at your specific environmental conditions, such as possible washdown processes, ambient moisture, and particulate exposure.
3. Can bearings be upgraded to specific brands?
Based on what the customer wants, the motor design can work with high-end bearing names like SKF, NSK, and FAG. These bearings have been shown to be reliable, and they are easy to find through industry distribution networks. When you buy bearings, choosing the brands you want makes sure they work with what you already have in maintenance stock and may give you performance benefits in certain situations, like when you're working in dirty or hot conditions.
Partner with XCMOTOR for Reliable YKK Motor Supply
XCMOTOR offers a wide range of power equipment options backed by technical know-how and service that is focused on the customer. For industrial uses needing high-voltage capability and established dependability, we specialize in offering genuine YKK motor products. Our team helps make sure that your project gets the exact tools it needs by checking specifications, offering unique configuration options, and coordinating supplies. We keep good ties with suppliers and keep genuine parts in stock to cut down on wait times. No matter if your building needs a single unit or a lot of them for installations at multiple sites, our procurement experts are here to help you every step of the way. You can email us at xcmotors@163.com to talk about your needs with professionals who know how to choose the right industrial motor. As a reliable YKK motor provider, we provide quick shipping, 30-day returns, and committed support, even on the weekends, to ensure that your business runs smoothly.
