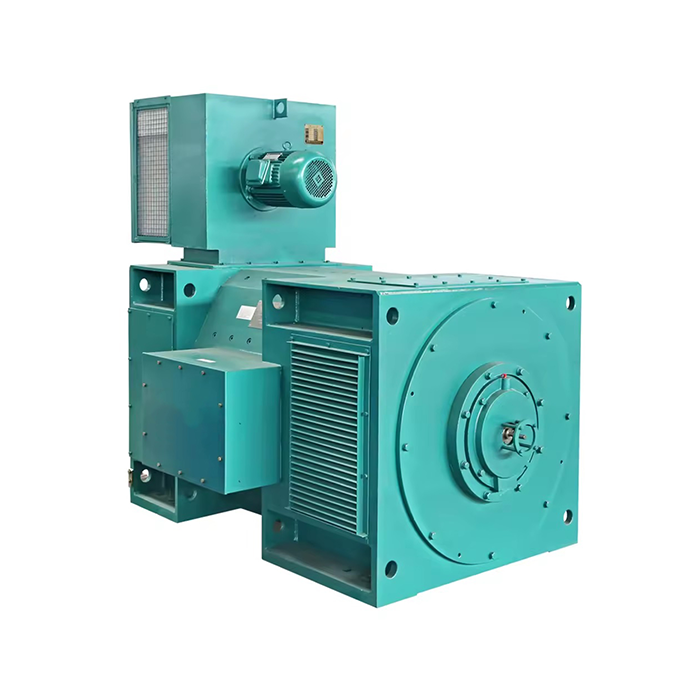

The 200 HP DC motor is a high-powered electric motor designed to provide robust performance across a range of demanding industrial environments. Engineered with precision, it delivers excellent torque and efficiency while maintaining stable operation under heavy loads. This motor is widely used in industrial machinery requiring precise control, smooth speed regulation, and reliable power supply. The versatility of the 200 HP DC motor, from automation to heavy machinery, makes it a critical component in numerous manufacturing and process control settings.
Series：Z4
Frame number: 100-450
Application:Z4 series motorsThis series of motors can be widely used in various industrial sectors such as metallurgical industrial rolling mills, metal cutting machine tools, papermaking, dyeing and weaving, printing, cement, and plastic extrusion machinery.
Power range：1.5-600kW
Voltage range: 160V,440V, etc.
Certificate: The performance of this series of motors not only complies with the national standard GB/T755 "Basic Technical Requirements for Rotating Electrical Machines", but also basically complies with the German VDE0530 standard.
Advantage:Z4 series DC motor has greater advantages than Z2 and Z3 series. It can not only be powered by DC unit power supply, but also suitable for static rectifier power supply. It has small moment of inertia, good dynamic performance, and can withstand high load change rates. It is especially suitable for control systems that require smooth speed regulation, high efficiency, automatic speed stabilization, and responsive response. It has reached the current international advanced level..
Others: SKF, NSK, FAG bearings can be replaced according to customer requirements.
Key Parameters and Specifications of the 200 HP DC Motor
1. Power Output and Voltage Adaptability
The 200 HP DC motor is designed to deliver a powerful performance suitable for a wide range of industrial applications. With a customizable voltage range, it can operate at 160V, 440V, or other specific voltage requirements, making it versatile and adaptable to different power supplies.
2. High Starting Torque for Heavy-Duty Operations
One of the standout features of this motor is its high starting torque, which allows it to handle heavy loads with ease. This characteristic is crucial for applications that demand robust power during startup, such as lifting equipment, conveyors, or other industrial machinery. The motor's ability to manage high torque ensures smooth operation even under challenging load conditions, enhancing productivity and reducing the risk of equipment strain.
3. Thermal Management and Insulation
The motor features Class F insulation, enabling it to operate continuously at temperatures up to 155°C. This thermal resilience is essential for maintaining consistent performance in environments where heat buildup is a concern. By reducing the impact of thermal stress, the motor's insulation ensures long-term reliability and prevents premature wear, minimizing the need for repairs or replacements.
4. Protection Against Dust and Moisture
With an IP23 protection class, the motor is equipped to withstand dust and moisture exposure, which is common in industrial environments. This level of protection ensures that the motor's internal components are shielded from external elements, enhancing its longevity and reducing the risk of damage. For more demanding conditions, higher protection levels can be specified to further safeguard the motor.
5. Forced Ventilation Cooling for Extended Operation
To maintain optimal operating temperatures, the motor is equipped with forced ventilation cooling. This cooling system effectively dissipates heat, preventing overheating and allowing the motor to run for extended periods without loss of performance. Forced ventilation ensures that the motor remains efficient, even during prolonged use, making it an ideal choice for operations that require continuous and reliable performance.
Core Benefits of Using a 200 HP DC Motor
Efficiency and performance standout when considering the 200 HP direct current motor.
High Operational Efficiency
The 200 HP DC motor boasts an impressive operational efficiency of up to 95%, making it an energy-efficient choice for industries aiming to reduce operational costs. By minimizing energy waste, this motor helps companies cut down on electricity consumption, leading to substantial savings over time.
Precision Control and Dynamic Responsiveness
With its low moment of inertia, the 200 HP DC motor excels in providing precise control and fast dynamic responsiveness. This allows for smooth operation even during rapid acceleration or deceleration.
Automatic Speed Stabilization
One of the standout features of this motor is its ability to automatically stabilize speed, even under fluctuating load conditions. This feature ensures consistent performance and smooth operation, preventing the motor from overloading or experiencing instability.
Durability in Harsh Environments
The 200 HP DC motor is built with rugged construction to withstand demanding industrial environments. Its robust design makes it ideal for applications in steel mills, mining operations, and paper production facilities—places where equipment is often exposed to high temperatures, vibrations, and harsh operating conditions.
Customizable Features for Specific Applications
Another significant benefit of the 200 HP DC motor is its flexibility. It offers customizable options, such as motor winding configurations and bearing replacements, allowing for tailored performance that meets the specific needs of different industries.
How to Use Your 200 HP DC Motor for Maximum Benefit
Optimizing the use of a 200 HP DC motor begins with selecting the right specifications to match your application. Ensuring appropriate voltage and speed settings through a precise motor controller can enhance performance and extend the lifespan of the motor. Regular maintenance focusing on the motor housing, brushless commutation elements, and gearbox integrity helps prevent unexpected failures. Employing thermal management techniques like forced ventilation keeps the motor operating within optimum temperature ranges. For variable speed operations, pairing your motor with an advanced motor controller unlocks further efficiency and control benefits. It's also essential to consider matching the load capacity accurately to the motor's design limits to avoid unnecessary wear and inefficiencies.
Important Notes When Handling or Purchasing a 200 HP DC Motor
Choosing the right 200 HP DC motor should be guided by your specific industrial needs, environmental considerations, and budget constraints. Confirming certifications such as CE and CCC will guarantee adherence to safety and performance standards. Do inquire about customization options like motor winding and bearing brands to better suit your operational conditions. Pay attention to insulation and protection classes, particularly for harsh environments to avoid premature failures. Lastly, working with reputable 200 HP DC Motor suppliers like XCMOTOR can drastically reduce risks through access to original parts, fast delivery, open purchase policies, and dedicated support including weekend assistance.
Conclusion
The 200 HP DC motor remains a cornerstone for industries requiring powerful, efficient, and reliable electric motors. Its ability to perform under rigorous conditions combined with advanced technical features makes it a practical investment for numerous industrial applications. Opting for a motor from trusted providers like XCMOTOR assures you of superior quality, extensive customization, and excellent after-sales service. This combination supports sustained operational excellence and helps businesses achieve energy savings, performance optimization, and reduced maintenance burdens.
Frequently Asked Questions
Q1: What applications are best suited for a 200 HP DC motor?
A: The 200 HP DC motor is ideal for heavy machinery, mining operations, steel production, paper and pulp processing, marine propulsion, and renewable energy installations due to its high torque and efficiency.
Q2: How does the 200 HP DC motor achieve high efficiency?
A: This motor incorporates advanced commutation systems, small moment of inertia, and optimized motor winding designs. Coupled with forced ventilation cooling, these features minimize energy losses and maintain stable performance.
Q3: Can the 200 HP DC motor handle variable speed control?
A: Yes, it supports variable speed operations through motor controllers compatible with both DC power unit supply and static rectifier systems, enabling precise speed regulation suitable for automation.
Q4: What maintenance is required to ensure the longevity of a 200 HP DC motor?
A: Routine inspections of motor housing, bearings, and gearbox, along with proper thermal management and lubrication, are essential to maintain reliability and prevent downtime.
Q5: Are replacement parts like bearings readily available for the 200 HP DC motor?
A: Absolutely. XCMOTOR offers original parts from trusted brands like SKF, NSK, and FAG as replacements based on customer needs, ensuring seamless maintenance and longevity.
Where to Buy 200 HP DC Motor
Discover premium 200 HP DC motors tailored to your unique needs by consulting XCMOTOR. Our commitment to quality and customer support stands unmatched in the industry. Reach out to us for inquiries or to request a quote by contacting us at xcmotors@163.com. Experience fast delivery, original parts, and dedicated assistance every step of the way.
