The Core Role of 4160V Motors in Large Water Treatment Plants and Pumping Stations

Continuous, dependable operation is essential in large-scale water treatment plants using 4160V motors and pumps. The 4160V motor, a medium-voltage solution designed for heavy-duty pumping, compression, and mixing, is crucial to this dependability. Modern municipal and industrial water infrastructure relies on these high-voltage motors for their power output, operating efficiency, and longevity. Their capacity to withstand heavy loads while avoiding energy loss makes them crucial for plant managers, procurement engineers, and facility operators seeking long-term success.



CONTACT US

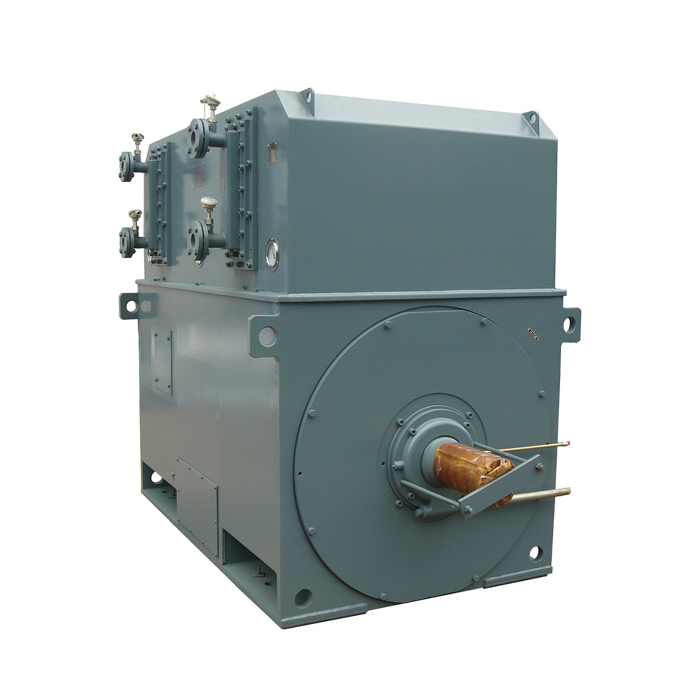

Series：YKS
Protection level：IP54
Voltage range：3000V±5%,3300V±5%,6000V±5%,6600V±5%,10000V±5%,11000V±5%
Power range：220-6300 kW
Application：fans, water pumps, compressors, crushers, cutting machine tools, transportation machinery, etc.
Advantage：low noise, low vibration, long service life, easy installation and maintenance.
Standard: This series of products complies withGB/T 1032 and GB/T 13957 standards.
Others： SKF, NSK, FAG bearings can be replaced according to customer requirements.

Understanding 4160V Motors in Water Treatment and Pumping Stations

Core Specifications and Operational Principles

In the past 20 years, 4160v motor technology has advanced and become vital for large-scale industrial operations. These motors convert electrical energy into mechanical power at 3,000V–11,000V with over 96% efficiency. High-quality silicon steel laminations reduce core losses in the fundamental design. Premium copper windings maximize conductivity and prevent heat buildup over lengthy operating cycles. Energy efficiency, downtime reduction, and equipment longevity make 4160v motors a wise investment that minimizes production costs.

Voltage Ratings and Power Output

Our 4160v motor range includes products with power ratings from 160kW to 6,300kW and voltage ratings covering the vast majority of industrial needs. This range accommodates everything from secondary pumps to primary high-capacity units responsible for moving vast water volumes through treatment stages. The flexibility in voltage ratings, from 3,000V to 11,000V, ensures that plant engineers can match the equipment perfectly with the needs of the business, avoiding expensive mistakes that hurt performance or raise the total cost of ownership.

Maintenance and Longevity Best Practices

Modern 4160v motor units are built with longevity 4160v motor  and efficiency in mind. At XCMOTOR, our motors have frames made of cast iron, which increases their strength and helps them get rid of heat better. Class F or H insulation systems can handle temperatures of up to 155°C or 180°C, which is very important for safety during times of high load. Vacuum pressure impregnation (VPI) treatment makes sure that the glue goes all the way through the winding structures, getting rid of any air spaces that might weaken the dielectric strength. When this process is used, the shielding protects against voltage spikes that happen in industrial power lines.

Performance and Efficiency: Why 4160V Motors Are Ideal for Large-Scale Plants

Energy Efficiency and Cost Savings

4160v motor technology cuts power use by a measured amount by using better materials and better electromagnetic design. Motors that meet IE3 economy guidelines have power factors between 0.85 and 0.89, which means they use less reactive power from the grid and pay less in demand charges. At $0.12/kWh, a 2,500kW motor that runs for 8,000 hours a year can save about $36,000 a year compared to a motor that is only 3% less efficient. These small improvements in engineering add up to real savings on costs over the 4160v motor's useful life, which is usually between 20 and 25 years in well-kept systems.

Operational Stability and Environmental Resilience

Good temperature control has a direct effect on how well and how long a 4160V motor works. Even when the temperature changes from -20°C to +40°C, our cast iron frames keep their shape and handle tough industrial circumstances. The water-cooled systems (ICW37) we use have closed-loop cooling jackets that keep the inside temperatures stable even when they are running at full load all the time. Air-cooled versions (IC411, IC611) have optimized fan designs and ventilation paths that allow the most air flow through without causing too many parasitic losses.

Reliability Compared to Lower-Voltage Alternatives

Through sturdy construction and cutting-edge bearing systems, 4160v motor designs naturally lower failure risks. Precision-balanced wheels keep vibrations to less than 3mm/s, which keeps linked equipment safe and greatly increases the life of bearings. When used in our products, the SKF, NSK, and FAG bearings offer longer service times of up to 50,000 hours under average conditions. These motors are dynamically balanced to ISO 1940 Grade G2.5 standards, meaning they can be used in the toughest situations, stopping breakdowns that can shut down 4160v motor ​​​​​​ whole production lines.

Selecting the Right 4160V Motor: A Decision Support Framework for B2B Buyers

Key Selection Factors for Water Treatment Applications

When engineering teams are looking at ways to improve systems, they must compare the 4160V motor to other choices. Induction designs are simple and durable, requiring no brush maintenance and working well in tough environments. For squirrel cage designs, starting torque usually hits 60–80% of maximum torque, enough for most pump and fan uses, while wound rotors can handle loads with high inertia. Synchronous motors offer better power factor performance, often reaching 0.95, which lowers utility demand charges and improves system voltage security.

Evaluating Manufacturers and Support Services

Successful 4160v motor procurement balances technical specifications, supplier capabilities, and commercial terms. XCMOTOR uses advanced CNC machine centers and automatic winding systems to ensure parts are precisely made and consistent. Our quality control systems are in line with ISO 9001:2015 standards, offering organized ways to check design and production. Standard guarantee terms usually last between 18 and 24 months, and XCMOTOR offers flexible guarantee designs based on the risk profile of the customer and the seriousness of the application.

Installation and Integration Considerations for 4160V Motors

Wiring Configurations and Safety Compliance

Installation of a 4160V motor necessitates the use of experienced electrical workers who are familiar with medium voltage switches, wire termination techniques, and safe relay coordination. Because of these unique needs, the initial installation costs are about 30–40% higher than for low-voltage alternatives. However, economies of scale show up in larger facilities where centralized medium voltage distribution serves many motors more cheaply than extensive low voltage branch circuits.

Variable Frequency Drive Compatibility

Our engineering help includes 4160v motor specification optimization, efficiency analysis, and help with integration for applications that use variable frequency drives. This consultative method keeps procurement teams from giving too many details while still making sure there are enough performance gaps for future changes to the process or capacity growth. This ensures that the motor remains compatible with modern control systems and maintains high efficiency across various speed ranges.

Customization and Spare Parts Availability

Lead times for 4160v motor orders are usually between 8 and 16 weeks, though standard frame sizes with common voltage values may have faster delivery. Custom designs that need custom windings or non-standard mounting setups require longer production plans. Because of their size and weight, motors that are more than 2,000kW need special handling when being transported. XCMOTOR works with experienced freight forwarders to ensure safe delivery, providing clear handling instructions to prevent damage during transport.

Real-World Applications and Case Studies in Large Water Treatment Plants

Driving Critical Process Equipment

Within large-scale facilities, the 4160V motor drives essential 4160V motor  equipment throughout the treatment process. Case applications in the production of airplane parts and the processing of petrochemicals show that we can provide solutions that meet the high-performance and dependability standards needed by controlled industries. Shaanxi Qihe Xicheng Electromechanical Equipment Co., Ltd. (XCMOTOR) has built a strong reputation in North America, serving the industrial automation, HVAC, energy, and water treatment sectors.

Case Study: Efficiency Improvement at a Regional Pumping Station

Upgrading to 4160v motor technology delivers quantifiable reductions in plant operating costs. For factories with a lot of big motors, the return time can be as short as 18 to 24 months just from saving electricity. A typical 1,000kW motor operating 7,500 hours annually at $0.10/kWh would save approximately $11,250 per year with a 15% efficiency improvement, yielding payback periods under three years for most industrial applications.

Lessons and Best Practices from Successful Projects

Systematic maintenance programs protect 4160V motor investments. Condition tracking technologies, such as vibration signature analysis, find problems before they become major breakdowns. Megohmmeters are used to test the insulation's resistance regularly, while thermal imaging surveys identify abnormal heating patterns. The PT100 temperature sensors integrated into XCMOTOR motor designs enable continuous condition monitoring when connected to distributed control systems.

Conclusion

Upgrades to 4160v motor technology minimize plant running costs by improving energy economy, dependability, and maintenance. Advanced materials, precise manufacturing, and improved electromagnetic design allow these motors to beat traditional alternatives in operational parameters that affect profitability. Successful deployments involve skilled supplier selection, application engineering, and disciplined maintenance to maintain the investment for decades. Operationally excellent industrial facilities increasingly see 4160v motor upgrades as strategic activities that cut energy costs and enhance production uptime, strengthening competitive advantages.

FAQ

1. What maintenance schedule should be followed for medium-voltage motors in water treatment applications?

Regular vibration signature analysis may reveal worn bearings and imbalanced rotors during preventive maintenance. High-quality bearings should be changed every 40,000–60,000 hours, depending on usage. Every 5–7 years, winding insulation should be tested professionally utilizing partial discharge or polarization index measurements. Professional electrical maintenance companies can handle these chores to avoid accidental downtime.

2. How do medium-voltage motors compare to low-voltage alternatives regarding efficiency?

When upgrading to 4160V motor systems, facilities often save 8-15% in power usage, depending on motor efficiency and operating profile. Higher-quality materials and silicon steel laminations reduce core and resistive losses in these motors. A 1,000kW motor may pay for itself in energy savings in three years.

3. What factors should be considered when procuring motors in bulk for multiple facilities?

Manufacturing and logistical economies of scale are reflected in bulk order pricing. Tiered discounts apply to multi-unit purchases of 3, 5, and 10+ units. Custom price ideas may optimize cash flow and volume pricing for your 4160v motor project with staggered supply dates and phased deployment strategies.

Request Your Customized 4160V Motor Solution from XCMOTOR Today

Optimizing your water treatment facility's performance starts with selecting the right motor supplier for a 4160V motor. XCMOTOR, operated by Shaanxi Qihe Xicheng Electromechanical Equipment Co., Ltd., delivers high-performance 4160v motor solutions engineered specifically for demanding water treatment and pumping applications. Our range of products includes power ratings from 160kW to 6,300kW and voltage ratings from 3,000V to 11,000V. We support both Sat & Sun, ensuring responsive technical assistance whenever you need it. Contact our team at xcmotors@163.com to discuss your project specifications, request detailed quotations, or explore our complete product catalog at motorxc.com. Whether you require a single replacement unit or seek a reliable 4160v motor manufacturer for multi-site procurement, we provide the expertise and support needed to optimize your operations and minimize downtime.
