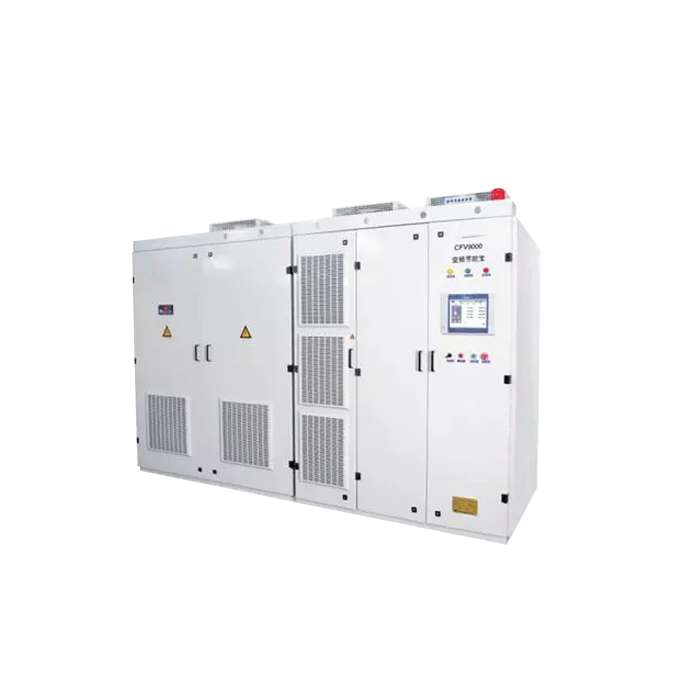

electrical frequency converter

Adaptable motor power range ：200-12000 kW
Application：can be used to drive fans, water pumps, textiles, papermaking, wire drawing, machine tools, packaging, food and various automated production equipment.
Advantage：air cooling, inverter control panel, built-in power transformer.

Send Inquiry Download

Product Description

Electrical Frequency Converter - Professional Power Conversion Solutions

Accurate frequency regulation of industrial power systems is essential to maximise the operation and energy consumption of equipment. The electrical frequency converter converts AC electricity via AC→DC→AC conversion. It outputs a clean sine wave, with variable frequency and voltage parameters. XCMOTOR’s CFV series spans power range of 200-12000 kW, and supports 6kV and 10kV standard voltage grades with customisable 3kV versions. These converters have innovative air conditioning systems, built-in control panels and internal power transformers to provide steady performance in harsh industrial conditions.

Electrical Frequency Converter Manufacturer and Supplier

Shaanxi Qihe Xicheng Electromechanical Equipment Co., Ltd. brings over 20 years of expertise in power equipment solutions. We have strategic collaborations with over 30 motor manufacturers, including ABB, Siemens, Wolong and NEC. SAP management solutions govern our manufacturing plants for constant quality control and traceability. All units are tested thoroughly before shipping with full CCC, CE, ISO9001:2000 and CRCC certificates to prove our dedication to manufacturing quality.

electrical frequency converter

Pain Points vs. Solutions

Challenge	XCMOTOR Solution
Frequency mismatch (60Hz↔50Hz conversion)	Adjustable output 0-60Hz with ±0.01% precision
High voltage motor speed control complexity	Direct 6kV/10kV drive without step-down transformers
Equipment overheating in harsh environments	Dual cooling options: air-cooled for clean spaces, water-cooled for high-dust zones
Energy waste during variable load operation	Real-time power factor optimization reduces consumption by 30-50%
Limited protection against grid fluctuations	Multi-layer fault detection with instant response mechanisms

Technical Advantages

Our CFV series converters utilize modular power unit architecture for enhanced reliability. Each cell operates independently, allowing continued function even if individual units fail. The built-in power transformer eliminates external voltage matching equipment, reducing installation footprint by 40%. An advanced IGBT architecture limits harmonic distortion to less than 3% to prevent sensitive equipment from power quality problems. The smart control panel allows straightforward parameter modification with multi-language interfaces for ease of use by maintenance crews.

Manufacturing Process

The raw materials are verified using supplier audits to ensure that only certified components are used in the manufacture. The automated SMT lines for assembling control boards achieve first-pass yield rates of 99.8%. Power unit assembly is performed to cleanroom standards to avoid contamination. Each converter is burn-in tested for 72 hours with simulated load conditions. In the final inspection for the quality seal, a dielectric strength test, insulation resistance measurement and harmonic analysis are carried out.

Applications in Industry

Mining Operations Accurate torque management of ball mills and conveyor systems under changing material loads.

Water Treatment: Match the speed of pumps in municipal facilities to real-time changes in demand.

HVAC Systems: Control huge industrial fans and compressors for substantial energy savings during partial load times.

Textile Manufacturing: Manage the speeds of many motors in spinning and weaving machinery to ensure consistent product quality.

Paper Production: Maintain precise tension control across processing stages from pulp preparation to finishing with electrical frequency converter. application

Customization Capabilities

You receive tailored solutions addressing specific operational requirements. Our engineering team modifies dimensions to fit existing enclosures and adjusts voltage parameters for unique grid conditions. We install control logic to talk with your SCADA systems. We support Modbus, Profibus and Ethernet/IP protocols. Custom cooling designs for severe ambient temperatures, from -25 to +55°C. Special coatings protect converters in harsh chemical processing settings.

Reliability Testing & Certifications

All units are salt spray resistant and are tested to IEC 60068-2-52. Vibration test replicates the pressures of transport and operation in accordance with GB/T 2423.10. Temperature cycling verifies operation within rated thermal ranges. We are ISO9001:2000, CQC and ZDHY environmental certified quality management system. Railway applications, CRCC norms, UL and GOST approvals for overseas markets. Certificate

Why Choose XCMOTOR

Proven Supply Chain: We work directly with top component manufacturers to ensure you get genuine parts at low prices.

Rapid Response Your success support teams will answer technical questions within 4 hours, even on weekends.

Flexible Delivery: We can ship free of charge by sea, land and air, with the flexibility to customise to your timetable.

Risk-Free Purchase: 30-day return policy for complete testing in your operating environment.

Life Cycle Support: ? We provide ongoing technical support and replacement parts availability from original specification to decades of operation. xcmotor

FAQ

Q：What does CFV stand for in the high voltage frequency converter model?

A：CFV represents our product series code. C indicates power conversion, F denotes frequency control, and V signifies high voltage capability, specifically engineered for high-power motor regulation.

Q：What voltage levels does the CFV high voltage frequency converter cover?

A：Standard offerings include 6kV and 10kV grades. We manufacture customized 3kV models matching your power distribution infrastructure requirements.

Q：Which equipment can CFV high voltage frequency converter be matched with?

A：These converters control high-voltage synchronous and aSynchronous Motors in mine ball mills, industrial fans, pumps, compressors, and main drive conveyor systems.

Q：Does CFV high voltage frequency converter have perfect fault protection functions?

A：Yes. Comprehensive protections include overcurrent, overvoltage, phase loss, overheating, and ground fault detection with automatic shutdown protocols.

Q：What are the daily maintenance key points of CFV high voltage frequency converter?

A：Clean radiators and filters monthly. Inspect wiring connections quarterly. Monitor operating temperatures and fan performance. Avoid continuous full-load operation above 40°C ambient temperature.
