IE5 motors for HVAC systems represent the latest advancement in energy-efficient motor technology, delivering exceptional performance while significantly reducing operational costs. These ultra-premium efficiency motors utilize innovative designs and advanced materials to achieve energy savings up to 40% compared to traditional IE3 motors. Understanding the capabilities and benefits of IE 5 motor technology helps facility managers and engineers make informed decisions about upgrading their HVAC infrastructure. This comprehensive guide explores everything you need to know about implementing these cutting-edge motors in your heating, ventilation, and air conditioning applications.

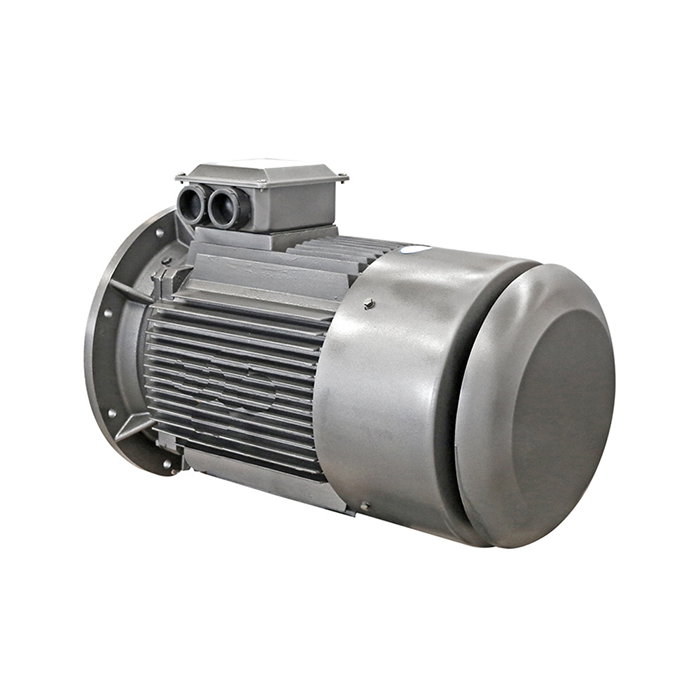

Series：YE5
Frame number: 80-450
Power range：0.75-1000kW
Protection level：IP55
Energy efficiency class: IE5
Voltage range: 380V,400V,415V, 660V，etc.
Application:can be used in various fields of the national economy, such as machine tools,water pumps,fans,compressors,and can also be used in transportation, mixing, printing, agricultural machinery, food and other occasions that do not contain flammable, explosive or corrosive gases.
Certificate: international standard IEC60034-30 "Efficiency Classification of Single-speed Three-Phase Squirrel Cage Induction Motors".
Advantage:The high quality of the electric motor guarantees high operational reliability.
Others: SKF, NSK, FAG bearings can be replaced according to customer requirements.
Understanding IE5 Motor Technology in HVAC Applications
The advancement of engine effectiveness has come to exceptional levels with IE5 innovation. These engines accomplish their prevalent execution through synchronized reluctance engine (SynRM) innovation, which combines the unwavering quality of acceptance engines with the proficiency of changeless magnet plans. Not at all like conventional approaches, this innovation kills the requirement for uncommon soil materials, making it naturally sustainable.
HVAC frameworks require reliable execution over shifting stack conditions. IE5 engines exceed expectations in these scenarios by keeping up high effectiveness levels all through their operational range. The progressed attractive plan diminishes rotor misfortunes while optimizing control figure execution. This translates to cooler operation, decreased support prerequisites, and amplified gear lifespan.
Energy-saving capabilities have become especially critical in HVAC applications where engines work continuously. The improved proficiency specifically impacts power utilization, resulting in considerable taken a toll diminishments over the motor's operational life. Building proprietors and office supervisors recognize these benefits as basic components of their maintainability initiatives.
Key Performance Characteristics and Specifications
Modern IE 5 motors deliver impressive technical specifications that surpass previous efficiency standards. Power ranges from 0.75kW to 1000kW to accommodate diverse HVAC applications, from residential air handlers to large commercial chiller systems. Voltage compatibility spans 380V, 400V, 415V, and 660V configurations, ensuring seamless integration with existing electrical infrastructure.
Protection level IP55 gives strong defense against dirt and water entrance, significant for HVAC situations where dampness and particulates are common. The engines keep up operational unwavering quality indeed in challenging conditions, commonplace in mechanical rooms and housetop establishments. Speed control capabilities run from 500 to 3000 rpm, advertising exact execution coordinating for different fan and pump applications.
Efficiency evaluations coming to 96.5% speak to critical enhancements over standard engine classes. This upgrade stems from an optimized stator winding plan and diminished grinding bearing innovation. The higher control calculation surpassing 0.9 decreases responsive control utilization, improving the overall electrical framework performance.
Low consonant twisting characteristics minimize electrical clamor and progress compatibility with variable frequency drives commonly utilized in HVAC systems. These highlights guarantee smooth operation and decrease potential obstructions with touchy building automation systems.
HVAC System Integration and Compatibility
Integrating IE 5 motors into existing HVAC systems requires understanding compatibility factors and installation considerations. Most applications allow direct replacement of conventional motors without significant mechanical modifications. Frame sizes from 80 to 450 match standard motor mounting configurations used throughout the industry.
Variable recurrence drive compatibility improves framework adaptability and vitality investment funds potential. Cutting-edge building robotization frameworks can use the motor's responsive characteristics to optimize execution based on real-time requests. This capability is particularly important in commercial buildings where inhabitance designs shift throughout the day.
Bearing innovation utilizing premium brands like SKF, NSK, and FAG guarantees solid operation beneath the demanding conditions typical of HVAC applications. These components can be customized according to particular natural prerequisites or upkeep inclinations. Amplified bearing life decreases the benefit of interference and related costs.
Installation methods follow built-up homes for engine substitution ventures. Be that as it may, the made strides effectiveness may require electrical stack calculations to guarantee ideal circuit assurance and conductor measuring. Proficient establishment guarantees the greatest execution benefits and compliance with electrical codes.
Energy Efficiency Benefits and Cost Analysis
The economic advantages of IE 5 motor technology become apparent through detailed energy consumption analysis. Reduced electrical demand directly impacts utility bills, particularly in regions with time-of-use pricing structures. Many facilities achieve payback periods between 12-24 months based on energy savings alone.
Operational cost reductions extend beyond electricity consumption. Lower operating temperatures reduce stress on motor components and connected equipment. This thermal advantage translates to extended maintenance intervals and reduced replacement part requirements. HVAC system reliability improves while unexpected downtime decreases.
Performance optimization capabilities allow building operators to maintain comfort conditions while minimizing energy waste. The motors respond effectively to varying load demands without significant efficiency penalties. This characteristic proves particularly valuable in applications with fluctuating requirements, such as air handling units serving multiple zones.
Environmental benefits align with corporate sustainability goals and regulatory requirements. Reduced carbon footprint calculations demonstrate measurable improvements in building environmental impact. Many organizations include these metrics in their environmental reporting and certification programs.
Application Scenarios in Commercial and Industrial HVAC
Commercial HVAC applications benefit significantly from IE5 motor implementation across various equipment types. Air handling units, exhaust fans, and circulation pumps operate more efficiently while maintaining precise environmental control. Large office buildings, hospitals, and educational facilities report substantial energy reductions following motor upgrades.
Industrial process control applications utilize these motors in critical systems where reliability and efficiency are paramount. Manufacturing facilities depend on consistent HVAC performance to maintain product quality and worker comfort. The robust construction and advanced control capabilities meet these demanding requirements.
Refrigeration systems in food processing, cold storage, and pharmaceutical applications demand exceptional reliability. IE 5 motors provide consistent performance while reducing heat generation that could impact refrigeration efficiency. The environmental benefits align with industry sustainability initiatives.
Data centers represent another growing application area where cooling system efficiency directly impacts operational costs. These facilities require continuous HVAC operation, making energy efficiency improvements particularly valuable. The motors' ability to maintain performance under constant load conditions suits this demanding environment perfectly.
Maintenance and Operational Advantages
Maintenance requirements for IE5 motors are typically reduced compared to conventional alternatives. The advanced design minimizes wear on critical components while operating at lower temperatures. This thermal advantage extends component life and reduces the frequency of preventive maintenance activities.
Diagnostic capabilities integrated into modern motor designs provide valuable operational insights. Building automation systems can monitor performance parameters and identify potential issues before they impact system operation. Predictive maintenance strategies become more effective with access to real-time motor data.
Bearing replacement procedures can accommodate various premium bearing brands based on specific application requirements or maintenance preferences. This flexibility allows facility managers to optimize maintenance schedules and inventory management. Standard mounting configurations simplify service procedures and reduce downtime.
Training requirements for maintenance staff are minimal due to the motors' similarity to conventional designs. Existing knowledge and procedures apply with minor modifications for the advanced features. This compatibility reduces implementation barriers and associated training costs.
Future Trends and Technology Developments
The evolution of IE5 motor technology continues advancing toward even greater efficiency and functionality. Smart motor capabilities integrate seamlessly with Internet of Things (IoT) platforms, enabling remote monitoring and predictive analytics. These developments enhance operational visibility and maintenance planning capabilities.
Digital twin technology allows virtual modeling of motor performance within complete HVAC systems. Engineers can optimize system design and operational parameters before implementation, reducing commissioning time and improving overall performance. This approach proves particularly valuable in complex commercial and industrial installations.
Artificial intelligence applications are emerging to optimize motor operation based on building occupancy patterns, weather conditions, and energy pricing. These systems learn from operational data to automatically adjust performance parameters for maximum efficiency. The potential for autonomous optimization represents a significant advancement in building management.
Regulatory trends continue pushing toward higher efficiency standards and environmental performance requirements. IE 5 motors position facilities ahead of these requirements while providing immediate operational benefits. Early adoption ensures compliance with future regulations and demonstrates environmental leadership.
Conclusion
IE 5 motors represent a significant advancement in HVAC system efficiency and performance. The combination of energy savings, operational reliability, and environmental benefits makes these motors an intelligent investment for any facility seeking to reduce costs while improving system performance. Understanding the technology, applications, and implementation considerations enables informed decision-making that delivers lasting value. As efficiency standards continue evolving and energy costs remain a concern, IE5 motor technology provides a proven solution that addresses both immediate needs and future requirements.
Choose XCMOTOR for Your IE5 Motor Solutions
Selecting the right,IE 5 motor manufacturer ensures optimal performance and long-term reliability for your HVAC applications. XCMOTOR specializes in providing comprehensive power equipment solutions designed to meet the demanding requirements of modern building systems. Our extensive experience serving the industrial automation, HVAC, and energy sectors positions us as the trusted partner for your motor upgrade projects.
Whether you need a single motor replacement or a complete system upgrade, XCMOTOR provides the expertise and products necessary for successful implementation. Our comprehensive understanding of HVAC applications guides customers toward optimal solutions that deliver immediate and long-term benefits. Contact us at xcmotors@163.com to discuss your specific requirements and learn how our IE5 motors can enhance your HVAC system performance.
