IC611 Motor Uses in Pumps, Compressors, and Process Plants
The IC611 motor represents a specialized cooling configuration designed specifically for demanding industrial environments. This fully enclosed, self-ventilated motor integrates an air-to-air heat exchanger system that maintains optimal operating temperatures without external cooling infrastructure. Built to deliver reliable power across voltage ranges from 3000V to 11000V and power outputs between 200kW and 3150kW, this motor configuration addresses the critical performance demands of pumps, compressors, and process equipment in modern manufacturing facilities.

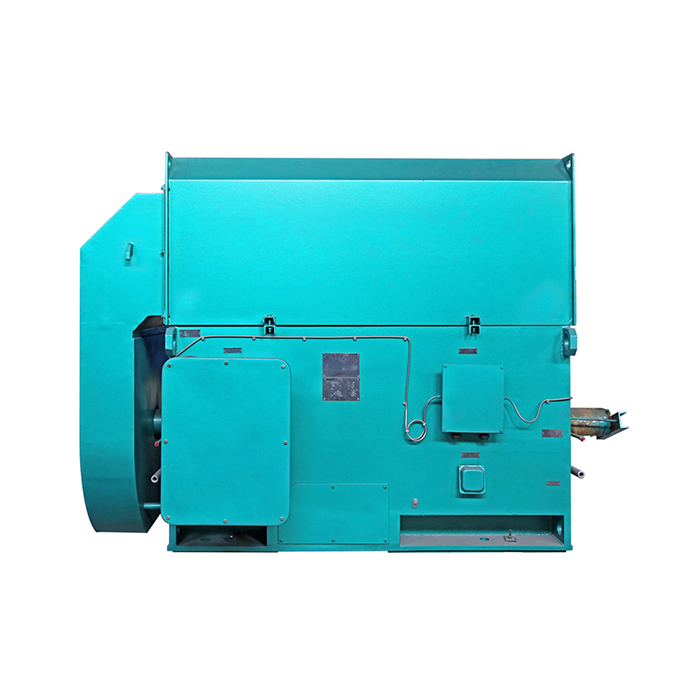

Series：YXKK
Protection level：IP54
Voltage range：3000V±5%,3300V±5%,6000V±5%,6600V±5%,10000V±5%,11000V±5%
Power range：200-3150 kW
Application：fans, water pumps, compressors, crushers, cutting machine tools, transportation machinery, etc.
Advantage：high efficiency and energy saving, low noise, small vibration, long service life, easy installation and maintenance.
Standard: This series of products complies with JB/T 12730 and JB/T 12729 standards.
Others： SKF, NSK, FAG bearings can be replaced according to customer requirements.
Understanding the IC611 Motor and Its Technical Specifications
What Makes the IC611 Cooling System Unique
The term " IC611 " is a kind of cooling technology. The motor is totally enclosed and fan-cooled. It is also self-ventilated. Unlike open ventilation systems, this enclosed design has an integrated heat exchanger that transfers thermal energy from internal air to exterior ambient air, avoiding exposure of interior components to environmental pollutants. The heat exchanger rejects the heat that builds up without allowing the ingress of dust, moisture, or corrosive particles into the motor housing. An internal fan on the motor shaft forces air through the stator and rotor assembly.
This cooling method is quite different from the IC616 and IC666 arrangements. The IC616 system has an inbuilt shaft-mounted fan for forced external ventilation via the open circuit of the heat exchanger. The IC666 design has separate forced fan systems for interior circulation and for exterior heat exchanger ventilation. The IC611 motor finds a balance between simplicity and thermal management efficiency, making it especially ideal for process facilities where maintenance resources could be limited, yet dependability is a must.
Core Technical Parameters and Specifications
Our YXKK series motors meet JB/T 12730 and JB/T 12729 requirements and achieve IE3 Premium Efficiency across a whole operating range. Available voltages include 3000V±5%, 3300V±5%, 6000V±5%, 6600V±5%, 10000V±5%, and 11000V±5% to meet the variety of power distribution systems typical of North American industrial sites. This voltage flexibility is especially helpful in retrofitting projects where old electrical systems need to be integrated with new equipment without expensive infrastructure modifications.
The power range is 200kW to 3150kW and makes the application possible from small auxiliary pumps to huge compressor systems. These motors run on conventional 50Hz or 60Hz frequencies and are perfectly suitable for US electrical lines. The IP54 protection rating offers good protection against dust infiltration and splashing water from any direction to satisfy the environmental issues often found in chemical processing, water treatment, and industrial situations.
Standard insulation is Class F construction, which supports continuous operation at extreme temperatures, and optionally, Class H insulation may be used for even greater thermal endurance. The precision cast frame structure provides superior durability and dimensional stability to withstand the mechanical strains of severe industrial usage. Precision-balanced rotors with quality SKF, NSK, or FAG bearings, adjustable to client requirements, minimise vibration and increase bearing life considerably beyond industry standards.
Electrical and Mechanical Integration Considerations
Engineers considering the use of the IC611 motor for certain applications should check that the electrical properties of the motor are compatible with the current drive system. Because of the high voltage design, the current has to be lower than for comparable low voltage motors; hence, smaller diameter conductors may be used, resulting in a considerable saving in cable costs. A 500kW motor at 380V would demand around 900A, but at 10kV would need just 30A. This significant drop in current results in lower line losses, less heat production inside switchgear, and simpler power distribution equipment.
The motor terminal box layout allows for several wire arrangements, either delta or wye, as dictated by the application. Thermal protection devices monitor winding temperatures and warn of aberrant operating circumstances before harm occurs. Contact our technical support team to discuss particular application factors to ensure the chosen motor configuration is the best fit for your pump, compressor, or process equipment needs.
Core Applications of IC611 Motor in Pumps, Compressors, and Process Plants
Pump Systems Across Industrial Sectors
Water pumps are one of the most typical uses for the IC611 motor design. These motors are used in municipal water treatment plants to power the centrifugal pumps that transport millions of gallons per day through filtration, treatment, and distribution systems. This means that the motor will always provide the same torque; thus, the flow rates will be steady even when the system pressure varies. The motor is also sealed to keep the innards from becoming wet from the humidity in pump rooms and water treatment plants.
These motors are used in corrosive service applications in chemical processing facilities where the IP54 protection rating prevents process vapours from deteriorating motor components. The rugged structure is able to endure the mechanical shock loads produced during pump start-up and the hydraulic transients typical of pipe systems. The motor’s vibration-resistant construction is especially advantageous for process facilities handling slurries, viscous fluids, or materials containing suspended particles, ensuring alignment accuracy under difficult working conditions.
IC611 motors are used in big-capacity pumps for circulation of cooling water in power production plants for cooling the condensers. In these power applications, the high-voltage design of the motor becomes a cost-effective proposition, decreasing the expenses of electrical infrastructure while providing the long-term power that the plants need.
Compressor Applications in Manufacturing
Reliable motor performance is essential for the operation of air compressor installations in manufacturing plants, guaranteeing production continuity. The IC611 motor provides the constant speed of rotation required for reciprocating, screw, and centrifugal compressors. Pneumatic tools, process control systems, and material handling equipment used in automotive, aerospace, and electronics manufacturing activities need compressed air. The long service life and lower maintenance needs of the IC611 motor are especially important since motor downtime has a direct influence on production capacity.
For refrigeration compressors, the motor’s effective thermal control is an advantage for cold storage and food processing operations. The cooling system keeps operating temperatures steady throughout long-run cycles, reducing the thermal deterioration that shortens the life of motors in continuous-duty applications. Its low-vibration qualities provide less stress on compressor components, increasing maintenance intervals and reducing total cost of ownership.
The bigger IC611 motors also have high power capabilities that are used in applications such as gas compression in energy generation and delivery. These motors are used continually by natural gas pipeline compressor stations, petrochemical plants, and industrial gas producers, typically at distant locations where servicing access is difficult and dependability is critical.
Process Plant Integration and Operational Benefits
The IC611 motor is also used in pumps and compressors, but also in process plants, crushers, cutting machine tools, conveyor systems, and material handling equipment. The motor has strong beginning torque capabilities. This is advantageous for applications with frequent starting or under fluctuating load circumstances. This beginning torque is useful for conveyor systems that convey bulk materials in mining operations, cement plants, and aggregate processing facilities to overcome static friction and smoothly accelerate laden belts.
The motor is appreciated for its fine speed control and low-vibration gearbox in machine tool applications. The better the drive system vibration, the better the results from cutting operations, grinding equipment, and metalworking machines. Solid motor structure ensures concentricity of the shaft within tight tolerances, leading to less tool wear and higher quality final parts.
The motors are used in transport equipment at ports, rail yards, and logistics facilities and include cranes, gantries, and automated storage systems. The rugged design can endure the mechanical stress loads that these applications create and yet operate reliably throughout the temperature extremes of outdoor installations.
Comparing the IC611 Motor with Alternative Motors for Industrial Use
IC611 Versus Standard Motor Configurations
Procurement managers need to look at motor possibilities and see how the IC611 motor compares to other setups. Standard open drip-proof motors have a lower initial cost but allow the environment to contaminate the interior components, which may reduce the service life in harsh industrial situations. The design of the IC611 motors (enclosed) shields the windings from dust build-up and the entrance of moisture, causing insulation deterioration. This compensates for the greater original investment with a longer operating life and lower maintenance costs.
Totally enclosed fan-cooled motors without heat exchangers are ideally suited to clean surroundings with sufficient ambient cooling capacity. However, the integrated heat exchanger in the IC611 motor enables better thermal management in situations with high ambient temperatures or when space restrictions limit airflow around the motor casings. This cooling efficiency allows the motor to be operated continuously at full load without derating, therefore maximising the motor's power output.
High-voltage motors have intrinsic benefits over low-voltage motors for use over 200kW. The decreased current demand simplifies power distribution, reduces the cost of cables, and reduces worries about voltage drop over long lengths of conductors. In a high-voltage motor, the stator winding employs smaller wire gauges because of the reduced current density. This leads to more compact designs, which in turn reduce material costs and the total dimensions of the motor.
Performance and Lifecycle Cost Analysis
Total Cost of Ownership assessments must embrace more than just the purchase price. It should also include installation costs, energy use, maintenance needs, and estimated service life. Our IC611 motor is an IE3 Premium Efficiency-rated motor, using less electricity than standard efficiency options. In many situations where the motor is in continuous operation and runs thousands of hours per year, the savings in energy often more than pay for the original cost of the motor during a normal service life of 20 years.
The ic611 motor has rugged bearing assemblies and an efficient cooling system that greatly reduces maintenance expenses. Depending on the application requirements, lubrication intervals of bearings might be up to 10,000 operating hours or more. This design keeps contaminants out that cause premature bearing wear in open motor designs. The winding insulation does not break down over the service life of the motor, preventing the premature failures seen in motors exposed to moisture, chemicals, or abrasive dust.
Operational dependability has a very great effect on production efficiency. The cost of unplanned downtime is far more than the direct cost of motor repair/replacement. Other resource drains, such as production losses, emergency service fees, and accelerated parts procurement, may also harm customer relationships. The IC611 motor is conservatively thermally designed and well constructed to minimise the possibility of failure, enabling the continuous running required by industrial processes.
Application-Specific Selection Criteria
The optimum motor arrangement is a match of the technical capabilities to the application requirements. The IC611 motor is ideal for variable-torque applications, such as centrifugal pumps and fans, because of its efficient functioning across the speed range. Positive-displacement compressors and conveyors in constant-torque applications use the motor’s ability to provide continuous torque without thermal stress.
The choice of a motor is highly dependent on the environmental circumstances. The IC611 motor has an IP54 protection, which is important for facilities with corrosive atmospheres. Indoor construction is especially beneficial for outdoor applications subject to moisture, severe temperatures, and airborne particles. This applies to clean interior areas with temperature control where less protected motor enclosures may run well. However, the dependability benefits of the IC611 arrangement frequently justify its adoption irrespective of environmental circumstances.
How to Procure and Maintain IC611 Motors for Optimal Performance
Sourcing and Procurement Strategies
How to choose a good IC611 motor supplier? By assessing the manufacturer’s qualifications, product certification, and service level. Our firm, Shaanxi Qihe Xicheng Electromechanical Equipment Co., Ltd., has full quality certifications such as CE, CCC, and ISO 9001:2015, which indicate our dedication to manufacturing excellence and customer satisfaction. These certificates assure you that the motors fulfil international requirements for performance and safety.
Facilities intending to install many units or holding extra motor inventory may benefit from bulk purchase options. They typically qualify for preferred pricing and help standardise equipment from site to site. Standardising on certain motor designs streamlines spare parts inventories, training requirements, and maintenance processes, which reduces long-term operating expenses.
Global supply chains must include logistical concerns such as shipment schedules, import paperwork, and customs processes. Using vendors with expertise in foreign transactions speeds up the procurement process and avoids expensive delays. We provide complete shipping assistance, handling all goods from our production plant to delivery at your location. Free delivery on all orders, so no more guessing on goods in procurement budgets.
Warranty Coverage and After-Sales Support
Our normal 12-month guarantee term is against manufacturing defects and material failures and covers the important early operational period when infant mortality failures usually occur. Extended warranty options are available for clients who need more coverage or are working in extremely demanding situations. The warranty includes rapid technical assistance to help troubleshoot problems and to arrange shipment of new parts as needed.
After-sales service is not only warranty. It is the long-term assistance for the operating life of the motor. Our technical staff is ready to answer questions about applications, solve performance issues, and suggest optimisation solutions. We have a complete inventory of spare parts, so we can quickly ship replacements if you need new bearings, cooling fans, or other parts. We also provide dedicated service on Saturday and Sunday, knowing that industrial activities are typically 24/7 and equipment problems don’t always occur during standard business hours.
Maintenance Best Practices and Preventive Care
Regular maintenance may extend the service life of the IC611 motor and avoid unexpected breakdowns. The most crucial periodic maintenance activity is bearing lubrication. When in operation, bearings create heat due to friction. This heat has to be controlled with sufficient lubrication to avoid damage to surfaces. Use the lubrication type, amount, and regreasing intervals recommended by the manufacturer. Too much lubrication is as bad as too little. It may lead to excessive heat build-up and premature bearing failure.
Quarterly visual checks catch emerging issues before catastrophic breakdowns. Inspect the outside of the motor for dirt buildup, chipping paint, or corrosion areas that might break the environmental protection. Examine the cooling fan blades for damage and the heat exchanger channels for obstruction. Listen for strange sounds, which may indicate bearing wear or rotor imbalance. Monitor vibration levels using portable analysers or permanently placed sensors and trend the readings to identify a steady decline.
Electrical connections should be periodically examined and maintained. Thermal cycling on motor starts and stops eventually loosens terminal connections and raises resistance, creating damaging heat. Check the tightness of terminals at least once a year (with the specified torque values) to avoid loose connections and undue strain on conductors. Thermographic scans detect hot areas in connections, bearings, or windings and show faults undetectable by the eye.
Enhancing Operational Efficiency with IC611 Motors
Performance Optimization Strategies
Good installation techniques and operating conditions are important to get the most from IC611 motors. When the motor and driven equipment are properly aligned, there are reduced bearing loads and less vibration, which reduces energy loss and makes components wear out faster. With precise laser alignment instruments, alignment tolerances may be to the thousandths of an inch. This greatly increases mechanical efficiency over the old straightedge approach.
The IC611 motor combined with a variable frequency drive saves energy in variable-torque applications. Centrifugal pumps and fans are cubic in speed vs power consumption; thus, small changes in speed may lead to disproportionate reductions in energy consumption. A pump working at 80% of full speed will use around 51% of the power it would use at full speed, and will provide 80% of the flow it would provide at full speed. VFD control is of great utility to applications with varied demand profiles, but adequate harmonic filtering and drive ratings are necessary to avoid motor overheating.
Power quality problems such as voltage imbalance, harmonic distortion, and supply frequency changes affect motor performance and life. If the voltage is off by as little as 2%, the current will be off by over 10%. This will cause the windings to heat up significantly and shorten the life of the motor. Protecting motor investments and optimising efficiency is achieved via monitoring incoming power quality and addressing shortcomings using voltage regulators, harmonic filters, or specialist transformers.
Addressing Common Operational Challenges
Cavitation in pumps causes unpredictable motor loads and mechanical stress. The quick disappearance of vapour bubbles creates strong localised stresses that propagate through pump parts into motor bearings and shaft. Correct pump suction settings, not operating away from optimal efficiency points, and checking net positive suction head prevent cavitation and protect both pump and motor.
Compressor applications are often loaded/unloaded cyclically. This is a thermal and mechanical strain on motors. Each start produces inrush currents of five to seven times the typical operating current, resulting in electromagnetic forces and thermal transients in windings. The manufacturer’s recommended limit on start frequency minimises deterioration of the insulation and breakage of the rotor bars. Soft starters and variable frequency drives lessen beginning strains, especially useful for applications with repeated starts.
Airborne pollutants in process plant settings require cleanliness of heat exchangers. Deposits of dust on heat exchanger surfaces insulate the fins and inhibit efficient thermal transmission, causing the motor to run at higher temperatures. Regular cleaning by compressed air or water washing recovers the heat rejection capability and prevents temperature-related problems.
Future-Proofing Industrial Operations
New motor technologies such as enhanced magnetic materials, advanced winding methods, and improved aerodynamic designs are constantly improving efficiency and performance. The ic611 motor now offers IE3 Premium Efficiency, but much more is to come with additional innovations. Awareness of technology changes allows for planning of future kit upgrades, balancing the cost of investment against potential operational savings.
Sustainability efforts in industry are placing more emphasis on energy efficiency and environmental responsibility. High-efficiency motors have a major role in both decreasing carbon footprints and cutting operating expenses. This combination of energy savings, longer service life, and fewer maintenance needs helps to meet business sustainability objectives, making the ic611 motor an ecologically responsible option.
More and more motor-driven equipment is being integrated with automation and condition monitoring technology. Vibration sensors, temperature monitors and power analysers supply data to predictive maintenance systems that flag emerging issues days or weeks prior to breakdowns. Operating efficiency is improved, and equipment life is extended when maintenance is done during planned downtime rather than in reaction to unanticipated failure.
Conclusion
The IC611 motor plays vital functions in industrial operations, giving dependable power to pumps, compressors, and process equipment in challenging environments. Its fully enclosed cooling system with an integrated heat exchanger offers strong environmental protection and maintains optimum operating temperatures. The motors are available in voltage ranges from 3kV to 11kV with power outputs up to 3150 kW, making them suitable for a wide variety of applications in manufacturing, energy generation, water treatment, and transportation. Not only do they have a rugged structure and excellent bearings that provide a longer service life and less maintenance, but their IE3 Premium Efficiency means a dramatic reduction in energy consumption compared to regular motors, thereby reducing the total cost of ownership dramatically.
FAQ
1. What are the primary applications where IC611 motors excel?
The ic611 motor performs exceptionally in water pumps for municipal treatment facilities, centrifugal pumps in chemical processing, air compressors supporting manufacturing operations, refrigeration compressors in food processing, gas compressors in energy distribution, crushers in mining, cutting machine tools, conveyors transporting bulk materials, and material handling equipment in logistics facilities.
2. How can I troubleshoot efficiency issues with my motor?
Begin by verifying proper alignment between motor and driven equipment using precision measurement tools. Check incoming power quality, including voltage balance across phases, which should remain within 1%. Inspect heat exchanger cleanliness and cooling airflow passages. Monitor bearing temperatures and vibration levels to identify mechanical problems. Verify that motor loading remains within nameplate ratings and that voltage supplied matches motor specifications.
3. What factors should I consider when comparing IC611 motors to alternatives?
Evaluate total cost of ownership, including purchase price, installation expenses, energy consumption based on efficiency ratings, expected maintenance costs, and projected service life. Consider environmental protection requirements matching IP ratings to application conditions. Assess voltage requirements and available electrical infrastructure. Review manufacturer certifications and warranty coverage. Analyze supplier after-sales support capabilities and spare parts availability.
