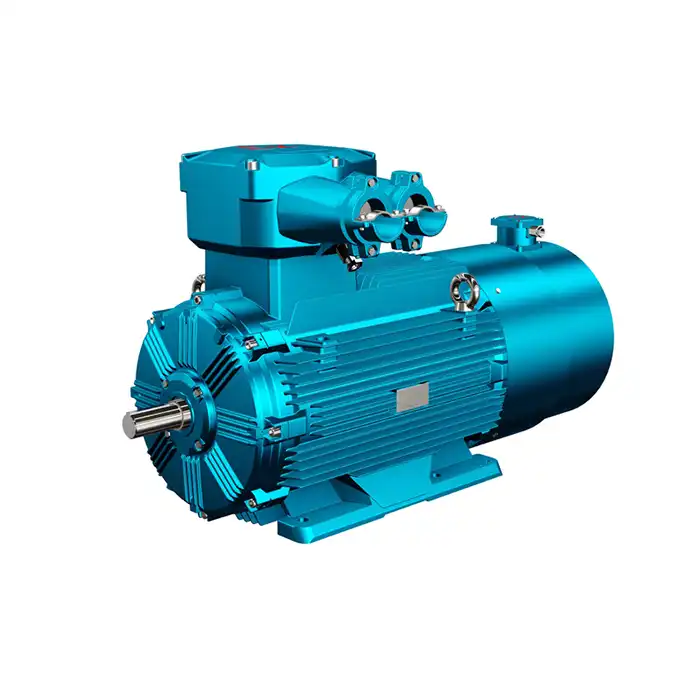

These motors are engineered to withstand the harsh conditions prevalent in oil and gas facilities, offering reliable performance while minimizing the risk of ignition in hazardous environments. Let's delve into the essential safety features that make these motors indispensable in the oil and gas sector.
ATEX and IECEx Certifications Explained
When it comes to explosion proof brake motors, certifications are crucial. Two of the most recognized standards in this field are ATEX and IECEx. These certifications ensure that the motors meet stringent safety requirements for use in potentially explosive atmospheres.
Understanding ATEX Certification
ATEX, derived from the French "ATmosphères EXplosibles," is a European Union directive that sets standards for equipment and protective systems intended for use in potentially explosive atmospheres. For explosion proof brake motors, ATEX certification provides assurance that the motor has been designed and tested to operate safely in specific hazardous environments.
The ATEX certification system uses a series of codes to indicate the level of protection and the types of atmospheres in which the equipment can be used. For instance, a motor certified as "Ex d IIB T4 Gb" indicates that it's suitable for use in Zone 1 areas where explosive gas atmospheres are likely to occur in normal operation.
IECEx Certification: A Global Standard
While ATEX is primarily recognized within the European Union, IECEx (International Electrotechnical Commission System for Certification to Standards Relating to Equipment for Use in Explosive Atmospheres) is a global certification system. IECEx aims to harmonize standards worldwide, facilitating international trade in explosion-protected equipment.
For explosion proof brake motors, IECEx certification involves rigorous testing and quality assurance processes. This certification ensures that the motor meets international safety standards and can be used with confidence in hazardous locations across different countries.
Thermal Protection Systems in Offshore Platforms
Offshore oil and gas platforms present unique challenges for electrical equipment. The combination of saltwater, extreme temperatures, and potentially explosive atmospheres necessitates robust thermal protection systems for explosion proof brake motors.
Advanced Temperature Monitoring
Modern explosion proof brake motors used in offshore platforms are equipped with sophisticated temperature monitoring systems. These systems continuously track the motor's internal temperature, ensuring it remains within safe operating limits.
Typically, these motors utilize embedded temperature sensors, such as Positive Temperature Coefficient (PTC) thermistors or Resistance Temperature Detectors (RTDs). These sensors provide real-time temperature data, allowing for immediate action if temperatures approach critical levels.
Automatic Shutdown Mechanisms
To further enhance safety, many explosion proof brake motors incorporate automatic shutdown mechanisms. These systems are designed to cut power to the motor if internal temperatures exceed predetermined thresholds.
This feature is particularly crucial in offshore environments where rapid temperature fluctuations can occur due to changing weather conditions or operational demands. By automatically shutting down the motor before it reaches dangerous temperatures, these mechanisms prevent potential ignition sources in hazardous areas.
Corrosion-Resistant Enclosures
The harsh marine environment of offshore platforms poses a significant threat to electrical equipment. To combat this, explosion proof brake motors are often housed in specially designed corrosion-resistant enclosures.
These enclosures are typically constructed from materials such as stainless steel or aluminum with special coatings. They protect the motor's internal components from saltwater spray and corrosive gases, ensuring long-term reliability and maintaining the integrity of the explosion-proof features.
Maintenance Tips for Harsh Drilling Environments
Maintaining explosion proof brake motors in the challenging conditions of drilling environments requires diligence and expertise. Proper maintenance not only ensures operational efficiency but also preserves the critical safety features of these motors.
Regular Inspection Protocols
Implementing a rigorous inspection schedule is crucial for the longevity and safety of explosion proof brake motors in drilling environments. These inspections should include:
- Visual checks for signs of physical damage or corrosion
- Verification of all seals and gaskets to ensure the explosion-proof enclosure remains intact
- Inspection of cable entries and glands for proper sealing
- Checking of bearings for signs of wear or inadequate lubrication
It's recommended to conduct these inspections at regular intervals, with the frequency depending on the specific operating conditions and the motor's duty cycle.
Cleaning and Lubrication Practices
In drilling environments, explosion proof brake motors are often exposed to dust, dirt, and potentially corrosive substances. Regular cleaning is essential to prevent the accumulation of these materials, which could compromise the motor's performance and safety features.
When cleaning, it's crucial to use methods and materials that are compatible with the motor's explosion-proof design. This typically involves using non-abrasive cleaners and avoiding high-pressure water or air, which could damage seals or force contaminants into the motor.
Proper lubrication is another key aspect of maintenance. Use only lubricants that are specified for use with explosion proof equipment, as standard lubricants may not have the necessary properties to maintain safety in potentially explosive atmospheres.
Documentation and Record-Keeping
Maintaining detailed records of all maintenance activities is not just good practice; it's often a regulatory requirement for equipment used in hazardous areas. For each explosion proof brake motor, maintain a log that includes:
- Dates and details of all inspections
- Any maintenance or repair work carried out
- Results of any tests performed
- Details of any parts replaced
These records serve as a valuable resource for tracking the motor's history and can be crucial for compliance audits and troubleshooting.
Training and Competency
Ensuring that maintenance personnel are properly trained and competent to work on explosion proof equipment is paramount. This training should cover:
- Understanding of explosion protection principles
- Familiarity with relevant standards and certifications
- Proper use of tools and test equipment in hazardous areas
- Knowledge of the specific maintenance requirements for explosion proof brake motors
Regular refresher training helps keep staff up-to-date with the latest safety practices and any changes in regulations or technology.
Spare Parts Management
In harsh drilling environments, having the right spare parts on hand can significantly reduce downtime and ensure that repairs can be carried out promptly without compromising safety. When managing spare parts for explosion proof brake motors, consider:
- Stocking critical components that are specific to the explosion-proof design
- Ensuring all spare parts are certified for use in the appropriate hazardous areas
- Proper storage of spare parts to maintain their condition and certification status
- Regular auditing of spare parts inventory to ensure availability when needed
By maintaining a well-managed inventory of appropriate spare parts, you can ensure that your explosion proof brake motors remain operational and safe, even in the challenging conditions of drilling environments.
Conclusion
Explosion proof brake motors are essential components in the oil and gas industry, providing the necessary power and safety for operations in hazardous environments. From rigorous certifications to advanced thermal protection systems and meticulous maintenance practices, these motors incorporate multiple layers of safety to ensure reliable performance in the most challenging conditions.
As technology continues to advance, we can expect further innovations in explosion proof motor design, potentially leading to even safer and more efficient operations in the oil and gas sector. However, the fundamental principles of explosion protection and the importance of proper maintenance will remain constant, underscoring the need for ongoing vigilance and expertise in this critical field.
