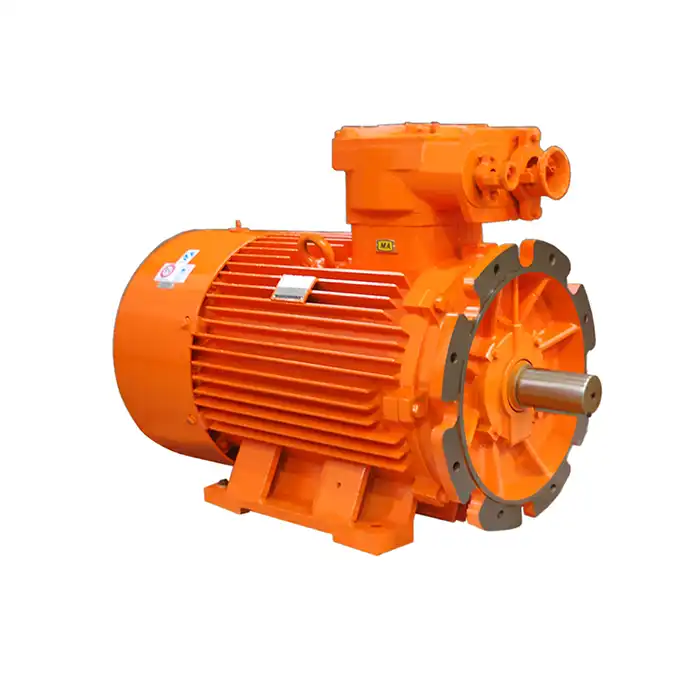

flame proof motor enclosure
Voltage range：380V，660V，415V，380/660V，660/1140V
Power range：0.75-315 kW
Application：used in underground mining working surfaces in coal mines where there is a risk of methane mixture and coal dust explosion.
Advantage: high efficiency, large torque, strong overload capacity, low noise, small vibration, easy installation and maintenance.
Others： SKF, NSK, FAG bearings can be replaced according to customer requirements.
Explosion-proof mark: Ex d I Mb.
- Product Description
Flame Proof Motor Enclosure for Coal Mine Applications | YBK3 High-Efficiency Explosion-Proof Solutions
Industrial operations in underground coal mining environments demand robust power solutions that withstand extreme conditions while ensuring personnel safety. Flame proof motor enclosure technology represents critical infrastructure for explosive atmospheres containing methane and coal dust. Shaanxi Qihe Xicheng Electromechanical Equipment Co., Ltd. delivers YBK3 series enclosures engineered with thickened high-strength cast iron construction, reinforced flameproof joint surfaces, and enhanced anti-corrosion coatings. These enclosures are available for power ranges from 0.75-315 kW in various voltage combinations (380V/660V/1140V), are IE3 efficiency rated and yet retain the Ex d I Mb explosion-proof certification for continuous subterranean operation.
Flame Proof Motor Enclosure Manufacturer and Supplier
We have strategic collaborations with more than 30 worldwide motor manufacturers like ABB, Siemens, Wolong and XEMC, with more than 20 years in the business. We combine established R&D teams with SAP factory management systems to manufacture enclosures fulfilling international requirements in our manufacturing environment. All products have CCC, CE, ISO9001:2000, CRCC and UL certificates to be in accordance with all mining laws all over the world.
Pain Points vs. Solutions
Mining Challenges | Our Enclosure Solutions |
Methane ignition risk | Ex d I Mb certified flameproof construction prevents internal sparks from escaping |
Equipment corrosion from mine water | Multi-layer anti-rust treatment and reinforced sealing systems |
Impact damage during underground transport | Thickened cast iron housing with enhanced mechanical strength |
Coal dust infiltration | IP55 protection grade with specialized cable entry devices |
Energy waste in continuous operation | IE3 high-efficiency design reduces power consumption by 15% vs. legacy models |
Technical Advantages
The YBK3 flame proof motor enclosure incorporates four critical engineering innovations:
Improved structural strength: The cast iron thickness is 30% more than normal industrial enclosures offering improved impact resistance for mining activities.
Advanced sealing technology Special cable glands prevent the ingress of gas, moisture and particulates, while ensuring flameproof integrity at joint surfaces.
Thermal Management: Operating temperature maintained throughout S1 continuous duty cycles using F-class insulation and IC411 self-fan cooling.
Multiple Voltage Compatibility: One enclosure design for 380V, 660V and 1140V combinations, simplifying inventory management for mine operators.
Process of Production
Our manufacturing technique is a six step quality controlled process:
Material Selection: The Grade-A quality cast iron, procured from approved vendors, is subjected to spectrographic analysis
Precision Machining: CNC controlled flameproof joint surfaces to 0.02mm tolerance
Anti-corrosion treatment: three coat technique; zinc rich primer and epoxy top coat
Assembly Integration: Bearings (SKF/NSK/FAG choices available) fitted in ISO Class 7 cleanroom environment
Explosion-Proof Test Each enclosure is tested for flame propagation in accordance with GB3836 regulations.
Final Certification: Third party inspection for Ex d I Mb compliance before shipping
Industry Applications
Underground coal mining operations rely on these enclosures for:
· Conveyor belt drive systems in methane-rich zones
· Ventilation fan motors operating in explosive atmospheres
· Coal cutting machinery requiring continuous high-torque power
· Pumping stations handling mine water drainage
· Underground transportation equipment in deep shaft environments
The frame size range (H80-H355) accommodates diverse mining equipment specifications across 2/4/6/8 pole configurations.
Customization Capabilities
Understanding that mining conditions vary globally, we provide tailored modifications:
· Dimension Adjustments: Mounting foot positions and shaft extensions modified per site requirements
· Voltage Configuration: Custom winding designs for non-standard power supply systems
· Bearing Upgrades: Premium bearing selections for high-vibration environments
· Cable Entry Options: Alternative gland positions matching existing mine infrastructure
· Coating Specifications: Specialized corrosion protection for high-salinity groundwater exposure
Reliability Testing & Certifications
Quality assurance extends beyond manufacturing:
· Type Testing: Overload capacity verification at 150% rated torque for 2 hours
· Environmental Simulation: Salt spray testing exceeding 1000 hours per IEC 60068
· Vibration Analysis: Resonance-free operation confirmed across full speed range
· Temperature Rise Tests: Thermal performance validated under continuous load conditions
All products carry internationally recognized certifications including CCC, CE, ISO9001:2000, CRCC, CQC, UL, and GOST approvals.
Why Choose XCMOTOR
Your partnership with us guarantees:
authentic Components We build all our enclosures using authentic components sourced from reliable international manufacturers.
Fast Delivery: Efficient logistics for on time project delivery with free shipping
Flexible Returns: 30 days open buying policy safeguards your investment
Ongoing Support: Technical help accessible seven days a week
Competitive Pricing: No intermediate fees, direct contact with manufacturers
Multimodal Logistics Tailored shipping solutions by sea, land or air freight
Our supply chain is connected with SAP and gives us real time information on manufacturing. We have specialised technical teams to answer pre-sales queries and after sales concerns quickly.
FAQ
Q：What is YBK3 motor and what explosion-proof mark does it carry?
A：YBK3 represents flameproof three-phase aSynchronous Motors engineered specifically for underground coal mines. The standard explosion-proof mark Ex d I Mb applies to environments containing methane and coal dust.
Q：What energy efficiency grade does YBK3 coal mine explosion-proof motor reach?
A：The series achieves IE3 high-efficiency standards, conforming to national mining motor requirements. Compared to legacy YBK2 models, it delivers lower losses and reduced temperature rise during extended underground operation.
Q：What are the main technical specifications of YBK3 series?
A：Frame sizes span H80-H355, power ranges from 0.18-315kW, with 2/4/6/8 pole options. Standard mine voltages include 380V/660V/1140V at 50Hz, featuring IP55 protection, F-class insulation, IC411 cooling, and S1 continuous working systems.
Q：What special structural reinforcement does YBK3 adopt for harsh underground conditions?
A：Four key features: thickened high-strength cast iron housing for impact resistance, reinforced flameproof joints with anti-rust treatment for humid environments, mine-specific sealed cable entries preventing contamination, and enhanced coatings resisting moisture and mine water erosion.
Q：What differentiates YBK3 mine motors from YBX3 factory explosion-proof motors?
A：Key distinctions include explosion standards (YBK3 Ex d I Mb for coal mines vs. YBX3 Ex d IIB T4 for factories), voltage priorities (YBK3 emphasizes 1140V mine specifications), enhanced mechanical strength for underground handling, and superior waterproofing against mine water exposure.
Contact Us
Ready to enhance your mining operation's safety and efficiency? Reach out to our technical team at XCMOTORs@163.com for customized flame proof motor enclosure solutions today.
