Explosion Proof AC Motor: How It Works in Hazardous Areas
In seconds, a single ignition event may lead to a catastrophic occurrence when equipment is operating in a Zone 1 or Zone 2 classified region. To reduce this danger , an explosion proof ac motor has a sealed flameproof housing that confines any internal arc or heat before it can propagate to the surrounding environment . Unlike a standard induction motor, every joint, shaft opening, and terminal box on an explosion proof AC motor meets dimensional tolerances defined by IECEx and ATEX standards. For procurement engineers evaluating certified drive solutions, understanding how these motors function is the first step toward compliant, cost-effective sourcing.

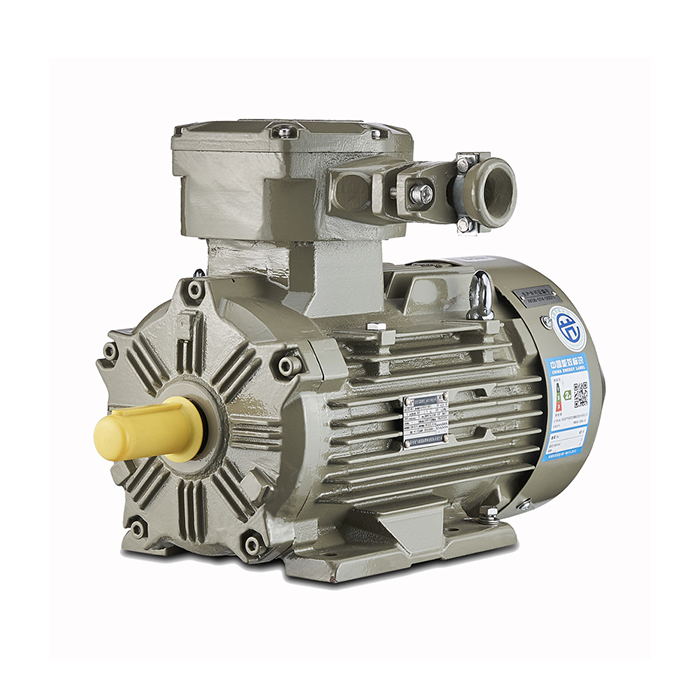

Series：YBX3
Voltage range：380V，660V，415V，380/660V，660/1140V
Power range：0.55-630 kW
Application：places where explosive gas mixtures exist in petroleum, chemical, mining, metallurgy, electric power, machinery and other industries.
Advantage: fully enclosed, self-fan cooling, squirrel cage type, high efficiency.
Explosion-proof mark: Ex d I Mb, Ex d IIB T4 Gb, Ex d IIC T4 Gb
Others： SKF, NSK, FAG bearings can be replaced according to customer requirements.
What Is an Explosion Proof AC Motor and How Does It Work
The Flameproof Enclosure Principle
The defining characteristic of an explosion-proof AC motor is its robust cast iron enclosure, not a sealed airtight box, but a structure engineered so that any internal flame is cooled and quenched before it exits through precision-machined flame paths. These spacing dimensions are governed by the IEC 60079-1 standard. The pressure within the motor housing increases as the gas burns . Hot gases move via the restricted flame path , give up thermal energy and escape below the ignition temperature of the surrounding environment . It is this containment technique that makes a certified flameproof motor different from a general purpose unit.
Squirrel Cage Design and Self-Fan Cooling
XCMOTOR's YBX3 series uses a fully enclosed, self-fan cooled, squirrel cage configuration. Copper windings provide good current flow . The exterior fan on the shaft allows air movement across the ribbed cast iron frame , dispersing heat without exposing interior components to the dangerous environment . The squirrel cage rotor removes brushes and commutators, which are the most prominent culprits of arcing in previous motor designs. The insulation class F or H is suitable for continuous operation in an ambient temperature range of -20°C to +40°C.
Certification Marks That Matter
A certified explosion-proof AC motor supplied to the United States market, oil fields in the Middle East or refineries in South-east Asia must be accompanied by verified certification documentation. The YBX3 series has explosion-proof markings Ex d I Mb, Ex d IIB T4 Gb and Ex d IIC T4 Gb, suitable for coal mine, general industrial explosive gas groups and the most stringent hydrogen-rich conditions . Valid ATEX and IECEx certifications are not marketing promises, they are regulatory requirements to operate in classified zones. CCC accreditation is for the local Chinese market.
Key Benefits and Applications in Hazardous Environments
Certified Safety, Power Range Flexibility, and Harsh Environment Protection
Safety engineers and plant managers often query why an explosion-proof AC motor is more expensive than a similar conventional unit. The answer is in what it keeps out. According to the U. S. Chemical Safety and Hazard Investigation Board, electrical ignition sources account for a large percentage of process industry fires and explosions. A properly rated motor removes that ignition route altogether.
Here are the core operational advantages of the YBX3 explosion-proof AC motor:
- Full power range coverage: Output is from 0.55 kW to 630 kW, covering everything from auxiliary pump drives to large compressor applications in one authorised product range, and simplifying the management of different supplier credentials.
- Multi-voltage flexibility: Available in 380V, 415V, 660V, 380/660V, and 660/1140V configurations, this explosion proof ac motor adapts to grid standards across North America, Europe, the Middle East, and Asia-Pacific without requiring custom transformer arrangements.
- IP55, IP56, and IP65 protection: The motor also has high ingress protection ratings for dust and water jets, which is important in outdoor refinery conditions and deep mining areas where washdown is the norm.
- Premium bearing options: Standard bearings may be substituted with SKF, NSK or FAG bearings on request, allowing procurement teams the traceability of the component necessary for third party audits and OEM documentation packages.
Equipment directors at petrochemical complexes, pharmaceutical facilities, grain elevators and underground coal operations confront compliance and reliability demands that are directly addressed by these benefits. A motor failure in a Zone 1 location results not just in downtime but also in a regulatory shutdown. Specifying a certified explosion-proof AC motor may greatly lessen that liability risk.
Comparing Explosion Proof AC Motors with Other Motor Technologies
Efficiency, Simplicity, and Continuous-Duty Suitability
Procurement specialists may also consider pneumatic air motors or explosion-proof DC motors in addition to an explosion-proof AC motor. Pneumatic motors need a compressed air infrastructure and have large energy losses in pressure drops . They are suitable for intermittent low power applications but become impractical beyond a few kilowatts . DC explosion-proof motors are more difficult to maintain brushes, and are not prevalent in industrial continuous drives.
The explosion-proof AC motor is the realistic compromise. Three-phase induction technology is naturally simple, the squirrel cage rotor has no worn contacts and IE2, IE3 or IE4 efficiency ratings ensure competitive operating costs. A certified flameproof AC motor is the operationally simplest solution for continuous loads from 0.55 kW to 630 kW in petroleum, chemical, metallurgical or power generating settings.
Procurement Guide: Sourcing a Certified Explosion Proof AC Motor
Hazardous Area Classification, Certification Traceability, and Lead Time
Matching the correct explosion-proof AC motor to your application requires more than selecting a power rating. Before issuing a purchase order, a safety engineer should confirm the gas group and temperature class present in the classified zone, then verify that the motor's explosion-proof mark covers that group and class. An Ex d IIC T4 Gb rating covers gas groups IIA, IIB, and IIC at a maximum surface temperature of 135°C, providing the broadest hazardous area coverage available.
When engaging a supplier for explosion proof ac motor wholesale price, request original certification documents, not photocopies. You may check the validity of legitimate certifications in the IECEx certificate database or the ATEX notified body register. XCMOTOR offers a full set of documents including test reports, declaration of compliance, installation guides, and supports third-party audits and design institute approvals. OEM labeling and document localization are available for import distributors operating in European or North American markets.
Lead times for standard power ratings run 30–45 days. Non-standard voltages, frequencies, or frame modifications extend the schedule; communicating these requirements early shortens the cycle. Bulk purchasing agreements and dedicated weekend support from XCMOTOR help large project teams coordinate delivery milestones without disruption.
Maintenance Tips to Maximize Motor Service Life
Flame Path Integrity, Fastener Torque, and Certified Repairs
An explosion-proof AC motor installed in a Zone 1 or Zone 2 environment requires inspections that go beyond what a standard motor demands. The flameproof enclosure is only effective when the flame path dimensions remain within the tolerances specified in IEC 60079-1. Physical damage, corrosion, or unauthorized modification can compromise that gap.
Practical guidance for maintenance teams:
- Inspect the enclosure surface and all joint faces every six months for mechanical damage, corrosion, or foreign material lodged in the flame path.
- Check fastener torque on terminal box covers and end shield bolts; loose fittings widen the flame path and invalidate the certification.
- Monitor bearing temperature and vibration signature during operation; early anomalies in these parameters usually precede bearing failure by weeks, allowing planned replacement rather than emergency shutdown.
- Only use certified repair facilities when rewinding or replacing internal components; unauthorized modifications void the explosion-proof certification and transfer liability to the plant operator.
Addressing these points consistently extends motor service life and keeps the installation legally compliant between periodic statutory inspections.
Conclusion
The explosion proof ac motor wholesale price is the proven answer for such environment. Operating rotating equipment within designated hazardous areas is a must in contemporary petroleum, chemical and mining industries. XCMOTOR's YBX3 series ranges from 0.55 kW to 630 kW, with voltage options from 380V to 1140V, and is Ex d IIC T4 Gb certified, providing the most extensive gas group coverage. An explosion-proof AC motor with cast iron construction, premium bearing choices and comprehensive certification paperwork provides procurement teams and safety engineers with a defensible, audit-ready specification for Zone 1 and Zone 2 installations.
FAQ
1. Can an explosion proof AC motor be used in both Zone 1 and Zone 2 areas?
Yes. A motor certified to Ex d IIC T4 Gb, such as the YBX3 series, is rated for both Zone 1 and Zone 2 classified areas. Zone 1 environments contain flammable atmospheres intermittently during normal operation; Zone 2 areas have hazardous atmospheres only under abnormal conditions. The Ex d Gb designation confirms suitability for both.
2. Which certifications should I require from a supplier?
At minimum, require ATEX and IECEx certificates for international projects. For North American installations, UL or CSA approval may apply. Verify certificate numbers against the relevant notified body registry before finalizing any purchase order.
3. How much more does a certified flameproof motor cost versus a standard unit?
A certified explosion-proof AC motor typically carries a 30–60% price premium over a comparable standard motor. That differential is offset by avoided regulatory fines, insurance costs, and the liability exposure that comes with an uncertified installation in a hazardous area.
Request a Quote from XCMOTOR — Certified Explosion Proof AC Motor Supplier
XCMOTOR, a flameproof ac motor supplier, supplies a complete range of certified explosion-proof AC motors from 0.55 kW to 630 kW, backed by ATEX and IECEx documentation, OEM labeling, and dedicated weekend technical support. Whether you are specifying a single pump drive or sourcing for a full plant rollout, our team can match the right certified motor to your zone classification and voltage requirement. Contact us at xcmotors@163.com or visit motorxc.com to request a quote today.
References
1. International Electrotechnical Commission. IEC 60079-1: Explosive Atmospheres — Equipment Protection by Flameproof Enclosures "d." IEC, 2014.
2. European Parliament. Directive 2014/34/EU on Equipment and Protective Systems Intended for Use in Potentially Explosive Atmospheres (ATEX). Official Journal of the European Union, 2014.
3. IECEx Secretariat. IECEx System for Certification to Standards Relating to Equipment for Use in Explosive Atmospheres. IEC, 2022.
4. U.S. Chemical Safety and Hazard Investigation Board. Investigation Report: Electrical Ignition Sources in Process Industry Incidents. CSB, 2019.
5. National Fire Protection Association. NFPA 70: National Electrical Code, Article 500 — Hazardous (Classified) Locations. NFPA, 2023.
6. International Electrotechnical Commission. IEC 60034-30-1: Rotating Electrical Machines — Efficiency Classes of Line Operated AC Motors (IE Code). IEC, 2014.
