Common Uses of YQ JS Series Motor in Heavy Industry Systems

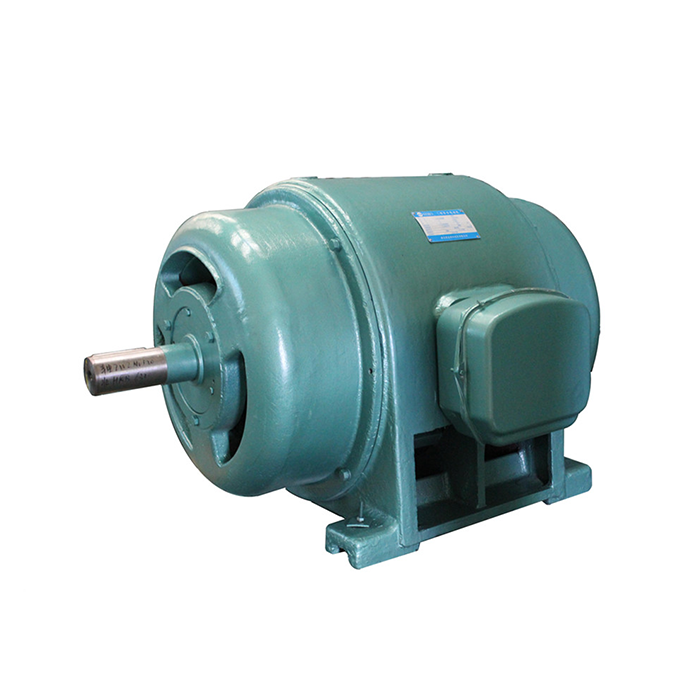

The YQ JS series motor stands out as a reliable source of power in big industrial settings where consistent performance is key. These three-phase asynchronous electric motors can handle between 45kW and 800kW of power at 380V energy. This makes them perfect for use in crushers, compressors, water pumps, and conveyor systems. Their IP23 level of security and ability to start with full voltage are useful in coal mines, machinery shops, power plants, and other industrial settings that need to run continuously and reliably.
Series：YQ
Voltage range：380V±5%
Power range：45-800kW
Protection level：IP23
Application：YQ(JS) series medium-sized motors can drive a variety of different machinery, such as fans, compressors, water pumps, crushers, ball mills, cutting machine tools, transportation machinery and other equipment, and can be used in coal mines, machinery industries, power plants and various industrial and mining enterprises. Used as prime mover.
Advantage: Full voltage direct start.
Others： SKF, NSK, FAG bearings can be replaced according to customer requirements.
Understanding the YQ JS Series Motor: Specifications and Features
Technical Specifications That Meet Industrial Demands
The YQ JS series motor was carefully engineered to provide consistent power across a range of speed settings, meeting the wide range of needs of current industrial uses. These motors work at 380V±5% voltage and 50Hz frequency. They have Class B insulation to protect against heat and an IP23 security class that makes them ideal for use in indoor industrial settings. Depending on the size of the motor, the power factor runs from 0.80 to 0.89, which helps use energy efficiently in demanding operating situations.
Starting torque can reach 200 to 250% of rated torque, and highest torque can reach 250 to 300% of rated values. This torque profile makes sure that the machine starts up reliably even when it's under a lot of stress, which is very important for uses that use crushers, ball mills, and cutting tools. The big power range, from 45kW to 800kW, can handle a wide range of tools, from small secondary systems to large main drive systems.
Robust Construction and Material Quality
We use a tough cast iron frame to build each motor. This frame gives the motor great structural stability and good heat reduction during long operation. The stator and rotor are carefully designed to work as efficiently as possible while causing as little shaking as possible. This ensures smooth operation that increases the life of the parts. According to customer requirements, high-quality bearings from reputable brands such as SKF, NSK, or FAG can be placed. This improves performance and lowers wear caused by friction.
This carefully thought-out building method directly addresses the tough facts of industrial settings where dust, changes in temperature, and mechanical stress all make it hard for equipment to work reliably. Long-term durability is more important than short-term cost saves in this design. This design delivers real value through shorter repair times and lower total cost of ownership.
Key Operational Advantages
There are a few working differences between these motors that make them useful. Full voltage direct start means that complicated soft-start equipment is not needed in many setups. This makes system design easier and lowers the original cost of capital. The motors' performance stays the same across their entire working range. This helps keep processes consistent in industrial and material handling tasks.
During the planning phase, energy efficiency is given a lot of thought, and the stator and rotor shapes are tweaked to reduce electrical losses as much as possible. Specific efficiency rates depend on the size of the motor and the load, but the engineering goal is still to save energy in a way that is useful and builds up over thousands of hours of use. As a result of efficient design, working temperatures are lowered, which makes insulation and bearings last longer.
Common Applications of YQ JS Series Motor in Heavy Industry
Mining and Material Processing Operations
In mining activities, motors need to be able to handle rough conditions and keep powering important tools. The YQ JS series motor is the main moving part in crushers that break down rock, ball mills that grind materials to the right consistency, and conveyor systems that move materials between processing plants. The motor is built to last and can handle the vibration and shock loads that come with these uses. It also has an IP23 security level that keeps dust out of underground and surface mining settings.
Material processing plants gain from the motor's steady torque delivery, which keeps the quality of the result high by keeping processing speeds steady. These motors can handle different loads without losing performance, whether they are running mixers in the cement industry or grinding equipment in the material processing industry. Their ability to work nonstop fits with the fact that many mine and processing plants are open 24 hours a day.
Manufacturing and Production Environments
Automotive factories need motors that work reliably to keep up with production plans and quality standards. The YQ JS series motor powers cutting tools, machine tools, and automatic handling systems that shape parts and put together finished goods. The motor runs smoothly, so it doesn't pass vibrations to precision machining equipment. This helps meet the tight tolerance requirements of making aeroplane parts and electronics.
Food processing businesses face special problems, like having to wash their hands a lot and deal with changes in temperature. The motor's IP23 level of protection is good for general industrial settings, and its strong build means it can handle the mechanical needs of pumps, mixers, and conveyor systems that move raw materials and finished goods along production lines. The dependability of these motors has a direct effect on production downtime, which in turn affects daily output amounts and delivery promises to customers.
HVAC and Refrigeration Systems
When commercial HVAC systems are installed in big buildings, they need motors that give power while also being efficient. Fans and blowers move air around in office buildings, shopping malls, and industrial complexes with the help of the YQ JS series motor. The motor's power range can handle both small air handlers and big central systems that serve many zones.
To keep the temperature under control, refrigeration compressors in cold storage sites and food delivery centers need motors that work well. The starting power of the motor works well in compressor applications where system pressure differentials need to be overcome during startup. Continuous operation supports the 24 hours a day, seven days a week needs of refrigerator systems that keep fragile goods safe.
Energy and Utility Applications
Facilities that make electricity use these motors for extra things like cooling water pumps, fuel handling systems, and air fans. The dependability of the motor affects the plant's total availability, since problems with auxiliary systems can cause expensive shutdowns of the production unit. The YQ JS series motor powers pumps in water treatment plants that move water through steps of filtration, treatment, and transportation systems that serve people in cities and businesses.
These motors are being used more and more in renewable energy systems to help them work. As part of pitch control systems and cooling tools for power electronics, wind farms use them to power hydraulic pumps. They are used in pumping systems at solar thermal plants to move heat-transferring fluids through sensor panels. The motor's strong design makes it suitable for use in open industrial settings where weather can shorten the life of equipment.
Comparing YQ JS Series Motor with Alternatives on the Market
Performance and Efficiency Considerations
Industrial buyers look at a number of performance factors that affect running costs and system stability when choosing a motor. The YQ JS series motor has design improvements that deal with real-world problems that come up in heavy industry settings. The carefully planned arrangement of the stator and rotor lowers electromagnetic losses, which means that the motor uses less energy over its entire life.
The amount of vibration has a big effect on both the motor's life and the tools it moves. These motors have balanced rotor sections and good bearings that keep vibrations from spreading. This means that connecting parts and driven equipment last longer. Less shaking also means less stress on the supports for mounting, which makes installation infrastructure last longer.
Noise levels are important in places where worker happiness and following the rules come together. Because electric and mechanical noise sources were taken into account when designing the motor, it runs quieter than older motors. This change to the sound quality helps places of business that want to keep good working conditions without putting in a lot of soundproofing.
Maintenance and Reliability Factors
Total ownership costs are directly affected by the amount of maintenance that needs to be done. This is because direct service costs and lost output during machine downtime are both affected. The YQ JS series motor is built to be easily serviced, with bearing arrangements that make checking and repair easier. You can choose from high-quality bearings made by SKF, NSK, or FAG. These brands have a history of reliability in industrial settings, so you can go longer between servicing.
The frame's cast iron structure is more resistant to rust and mechanical damage than other materials, so it stays structurally sound for longer periods of time. This durability is especially useful in heavy industry settings where tools come into touch with cleaning agents, process materials, and mechanical impacts while they are being used and maintained.
Thermal performance affects both how well something works and how long it lasts. Effective heat dissipation through the motor frame keeps the working temperature low, which directly increases the life of the insulation and slows down the breakdown of the bearing lubricant. These temperature management features help make the motor more reliable by lowering the number of unexpected failures that cause production delays.
Customization and Application Flexibility
Standard requirements are rarely fully met by industrial uses. Because there are different bearing choices, buying teams can find the best motor setup for each load profile, working speed, and environmental state. This allows for exact matching between the motor's powers and the needs of the application. This keeps you from over-specificating, which wastes money, or under-specificating, which lowers reliability.
The motor's electrical properties make direct-on-line starting possible in most situations. This makes designing the control system easier and lowers the cost of the electrical infrastructure. The high starting torque can handle tough situations where driving equipment has a lot of inertial loads or needs escape torque to get rid of static friction. With this feature, you don't have to oversize the motors just to get good starting performance.
Procurement and After-Sales Considerations for YQ JS Series Motors
Purchasing Process and Supply Chain
To buy industrial motors, you have to make sure that technical requirements, shipping times, and price limits are all met. We make this process easier at XCMOTOR, which is sponsored by Shaanxi Qihe Xicheng Electromechanical Equipment Co., Ltd., by making it easy to communicate and giving quick customer service. Before making an order, procurement teams can talk to our expert staff about application needs, make sure that specifications are compatible, and talk about installation issues.
Facilities that are going to put more than one thing or keep a stock of spare motors can save money by ordering in bulk. Our free delivery service on all items makes logistics planning easier, and wait times are based on realistic production and shipping plans instead of overly optimistic estimates that cause projects to be late. We keep up good relationships with dependable shipping partners to make sure motors come on time and in good shape.
The 30-day return policy gives buyers peace of mind and covers cases where specifications don't match or where unexpected changes to the application happen after delivery. This policy shows that the company is confident in the quality of its products while also recognising that managing industrial projects is hard and that things can change between placing an order and installing it.
After-Sales Support and Service
The life of a YQ JS series motor rests a lot on how well it is installed and how well it is maintained over time. Our committed support team works all week, even on Saturday and Sunday, because we know that industrial processes have different schedules and emergencies don't wait for business hours. This makes sure that expert support is always available when installation workers need to clarify specifications or when maintenance teams are trying to figure out what's wrong with an operation.
We stress proactive maintenance methods that stop mistakes before they happen instead of just fixing problems as they happen. Our team gives you advice on when to check, how to lubricate, and how to keep an eye on performance so that your motor lasts longer. This support includes help with fixing when motors act in strange ways, which helps maintenance workers find the root causes of problems before they get worse and cause major failures.
The dedication to original parts from reputable names goes beyond the initial production and includes help after the sale. Replacement bearings, junction boxes, and other wear parts are made to the same high standards of quality as the original equipment. This means that the motor will keep working well for a long time. When new parts don't match the original specs, performance can drop. This parts consistency stops that from happening.
Payment and Transaction Flexibility
Trust and practical ways to do business are important for business ties to grow. We can work with different payment plans that fit the buying policies of our customers and the cash flow needs of their projects. Payment flexibility is especially helpful for projects with staged finish plans, where the costs of tools need to match up with progress goals and available funds.
More attention has been paid to supply chain stability since global breakdowns showed how weak long-distance logistics networks can be. Our method is based on making delivery promises that are backed up by established manufacturing capability and logistics partnerships. We are honest with our clients about lead times, production schedules, and anything else that could change shipping times. This lets them plan their installation activities with trust.
Ensuring Optimal Performance and Maintenance of YQ JS Series Motors
Routine Maintenance Best Practices
Routine motor maintenance ensures long service life and reliability. Regular checks of mounting torque prevent vibration-related loosening and misalignment, while visual inspection detects corrosion, paint damage, or structural issues. Bearing monitoring includes temperature tracking and vibration or acoustic analysis to identify early wear. Lubrication should follow manufacturer guidance, adjusted for load and environment, as both over- and under-lubrication can cause bearing damage.
Troubleshooting Common Issues
Abnormal motor temperature may indicate overload, poor ventilation, or electrical faults; current comparison with rated values helps distinguish mechanical versus electrical issues, while thermal imaging detects hotspots such as loose connections or winding faults. Unusual noise or vibration often signals bearing wear, imbalance, or loose mounting. Poor speed or torque performance may result from supply imbalance, winding issues, or mechanical binding, requiring systematic electrical and mechanical checks.
Performance Optimization Strategies
Motor performance depends heavily on operating conditions. Voltage fluctuations beyond ±5% should be corrected, as sustained deviation increases losses and insulation aging. Power factor monitoring helps identify inefficiencies and potential corrective actions like capacitor banks. Optimal efficiency occurs at 75–100% load; undersized or oversized motors reduce performance. Proper ventilation, dust protection, and moisture control maintain IP23 integrity and extend service life.
Conclusion
The YQ JS series motor meets the realistic needs of heavy industrial uses with its strong design, dependable performance, and ability to be used in a variety of ways. Power ranges from 45kW to 800kW so that it can meet the needs of a wide range of tools, from secondary systems to main output machinery. The motor's design has been tested and shown to work well in mining, industrial, HVAC installs, and utility work, all of which need reliable performance to be successful. When choosing a motor, it's important to think about its standard needs, its ability to be maintained, and its total cost of ownership. If you do this, the motor will continue to provide value over its long life. When looking for reliable power options, industrial facilities should see how the YQ JS series motor's features match up with their unique operational needs and performance standards.
FAQ
1.What power range does the YQ JS series motor cover?
The YQ JS series motor line has sizes ranging from 45kW to 800kW, which makes it useful for many different types of industrial drive needs. This wide power range lets a single motor set be used for a lot of different machines in a building, which makes it easier to keep track of spare parts and train people in repair.
2.How does energy efficiency compare with standard industrial motors?
The motor has precisely designed stator and rotor parts that reduce electromagnetic losses. This makes the motor more energy efficient than older motor designs. The actual efficiency gains rely on the size of the motor and how it is used. Over thousands of hours of use, the energy saves add up to a lot.
3.What after-sales support is available?
XCMOTOR offers full support, including expert advice, help with installation, and help with fixing problems. Our team works seven days a week because we know that industry processes and pressing technical needs don't follow normal business hours. We stress proactive maintenance advice that stops fails from happening instead of just fixing problems as they happen.
Partner with XCMOTOR for Reliable Industrial Motor Solutions
As a proven leader in power equipment solutions, XCMOTOR works with heavy industry clients all over the United States. Our stock of YQ JS series motors meets the needs of industries like manufacturing, mining, HVAC, and utilities, where the dependability of equipment has a direct impact on output. We know that choosing the right motor isn't just about meeting power numbers; it's also about thinking about how easy it is to maintain, where it will be used, and how much it will cost in the long run. Our expert team is ready to talk with you about your application needs and suggest settings that will help you reach your operational goals. Contact us at xcmotors@163.com to find out how our YQ JS series motor supplier can help your next project with high-quality goods, quick service, and useful solutions that deal with real problems in the business world. You can find out more about our full line of products and service promises at motorxc.com.
