When dealing with variable frequency drives in industrial applications, harmonic distortion poses a significant challenge for inverter duty motor performance. These electrical irregularities can compromise efficiency, reduce equipment lifespan, and increase operational costs across manufacturing, HVAC, and automation systems. Understanding how to minimize these disturbances becomes critical for procurement managers, engineers, and OEM partners who need reliable motor solutions for demanding industrial environments. This guide explores practical strategies for avoiding harmonic distortion while maintaining optimal motor performance in applications ranging from steel rolling and printing to chemical processing and pharmaceutical manufacturing.

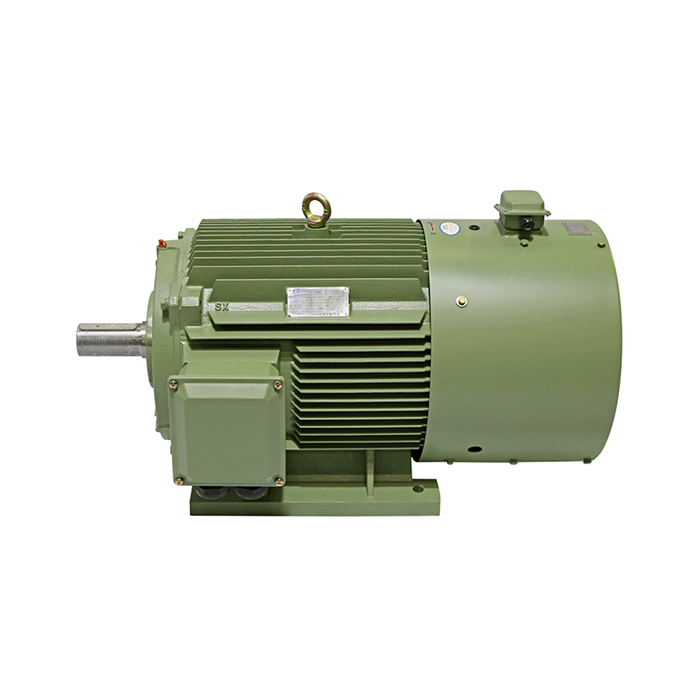

Series：YVFE3
Frequency conversion range:30hz~50hz，5hz~70hz，5hz~100hz
Power range：0.75-1000kW
Protection level：IP55
Application:are suitable for driving various mechanical equipment that require continuous and frequent forward and reverse rotation, such as steel rolling, lifting, transportation, machine tools, printing and dyeing, papermaking, chemicals, textiles, pharmaceuticals, etc., and can be used with various domestic and foreign variable frequency power supplies.
Advantage:high efficiency, wide speed range, high precision, stable operation, and easy operation and maintenance.
Certificate:installation dimensions comply with International Electrotechnical Commission (IEC) standards.
Others: SKF, NSK, FAG bearings can be replaced according to customer requirements.
Understanding Harmonic Distortion in Inverter Duty Motors
What Is Harmonic Distortion?
Harmonic mutilation alludes to undesirable electrical frequencies from non-linear loads like VFDs that disturb sinusoidal waveforms, increasing misfortunes, heat, and energy consumption, while decreasing engine effectiveness and stability.
Causes of Harmonic Distortion in Inverter Duty Motor Systems
Harmonics primarily begin from variable recurrence drives, whose high-speed exchanging makes different frequency components. Network control quality issues, establishing strategies, and cabling hone assist in the impact consistent presentation in Inverter Obligation Engine systems.
Recognizing Signs of Harmonic Distortion in Motor Performance
Common pointers incorporate unusual warming, vibration, torque throb, electrical commotion, and premature bearing wear. Early location of these side effects makes a difference in avoiding separator harm, proficiency misfortune, and startling gear downtime.
Analyzing and Mitigating Causes of Harmonic Distortion
Systematic Deconstruction of Harmonic Sources
Effective consonant examination begins with evaluating control quality, THD levels, and VFD–motor intelligent. Variables such as impedance, reverberation, cable length, and establishment hones decide how consonant frequencies engender and intensify.
Principle Approaches to Harmonic Mitigation
Harmonic mitigation combines VFD-optimized winding designs, robust insulation, and filtering solutions. LC filters, active filters, and passive traps work with proper Inverter Duty Motor selection to reduce voltage stress, heat, and efficiency losses.
Practical Case Studies of Harmonic Distortion Reduction
Industrial and HVAC case studies show that reinforced motors and targeted filtering dramatically reduce failures, vibration, and noise, while improving energy efficiency, equipment stability, and long-term maintenance performance.
Best Practices for Wiring and Operating Inverter Duty Motors to Minimize Harmonics
Guidelines for Correct Inverter Duty Motor Wiring
Proper cable choice and steering hones altogether affect consonant transmission between VFDs and engines. Protected cables with satisfactory conductor cross-sections give low-impedance ways that minimize voltage drops and diminish electromagnetic impedances. Keeping up physical division between control cables and control wiring anticipates consonant streams from coupling into touchy control circuits.
Grounding framework keenness gets to be basic for consonant relief. Different establishing focuses or destitute ground associations make circulating streams that increase consonant impacts. Building up a single-point establishing framework with low-resistance associations guarantees appropriate consonant current circulation while maintaining electrical security. Cable shield ends at both drive and engine closes gives viable electromagnetic impedances concealment when legitimately implemented.
Operational Adjustments to Limit Harmonic Effects
VFD parameter optimization offers prompt benefits for consonant decrease without extra equipment costs. Carrier recurrence settings, speeding up profiles, and exchanging designs specifically impact consonant substance in engine supply voltage. Higher carrier frequencies decrease low-order sounds but may increase high-frequency misfortunes, requiring cautious adjust based on application requirements.
Regular checking of electrical parameters empowers proactive consonant administration. Current signature examination, control quality estimations, and warm imaging offer assistance distinguish creating issues some time recently they cause hardware damage. Setting up standard estimations during commissioning provides reference points for continuous condition monitoring programs.
Troubleshooting Harmonic Distortion Issues in the Field
Systematic demonstrative strategies offer assistance specialists rapidly recognize consonant mutilation sources and impacts. Control quality analyzers, degree voltage, and current waveforms to evaluate twisting levels and recognize prevailing consonant frequencies. Warm imaging uncovers hot spots in engine windings or electrical associations that show intemperate consonant heating.
Vibration investigation gives a profitable understanding of the mechanical impacts of consonant mutilation. Expanded vibration levels at particular frequencies frequently relate to electrical consonant substance, making a difference professionals understand the relationship between electrical and mechanical indications. An engine current signature investigation can distinguish rotor or stator issues exacerbated by consonant distortion.
Implementing proper wiring practices proves fundamental to minimizing harmonic-induced electrical noise in inverter duty motors. Adhering to recommended industry standards for wiring layout, grounding, and shielding reduces electromagnetic interference and circuit malfunctions. Operationally, fine-tuning VFD parameters and maintaining vigilant monitoring of electrical conditions allow early detection and control of harmonics. A practical troubleshooting approach, supported by specialized diagnostic instruments, equips maintenance teams to swiftly identify and resolve harmonic distortions onsite. These best practices optimize motor reliability and support procurement goals of ensuring consistent system performance.
Benefits of Selecting High-Quality Inverter Duty Motors for Harmonic Distortion Control
Comparison: Inverter Duty Motors vs Standard Motors in Handling Harmonics
Standard motors struggle with VFD harmonics, suffering insulation stress, torque pulsation, and efficiency loss. Inverter Duty Motor designs use reinforced insulation and windings to maintain smooth torque and reliability.
Evaluating Superior Motor Solutions for Harmonic Performance
High-quality VFD motors feature Class F insulation, bearing protection, and optimized cooling to manage harmonic heat and voltage stress, delivering stable performance across wide power, speed, and industrial application ranges.
Maintenance Tips to Sustain Harmonic Control Performance
Sustaining harmonic performance requires routine insulation testing, temperature and vibration monitoring, proper lubrication, and genuine bearing replacements, ensuring long service life, reliability, and maximum return on motor investments.
Procurement Considerations: Selecting and Buying Inverter Duty Motors to Minimize Harmonics
Criteria for Choosing the Right Motor Supplier
Supplier reliability and technical expertise form the foundation of successful motor procurement for harmonic-sensitive applications. Manufacturers with proven experience in VFD applications understand the unique challenges posed by harmonic distortion and can provide appropriate technical guidance. Product certifications including CE marking and compliance with IEC standards demonstrate adherence to international quality requirements.
After-sales support capabilities significantly impact long-term operational success. Suppliers offering comprehensive technical support, field service capabilities, and readily available spare parts ensure continued operation even when problems arise. Custom motor options and engineering support enable solutions tailored to specific application requirements and harmonic mitigation needs.
Pricing, Warranty, and Shipping Insights
Motor pricing for harmonic-resistant designs typically reflects the additional engineering and materials required for enhanced performance. While initial costs may exceed standard motors, the improved reliability and extended service life provide superior total cost of ownership. Warranty terms should specifically address VFD operation and harmonic exposure to ensure proper coverage for application conditions.
Shipping considerations become particularly important for large industrial motors. Proper packaging, handling procedures, and delivery coordination prevent damage during transportation. Bulk order advantages and flexible delivery scheduling help industrial buyers manage inventory and project timelines effectively.
XCMOTOR: Your Partner for Harmonic Distortion Solutions
Shaanxi Qihe Xicheng Electromechanical Equipment Co., Ltd. specializes in providing power equipment solutions designed to meet the challenges of modern industrial applications. Our expertise in inverter duty motors includes comprehensive understanding of harmonic distortion effects and proven mitigation strategies developed through years of industrial experience.
Our item portfolio highlights engines with control ranges from 0.75kW to 355kW, appropriate for persistent and visit forward and invert turn applications. These engines exceed expectations in steel rolling, lifting, transportation, machine apparatuses, printing and coloring, papermaking, chemicals, materials, and pharmaceutical applications. Progressed highlights incorporate tall effectiveness, wide speed extend capabilities, tall exactness control, steady operation, and disentangled upkeep requirements.
We guarantee quality through thorough generation, testing, and lifetime client back. Our building staff customizes and counsels on engine choice for consonant mutilation issues. Worldwide mechanical frameworks are consistent with establishment measurements that meet Worldwide Electrotechnical Commission requirements.
Suppliers with steadfastness, item certifications, and quick after-sales back are basic for buying low-harmonic twisting engines. For huge mechanical clients, lead times and customization move forward supply chain effectiveness. Guarantee and execution affirmations and straightforward estimating components empower value-driven ventures. Master direction and customer-focused administrations offer assistance XCMOTOR make customized consonant moderation engine arrangements. Collaboration with our deals and specialized groups streamlines decision-making and obtainment, empowering long-term success.
Conclusion
Avoiding harmonic distortion in inverter duty motors requires comprehensive understanding of electrical phenomena, proper system design, and quality equipment selection. The strategies outlined in this guide provide practical approaches for procurement managers and engineers to minimize harmonic effects while maximizing motor performance and reliability. Success depends on choosing appropriate motor technologies, implementing proper installation practices, and maintaining ongoing monitoring programs. By focusing on these critical elements, industrial facilities can achieve optimal motor performance while avoiding costly problems associated with harmonic distortion.
Frequently Asked Questions
1. How does harmonic distortion specifically affect inverter duty motor lifespan?
Harmonic distortion accelerates motor aging through increased electrical losses that generate excessive heat in windings and magnetic circuits. The additional thermal stress degrades insulation materials faster than normal operating conditions, potentially reducing motor lifespan by 30-50%. High-frequency voltage spikes associated with harmonics also create electrical stress that can cause insulation breakdown over time.
2. Can harmonic distortion cause damage to connected equipment besides the motor?
Yes, harmonic distortion affects entire electrical systems including transformers, capacitors, and other connected loads. Harmonic currents can cause overheating in neutral conductors, resonance conditions in power factor correction capacitors, and interference with electronic control systems. The cumulative effect often results in reduced efficiency and premature failure of multiple system components.
3. What are the best diagnostic tools for detecting harmonic distortion in motor systems?
Power quality analyzers provide the most comprehensive harmonic distortion assessment by measuring voltage and current waveforms with detailed frequency analysis. Motor current signature analyzers help identify specific motor problems exacerbated by harmonics. Thermal imaging cameras detect hot spots indicating excessive harmonic heating, while vibration analyzers reveal mechanical effects of electrical disturbances.
Partner with XCMOTOR for Superior Inverter Duty Motor Solutions
Addressing harmonic distortion challenges requires expertise, quality products, and reliable support that XCMOTOR delivers to industrial customers worldwide. Our specialized inverter duty motor manufacturer capabilities ensure optimal performance in demanding VFD applications while minimizing harmonic-related problems. We offer original products, fast delivery, 30-day returns, and dedicated support that includes weekend availability. Contact us at xcmotors@163.com for expert consultation on motor solutions designed to minimize harmonic distortion in your industrial applications.
