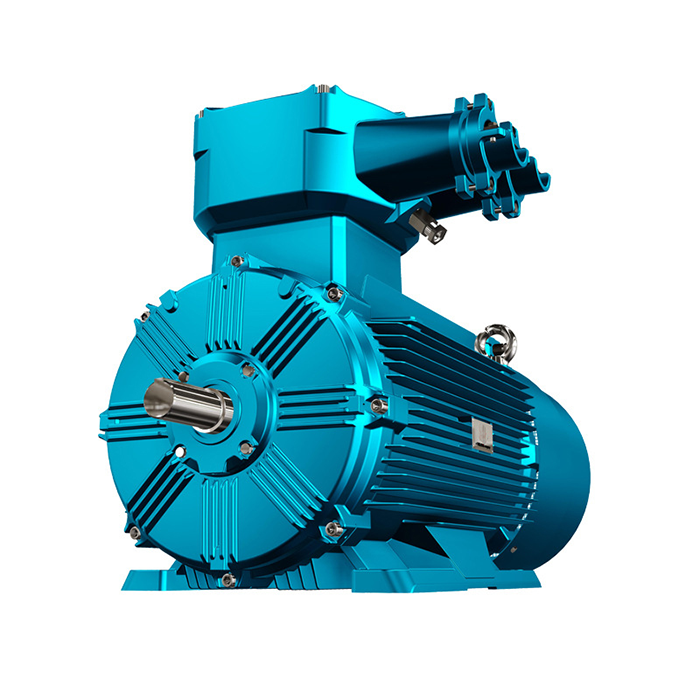

YBBP high-voltage explosion-proof frequency motor: How It Works
If you're managing energy retrofit projects in petrochemical plants or mining operations, you already know that combining explosion protection with variable frequency drive capability isn't just convenient—it's transformative. The YBBP high-voltage explosion-proof frequency motor achieves this by integrating flameproof enclosure design with specialized winding construction that tolerates harmonic distortion from VFD systems. Inside the motor, reinforced insulation systems withstand voltage spikes while the explosion-proof housing contains any internal fault, preventing ignition of surrounding flammable atmospheres. This dual functionality eliminates the need for separate fixed-speed explosion-proof motors and frequency conversion equipment, directly addressing the "two-in-one" value proposition that drives procurement decisions in hazardous industrial environments.
Series：YBBP
Voltage range：380V，660V，415V，380/660V，660/1140V
Power range：0.55-355 kW
Application：places where explosive gas mixtures exist in petroleum, chemical, mining, metallurgy, electric power, machinery and other industries.
Advantage: wide speed regulation range, fast dynamic response, high speed regulation accuracy.
Explosion-proof mark: Ex d I Mb, Ex d IIB T4 Gb, Ex d IIC T4 Gb
Others： SKF, NSK, FAG bearings can be replaced according to customer requirements.
Understanding YBBP High-Voltage Explosion-Proof Frequency Motors
Core Design Philosophy and Safety Integration
If we talk about explosion-proof motors made for variable frequency operation, we're talking about a specific engineering problem that regular motors can't solve. Most traditional explosion-proof motors are made to meet Ex d standards and keep blasts inside and flames from spreading to dangerous environments outside. But when variable frequency drives are added, things get more complicated. There are now harmonic currents, carrier frequency interference, and insulation stress from sudden voltage changes [^1].
The YBBP motor fixes these problems with a number of built-in features. The stator windings are made of Class F insulation materials that can withstand temperatures of up to 155°C. These materials have been handled with vacuum pressure impregnation technology, which makes the insulation breakdown voltage more than 30kV. This structure can handle the voltage stress that comes from frequency converters' PWM patterns. On the other hand, the flameproof enclosure is made entirely of HT250 high-strength material and has explosion-proof joint surfaces that keep gaps below 0.15mm and widths above 15mm. This means that the flame can't get out even when there are electrical problems inside the enclosure.
Frequency Modulation Mechanism and Speed Control
When compared to fixed-speed systems, variable frequency control completely changes how motors work. By changing the frequency of the power that goes to the motor, you can precisely control the speed over a wide range of operations. The electromagnetic design of the YBBP motor is perfect for this setting with changeable frequency. Its rotor is made of laminated high-permeability silicon steel and is precisely dynamically balanced. This keeps the speed fluctuation rates below 0.5% even when the supply frequency changes.
The operational benefits of this capability are very high. With mechanical throttling, you can match the motor speed perfectly to the process demand instead of running at a constant speed. This can cut energy use by 20–40%, based on the load profile. When chemical processing uses pump systems, being able to change flow rates through speed control instead of valve limits means lower power costs and less wear and tear on flow control parts.
Compliance with International Explosion-Proof Standards
When buying equipment for dangerous places, you have to make sure it meets global certification standards. The YBBP motor meets a number of international standards, such as ATEX (European Union) and IECEx (international). It also meets domestic standards, such as CCC, and energy-saving production standards. These licenses show that the motor's flameproof design, cable entry closing, and terminal box construction all meet strict standards for use in explosive environments with gasses like methane, propane, and ethanol (usually called IIB environments).
These licenses have effects in real life that go beyond just following the rules. When your electrical engineers look at retrofit proposals, verified ATEX or IECEx certification lets them know that the motor will work safely when combined with frequency converters. This answers the common question of whether explosion-proof certification is still valid when motors are run with VFDs instead of direct-on-line starting[^2].
Advantages and Technical Specifications of YBBP Explosion-Proof Frequency Motors
Superior Safety Features in Hazardous Environments
Safety isn't just about meeting the bare minimum; it's also about technical leeway and dependability in the real world. The YBBP motor has several layers of safety that work together to keep it from catching fire. The junction box has a structure that can't explode and flame-resistant sealing rings at the cable entry points. This keeps sparks from traveling through the cable paths. High-voltage zero-sequence current transformers and overvoltage safety devices also keep an eye on the circuit all the time and cut the power within milliseconds if the grid voltage changes by more than ±10% or if lightning causes an overvoltage, with explosion proof motor prices china.
These safety systems take care of certain operational issues. Proper grounding and insulation design can reduce the effects of VFD carrier frequencies on bearing currents. These currents are known to cause premature bearing failure by electrically machining the bearing surfaces. The motor works well even when it's driven by inverters with carrier frequencies of up to 16kHz, which is a normal range for current IGBT-based VFDs used in industry.
Energy Efficiency and Operational Cost Reduction
The most measurable return on investment for motor retrofit projects is the amount of energy saved. The YBBP motor has a large modulation range, which means it can work at speeds between 10% and 120% of its maximum speed and still be very efficient. This feature is especially useful in processes where demand changes over time. For example, mine ventilation systems can lower airflow during off-peak hours, and chemical plant pumps can exactly match flow rates to the needs of a batch process.
Voltage ranges of 3000V±5%, 3300V±5%, 6000V±5%, 6600V±5%, 10000V±5%, and 11000V±5% support this performance. These voltage ranges cover the most common high-voltage distribution systems used around the world. Power ratings range from 185kW to 1800kW, so they can be used for a wide range of tasks, from small compressors to big industrial pumps and crushers. When paired with properly set up VFDs, these motors have long-term operating reliability of over 99.7%, which means they rarely break down without warning, which keeps production plans on track and brings in money.
Robust Construction and Extended Service Life
Total cost of ownership is directly related to how long an item lasts. The YBBP motor is built to last by using high-quality parts and putting them together carefully. Premium brands like SKF, NSK, and FAG are available as bearing options. The right brand is chosen based on the load characteristics and operating conditions. When these bearings are installed correctly, they are oiled and interference fits are limited. These are all important factors that have a big effect on how long the bearings will last.
Another benefit of the YBBP design is that it operates quietly. This is possible because the motor parts are precisely machined, and the electromagnetic design has been tuned to reduce magnetic shaking forces. Noise levels are usually less than 85dB(A) at full load, which lowers noise exposure at work and helps businesses follow health and safety rules. By controlling heat with Class F insulation, making sure the motor is strong mechanically through precision manufacturing, and keeping the electricity safe with built-in tracking systems, this motor platform can work reliably for decades in harsh industrial settings.
Comparing YBBP with Other Explosion-Proof Frequency Motors
Certification and Compliance Advantages
When comparing different motors, the scope of certification and the level of scrutiny are very important. Many motors have domestic certifications that are good for local markets, but they don't have the internationally recognized ATEX or IECEx approval. A lot of different certifications, like CE, CCC, ISO9001:2000, CRCC, and CQC, show that the YBBP motor is safe and meets many different rules. This wide range makes it easier to buy things for international projects where tools might be used in different countries, each with its own approval rules.
The YBBP motor can work in Zone 1 and Zone 2 hazardous areas according to IEC classification because it has an explosion-proof rating of Ex d IIB T4 Ga. The scope of this certification includes most mining and industrial uses where flammable gasses may be present during normal activities or in unusual but likely situations. Sometimes, competing goods only have limited certifications that cover less dangerous categories. This means that procurement managers have to carefully check the products' fitness against site-specific hazard ratings.
Performance Under Variable Frequency Operation
It's not true that all motors that are advertized as "VFD-compatible" are actually designed to work with frequency conversion duty. The YBBP motor stands out because it is designed to handle pressures that are unique to VFDs. Standard motors that are run on VFDs often lose their insulation too soon because of voltage reflection on long motor lines. Due to impedance mismatches, peak voltages at the motor ends can reach 2.0 to 2.5 times the converter DC bus voltage [3]. The YBBP motor's improved insulation system can handle these changes without breaking down over many years of use.
Maintenance needs are also very different for motors that are specifically made to work with a VFD and those that can handle it. The precise dynamic balance and strengthened bearing systems of the YBBP motor can handle the torque pulses that come with variable frequency operation without causing too much vibration or mechanical stress. This means that repair needs will be spread out over longer periods of time and there will be less need for spare parts inventory. These are real factors that affect the total cost of ownership beyond the initial purchase price.
Market Reputation and Customer Feedback
More and more, buying industrial equipment is based on written performance histories and testimonials from users. Through its partnerships with more than 30 major motor makers, such as ABB, Siemens, and Wolong, Shaanxi Qihe Xicheng Electromechanical Equipment Co., Ltd. is able to make quality systems and get parts that meet international standards for the YBBP motor. The company's SAP plant management system makes sure that products can be tracked and that quality is controlled throughout production. Before they are shipped, they are put through a series of thorough tests.
Feedback from engineers in charge of retrofit projects always points out a few things: how well it works with existing VFD infrastructure, how easy it is to install within tight retrofit schedules, and how helpful the technical support staff is during commissioning. When making decisions about what to buy, these operational factors are often just as important as technical specs. This is especially true for projects with short execution windows where production downtime must be kept to a minimum.
Application Areas and Maintenance Tips for YBBP Explosion-Proof Motors
Deployment in Oil and Gas Operations
YBBP motors are suited to oil and gas operations, powering compressors, pumps, and cooling fans in hazardous, continuous-duty environments with explosion proof motor prices china. Variable-speed control improves energy efficiency and reduces mechanical stress. Proper installation requires complete flameproof cable-gland sealing, reliable grounding, and low-impedance connections to support electrical safety, VFD performance, and reduced bearing currents.
Chemical Processing and Mining Applications
Explosion-proof YBBP motors suit variable-load applications in chemical processing, including reactors, filtration systems, and transfer pumps, thanks to their wide speed range. In underground mining, they support dust-resistant ventilation and high-torque, precise hoisting. Their robust design and claimed reliability above 99.7% help reduce unplanned downtime, production losses, and safety risks.
Preventive Maintenance and Performance Optimization
Planned maintenance uses vibration monitoring and thermographic inspections to detect bearing wear, rotor imbalance, insulation problems, and load issues before failure, enabling scheduled repairs. VFD systems require careful bearing lubrication and correct installation. Proper heating, shaft dimensions, and interference fits support bearing life, while premium SKF, NSK, or FAG bearings improve durability under heavy or contaminated conditions.
Procurement Guide for YBBP High-Voltage Explosion-Proof Frequency Motors
Sourcing Channels and Customization Options
XCMOTOR provides direct access to customizable YBBP motors, including voltage, mounting, and shaft modifications while maintaining explosion-proof certification through documented engineering and testing. Standard configurations typically ship within 4–8 weeks, while dimensional or special modifications may require an additional 10–12 weeks. Advance procurement planning helps align delivery with plant shutdown and installation schedules.
Transparent Pricing and After-Sales Support
Motor pricing varies by voltage, power, customization, and optional components, with project details required for accurate quotes. Beyond initial cost, value includes warranty coverage, spare parts, and seven-day technical support. Standard warranty terms address manufacturing defects, while a 30-day return policy allows buyers to inspect and test equipment before final acceptance.
Order Processing and International Logistics
Order processing begins with technical consultations, engineering evaluation, and formal quotations covering specifications, pricing, lead times, and warranty terms. After confirmation, SAP-based quality tracking supports manufacturing traceability and pre-shipment testing. International logistics require protective packaging, export documentation, and experienced freight forwarding. XCMOTOR provides free shipping, simplifying logistics and improving delivery cost certainty.
Conclusion
When you know how YBBP high-voltage explosion-proof frequency motors work, you can see why they're so important for energy retrofit projects in dangerous industries. The combination of flameproof enclosure construction with frequency-optimized electromagnetic design meets the needs for safety and efficiency that are important in the mining, chemical processing, and petrochemical industries. Voltage ranges from 3000V to 11000V and power capacities from 185kW to 1800kW are covered by the technical specs. This gives the products flexibility in a wide range of uses, and compliance with ATEX, IECEx, and other international standards makes sure that the projects can be used anywhere in the world. The proven energy savings of 20–40% and operating reliability of more than 99.7% provide measurable returns that support business sustainability goals and explain retrofit investments.
FAQ
1.What makes explosion-proof motors different from standard industrial motors?
Explosion-proof motors are built in a special way that keeps sparks, arcs, or heat inside the motor from setting off flammable gasses around it. The explosion-proof casing stops the flame from spreading through the carefully machined joint surfaces that have controlled gaps. Standard motors don't have these features, and they can create fire sources during normal operation, such as brush arcing or high surface temperatures, which means they shouldn't be used in dangerous places [5].
2.Can YBBP motors operate with any variable frequency drive?
YBBP motors are made to work with VFDs across common industrial frequency ranges, but for best performance, the VFD needs to be set up correctly. The length of the motor cable, the inverter's carrier frequency, and the output filtering all affect the voltage stress on the motor insulation. When choosing VFDs for YBBP motors, make sure the inverter has the right du/dt filtering and common-mode voltage management to keep bearing currents and insulation stress to a minimum. Problems with compatibility can be avoided by having motor and VFD suppliers work together on technical details during project engineering.
3.How do you calculate energy savings from motor retrofit projects?
To figure out how much energy can be saved, you need to know how much power is being used at a set speed and how much power is expected to be used at a changeable frequency. The savings depend a lot on the load profile—savings are higher in processes where demand changes a lot than in processes where demand stays the same. Usually, an analysis includes finding out how much power is used at different operating points, making a load duration curve that shows how much time is spent at each capacity level, and figuring out the differences in energy use between a fixed-speed operation that is throttled and a variable-speed operation that is modulated across the load profile [^6].
4.What maintenance intervals apply to explosion-proof frequency motors?
Maintenance plans are based on things like the job cycle, the temperature, and the amount of contamination in the air. Typical inspection times are every three months for vibration monitoring and thermographic surveys, every six months for cleaning the ventilation paths and checking the cable entry seals, once a year for a detailed inspection and bearing lubrication service, and every three to five years for a full overhaul that includes testing the insulation resistance and deciding whether to replace the bearings. If you work in a harsh workplace or on a constant job shift, you may need to have inspections more often.
Partner with XCMOTOR as Your Trusted YBBP High-Voltage Explosion-Proof Frequency Motor Supplier
XCMOTOR has been in the business for more than 20 years, helping procurement workers find reliable power equipment options. Because we work directly with top makers, you can be sure that the motors you buy are real and come with all the necessary approvals and technical information. We know how hard retrofit projects can be, with their short implementation windows, the need to make sure they work with existing VFD systems, and the need for quick technical support during commissioning. Our team works with your engineers to make sure that the motors are set up correctly, that mounting and size issues are taken care of as needed, and that shipping times work with your production plans. We take the guesswork out of buying by offering free delivery, a 30-day money-back guaranty, and expert help seven days a week. You can email our team at xcmotors@163.com or go to motorxc.com to talk about your project needs and get full technical offers for YBBP high-voltage explosion-proof frequency motors that are for sale.
