What Is an Inverter Duty Motor & Why It Matters?

When it comes to modern industrial applications, understanding what an inverter duty motor is and why it matters can make the difference between operational success and costly downtime. An inverter duty motor represents a specialized electric motor engineered specifically to work seamlessly with variable frequency drives (VFDs), delivering consistent performance across varying speed ranges while maintaining exceptional durability. These motors address critical challenges in today's automated manufacturing environments, offering precise speed control, enhanced efficiency, and reliable operation that standard motors simply cannot match in VFD applications.



CONTACT US

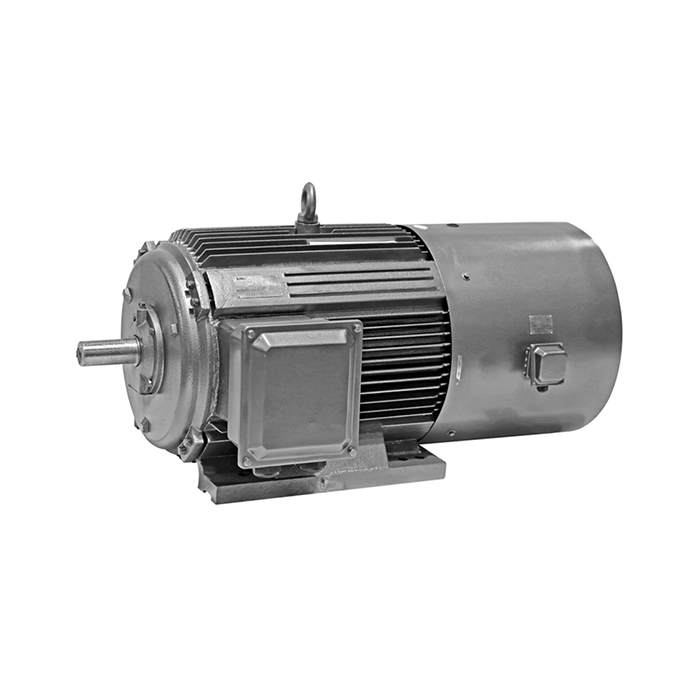

Series：YVFE2
Frequency conversion range:30hz~50hz，5hz~70hz，5hz~100hz
Power range：0.75-355kW
Protection level：IP55
Application:are suitable for driving various mechanical equipment that require continuous and frequent forward and reverse rotation, such as steel rolling, lifting, transportation, machine tools, printing and dyeing, papermaking, chemicals, textiles, pharmaceuticals, etc., and can be used with various domestic and foreign variable frequency power supplies.
Advantage:high efficiency, wide speed range, high precision, stable operation, and easy operation and maintenance.
Certificate:installation dimensions comply with International Electrotechnical Commission (IEC) standards.
Others: SKF, NSK, FAG bearings can be replaced according to customer requirements.

Understanding Inverter Duty Motors

Inverter duty motors are engineered specifically for use with variable frequency drive (VFD) systems, offering enhanced reliability and performance under non-standard electrical conditions. Unlike conventional motors, these units are built to handle the pulse-width modulated (PWM) output generated by VFDs, which can otherwise stress insulation, bearings, and other components. Their advanced construction allows them to maintain efficiency, manage thermal loads, and operate across wide frequency ranges—from 5Hz to 100Hz—while supporting applications from small pumps to large industrial machinery.

Enhanced Construction for VFD Applications

These motors feature upgraded insulation systems, improved bearing designs, and optimized cooling to withstand voltage spikes, shaft currents, and thermal stresses typical in VFD-driven operations.

Flexible Performance Across Loads

Power ratings from 0.75kW to 355kW and wide frequency capabilities ensure adaptability across various industrial applications, from precise process equipment to heavy-duty machinery.

Industrial Applications and Benefits

Ideal for manufacturing, water treatment, and process control environments, inverter duty motors provide efficient speed control, reduce energy waste, and enhance operational reliability.

Industrial Challenges These Motors Address

Advanced Engineering Features

Strengthening Insulation Systems for High-Temperature Operation

The designing behind inverter obligation engine plan joins various developments that recognize these units from routine choices. Understanding these highlights makes a difference clarify why these engines convey prevalent execution in requesting applications. Insulation frameworks get specific consideration in the plan prepare. Course F cover materials give warm security up to 155°C, altogether higher than standard engine evaluations. This upgraded warm capability demonstrates fundamental when engines work in challenging situations or encounter the warm buildup common in VFD applications.

Protecting Windings Against Voltage Spikes and Electrical Stress

The winding plan consolidates uncommon strategies to minimize the affect of voltage spikes. Crown beginning voltage appraisals guarantee that the engine windings can withstand the quick voltage moves characteristic of PWM drives. This assurance avoids untimely cover disappointment that commonly influences standard engines in comparative applications.

Extending Bearing Life Through Electrical and Mechanical Protection

Bearing assurance frameworks address the electrical release machining (EDM) streams that can create in VFD operations. Shaft establishing rings and protects heading anticipate these streams from making setting harm in bearing raceways. This security essentially expands bearing life and diminishes upkeep requirements.

Optimizing Cooling Systems for Stable Thermal Performance

Cooling framework optimization guarantees steady execution over the whole speed extend. Numerous plans join bi-directional cooling fans that keep up satisfactory wind stream notwithstanding of turn heading. A few arrangements utilize independently fueled cooling fans that work autonomously of engine speed, guaranteeing ideal warm administration indeed amid low-speed operation.

Improving Rotor and Magnetic Circuit Design for Efficiency

Rotor plans regularly highlight profound bar development or cast copper materials that make strides effectiveness and decrease misfortunes. These plan components offer assistance keep up steady torque yield over shifting recurrence ranges whereas minimizing warm generation. Advanced attractive circuit plans optimize flux conveyance all through the engine. This optimization reduces core losses and improves overall efficiency, particularly important in applications where inverter duty motors operate at varying speeds for extended periods.

Operational Advantages

Enhancing Energy Efficiency Through Intelligent Load Matching

The benefits of actualizing inverter obligation engine innovation amplify distant past basic speed control. These points of interest straightforwardly affect operational productivity, support costs, and in general framework reliability. Energy proficiency changes speak to one of the most critical preferences. When legitimately coordinated with VFD frameworks, these engines can decrease vitality utilization by 20-50% compared to conventional constant-speed options. This productivity pick up comes from the capacity to coordinate engine yield accurately to real stack prerequisites or maybe than running at settled speeds notwithstanding of demand.

Improving Process Control and Production Accuracy

Speed control exactness empowers modern levels of prepare optimization. Fabricating operations can fine-tune gear speeds to coordinate generation prerequisites precisely. This accuracy deciphers into made strides item quality, diminished squander, and upgraded throughput in numerous applications.

Increasing Reliability and Reducing Maintenance Demands

Maintenance planning gets to be more unsurprising with these specialized engines. The vigorous development and upgraded security highlights decrease the probability of startling disappointments. Bearing life ordinarily amplifies altogether due to progressed electrical security and warm administration. This unwavering quality permits upkeep groups to arrange exercises more viably and diminish unscheduled downtime.

Creating Safer and Quieter Working Environments

Noise decrease benefits gotten to be clear in numerous establishments. The smooth operation characteristics and diminished vibration levels contribute to calmer working situations. This change demonstrates especially important in offices where clamor control is vital for laborer consolation or administrative compliance.

Minimizing Electrical Stress with Controlled Starting and Stable Torque

Starting current diminishment gives extra operational benefits. Delicate beginning capabilities inalienable in VFD frameworks dispose of the tall inrush streams related with across-the-line engine beginning. This gentler beginning prepare decreases push on electrical frameworks and mechanical components whereas killing voltage plunges that can influence other equipment.

Torque characteristics stay reliable over the working speed extend. Not at all like standard engines that encounter torque varieties at diverse speeds, inverter obligation engines keep up steady torque yield from zero speed through most extreme appraised speed. This consistency demonstrates fundamental in applications requiring exact stack dealing with at shifting speeds.

Technical Considerations and Limitations

Evaluating Initial Investment Versus Long-Term Value

While inverter obligation engine innovation offers various preferences, understanding the confinements and contemplations guarantees legitimate application and reasonable expectations. Initial venture costs regularly surpass those of standard engines. The upgraded development and specialized components required for VFD compatibility increment fabricating costs. Be that as it may, this beginning cost regularly pays for itself through vitality reserve funds and decreased support over the motor's working life.

Managing Installation Complexity and Electrical Requirements

Installation complexity may require extra contemplations. Appropriate cable choice gets to be basic to minimize electromagnetic impedances (EMI) and guarantee solid operation. Protected cables and appropriate establishing procedures are regularly essential, especially in establishments with delicate electronic hardware nearby.

Ensuring Proper Drive Configuration and Technical Expertise

Drive programming requires skill to optimize execution. Whereas fundamental operation is clear, accomplishing most extreme productivity and execution regularly requires nitty gritty information of both engine characteristics and drive capabilities. Dishonorable programming can refute numerous of the potential benefits.

Accounting for Environmental and Operating Conditions

Environmental components can affect execution. Tall encompassing temperatures may require derating of engine control yield. Dusty or destructive situations may require higher security evaluations, possibly expanding costs and estimate requirements.

Understanding Speed Range and Mechanical Constraints

Speed extend impediments exist in spite of the wide working capabilities. Whereas these engines handle wide recurrence ranges viably, mechanical contemplations may restrain genuine working speeds. Bearing plan, adjust necessities, and basic speed confinements all impact commonsense speed ranges.

Addressing Compatibility in Retrofit Applications

Compatibility contemplations gotten to be imperative when retrofitting existing hardware. Mounting measurements, shaft setups, and electrical associations must adjust with existing establishments. Whereas numerous engines take after standard measurements, particular applications may require custom solutions.

Comparison with Alternative Technologies

Evaluating Traditional Mechanical Speed Control Solutions

Understanding how inverter duty motor technology compares to other designs helps clarify when these motors represent the optimal choice for specific applications. Standard AC engines matched with mechanical speed control frameworks speak to conventional approaches to variable speed applications. In any case, these mechanical arrangements, such as gearboxes or belt drive frameworks, present extra complexity and upkeep prerequisites. Vitality effectiveness remains destitute since the engine proceeds working at consistent speed whereas mechanical gadgets alter yield speed.

Comparing Servo Motor Systems for Precision Applications

Servo engine frameworks give uncommon accuracy and reaction characteristics but ordinarily work in much littler control ranges. The fetched per drive for servo frameworks altogether surpasses that of inverter obligation engines, making them commonsense basically for applications requiring amazingly exact situating or quick speeding up capabilities.

Assessing DC Motor Technology and Maintenance Trade-Offs

DC engine frameworks verifiably given the essential arrangement for variable speed applications. Whereas DC engines offer fabulous speed control characteristics, they require more upkeep due to brush and commutator wear. Moreover, the control electronic necessities for DC drives regularly surpass those required for AC drive systems.

Weighing Permanent Magnet Synchronous Motor (PMSM) Options

Permanent magnet synchronous engines (PMSMs) offer tall productivity and compact plans but come with altogether higher costs. The uncommon soil magnets required for PMSM (Permanent Magnet Synchronous Motor) development make both taken a toll and supply chain vulnerabilities. Moreover, the hazard of demagnetization in certain working conditions requires cautious application engineering.

Considering Emerging Synchronous Reluctance Motor Technology

Synchronous hesitance engines speak to developing innovation that gives great effectiveness without changeless magnets. In any case, these engines ordinarily require more modern control calculations and may not give the strong operation characteristics required for requesting mechanical applications.

Target Applications and Industries

Enhancing Automation in Manufacturing and Production Lines

The flexibility of inverter obligation engine innovation makes it reasonable for various applications over different mechanical divisions. Understanding these applications makes a difference distinguish openings for implementation. Manufacturing computerization frameworks advantage altogether from the exact speed control capabilities. Gathering line transports require variable speeds to optimize generation stream and suit distinctive item sorts. Machine device applications utilize speed variety to optimize cutting conditions for distinctive materials and operations.

The car industry depends intensely on these engines for paint booth ventilation frameworks, where exact wind current control guarantees reliable coating quality.

Supporting Energy-Efficient HVAC and Building Systems

HVAC frameworks in commercial and mechanical offices progressively join variable speed drives for vitality administration. Fan frameworks can tweak wind current based on genuine request or maybe than working at consistent speeds. Chiller frameworks utilize variable speed compressors and pumps to coordinate cooling yield with building stack prerequisites. These applications regularly accomplish considerable vitality investment funds whereas moving forward consolation control.

Driving Precision in Process Industries and Utilities

Process businesses utilize these engines broadly for pump and compressor applications. Water treatment offices utilize variable speed pumps to keep up reliable weight whereas minimizing vitality utilization. Chemical preparing plants utilize them for exact stream control in blending and exchange operations. The capacity to coordinate pump yield precisely to handle necessities moves forward both proficiency and handle control.

Power era offices join these engines in assistant frameworks. Cooling water pumps, fuel dealing with frameworks, and emanation control hardware advantage from variable speed operation. Renewable vitality establishments utilize them for following frameworks that take after sun powered boards with the sun's development all through the day.

Enabling Reliable Operation in Material Handling and Heavy Industries

Material dealing with frameworks over different businesses depend on the smooth operation and exact control these engines give. Mining operations utilize them for transport frameworks that transport materials over long separations. Harbour offices utilize them in crane and cargo dealing with hardware where exact stack control is essential.

Conclusion

The evolution of industrial automation continues to drive demand for sophisticated motor technologies that deliver both efficiency and reliability. Inverter duty motors represent a proven solution that addresses the complex requirements of modern variable speed applications while providing tangible benefits in energy savings, operational flexibility, and maintenance reduction. As industries increasingly focus on sustainability and operational efficiency, these specialized motors will play an even more critical role in achieving those objectives.

Frequently Asked Questions

Q1: How do inverter duty motors differ from standard motors in terms of construction?

A: Inverter duty motors feature enhanced insulation systems rated for higher voltage stress, improved bearing designs with electrical protection features, and optimized cooling systems for variable speed operation. These motors also incorporate special winding techniques to handle the pulse-width modulated power from VFDs, along with shaft grounding systems to prevent bearing damage from electrical discharge currents.

Q2: Can existing standard motors be replaced directly with inverter duty motors?

A: Most inverter duty motors follow standard mounting dimensions (NEMA or IEC), making direct replacement possible in many cases. However, you should verify mounting dimensions, shaft specifications, and electrical characteristics before replacement. The enhanced performance characteristics of inverter duty motors often provide immediate benefits even when replacing functional standard motors.

Q3: What maintenance advantages do these motors provide compared to conventional alternatives?

A: These motors typically require less frequent maintenance due to their robust construction and enhanced protection features. Bearing life extends significantly due to electrical protection systems and improved thermal management. The smooth operation characteristics reduce mechanical stress on connected equipment, and predictable performance allows for better maintenance scheduling.
