Medium Voltage Induction Motor Buying Guide 2026

To choose the right motor for commercial use, you need to carefully look at the technical specs, the needs of the job, and how reliable the provider is. A medium voltage induction motor works with voltages between 3 kV and 11 kV and can deliver control between 185 kW and 1800 kW. This implies that these engines can be utilized in cruel settings like water treatment plants, mines, and industrial facilities. This direct talks around vital things to think almost when buying something. It makes a difference when individuals make choices by making a difference them get it specs, compare choices, and discover solid dealers who know how complicated mechanical control gear is.



CONTACT US

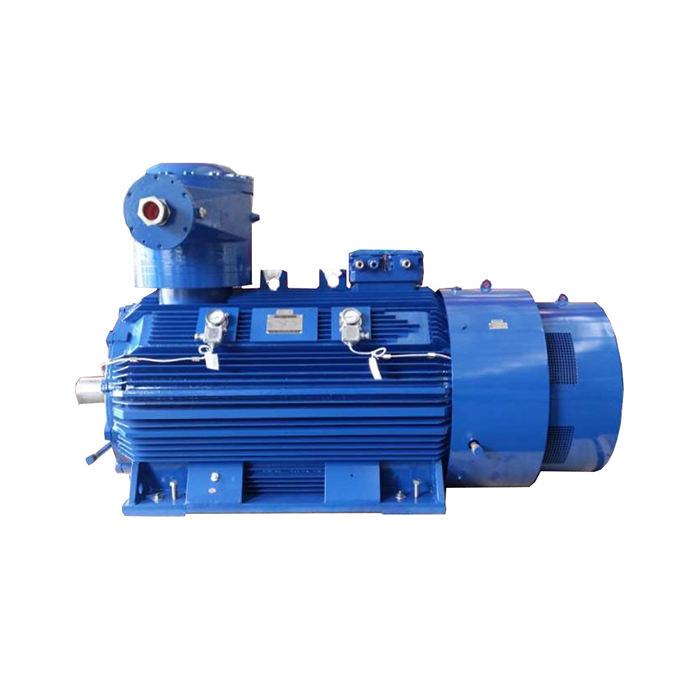

Series：YBBP-HV
Voltage range：3000V±5%,3300V±5%,6000V±5%,6600V±5%,10000V±5%,11000V±5%
Power range：185-1800 kW
Application：compressors, water pumps, crushers, cutting machine tools, transportation machinery.
Advantage: wide modulation range, high efficiency and energy saving, low noise, long life, high reliability.
Others： SKF, NSK, FAG bearings can be replaced according to customer requirements.

Understanding Medium Voltage Induction Motors: Key Concepts and Advantages

What Defines a Medium Voltage Induction Motor

There are voltage bands where medium voltage induction motor units work well, such as 3000V±5%, 3300V±5%, 6000V±5%, 6600V±5%, 10000V±5%, and 11000V±5%. These engines are different from low-voltage alternatives since they can handle more control whereas still taking up small space. Rotating current is sent to the stator windings, which creates attractive areas that make streams stream through the rotor wires. This is how electromagnetic acceptance works. This framework is freed of the requirement for brushes and slip rings, which makes upkeep a part simpler than with DC motors.

Core Components and Design Principles

Cast press outlines in industrial-grade engines can handle the bumps and stuns that are common in intense work situations. Premium copper windings diminish resistance misfortunes as much as possible, which directly improves the efficiency of vitality utilize amid steady operation. Cutting edge separator frameworks keep internal parts secure from electrical issues and climate conditions. Course F separator (155°C) ensures against warm and has the best temperature rise properties. Exactness adjust is built into rotor plans to keep vibrations to a least. This amplifies the life of heading and brings down commotion outflows. You can utilize Direct-on-line (DOL), delicate starters, and variable frequency drives (VFD) to begin these engines, which implies they can be utilized with a wide range of control systems.

Operational Advantages in Industrial Settings

High consistency is accomplished by engines that work at center voltages in fabricating, handling, control, and automation. Their productivity scores are, as a rule, higher than IE3 measures, which implies that their commonsense vitality costs go down in a way that can be measured. Since they can handle a wide range of loads without losing execution, these engines are ideal for compressors, water pumps, breakers, cutting devices, and transportation gear. Offices with strict natural rules pick up from low commotion levels, and longer benefit life brings down the amount of possessions. Tall constancy comes from solid development and high-quality parts like SKF, NSK, and FAG orientation, which can be changed to fit the needs of a specific application. Motors that are made to work in intense conditions are particularly valuable in mining exercises, oil and gas offices, and water treatment plants. Since it is long-lasting, effective, and simple to keep up, it meets working needs that lower control alternatives can't meet cost-effectively. The chemical handling and control era businesses depend on these engines for imperative pump and compressor assignments where impromptu downtime can fetched a part of money.

How to Choose the Right Medium Voltage Induction Motor: Decision Support Framework

Defining Load, Voltage, and Operational Parameters

Accurate application assessment is the foundation for selecting a medium voltage induction motor. Control appraisals depend on stack sort, whether ceaseless or intermittent. Voltage must adjust with existing foundation, regularly 3 kV to 11 kV. Speed necessities such as 3000, 1500, or 1000 rpm ought to coordinate driven hardware. Natural conditions impact choice, counting surrounding temperatures from -20°C to +40°C and high-altitude derating over 1000 m. Security levels like IP55–IP65 address tidy and dampness introduction. Cooling strategies such as IC416 keep up warm soundness beneath overwhelming loads, guaranteeing dependable operation over requesting mechanical environments.

Key Selection Criteria for Industrial Applications

Power ranges between 185 kW and 1800 kW cover most mechanical needs, from pumps to overwhelming crushers. Compliance with IEC 60034 guarantees security and worldwide compatibility. Basic quality, winding materials, and bearing choice influence toughness and support recurrence. High-grade heading expand benefit life and decrease downtime. Effectiveness measures such as IE3 essentially lower vitality utilization, progressing lifecycle fetched execution. Beginning characteristics must coordinate application requests, particularly for high-inertia loads. Integration with delicate starters or variable recurrence drives empowers smooth acceleration, decreases electrical stretch, and ensures mechanical frameworks, making the medium voltage induction motor suitable for both constant and variable load operations.

Evaluating Warranty, Service Quality, and Certifications

Warranty coverage reflects manufacturer confidence, typically ranging from 12 to 24 months for a medium voltage induction motor. Service quality incorporates specialized bolster get to, parts accessibility, and reaction times for basic failures. Territorial benefit systems progress repair speed and decrease downtime. Certifications such as ISO 9001:2015 illustrate quality administration frameworks, whereas CE and CCC demonstrate compliance with worldwide and territorial guidelines. IEC congruity remains the key benchmark for specialized unwavering quality. Comprehensive documentation, counting execution bends and establishment guides, bolsters smooth integration and operation, guaranteeing buyers get both item quality and long-term benefit reliability.

Medium Voltage Induction Motor Procurement Process: A Step-by-Step Buying Guide

Budget Considerations and Total Cost of Ownership

The purchase price of a medium voltage induction motor is only part of total lifecycle cost. Energy consumption, installation, maintenance, and downtime risks must be considered. High-efficiency motors often deliver strong returns through reduced electricity usage, especially in continuous operations. Over 10–15 years, energy savings can offset higher initial costs within a few years. Maintenance expenses depend on component quality, with precision-balanced rotors and premium bearings extending service intervals. Motors equipped with monitoring points for vibration, temperature, and electrical parameters support predictive maintenance strategies, reducing unexpected failures and optimizing long-term operational efficiency.

Evaluation of Suppliers and Manufacturing Skills

Reliable suppliers demonstrate capability through certified facilities, transparent quality control, and stable production capacity. Precision machining of shafts and bearing seats ensures long-term performance of a medium voltage induction motor. Skilled assembly guarantees correct alignment and mechanical integrity. Comprehensive testing validates performance across load conditions before delivery. Supply chain stability affects lead times and spare parts availability, while geographic proximity influences logistics efficiency. Customer references from similar industries provide valuable insight into real-world performance and service support, helping buyers select suppliers that combine technical expertise with dependable delivery and after-sales service.

Customization Options and Technical Specifications

Standard designs suit most applications, but customization enhances performance in specialized conditions. Upgraded bearings handle higher loads, while modified shafts enable direct coupling. Enhanced protection addresses corrosive or extreme environments. Electrical compatibility requires voltage tolerance within ±5% and correct frequency alignment. Terminal box positioning affects installation convenience. Documentation such as material certificates and performance reports supports compliance and integration. Lead times typically range from 8–12 weeks for standard units and 14–18 weeks for customized motors. Planning procurement schedules ensures timely delivery and smooth project execution for any medium voltage induction motor installation.

Maintenance, Troubleshooting, and Performance Optimization of Medium Voltage Induction Motors

Routine Inspections and Lubrication Protocols

Regular maintenance extends the life of a medium voltage induction motor and prevents unexpected failures. Monthly inspections check for abnormal noise, vibration, or temperature rise. Quarterly tasks include tightening connections, verifying airflow, and inspecting external conditions. Annual checks involve insulation resistance testing, bearing condition evaluation, and alignment verification. Proper lubrication following manufacturer guidelines prevents overheating or premature wear. High-quality bearings require precise grease management. Cooling systems must be kept clean to maintain airflow efficiency. Monitoring ambient conditions ensures operation within design limits, supporting consistent performance and reducing the risk of thermal or mechanical damage.

Fixing Common Problems in the Workplace

Excessive vibration often indicates mechanical issues such as worn bearings, rotor imbalance, or foundation instability. Vibration analysis tools identify fault frequencies, enabling targeted corrective actions. Electrical faults appear as overheating, noise, or protective trips. Insulation testing detects winding degradation early, while current imbalance may signal supply or winding issues. Thermal imaging identifies hotspots in connections or windings. Performance decline may result from contamination, restricted airflow, or increased friction. Comparing current data with baseline values recorded during commissioning helps distinguish normal aging from critical faults, ensuring timely intervention and maintaining medium voltage induction motor efficiency.

Energy Efficiency Enhancements and Predictive Monitoring

System-level improvements enhance the efficiency of a medium voltage induction motor beyond its base design. Variable frequency drives optimize speed according to load, reducing energy waste in pumps and fans. Power quality improvements minimize harmonics and reactive power losses. Proper motor sizing prevents inefficiencies caused by underloading or overloading. Predictive monitoring technologies use vibration, temperature, and current data to detect faults early. Maintenance shifts from reactive to planned strategies, reducing downtime and costs. Data analysis reveals recurring issues, enabling long-term reliability improvements and ensuring optimal operational efficiency across industrial systems.

Comparing Medium Voltage Induction Motors with Alternative Motor Types: Insights for Better Procurement Decisions

Medium Voltage Versus Low and High Voltage Motors

Low-voltage motors suit applications below 500 kW but require large cables at higher power levels. A medium voltage induction motor efficiently handles 185 kW to 1800 kW with lower current and reduced cable size, making it ideal for long-distance power transmission. High-voltage motors above 11 kV serve specialized high-power applications but require complex infrastructure and safety systems. Medium voltage solutions provide a balance between performance and cost. They deliver high power within manageable system complexity, making them the preferred choice for most industrial installations where space, cost, and efficiency must be optimized.

Synchronous Motors and DC Motor Comparisons

Synchronous motors offer precise speed control and power factor correction but involve higher complexity and maintenance. Induction designs are simpler, more robust, and widely used. Modern drives allow a medium voltage induction motor to achieve variable speed control comparable to DC motors without brushes or commutators. This reduces maintenance and increases reliability. Efficiency improvements in IE3-rated induction motors narrow historical performance gaps. Simplified construction lowers failure risks and spare parts needs, making induction motors a practical and cost-effective choice for most industrial applications.

Starting Method Evaluation and Selection

Direct-on-line starting is simple and cost-effective, but requires systems capable of handling high inrush currents. Soft starters reduce electrical and mechanical stress through controlled voltage ramping. Variable frequency drives provide precise speed control and maximum energy savings, especially for variable load applications. Although VFDs require higher investment, they improve process control and reduce operational costs over time. Selecting the appropriate starting method depends on grid capacity, load characteristics, and budget considerations. Proper configuration ensures reliable startup, protects equipment, and optimizes performance of the medium voltage induction motor in diverse industrial environments.

Conclusion

To find the right medium voltage induction motor, you have to balance technical requirements, price limits, and the supplier's skills. Motors that work with 3 kV to 11 kV and 185 kW to 1800 kW can handle most industrial tasks well if they are chosen and kept correctly. This guide explained important evaluation criteria, how to buy things, how to keep them in good shape, and how to use comparison studies to help people make smart choices. To be successful, you need to clearly define what you need, carefully evaluate suppliers, and commit to routine repair methods that protect your equipment investments and boost operating availability and efficiency.

Frequently Asked Questions

1. How do I select the correct motor size for my application?

Match the medium voltage induction motor power level to the needs of the equipment it drives, taking into account the job cycle and load factors. For tasks that need 400 kW of steady usage, motors that are rated correctly and have the right service factor are needed. Consulting driven equipment specs and involving application engineers ensures the right size to avoid failures or loss of efficiency too soon.

2. What warranty and after-sales support should I expect?

A standard guarantee covers problems with the way the product was made and materials that don't work for 12 to 24 months. Good suppliers offer expert help by phone and email, and they promise to respond within a certain amount of time. Access to spare parts and repair technicians varies by seller, which makes these factors important criteria for evaluation during procurement. Make sure you understand the guarantee terms and the level of help before you commit to buying.

3. Can motors be customized for specific operational requirements?

Some customization choices are better bearings, better environmental protection, changes to the shaft, and different paint finishes. Specifications for voltage and frequency can be changed to fit the power source in a certain area. The placement of the terminal box and the way cables enter the system take into account installation limitations. Talk about your customization wants early on in the buying process, since changes can affect prices and lead times.

Partner with XCMOTOR for Reliable Industrial Motor Solutions

XCMOTOR has a wide range of medium voltage induction motor options designed for tough industrial uses. Our motors, which range from 3 kV to 11 kV and 185 kW to 1800 kW, give your processes the dependability, speed, and efficiency they need. We know the problems that companies in the industrial, energy, and process industries face when they try to buy things. That's why we give you clear technical advice throughout the whole buying process. Our focused support team answers questions quickly, even on the weekends, so you always get help when you're looking at specs or fixing problems with how things work. The strict quality standards at Shaanxi Qihe Xicheng Electromechanical Equipment Co., Ltd. are backed up by ISO 9001:2015 approval and IEC compliance. We get high-quality bearings from SKF, NSK, and FAG based on what you want, and we offer unique options that meet your exact needs. Email our application experts at xcmotors@163.com to talk about the details of your project. As a seller of medium voltage induction motors with a lot of experience, we can help you meet your 2026 procurement goals by giving you thorough quotes, technical documentation, and delivery schedules.

References

1. Chapman, Stephen J. Electric Machinery Fundamentals, 5th Edition. McGraw-Hill Education, 2012.

2. Boldea, Ion and Nasar, Syed A. The Induction Machines Design Handbook, 2nd Edition. CRC Press, 2010.

3. Bonnett, Austin H. "Analysis of the Impact of Pulse-Width Modulated Inverter Voltage Waveforms on AC Induction Motors." IEEE Transactions on Industry Applications, Vol. 32, No. 2, 1996.

4. Stone, Greg C., et al. Electrical Insulation for Rotating Machines: Design, Evaluation, Aging, Testing, and Repair, 2nd Edition. Wiley-IEEE Press, 2014.

5. Nailen, Richard L. "Understanding and Applying Motor Nameplate Information." IEEE Industry Applications Magazine, Vol. 7, No. 3, 2001.

6. International Electrotechnical Commission. IEC 60034: Rotating Electrical Machines - Part 1: Rating and Performance. IEC Standards, 2017.
