200 hp 3 phase motor
Frequency conversion range:30hz~50hz，5hz~70hz，5hz~100hz
Power range：0.75-1000kW
Protection level：IP55
Application:are suitable for driving various mechanical equipment that require continuous and frequent forward and reverse rotation, such as steel rolling, lifting, transportation, machine tools, printing and dyeing, papermaking, chemicals, textiles, pharmaceuticals, etc., and can be used with various domestic and foreign variable frequency power supplies.
Advantage:high efficiency, wide speed range, high precision, stable operation, and easy operation and maintenance.
Certificate:installation dimensions comply with International Electrotechnical Commission (IEC) standards.
Others: SKF, NSK, FAG bearings can be replaced according to customer requirements.
- Product Description

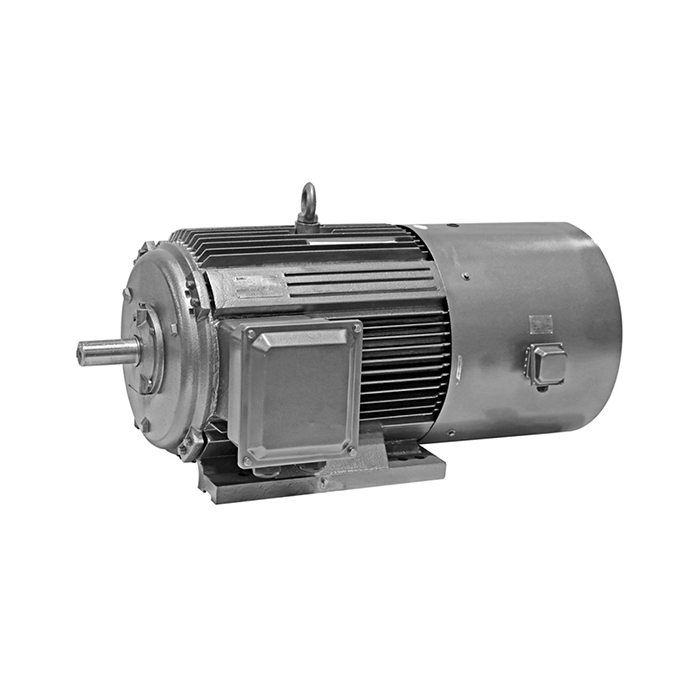

200 HP 3 Phase Motor | YVFE4 Series Variable Frequency Drive Motor for Heavy-Duty Industrial Use
The 200 hp 3 phase motor in the YVFE4 series is built for industrial equipment that demands continuous operation, variable speed control, and reliable thermal performance. It operates across selectable frequency ranges of 5–100 Hz, carries IP55 protection with a cast iron casing, and meets IE4 energy efficiency standards. Shaanxi Qihe Xicheng Electromechanical Equipment Co., Ltd. supplies this motor through a network of 30+ established manufacturers, including ABB, Siemens, and Wolong.
Technical Specifications
Parameter | Specification |
Series | YVFE4 |
Rated Power | 200 hp (approx. 150 kW) / Range: 0.75–1000 kW |
Frequency Conversion Range | 30–50 Hz / 5–70 Hz / 5–100 Hz |
Protection Level | IP55 |
Insulation Class | Class F |
Energy Efficiency Grade | IE4 (GB18613-2020 Level 2) |
Cooling Method | IC411 |
Casing Material | Cast Iron |
Installation Standard | IEC / DIN42673 |
Bearings | SKF / NSK / FAG (selectable) |
Conductor Material | Enameled Round Copper Wire |
Core Material | Silicon Steel Sheets |
Technical Design
The YVFE4 series meets IE4 efficiency at the GB18613-2020 Level 2 standard, delivering 2%–3% higher efficiency than YE3 series equivalents across a 50%–100% load range. This makes it particularly useful in applications where load fluctuates during production cycles.
The cast iron casing provides IP55 protection against dust and water ingress, suitable for outdoor and wet process environments. IC411 forced-air cooling maintains stable operating temperatures during extended run cycles without requiring additional thermal management.
Enameled round copper wire and precision-stamped silicon steel laminations are used throughout to reduce electromagnetic interference and limit iron losses. These material choices also contribute to lower vibration and noise levels during operation.
Production Process
Silicon steel laminations are precision-stamped and stacked to minimize iron losses. Enameled copper wire is wound to specification and vacuum-impregnated with insulating varnish for moisture resistance.
Rotor balancing is performed dynamically to reduce vibration at rated speed. Bearings from SKF, NSK, or FAG are press-fitted under controlled force. Final assembly is followed by electrical testing that covers insulation resistance, no-load current, and vibration levels before shipment.
Industry Applications
This 200 hp 3 phase motor is suited for equipment requiring continuous duty, frequent starts, and forward/reverse switching.
· Steel & Metals: Rolling mills, conveyor drives, lifting mechanisms
· Manufacturing: CNC machine tools, compressors, pumps
· Textiles & Printing: Dyeing machines, fabric transport lines
· Chemicals & Pharmaceuticals: Mixers, agitators, process pumps
· Paper & Packaging: Paper machine drives, winding systems
The motor is compatible with both domestic and international variable frequency drives across the three selectable frequency ranges.
CCustomization Options
The YVFE4 series supports application-specific configuration in the following areas:
· Bearing brand: SKF, NSK, or FAG based on your load profile and environment
· Dimensional adjustments: Shaft length, mounting footprint, and terminal box position
· Frequency range: 30–50 Hz, 5–70 Hz, or 5–100 Hz depending on your drive setup
· Shipping method: Sea, air, land, or combined transport arranged to your delivery schedule
If your application has requirements outside standard catalog options, Contact Us with your specifications and we will advise on the most suitable configuration.
Certifications
Motors supplied through Shaanxi Qihe Xicheng hold the following certifications:
· CCC and CE
· ISO9001 International Quality System
· Ministry of Railways CRCC
· CQC Quality Management System
· ZDHY Environmental Management System
· China Energy Saving Production Certification
· UL and GOST
Installation dimensions comply with IEC and DIN42673 standards.
Why Work With XCMOTOR?
Shaanxi Qihe Xicheng operates with 20+ years of experience in power equipment sourcing. The supplier network covers 30+ manufacturers including ABB, Siemens, Wolong, NEC, SIMO, and XEMC. Production is managed through a SAP factory management system for order tracking and accuracy.
Pre-sales and after-sales technical support is available, including weekend response. Brand and model recommendations are provided based on your actual application requirements rather than catalog defaults.
FAQ
Q: What frequency ranges does the YVFE4 200 hp motor support?
A:Three ranges are available: 30–50 Hz, 5–70 Hz, and 5–100 Hz. Select the range that matches your VFD setup.
Q: Is this motor compatible with third-party VFDs?
A: Yes. The YVFE4 series is compatible with various domestic and international variable frequency drives.
Q: What insulation class does the motor use?
A: Class F insulation, suitable for continuous heavy-load operation with high heat resistance.
Q: Can I request a specific bearing brand?
A: Yes. SKF, NSK, and FAG are all available. Specify your preference when placing an order.
Q: What certifications does the motor carry?
A: CCC, CE, ISO9001, CQC, UL, GOST, CRCC, and China Energy Saving, among others.
Q: How are lead time and shipping arranged?
A: Lead time and shipping depend on order quantity and destination. Sea, air, land, and combined transport options are available. Contact us with your requirements for a specific plan.
Contact Us
Send your specifications or quote request for a 200 hp 3 phase motor to XCMOTORs@163.com">xcmotors@163.com. Our team will follow up with pricing and configuration options.
