The installation, load matching, and control system implementation of an IE4 induction motor must be perfect in order to achieve maximum efficiency. When loaded between 75% and 100% of their stated capacity, kept at the correct operating temperatures, and matched with variable frequency drives, these premium efficiency motors provide outstanding performance. Consistent energy efficiency is ensured throughout the operating lifetime of smart motors via regular maintenance plans and smart motor control systems.

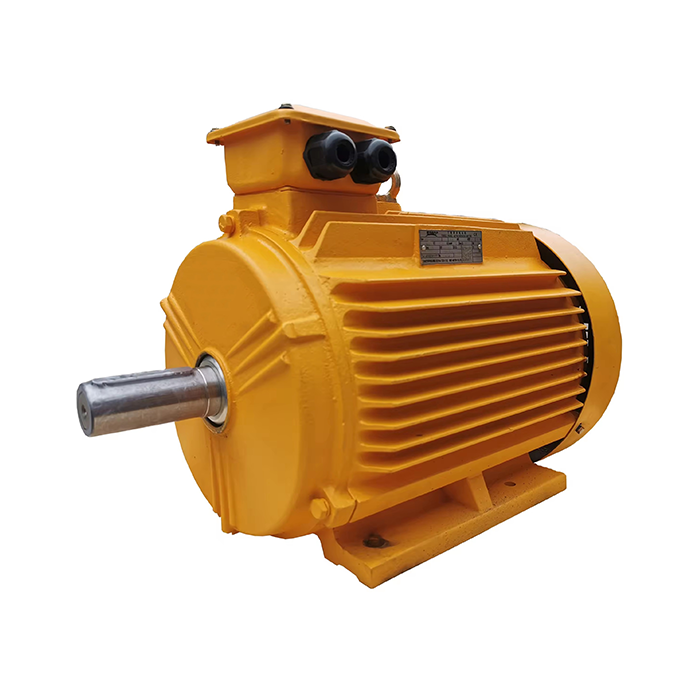

Series：YE4
Frame number: 80-450
Power range：0.75-1000kW
Protection level：IP55
Energy efficiency class: IE4
Voltage range: 380V,400V,415V, 660V，etc.
Application:can be used in various fields of the national economy, such as machine tools,water pumps,fans,compressors,and can also be used in transportation, mixing, printing, agricultural machinery, food and other occasions that do not contain flammable, explosive or corrosive gases.
Certificate: international standard IEC60034-30 ""Efficiency Classification of Single-speed Three-Phase Squirrel Cage Induction Motors"".
Advantage:The high quality of the electric motor guarantees high operational reliability.
Others: SKF, NSK, FAG bearings can be replaced according to customer requirements.
Understanding IE4 Motor Technology and Efficiency Standards
The Worldwide Electrotechnical Commission (IEC) established the IE4 productivity level as part of the IEC 60034-30 standard, speaking to the most elevated level of engine effectiveness currently available. These engines accomplish productivity appraisals up to 96% at full stack, altogether outperforming their IE3 predecessors.
IE4 engines utilize progressive electromagnetic acceptance standards combined with accurate design. The stator windings highlight optimized copper material and moved forward opening plans that minimize electrical misfortunes. In the meantime, the rotor development utilizes high-grade materials and exact fabricating resiliences that diminish mechanical contact and electromagnetic losses.
Energy effectiveness in these engines stems from a few key plan enhancements. Improved attractive steel grades decrease center misfortunes by up to 15% compared to standard engines. Progressed cooling frameworks keep up ideal working temperatures, preventing effectiveness degradation due to warm buildup. Premium bearing frameworks from producers like SKF, NSK, and FAG diminish mechanical misfortunes while extending operational life.
The productivity course assignment straightforwardly impacts your operational costs. Considers appears that IE4 engines expend 15-25% less energy than IE2 engines under identical working conditions. This translates to a considerable toll on investment funds over the motor's 15-20 year ordinary lifespan.
Core Applications for Maximum IE4 Motor Efficiency
Pumping Systems and Water Management
Pumping applications represent one of the most effective uses for IE4 technology. These motors excel in centrifugal pump applications where consistent torque delivery matches the pump's operational requirements. Variable frequency drives paired with ie4 induction motors create highly efficient pumping systems that adjust speed based on demand.
Water treatment facilities benefit tremendously from IE4 motor implementation. The motors' ability to maintain high efficiency across varying load conditions makes them ideal for applications where flow rates fluctuate throughout the day. Municipal water systems report energy savings of 20-30% when upgrading to IE4 motor-driven pumps.
HVAC and Climate Control Systems
Commercial HVAC frameworks utilizing IE4 engines accomplish momentous efficiency gains through optimized fan and blower operations. The motors' predominant control characteristics diminish receptive control utilization, bringing down by and overall electrical demand. Building administration frameworks can be coordinated with IE4 engine controllers to make responsive climate control networks.
Refrigeration compressors fueled by IE4 engines illustrate uncommon execution in both commercial and mechanical applications. The motors' steady torque characteristics guarantee steady compressor operation while minimizing voltage spikes amid startup cycles.
Manufacturing and Process Equipment
Machine instrument applications advantage from IE4 motors' exact speed control capabilities. The engines give steady execution over changing stack conditions, essential for keeping up with manufacturing resiliences. Car get together lines utilizing IE4 motor-driven transport frameworks report moved forward unwavering quality and decreased support requirements.
Process control hardware, including blenders, fomenters, and fabric, takes care of frameworks to accomplish ideal execution with appropriately measured IE4 engines. The motors' capacity to keep up effectiveness under shifting stack conditions makes them especially reasonable for pile handling operations.
Renewable Energy Integration
Wind turbine pitch control systems employ IE4 motors for precise blade angle adjustments. The motors' high efficiency contributes to overall turbine energy output while their robust construction withstands harsh environmental conditions. Solar tracking systems also benefit from IE4 motor precision and reliability.
Energy storage systems utilize IE4 motors in battery cooling applications and mechanical energy storage devices. The motors' efficiency characteristics align perfectly with renewable energy systems' sustainability objectives.
Agricultural and Food Processing
Irrigation systems powered by IE4 motors deliver consistent water pressure while minimizing energy consumption. The motors' IP55 protection rating ensures reliable operation in agricultural environments where dust and moisture present ongoing challenges.
Food processing equipment, including mixers, conveyors, and packaging machinery, benefits from IE4 motors' hygienic design features. The motors' smooth surface finishes and sealed construction prevent contamination while maintaining operational efficiency.
Transportation and Logistics
Material handling systems in distribution centers utilize IE4 motors for conveyor belts, sorting equipment, and automated storage systems. The motors' quick response characteristics support high-throughput operations while maintaining energy efficiency.
Railway applications employ ie4 induction motors in auxiliary systems, including ventilation, lighting, and door operation mechanisms. The motors' robust construction and high efficiency make them ideal for demanding transportation environments.
Optimization Strategies for IE4 Motor Performance
Achieving the most extreme proficiency from IE4 engines requires efficient optimization over different operational parameters. Stack coordinating speaks to the most basic calculation influencing engine productivity. Working engines between 75-100% of their appraised stack guarantees ideal effectiveness bends while anticipating untimely wear.
Variable recurrence drive integration opens up IE4 engine proficiency benefits. Present-day inverters with progressed control calculations maintain ideal slip proportions over changing speed requirements. Synchronous speed control anticipates energy squander while extending engine life expectancy through decreased mechanical stress.
Power calculation adjustment frameworks work synergistically with IE4 engines to minimize responsive control utilization. Introducing capacitor banks or dynamic control calculates rectification gadgets diminishes electrical demand charges while improving the overall system efficiency.
Cooling framework optimization keeps up steady engine execution. A legitimate ventilation plan avoids warm buildup that debases effectiveness and abbreviates component life. Standard cleaning of cooling balances and ventilation entries guarantees satisfactory warm dissipation.
Installation and Maintenance Best Practices
Proper establishment methods maximize IE4 engine productivity from introductory startup. An exact shaft arrangement avoids mechanical misfortunes while lessening bearing wear. Vibration examination amid commissioning distinguishes potential issues some time recently they affect performance.
Electrical associations require cautious consideration to minimize voltage drops and guarantee adjusted three-phase control distribution. Undersized conductors or destitute associations cause resistance heating that decreases in general system efficiency.
Preventive support plans protect IE4 engine's effectiveness through its operational life. Customary oil utilizing manufacturer-specified grades anticipates bearing weakening. Warm imaging reviews recognize creating issues some time recently they cause proficiency losses.
Motor control calibration guarantees ideal execution beneath changing operational conditions. Customary confirmation of control framework parameters keeps up exact speed and torque control. Program upgrades for clever engine controllers frequently incorporate productivity enhancements and improved symptomatic capabilities.
Economic Benefits and Return on Investment
IE4 motor investments typically achieve payback periods of 2-4 years through reduced energy consumption. Energy costs represent 95% of a motor's total lifecycle cost, making efficiency improvements highly impactful financially.
Utility rebate programs often offset initial IE4 motor costs. Many regions offer substantial incentives for high-efficiency motor installations as part of demand reduction initiatives. These programs can reduce upfront costs by 15-30%.
Reduced maintenance requirements contribute additional savings beyond energy efficiency. IE4 induction motors' superior construction quality extends service intervals while reducing unplanned downtime costs. Manufacturing facilities report 40-50% reduction in motor-related maintenance expenses.
Carbon footprint reduction provides environmental benefits that increasingly impact corporate sustainability goals. IE4 motors contribute measurably to greenhouse gas reduction targets while supporting LEED certification requirements.
Conclusion
IE4 engine innovation speaks to a noteworthy progression in mechanical proficiency, advertising considerable vitality reserve funds and operational benefits over differing applications. Appropriate execution requires consideration of stack coordinating, control framework integration, and support functions that protect ideal execution. The financial benefits expand past vitality reserve funds to incorporate diminished upkeep costs and advanced natural maintainability. Organizations contributing to IE4 engine innovation position themselves favorably for long-term operational victory while contributing to worldwide sustainability activities. Working with experienced providers like XCMOTOR guarantees getting to premium hardware and specialized skills vital for effective IE4 engine implementation.
Frequently Asked Questions
Q1: What efficiency improvements can I expect when upgrading from IE3 to IE4 motors?
A: IE4 engines ordinarily give 2-4 rate point proficiency changes over IE3 engines. This translates to a 15-25% diminishment in vitality utilization depending on your particular application and working conditions. The correct investment funds depend on stack variables, working hours, and nearby energy costs.
Q2: Can IE4 motors work with existing variable frequency drives?
A: Most present-day variable recurrence drives are consistent with IE4 engines. In any case, drive parameters may require alteration to optimize execution with the motor's progressed characteristics. We prescribe counseling with our specialized group to guarantee appropriate drive arrangement and maximum proficiency benefits.
Q3: What is the typical payback period for IE4 motor investments?
A: Payback periods ordinarily extend from 2-4 a long time depending on vitality costs, working hours, and engine utilization. Offices working engines persistently frequently see payback periods beneath 24 months. Our group can perform by point lifecycle fetched investigation to venture particular reserve funds for your application.
Partner with XCMOTOR for Premium IE4 Motor Solutions
XCMOTOR stands as your trusted ie4 induction motor supplier, delivering cutting-edge efficiency solutions that transform industrial operations. Our comprehensive product lineup spans 0.75kW to 1000kW power ranges, featuring advanced electromagnetic design and premium component integration.
Power equipment solutions with low energy consumption and great efficiency are what Shaanxi Qihe Xicheng Electromechanical Equipment Co., Ltd. is all about. For optimal performance and unmatched dependability, our IE4 motors use genuine components made by industry leaders, including SKF, NSK, and FAG bearings.
Choosing the correct motor calls for knowledgeable advice and assistance, and we get that. If you need assistance determining the best size and configuration for your motor, our engineering staff can do a thorough application study. You can be certain that your projects will remain on track thanks to our fast delivery, and you can have faith in your investment choices thanks to our 30-day return guarantee.
Ready to maximize your operational efficiency with premium IE4 motor technology? Contact our technical specialists today to discuss your specific requirements and discover how XCMOTOR's advanced motor solutions can transform your energy efficiency profile. Reach out to contact us at xcmotors@163.com and let us help you achieve your sustainability and cost reduction objectives.
References
1. International Electrotechnical Commission. "IEC 60034-30-1:2014 Rotating electrical machines - Part 30-1: Efficiency classes of line operated AC motors (IE code)." Geneva: IEC Publications, 2014.
2. European Commission. "Commission Regulation (EU) 2019/1781 laying down ecodesign requirements for electric motors and variable speed drives." Official Journal of the European Union, 2019.
3. Motor Decisions Matter Campaign. "Energy Efficiency and Motor Selection Guide for Industrial Applications." Consortium for Energy Efficiency, 2021.
4. ABB Technical Paper. "IE4 Synchronous Reluctance Motor Technology: Efficiency and Performance Analysis in Industrial Applications." ABB Motors and Drives, 2020.
5. Department of Energy. "Premium Efficiency Motor Selection and Application Guide." Office of Energy Efficiency and Renewable Energy, 2022.
6. IEEE Standards Association. "IEEE 112-2017 Standard Test Procedure for Polyphase Induction Motors and Generators." Institute of Electrical and Electronics Engineers, 2017.
