How to Maintain a 12 Swing Check Valve for Long Service

September 21, 2026

Maintaining a 12 swing check valve properly is one of the most practical ways to protect your piping system from backflow damage and unplanned downtime. These valves rely on a hinged disc mechanism that opens under forward flow and closes automatically when flow reverses. Over time, the disc, seat, and hinge pin experience wear, corrosion, and debris accumulation—especially in demanding applications like municipal water treatment, pump stations, and offshore fluid systems. A consistent maintenance routine keeps the valve performing at full capacity and dramatically extends its operational service life.

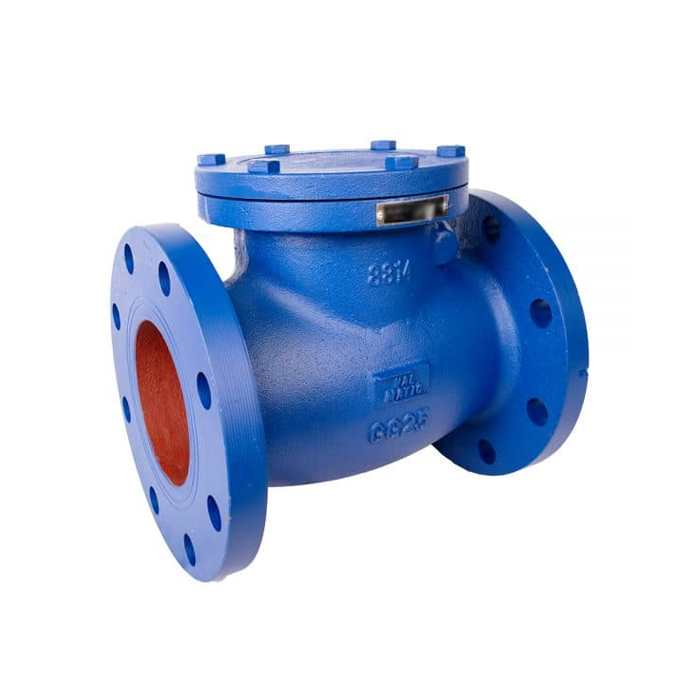

Series：H44
Diameter：DN20~DN600,
PN：16；25；40
Application specification： Design, manufacture:GB/T12236 Length of the structure:GB/T12221 Connecting flange: JB/T79 Valve inspection and test:JB/T9092

Understanding the Role and Common Issues of 12 Inch Swing Check Valves

A simple idea behind a 12 swing check valve: the disk swings open when fluid moves in the right direction, and it goes back to its seated position when flow stops or changes direction. It works well in a lot of different industrial settings, from freshwater pumping stations to seawater cooling systems, because it has a simple process.

Why These Valves Fail Prematurely

The main reasons for most failures are mechanical wear from moving the disk over and over, rust from fluids with harsh chemicals, and sediment buildup that stops the disk from sitting fully. In systems with a lot of pressure, water hammer—a sudden change in flow direction that causes a rise in pressure—can damage the disk or seat in a short amount of time. The Hydraulic Institute says that water hammer events cause pressure spikes that are up to ten times the normal operating pressure. This means that choosing the right valves and keeping them in good shape are very important for protecting pumps.

Material Sensitivity and Its Maintenance Implications

Ductile iron bodies work well in freshwater and neutral-pH environments, but they need to be checked for rust more often in saltwater or chlorine environments. Bodies made of SS316 stainless steel are much better at handling strong media, which is why they are the best choice for chemical process lines and seawater. EPDM disk seals are very resistant to damaging agents and changes in temperature, so they don't need to be replaced as often as standard rubber seals.

Step-by-Step Maintenance Procedures for 12 Inch Swing Check Valves

A structured approach to maintenance takes the guesswork out of keeping your 12 swing check valve working the way it was meant to. Here's how I do regular upkeep on these valves in a business setting.

Inspection: What to Look For at Each Service Interval

At the start of each inspection cycle, look at the disc's surface for scoring, pitting, or edge erosion. If the hinge pin has lateral play, it means the pin hole is worn. Look for lines or other wear patterns on the seat ring that could cause the closing contact to break. Most valve makers say that high-cycle systems should have visual inspections every three months and low-cycle systems should have inspections every six months. The H44 series 12 swing check valve has sealing surfaces and hinge pins that can be replaced. This means that you can get full sealing performance back without having to replace the whole valve body.

Cleaning Protocols That Preserve Valve Integrity

Over time, sediment and mineral layers build up on the disk and seat faces of the 12 swing check valve. This is especially true in city water systems with high levels of total dissolved solids. After isolating the valve, flush the inside with clean water and use a soft-bristle brush to clean the seat ring. When you use wire brushes on stainless steel, they leave scratches on the surface that make crevice rust happen faster. When used during planned shutdowns, a 5–10% citric acid solution breaks down calcium carbonate deposits that cause scale buildup without hurting metal surfaces or EPDM seals.

Lubrication and Component Replacement Schedule

In a swing check valve, the main parts that wear out are the hinge pin and its guides. Every six months, under regular use, grease the hinge pin with food-grade or system-compatible grease. To keep things from galling in places with high temperatures (above 80°C), use synthetic high-temperature grease. When compression loss falls below 15% of the original seal thickness, the disk seal should be replaced. This level of loss usually means that you can see leaking past the closed disk. The H44 line includes sizes from DN20 to DN600, which means that replacement parts are always accessible, no matter what diameter is installed.

Materials and Installation Best Practices to Support Maintenance

Choosing materials that work well together and installing the 12 swing check valve correctly from the start lowers the amount of maintenance that needs to be done over the course of its life.

Matching Material to Application Environment

Most municipal and industrial freshwater uses can be handled well by ductile iron bodies with ratings between PN16 and PN25. For oil and gas pipelines offshore or desalination plants on the coast, bodies made of SS316 or duplex steel with EPDM seals offer the corrosion resistance needed to keep the seals' integrity over long periods of time. The H44 line has pressure values from PN16 to PN40 and allows flange connections according to JB/T79. The structure length meets GB/T12221 standards, which are the same for projects in both the United States and other countries.

Installation Orientation and Torque Management

When installing a swing check valve, always do it horizontally unless the maker says it can be installed vertically with upward flow. When installed on a vertical downward-flow line, the disk can hang open all the time, which wears out the hinge pins faster than they should. Follow a cross-pattern sequence and torque to the gasket manufacturer's standard when tightening flange bolts. Do not go over the maximum bolt rating. When you over-torque, the flange face gets distorted and tiny holes appear in the seal at the seat. The repair interval can be extended by 30–40% if the valves are put correctly instead of having the flanges misaligned.

How Swing Check Valves Compare to Other Check Valve Types in Maintenance Terms

Simplicity, Reliability, and Reduced Wear in Large-Bore Applications

Procurement engineers can make better decisions that balance initial cost with long-term service needs when they know how to maintain different types of valves. When the pipe diameter is bigger, 12 swing check valves are easier to maintain than lift check valves. In lift check valves, the disk has to move against gravity along a directed stem. This causes more friction wear in high-cycle situations. In a swing check valve, the flexible disk moves along an arc path with little resistance, which makes it last longer in the same working conditions. When it comes to bigger bore sizes, swing check valves close more reliably than ball check valves. This is because ball check valves tend to get dirt stuck on the seating surface in DN200 and above installs, which means they need to be cleaned by hand more often. Also, manual swing check valves are easier to use than automatic or spring-assisted versions. Since there are no actuators or spring systems, there are fewer parts that can break on their own, and troubleshooting is still easy, even for repair teams that don't have special tools.

Best Practices for Procuring High-Quality 12 Inch Swing Check Valves

Certification Verification, Material Traceability, and Production Visibility

Choosing where to buy check valves has a direct effect on the total cost of ownership over the life of a project. To find a good 12 swing check valve provider, you need to look at their licenses, test records that are written down, the ability to track materials, and how reliable their delivery is.

Here are the core procurement criteria that consistently align with low maintenance overhead and long service life:

Certifications on file: Check for API 6D, ISO 9001, CE, and NACE MR-0175 certifications on file. These can be checked against public records and show that the design of the valve and the way it was made meet standards around the world.
Material traceability: Reliable manufacturers give ASTM-certified reports on the raw materials they use and records of hydrostatic tests according to API 598 for each batch. This keeps lower-quality alloys from being used instead, which is known to happen when buying in bulk.
Flange standard flexibility: Projects in the Middle East, Southeast Asia, and Africa often need to meet both ASME B16.5 and EN 1092 standards. Make sure the supplier can do both within the normal lead time.

All of these factors work together to lower the costs of fixing problems after installation and make it easier to check the work. Bulk orders of 100 units or more benefit from SAP-based production tracking, providing real-time visibility into manufacturing progress. The H44 series 12 swing check valve is made according to GB/T12236 standards, with inspection and testing per JB/T9092, ensuring full traceability.

Conclusion

If you inspect, clean, lubricate, and replace parts of a 12 check valve on a regular basis, it will protect your pumps, compressors, and pipeline infrastructure from backflow damage and expensive emergency repairs. Three things can have a big effect on how long a valve lasts: making sure the material of the valve matches the chemistry of the fluid, installing it properly, and getting it from a qualified manufacturer with test records. When the procurement and repair teams agree on these basic points, valve problems stop being common and start being truly rare.

FAQ

1. What is the typical service life of a swing check valve?

Well-made swing check valves rated for PN16 to PN40 work can last more than 100,000 cycles with regular care like checking them every three months, lubricating them every six months, and replacing the seals when they wear out. The actual service life depends on how rough the fluid is, how often it cycles, and the operating pressure.

2. How do I know when the disc seal needs replacement?

During a hydrostatic seat test, leaks past the closed disk that can be measured is the most accurate sign. From what you can see, a realistic field barrier is compression loss of 15% or more from the original seal thickness.

3. Can a 12 swing check valve handle seawater service?

Yes, as long as the disk seal is made of EPDM and the body is made of SS316 or alloy steel. Ductile iron bodies shouldn't be exposed to salt all the time without an extra covering on the inside.
