How to Import IC611 Motors: A Practical B2B Guide

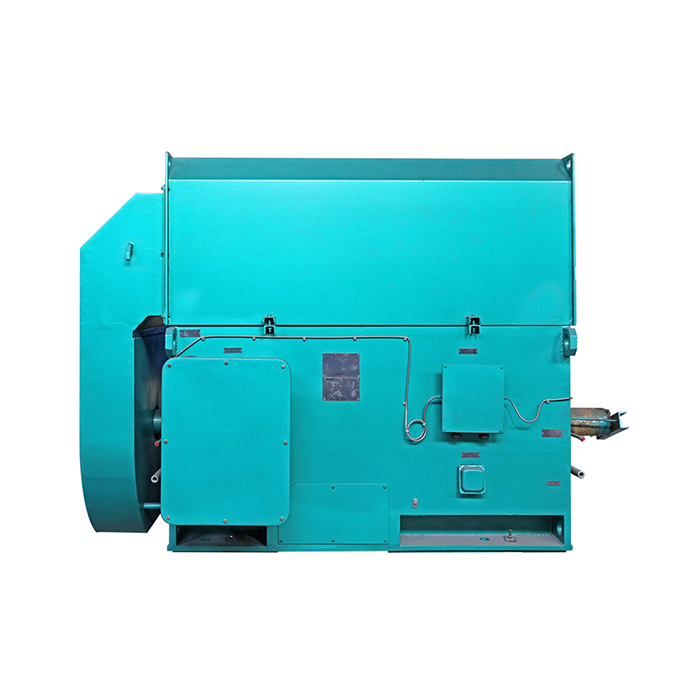

Importing high-voltage industrial motors demands careful planning and technical expertise. The IC611 motor, featuring a fully enclosed fan-cooled design with integrated heat exchanger technology, represents a specialized cooling solution for demanding industrial environments. This guide walks you through the entire import process, from understanding technical specifications to ensuring seamless delivery and after-sales support. Whether you're sourcing equipment for manufacturing facilities, energy plants, or automation systems, this practical roadmap helps you navigate international procurement with confidence and precision.
Series：YXKK
Protection level：IP54
Voltage range：3000V±5%,3300V±5%,6000V±5%,6600V±5%,10000V±5%,11000V±5%
Power range：200-3150 kW
Application：fans, water pumps, compressors, crushers, cutting machine tools, transportation machinery, etc.
Advantage：high efficiency and energy saving, low noise, small vibration, long service life, easy installation and maintenance.
Standard: This series of products complies with JB/T 12730 and JB/T 12729 standards.
Others： SKF, NSK, FAG bearings can be replaced according to customer requirements.
Understanding IC611 Motors – Specifications and Applications
Core Technical Specifications
Voltage compatibility is one of the most important things to look at when importing motors for business use. The energy ranges for these motors are 3000V±5%, 3300V±5%, 6000V±5%, 6600V±5%, 10000V±5%, and 11000V±5%. This means they can work with a wide range of power infrastructure needs in different buildings. The range of power is from 200 kW to 3150 kW, so it can be used for a wide range of tasks. All units meet the requirements of JB/T 12730 and JB/T 12729, which makes sure that the production process is consistent and that rules are followed. The IP54 rating provides strong defense against dust and water splashes, making it suitable for most industrial settings. The efficiency class IE3 designation guaranties top performance while cutting energy use by up to 15% compared to standard efficiency models.
Industrial Applications Across Sectors
The performance of these motors is effective in a wide range of industrial settings. In factories, they run water pumps that keep cooling systems and process flows going, which is necessary for output to keep going. The consistent torque delivery these motors provide is important for pneumatic systems that use compressors. High starting power and longevity are built into crusher equipment that is used in digging and processing materials. Cutting machines need precise speed control, which is possible thanks to the motor's advanced rotor balancing. Low-vibration operation is important for transportation machinery like conveyor systems and material handling equipment because it makes mechanical parts last longer. Fans in ventilation and exhaust systems work all the time with little upkeep because they are built to last and are designed to cool well.
Durability and Maintenance Considerations
The cast iron frame design makes it very resistant to physical stress and weather factors, which greatly increases the useful life. Precision-balanced rotors keep vibrations to a minimum, which protects bearings and other equipment that is connected to them. You can choose from high-quality bearings made by SKF, NSK, and FAG based on the needs of your application and how often you need to maintain them. The heat exchanger's shape makes it easier for heat to escape, which keeps it from getting too hot during long operation cycles. Compared to traditional cooling designs, regular inspection times can be shortened. This lowers the cost of upkeep work and production stops.
Key Considerations When Importing IC611 Motors
Regulatory Compliance and Certification Requirements
According to US customs rules, goods must have the right paperwork, such as commercial invoices, packing lists, and certificates of origin. For electric motors, import duties usually fall between 2.5% and 6.5%, but the exact rates depend on the voltage classification and the country of origin. Harmonized Tariff Schedule code 8501.64.00 is usually used for motors with this amount of power. CE certification proves that the product meets European safety standards, while CCC marking shows that it has been approved by Chinese regulators. The manufacturer's ISO 9001:2015 approval shows that the quality control systems are well-established. Reports from insulation resistance tests, voltage survive tests, and temperature rise tests should all be included in the paperwork for electrical safety tests. Depending on where the installation is going to be done and the rules in that area, environmental compliance documentation may be needed.
Supplier Evaluation and Selection Criteria
Picking the right maker for the ic611 motor has a direct effect on how reliable the equipment is and how good the long-term help is. Making sure the supplier can actually make the product is important. Some suppliers are just middlemen. Ask for factory audit records or third-party inspection papers that prove the factory can make the goods and has quality control systems in place. Technical support should include instructions in English, help with troubleshooting, and easy access to extra parts. The warranty usually lasts for 12 months from the date of commissioning or 18 months from the date of shipment, whichever comes first. When replacement costs are higher than the premium payments, extended warranty options should be thought about for important applications. References from current customers in similar industries are a great way to find out how well a supplier really works and how quickly they respond to issues.
Logistics Planning and Lead Time Management
Production lead times for custom voltage configurations usually have lead times of 6 to 10 weeks, but this depends on how complicated the specifications are and how many are ordered. It takes about 3 to 5 weeks for ocean freight to get from big Asian ports to places in the United States. If you need something quickly, you can use air freight, but the costs go up a lot for motors in this weight range. Once shipments get to their final ports, the customs clearance process takes an extra 3 to 7 business days. Transport to the final installation sites should be set up over land with carriers who know how to handle heavy industrial equipment. Total procurement processes usually last between 12 and 16 weeks, from placing an order to delivery on-site, as long as everything is organized well.
Comparing IC611 Motors with Alternatives – Making the Right Choice
IC611 Versus IC616 Cooling Systems
The IC616 cooling method uses a similar air-to-air heat transfer design, but instead of using fans on shafts, it uses forced exterior ventilation. There are benefits to this design in places where the temperature of the air changes a lot or where airborne contaminants can clog heat exchangers. IC616 systems, on the other hand, need external power sources for fans and control integration, which makes electrical installs more difficult. The IC611 motor has simpler electrical connections and built-in cooling that turns on by itself while it's working. IC611 designs still need less maintenance because they have fewer visible parts that need to be fixed. The two ways have similar performance qualities when they are used normally, so the choice comes down to the installation setting and the infrastructure that is already in place.
IC611 Compared to IC666 Configurations
Two types of forced ventilation are used to cool the IC666: separate motor cooling circuits and heat exchanger fans that work on their own. This complex setup gives better cooling even when the temperature is very high or when the load is constant at full capacity. The extra complexity makes the starting cost of the equipment 15% to 25% higher and needs more complicated control systems. For most industrial uses that stay within normal temperature ranges, the IC611 motor provides sufficient thermal management at a lower overall cost. The IC666 cost may be worth it for operations in tropical areas, foundries, or places with limited air flow. Comparing how much energy different systems use shows that IC611 systems use about 8 to 12 percent less extra power because the loads on the external fans stay lower.
Evaluating Overall Value Proposition
Cost-effectiveness includes more than just the price of the motor itself; it also includes the cost of installation, the amount of energy it uses, and the upkeep it needs over its lifetime. The IC611 motor is a good compromise between how much it costs up front and how reliable it is in the long run. Making the installation easier cuts down on the time and money needed for approval. Every year, energy savings from IE3 efficiency classification grow, and any extra cost over standard efficiency options is usually recouped within 18 to 24 months of operation. When vibrations are less than 2.8 mm/s RMS, they protect connected equipment and make it easier to maintain driven machinery. At a distance of one meter, noise levels usually stay below 85 dB(A), which helps with safety in the workplace. With proper upkeep, the service should last more than 15 years, giving you a great return on your investment.
Step-by-Step Process to Import IC611 Motors Smoothly
Defining Technical Requirements
Start by writing down the exact voltage needs that match your building's electrical system. Make sure you know what power rating you need by figuring out the load characteristics of the driven equipment, such as the starting torque, operating speed, and duty cycle patterns. List the mounting configuration, such as whether it should be horizontal or vertical. Find out things about the environment, like the range of temperatures, the height above sea level, and whether the area is exposed to dust or water. Find out if there are any special needs, like how to place an encoder, how to paint in corrosive settings, or guarantees that the product is explosion-proof. Make a detailed specification sheet that suppliers can use as a guide when they are making quotes. This will help keep communication clear and ensure that the proposals are correct for the IC611 motors.
Supplier Engagement and Quotation Review
Get in touch with more than one manufacturer to review what they have to offer for the ic611 motor and set price standards that are fair. Give all of the technical details to each possible supplier, along with an estimate of the annual volume needs if you plan to make more than one purchase. Ask for detailed quotes that break down the costs of the equipment, the cost of packaging, and the delivery terms. Assess offers based on how well they meet technical requirements, their total landed cost, their lead time promises, and their guarantee coverage. Set up expert meetings via video chat to go over any questions about the specifications and get an idea of how good the supplier's engineering skills are. Ask for examples of standard paperwork, such as test results and quality certificates, to make sure that the standards meet your needs.
Contract Negotiation and Order Placement
Talk about payment terms that protect both the buyer and the supplier. Usually, a 30% deposit is required, and the remaining 70% is due before the shipment, along with inspection documents. Set out inspection rights that allow a third party to check before the final payment is released. Define the standards for packing that will protect ship freight adequately. To make Incoterms clearer, use the terms DAP (Delivered at Place) or CIF (Cost, Insurance, and Freight), which are common for importing industrial equipment. Include penalty terms for supply delays that last longer than the agreed-upon wait times. Attach technical specs to the contract and make sure that any changes need official written approval. Make sure that spare parts are available and that you understand how much they cost for future maintenance needs.
Logistics Coordination and Customs Clearance
Hire a freight forwarder who has experience moving heavy industrial equipment and can handle the paperwork quickly. Talk to your customs broker about harmonized tariff group codes to make sure that the duty estimates are correct. Make the business statement, packing list, bill of lading, and certificates of origin that are needed for importation. Get cargo insurance that covers the full cost of replacing the goods plus the cost of shipping them. Track the progress of the package as it travels across the ocean and make sure it gets through customs on time when it arrives. Plan for delivery to the site and make sure the right unloading equipment is on hand for when the motor comes. Before accepting delivery and releasing the final payment, make sure there were no damage during transport by doing a receiving inspection.
Troubleshooting and After-Sales Support for IC611 Motors
Installation Best Practices
In order to prepare the foundation, you need rigid mounting surfaces that can hold the weight of the motor plus any dynamic loads that come up during operation. The motor and the equipment it drives must be lined up within 0.05 mm of each other to keep the bearings from wearing out too quickly and the machine from shaking too much. Electrical connections should only be made by licensed electricians who carefully follow the wiring plans provided by the maker. Before connecting to driven equipment, briefly turning on the motor while it's not connected will help you make sure it's turning in the right direction. Installing a heat exchanger requires enough space for air to flow and for cleaning to be done on a regular basis. Condition-based maintenance programs are possible with the installation of temperature sensors and vibration monitoring equipment during commissioning for the IC611 motor.
Common Technical Issues and Solutions
Too much noise during operation is usually a sign of worn bearings or an unbalanced rotor that needs to be checked out right away and fixed. Temperature rise above nameplate limits means that the cooling isn't working well because the heat exchanger is clogged or there isn't enough airflow in the room. This can be fixed by cleaning the heat exchanger or making the ventilation better. Vibration makes signal misalignment, bearing wear, or rotor damage worse, which requires a shutdown and a full mechanical inspection. When regular testing shows that insulation resistance is dropping, it's likely because of wetness getting in or winding contamination, which needs to be looked at by a professional and may need to be rewound. Starting current problems could be caused by problems with the source voltage, the windings, or too much mechanical load, which means that the electrical system needs to be tested and the load needs to be checked.
Maintenance Scheduling and Spare Parts Management
Visual checks should be done every three months to make sure the heat exchanger is clean, the mounting hardware is tight, and the electrical connections are solid. Every year, bearings should be oiled according to the manufacturer's instructions, using the right kind of grease in the right amount. Testing the insulation resistance every two years keeps an eye on the state of the windings and suggests failures before they happen. When vibration analysis is done once a year or continuously, it sets a baseline for performance and finds mechanical problems early on. Keep a stock of important spare parts like matched bearing sets, temperature sensors, and cooling fan parts to keep downtime to a minimum while repairs are being done. Build ties with approved service shops that can do major fixes like rewinding and balancing the rotor when needed.
Conclusion
When you import motors with special cooling systems, you have to find a balance between technical requirements, following the rules, and trusting the supplier. The IC611 motor is used in tough industrial settings where it needs to work continuously and keep temperatures under control. You can get reliable equipment that makes operations run more smoothly if you follow organized buying procedures, carefully evaluate sellers, and carefully plan transportation. Understanding technical specs, comparing cooling options, and setting up repair schedules will help your business get the most out of its tools in the long run. Planning your imports and choosing the right suppliers will pay off in the form of less delays, lower energy costs, and longer machine life.
FAQ
1. What voltage options are available for industrial motors?
With a ±5% tolerance, these motors can handle voltages of up to 3000V, 3300V, 6000V, 6600V, 10000V, and 11000V, so they can work with a wide range of facility electrical systems. Which voltage to use depends on the infrastructure you already have and how the local power supply works. Talking to electricity engineers while the specifications are being made makes sure that they work together for the IC611 motor.
2. How long does the standard warranty cover imported motors?
The standard warranty lasts for 12 months from the date of commissioning or 18 months from the date of shipment, whichever comes first. During the buying process, you can arrange for extended warranty periods of up to 36 months, especially for large orders or long-term supply ties.
3. Can bearing brands be customized based on preference?
You can choose from high-quality bearing brands like SKF, NSK, and FAG based on your maintenance standards and the spare parts you already have on hand. Choosing the right bearings has a small effect on price and helps keep all of your facility's moving equipment consistent.
Partner with XCMOTOR for Reliable IC611 Motor Supply
Shaanxi Qihe Xicheng Electromechanical Equipment Co., Ltd. runs XCMOTOR and specializes in providing power equipment solutions for the manufacturing, energy, and industrial automation sectors. As an experienced IC611 motor seller, we can guaranty that you will only get genuine goods that come with full professional support and easy import logistics. We help with customs paperwork, offer advice before the sale, and fix problems after the sale, which makes foreign purchasing easy and dependable. You can return items within 30 days, get help on the weekends, and use our fast delivery services to keep your projects on track. You can email our team at xcmotors@163.com to talk about your needs and get detailed quotes. We want to build long-term relationships with you by giving you good products and quick service.
