How IE3 Motors Help Upgrading in Industrial Operations
More and more, industrial sites across the United States are under pressure to cut their energy costs while keeping their operations running at full speed. The high efficiency motor ie3 is a useful option because it can achieve up to 96% efficiency at full load, which means it uses 4–6% less electricity than regular motors. These motors use less energy because they have advanced electromagnetic designs and precision-engineered parts that make the best use of power. This directly leads to lower operating expenses and better environmental sustainability. Upgrades to IE3-rated equipment are a smart investment that pays off in lower energy bills, longer equipment life, and compliance with changing environmental rules in the transportation, HVAC, manufacturing, and energy services sectors.

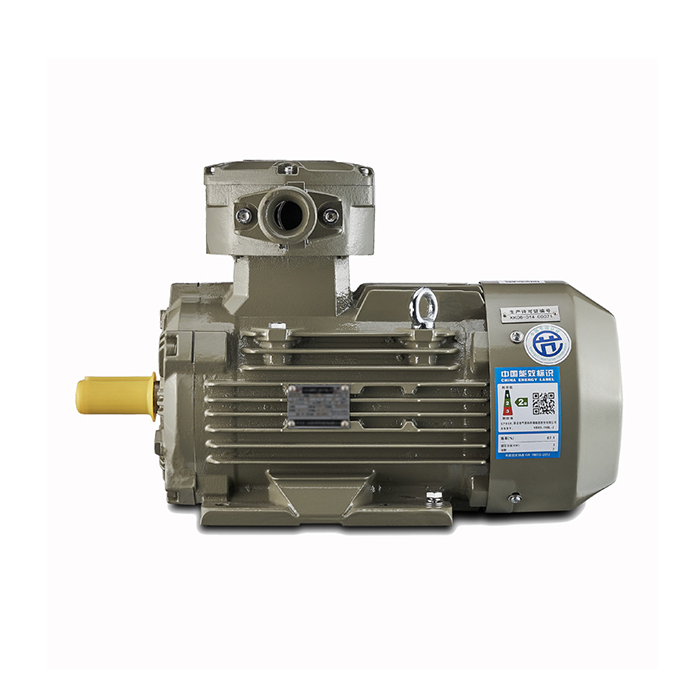

Series：YBX3
Voltage range：380V，660V，415V，380/660V，660/1140V
Power range：0.55-630 kW
Application：places where explosive gas mixtures exist in petroleum, chemical, mining, metallurgy, electric power, machinery and other industries.
Advantage: fully enclosed, self-fan cooling, squirrel cage type, high efficiency.
Explosion-proof mark: Ex d I Mb, Ex d IIB T4 Gb, Ex d IIC T4 Gb
Others： SKF, NSK, FAG bearings can be replaced according to customer requirements.
Understanding IE3 Motors and Their Efficiency Standards
What Defines the IE3 Classification?
The International Electrotechnical Commission (IEC) created the IE3 efficiency class as part of the IEC 60034-30-1 standard. This was a big step forward for motor performance. This level is between IE2 and IE4, and it makes a noticeable difference in how much energy is converted. IE3 motors have efficiency rates that range from 90% to 96%, based on how much power they produce. This is a big improvement over older IE1 equipment that wastes a lot more electricity as heat. To meet Department of Energy rules and utility refund programs, more and more American producers are requiring IE3 compliance.
Core Technologies Enabling Superior Performance
Modern high efficiency motor ie3 units work very well thanks to many improvements in engineering. When manufacturers build stators, they use 35W300 high-permeability, low-loss silicon steel sheets. These sheets keep eddy current losses to a minimum when the magnetic field cycles. Copper losses are cut down by using optimized coil configurations, and the maximum electromagnetic efficiency is ensured by precise air gap tolerances between the stator and rotor components. Better deep groove ball bearings from reputable brands like SKF, NSK, and FAG are used in the YBX3 line. These bearings reduce mechanical friction and increase the time between service intervals. When these changes are put together, they save energy in a number of different business settings.
Regulatory Landscape and Compliance Requirements
United States businesses that make things have to deal with more and more strict efficiency rules. IEC ratings and the Department of Energy's motor efficiency standards are very similar. This means that IE3 compliance is a must for equipment sold in the United States. Motors with two certifications are helpful for facilities that work in dangerous areas. The YBX3 line has both IE3 efficiency scores and explosion-proof marks, such as Ex d I Mb, Ex d IIB T4 Gb, and Ex d IIC T4 Gb. This dual certificate is very useful in places like oil refining, chemical processing, mines, and power plants where mixtures of explosive gases may be present. When evaluating a provider, procurement teams should check both speed and safety certifications.
Advantages of IE3 Motors in Industrial Operations
Quantifiable Energy Savings and Cost Reduction
Switching to motors that use less energy has instant practical benefits. When used constantly in a chemical processing plant, a 15 kW high efficiency motor ie3 can save about 1,500 kWh per year compared to other options. When used across a plant with several motors ranging from 0.55 to 630 kW, these saves add up to a lot. Electricity costs drop by 15 to 25 percent for motor-driven equipment in places that run fans, pumps, and transportation systems 24 hours a day, seven days a week. Up to 96% efficiency is reached by the YBX3 series at full load, and performance stays mostly flat from 50% to 100% load. This means that saves stay steady even when demand changes.
Environmental Impact and Sustainability Goals
Across all businesses, choices to upgrade motors are based on plans to cut down on carbon emissions. For every percentage point of energy gain, greenhouse gas emissions from power plants go down by the same amount. When businesses use IE3 technology, it helps them reach their Environmental, Social, and Governance (ESG) goals in a measurable way. These motors are used by factories in the automobile, aircraft, electronics, and food processing industries to show they care about the environment while keeping production costs low. Modern units don't need coolant because they are totally sealed and cool themselves with fans. This makes them even better for the environment.
Enhanced Reliability and Lower Maintenance Requirements
High efficiency motor ie3 does more than just save energy; its strong build also gives it practical benefits. Premium bearings increase the time between services, which lowers unexpected downtime in apps that use a constant process. The squirrel cage rotor design gets rid of brushes and slip rings, which are typical places for older motors to wear out. The rate of temperature rise stays within Class B standards, which protects the insulation and makes the coils last longer. When you upgrade to IE3 equipment, facilities that work in tough conditions, like water treatment plants, HVAC installations, and power distribution networks, need fewer emergency fixes and have longer average times between breakdowns.
Comparing IE3 Motors with Other Motor Classes and Technologies
Performance Benchmarks Against IE2 and IE4 Standards
Procurement workers can make better choices when they understand how efficiency levels change over time. High efficiency motor ie3 units can reach 90-96% based on power rating, while IE2 motors usually achieve 87-92% efficiency. The newly released IE4 classification raises efficiency by another 2% to 3%, but it comes at a much higher cost. The YBX3 line fills this gap well, providing IE3 speed with explosion-proof certification, which is not often found in IE4 products. For many industry uses, IE3 technology gives the best return on investment. This is because IE4 motors save more money, but they take longer to pay for themselves, which doesn't make the higher price worth it for many tasks.
Integration with Variable Frequency Drives
Variable frequency drives (VFDs) are often used with motors in modern factories to improve process control. The high efficiency motor ie3 works well with VFD systems and keeps its efficiency benefits at different speeds. Engineers should make sure that the motors they choose have the right power factor ratings (0.84-0.89) and can handle starting currents of 6.5-7 times the normal current when they are choosing motors for pump applications, compressor jobs, or conveyor systems that need to change speeds. The YBX3 series comes in different voltage options, such as 380V, 660V, 415V, 380/660V, and 660/1140V, so it can work with a wide range of VFD designs in commercial settings around the world.
Total Cost of Ownership Analysis
Smart buying goes beyond the price of the original purchase. Even though IE3 motors cost more up front than IE1 or IE2 motors, the total cost of ownership always comes out in favor of the more efficient option. Facilities should consider acquisition cost, installation costs, expected energy savings over normal 15-20 year service life, upkeep requirements, and possible utility rebates. Upgrading from IE2 to IE3 saves about $3,200 a year on energy costs for a 100 kW motor that runs for 8,000 hours at $0.12/kWh. In most cases, the extra cost is paid back within 18 to 24 months. Because of this, IE3 technology is a good choice for transportation hubs, manufacturing plants, business HVAC systems, and installs of green energy.
Procurement and Sourcing Strategies for IE3 Motors
Critical Certification Verification
Purchasing managers need to make sure that potential sellers really do offer motors that meet IE3 standards. Reputable makers provide proof that their products meet the requirements of IEC 60034-30-1, along with CE marking and CCC approval if needed. The YBX3 series comes with detailed test records that back up promises of efficiency and explosion-proofing. Instead of depending only on what vendors say, procurement teams should ask for third-party proof data. Facilities that work in dangerous areas need to pay extra attention to explosion-proof marks and make sure that motors have the right Ex ratings for the gases they work with and the temperature ranges they are in.
Evaluating Supplier Capabilities and Support
For good motor upgrades, it's important to have reliable buying relationships. We've found that manufacturers who offer full expert help, flexible specifications, and quick after-sales service are the most valuable in the long run. This way of doing things is shown by Shaanxi Qihe Xicheng Electromechanical Equipment Co., Ltd., which offers power equipment options and dedicated help, including being available on the weekends. When looking at possible providers, you should see if they can change voltage configurations, mounting arrangements, premium bearing names, and shipping times that work with plant repair windows. When negotiating a bulk buy, you should talk about warranty terms, the availability of spare parts, and how to train repair staff technically.
Customization Options for Specific Applications
Businesses that use motors gain when suppliers can meet unique needs. This is shown by the YBX3 series, which lets you change the voltage, choose the safety class (IP55, IP56, or IP65), and choose the insulation class (F or H). For process control purposes in pumps, valves, and compressors, the mounting arrangements or shaft sizes may need to be a certain way. OEMs that put motors in packed equipment like it when suppliers are ready to change nameplate information, change the orientation of terminal boxes, or ask for non-standard paint finishes that meet company standards. These customization options make it easier for distributors who work with a wide range of industries, such as robots, automation systems, and specialized machines.
Implementing IE3 Motors in Industrial Operations: Best Practices and Use Cases
Identifying Optimal Replacement Opportunities
Smart changes to motors get the best return on investment. Facilities should replace equipment that is used a lot, like pumps, fans, compressors, and constant conveyor systems. Water treatment plants that use circulation pumps 24 hours a day, seven days a week see the fastest payback times. Upgrading chiller fans and air handling units is a good idea for commercial HVAC systems. Process tools in factories should be run for more than 4,000 hours a year. The high efficiency motor ie3 is especially useful in green energy uses, like wind turbine systems and solar tracking mechanisms, where efficiency has a direct effect on the cost of making electricity.
Installation Considerations and Compatibility
Paying attention to mechanical and electrical compatibility is important for a successful motor repair. The YBX3 line keeps the same frame sizes, which makes it easier to replace old tools with new ones. Technicians have to make sure that the driven equipment matches the mounting patterns, shaft lengths, and locations of the output boxes. The voltage, frequency (50Hz is normal), and pole configurations (2, 4, 6, or 8 poles are available) must meet the needs of the application. When connecting to current control systems, make sure that the way the motor starts and the level of heat protection match the settings for the circuit breaker and overload switch. For a proper fitting, check the alignment tolerances and make sure there is enough air flow around the fully sealed, self-fan-cooled housing.
Proactive Maintenance Protocols
Setting up preventative repair plans is necessary to get the most out of motors' lifespan. Visual checks should look for strange vibrations, noises from bearings, and changes in temperature. The YBX3 line uses high-quality bearings that need to be oiled on a regular basis, usually every 2,000 to 4,000 hours, based on how they are being used. Electrical testing procedures include measuring the insulation resistance to find wound decay before it leads to a catastrophic failure. Thermal imaging finds areas of increased heat that could mean there are problems with the link or that the cooling path is blocked. Condition-based tracking using vibration analysis and motor current signature analysis helps facilities catch problems early, which avoids unplanned downtime in important uses in the machinery, electric power, mining, metallurgy, petroleum, and chemical industries.
Real-World Application Success
Industrial workers in all fields say that upgrades to IE3 have led to real gains. When food processing plants replaced pump motors, they used 18% less energy and met cleanliness standards better because the motor housings were better sealed. Aerospace companies improved their transport systems so they worked more quietly and used less energy. There were two benefits for mining activities in dangerous areas: explosion-proof certification and lower electricity costs. When healthcare centers updated their HVAC systems, the fan motors became quieter and more efficient, which made patients more comfortable and cut down on energy costs. These different uses show that the high efficiency motor ie3 is useful in fields like transportation, energy services, industry, process control, robots, automation, HVAC, refrigeration, energy, and robotics.
Conclusion
Upgrading to IE3 technology is a smart move that will save money on energy costs right away and help operations in the long run. The high efficiency motor ie3 uses less electricity, needs less upkeep, and helps with efforts to make industrial applications more environmentally friendly. These motors work well in manufacturing plants, process facilities, HVAC systems, and energy operations because they can handle power ranges from 0.55 kW to 630 kW and different voltage setups. The YBX3 line meets important needs in the oil, chemical, mining, and power production industries by combining IE3 efficiency with explosion-proof approval. Facilities that use the right purchasing strategies and repair procedures see total cost of ownership benefits that quickly pay for the upgrades.
FAQ
1. How quickly do IE3 motors pay for themselves?
When you get your money back depends on how long the machine runs and how much power costs where you live. When used continuously in high-demand situations, motors usually pay for themselves in 18 to 30 months by saving energy. The high efficiency motor ie3 is most useful for pump, compressor, and fan uses that run for more than 4,000 hours a year. Facilities should figure out their exact payback by using their real energy rates and how their equipment is used.
2. Can IE3 motors work with existing variable frequency drives?
When properly configured, modern IE3 motors work well with VFD systems. Even though the YBX3 series has changeable speed ranges, it still has efficiency benefits. However, individual drive compatibility should be checked before purchasing. To make sure the VFD works properly and protects the guarantee, engineers must make sure that the motor's power factor ratings, starting current characteristics, and insulation class all match the VFD's output specs.
3. Do explosion-proof IE3 motors sacrifice efficiency?
Good explosion-proof motors meet safety standards and work at full IE3 efficiency. The YBX3 series shows this ability by being up to 96% efficient at full load and having Ex d grades for use in dangerous areas. By choosing the right motor, sites in the mining, chemical, and oil industries can make sure they don't have to sacrifice energy efficiency for safety.
Partner with XCMOTOR for Your IE3 Motor Upgrades
XCMOTOR is ready to help you switch to motor technology that uses less energy. We offer complete solutions, such as the YBX3 line, which is explosion-proof and has power rates from 0.55 kW to 630 kW. We are a reliable high efficiency motor ie3 provider. Our team offers personalized talks to make sure that the motor specs meet your exact working needs. We also offer fast delivery, 30-day returns, and dedicated weekend support. We carry original parts from well-known brands, so you can be sure of their dependability in oil and gas, industrial, HVAC, and energy uses. Get in touch with our experts at xcmotors@163.com to get full technical specifications and reasonable quotes for the motor upgrade project at your facility.
References
1. International Electrotechnical Commission. "IEC 60034-30-1:2014 Rotating Electrical Machines - Part 30-1: Efficiency Classes of Line Operated AC Motors." Geneva: IEC Publications, 2014.
2. De Almeida, Anibal T., et al. "Electric Motor Standards, Ecodesign and Global Market Transformation." IEEE Transactions on Industry Applications, vol. 55, no. 3, 2019, pp. 2016-2024.
3. United States Department of Energy. "Energy Conservation Program: Energy Conservation Standards for Small Electric Motors." Federal Register, vol. 85, no. 87, 2020.
4. Saidur, R. "A Review on Electrical Motors Energy Use and Energy Savings." Renewable and Sustainable Energy Reviews, vol. 14, no. 3, 2010, pp. 877-898.
5. European Copper Institute. "Motor Systems Energy Efficiency: A Practical Guide for Engineers and Managers." Brussels: European Copper Institute, 2018.
6. Boglietti, Aldo, et al. "Evolution and Modern Approaches for Thermal Analysis of Electrical Machines." IEEE Transactions on Industrial Electronics, vol. 56, no. 3, 2009, pp. 871-882.
