How Does Shaft Diameter Affect 5HP Induction Motor Selection?
When choosing a 5HP induction motor for your industrial application, many factors come into play. One crucial aspect that often gets overlooked is the shaft diameter. The shaft diameter plays a significant role in determining the motor's performance, durability, and overall efficiency. In this comprehensive guide, we'll examine how shaft diameter affects 5HP induction motor selection and provide valuable insights to help you make an informed decision.

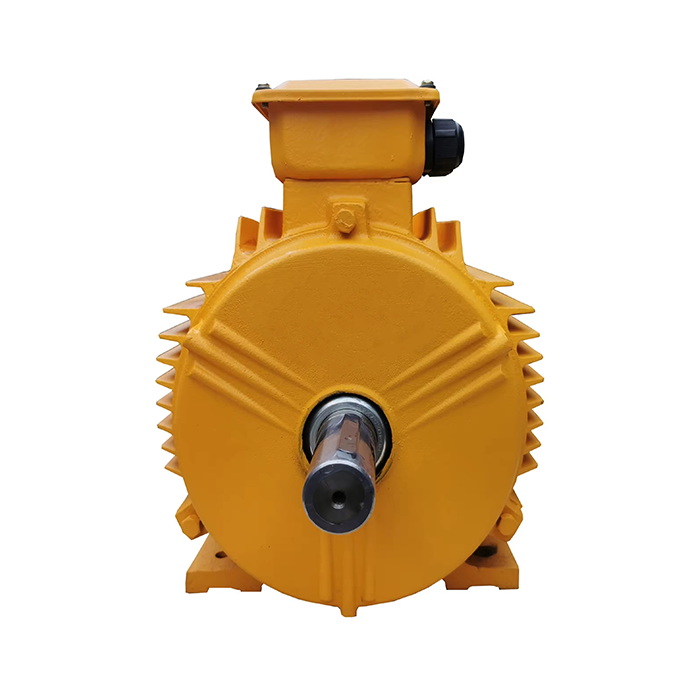

Series：YE5
Frame number: 80-450
Power range：
Protection level：IP55
Energy efficiency class: IE5
Voltage range: 380V,400V,415V, 660V，etc.
Application:can be used in various fields of the national economy, such as machine tools,water pumps,fans,compressors,and can also be used in transportation, mixing, printing, agricultural machinery, food and other occasions that do not contain flammable, explosive or corrosive gases.
Certificate: international standard IEC60034-30 "Efficiency Classification of Single-speed Three-Phase Squirrel Cage Induction Motors".
Advantage:The high quality of the electric motor guarantees high operational reliability.
Others: SKF, NSK, FAG bearings can be replaced according to customer requirements.
The Science Behind Shaft Diameter and Motor Performance
The shaft diameter of a 5HP induction motor is more than just a physical dimension; it's a critical factor that influences various aspects of motor performance. Let's delve into the science behind how shaft diameter impacts motor operation.
Torque Transmission and Shaft Diameter
The shaft diameter directly affects the motor's ability to transmit torque. A larger shaft diameter generally allows for greater torque transmission, which can be beneficial in applications requiring high starting torque or frequent load changes. However, it's essential to strike a balance, as an oversized shaft can lead to increased inertia and reduced motor efficiency.
Mechanical Strength and Durability
The shaft diameter plays a crucial role in determining the mechanical strength of the motor. A shaft that's too thin may be prone to bending or even failure under heavy loads or sudden torque changes. Conversely, a shaft with an appropriate diameter enhances the motor's durability and longevity, particularly in demanding industrial environments.
Vibration and Noise Considerations
The shaft diameter can influence the motor's vibration characteristics. A shaft that's too slender may be more susceptible to flexing and vibration, potentially leading to increased noise levels and reduced motor lifespan. Selecting the right shaft diameter can help minimize vibration and ensure smoother operation.
Optimal Shaft Diameters for Different 5HP Induction Motor Applications
Different applications have varying requirements when it comes to shaft diameter. Let's examine some common applications for 5HP induction motors and the recommended shaft diameters for each.
Pumps and Fans
For applications involving pumps and fans, a moderate shaft diameter is typically sufficient. These applications usually don't require extremely high starting torque, and the loads are generally consistent. A shaft diameter in the range of 28-32mm is often suitable for 5HP induction motors in pump and fan applications.
Conveyors and Material Handling Equipment
Conveyors and material handling equipment often require motors with higher starting torque and the ability to handle variable loads. For these applications, a slightly larger shaft diameter may be beneficial. A range of 32-36mm is commonly used for 5HP induction motors in conveyor systems.
Machine Tools and Precision Equipment
In applications involving machine tools or precision equipment, shaft rigidity and minimal deflection are crucial. These applications may benefit from a larger shaft diameter to ensure accuracy and reduce vibration. Shaft diameters in the range of 35-40mm are often used for 5HP induction motors in precision machinery.
Agricultural and Outdoor Applications
For agricultural machinery and outdoor applications, motors may be subjected to harsh environments and varying loads. A robust shaft diameter is essential to withstand these conditions. Shaft diameters in the range of 32-38mm are commonly used for 5HP induction motors in agricultural applications.
Avoiding Common Mistakes in 5HP Induction Motor Shaft Selection
When selecting a 5HP induction motor based on shaft diameter, it's important to avoid common pitfalls that can lead to suboptimal performance or premature failure. Here are some mistakes to watch out for and how to avoid them.
Underestimating Load Requirements
One of the most common mistakes is underestimating the load requirements of your application. This can lead to selecting a motor with an inadequate shaft diameter, resulting in poor performance or even shaft failure. To avoid this, thoroughly analyze your application's load profile, including peak loads and any potential for future load increases.
Overlooking Environmental Factors
Environmental conditions can significantly impact the performance and lifespan of your motor's shaft. Factors such as temperature, humidity, and exposure to corrosive substances can affect the shaft's durability. When selecting a shaft diameter, consider these environmental factors and choose materials and coatings that can withstand the specific conditions of your application.
Ignoring Coupling Requirements
The shaft diameter must be compatible with the coupling system used to connect the motor to the driven equipment. Failing to consider coupling requirements can lead to installation difficulties or improper power transmission. Ensure that the selected shaft diameter is compatible with your chosen coupling system and allows for proper alignment.
Neglecting Maintenance Considerations
The shaft diameter can impact the ease of maintenance and component replacement. Selecting an uncommon or non-standard shaft diameter may make it difficult to find replacement parts or perform routine maintenance. Consider the long-term maintenance requirements of your application when choosing a shaft diameter.
Conclusion
Selecting the right shaft diameter for your 5HP induction motor is a critical decision that can significantly impact your motor's performance, efficiency, and longevity. By understanding the science behind shaft diameter and its effects on motor operation, you can make an informed choice that best suits your specific application.
Remember to consider factors such as torque requirements, load profiles, environmental conditions, and maintenance needs when selecting a shaft diameter. By avoiding common mistakes and carefully evaluating your application's needs, you can ensure that your 5HP induction motor operates at its best, providing reliable and efficient service for years to come.
FAQ
Q: How does shaft diameter affect the overall efficiency of a 5HP induction motor?
A: The shaft diameter influences motor efficiency by affecting torque transmission, mechanical losses, and overall motor design. A properly sized shaft can help optimize efficiency by balancing torque capabilities with minimal energy losses.
Q: Can I modify the shaft diameter of an existing 5HP induction motor?
A: Modifying the shaft diameter of an existing motor is generally not recommended, as it can affect the motor's balance, performance, and safety. It's best to select a motor with the appropriate shaft diameter for your application from the outset.
Q: How does shaft material relate to shaft diameter in 5HP induction motors?
A: The shaft material and diameter work together to determine the shaft's strength and performance characteristics. Higher-strength materials may allow for smaller shaft diameters while maintaining the necessary mechanical properties for your application.
Choose XCMOTOR for Your 5HP Induction Motor Needs
At XCMOTOR, we understand the importance of selecting the right 5HP induction motor for your specific application. Our team of experts can guide you through the selection process, ensuring you choose the optimal shaft diameter for your needs. With our wide range of high-quality motors and commitment to customer satisfaction, we're the ideal partner for all your motor requirements.
Don't settle for a one-size-fits-all solution. Contact XCMOTOR today at xcmotors@163.com to discuss your 5HP induction motor needs and discover how our expertise can drive your success. As a leading 5HP induction motor manufacturer, we're dedicated to providing you with the perfect motor solution.
