Guide to Maintenance of 2500 kW Motor Units

Maintaining a 2500 kw motor requires careful planning and execution to make sure it works the same way in all kinds of hard industrial tasks. These large motors run important machines in the process, industrial, and power generation industries, where sudden breakdowns cause expensive downtime. Maintaining your equipment properly will make it last longer, use less energy, and protect your investment. Purchasing managers, maintenance teams, and engineers who are in charge of keeping big motor systems running smoothly can use the information in this book.



CONTACT US

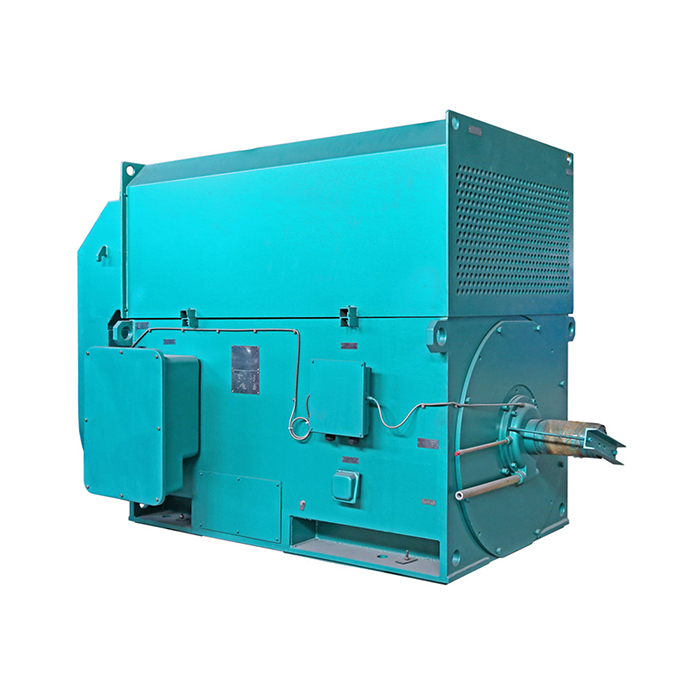

Series：YKK
Protection level：IP54
Voltage range：3000V±5%,3300V±5%,6000V±5%,6600V±5%,10000V±5%,11000V±5%
Power range：200-6300 kW
Application：fans, water pumps, compressors, crushers, cutting machine tools, transportation machinery, etc.
Advantage：low noise, low vibration, long service life, easy installation and maintenance.
Standard: This series of products complies with JB/T 12730 and JB/T 12729 standards.
Others： SKF, NSK, FAG bearings can be replaced according to customer requirements.

Understanding 2500 kW Motor Specifications and Common Maintenance Challenges

When planning upkeep for high-capacity motors, it's important to understand their technical features. Depending on the needs of the application, a normal 2500 kw motor can run between 3000V and 11000V and produce 200kW to 6300kW of power output. Protection class IP54 makes sure that these units are safe from dust and water splashes, so they can be used in tough industrial settings. Using both external air flow and internal cooling channels, the IC611's cooling method keeps the device running at its best temperature even when it's under heavy loads all the time.

Critical Technical Specifications

Modern high-capacity motors have improved rotor designs that keep vibrations to a minimum while delivering maximum power. The long-lasting cast press frame design gives the structure great strength and better heat removal, which is important for keeping the machine working efficiently for long periods of time. Following the rules in JB/T 12730 and JB/T 12729 makes sure that the products are made consistently and reliably. When buying, you can choose from high-quality bearings from SKF, NSK, or FAG based on your unique working needs and maintenance schedules.

Common Maintenance Challenges in Industrial Settings

Motors face mechanical stress, temperature cycles, and contamination in heavy industrial settings. Cooling system degradation is most common; restricted airflow or failed fans raise temperatures accelerating insulation breakdown. Inadequate bearing lubrication causes wear creating vibrations that misalign connected equipment. Electrical faults from degraded insulation or loose connections may develop gradually then fail suddenly under peak demand. Mining operations release abrasive particles penetrating enclosures despite IP54 protection. Water treatment plants create humidity promoting corrosion.

Systematic Approach to 2500 kW Motor Maintenance

Creating an organized maintenance framework stops you from having to respond to problems and sets up reliable operations that you can count on. Programs that work well mix regular checks with actions based on data, taking care of new problems before they become big enough to break down equipment.

Root Cause Analysis of Performance Issues

Overheating typically results from restricted cooling airflow, excessive load, or unbalanced supply voltage. When motors driving fans, pumps, or compressors overheat, verify cooling airflow, compare current draw to nameplate values, and check voltage source balance. Thermal imaging during operation identifies developing hot spots before temperature alarms trigger. Unexpected shutdowns require immediate investigation. Insulation resistance testing detects degrading windings; connection integrity checks find loose terminations causing intermittent faults. Vibration analysis assesses bearing condition enabling planned replacement during scheduled outages.

Preventive Maintenance Best Practices

Regular inspection schedules form preventive maintenance programs. Monthly visual checks identify obvious problems including lubricant leaks, unusual noises, elevated temperatures, or cable insulation degradation. Quarterly in-depth inspections monitor bearing temperatures, verify terminal connection tightness, and ensure cooling system cleanliness. Motors powering crushers, machine tools, and conveyors with high vibration require careful lubrication management. Follow bearing manufacturer relubrication intervals typically 2,000 to 8,000 hours based on duty cycle. Both over-greasing and under-greasing cause excessive heat buildup and bearing damage.

Real-World Case Study: Steel Mill Application

A 2500 kw motor that powered a main cooling water pump kept breaking down at a steel producing plant. Breakdowns happened about every six months, which stopped production and cost a lot of money to fix. A maintenance study showed that the cooling airflow wasn't good because debris had clogged the ventilation holes. The reactive maintenance method fixed problems as they happened without fixing the problems that caused them in the first place.

Using organized preventive maintenance changed the results of dependability. Cleaning routines done once a month got rid of obstructions in the cooling system. Vibration analysis done every three months found that the bearings were wearing out three months before they were supposed to fail. This let replacements be planned for when they were due for maintenance. Voltage imbalance problems were found through temperature tracking, which led to changes in electrical distribution. These planned actions made operational periods last for 18 months straight, removing unexpected downtime and cutting yearly maintenance costs by 40%.

Advanced Maintenance Techniques and Optimization Tips

Condition-based actions are made possible by predictive repair tools. This makes the best use of resources and improves the reliability of equipment. Modern tracking systems give constant operating information, which changes the way repair decisions are made from being based on time to being based on conditions.

Condition Monitoring Tools and Technologies

Vibration analysis remains the cornerstone of predictive maintenance for rotating machinery. Accelerometers mounted on bearing housings record vibration patterns across frequency ranges, revealing specific fault signatures. Low-frequency patterns indicate imbalance or misalignment; high-frequency patterns suggest bearing defects. Trending tracks gradual changes over time, providing advance warning before conditions reach action thresholds. Thermal imaging complements vibration tracking, inspecting motor housings, electrical connections, and cooling systems for hot spots. Phase-to-phase temperature differences indicate voltage imbalance while localized heating suggests connection or winding issues.

Variable Speed Drive Implementation Benefits

Variable speed drives provide operational flexibility while reducing stress on motor components. Applications including HVAC systems, water pumps, and process fans benefit significantly from VSD integration. Controlled acceleration and deceleration eliminate mechanical shock during starts, extending bearing and coupling life. Load matching optimizes energy consumption, reducing operating costs and lowering thermal stress on motor windings. VSD implementation requires careful consideration of electrical compatibility and harmonic management. Motors designed for fixed frequency may need derating when operated through VSDs due to reduced cooling at lower speeds.

Comprehensive Troubleshooting Guide

Electrical problems have many signs that need to be systematically diagnosed. The motor won't start even though the control signals are correct. This could mean that there are problems with the contactors, the control system, or the safety devices. Megohm testing checks the quality of the insulation around the windings, and continuity checks make sure the circuit is complete. To look into a thermal overload trip, you need to measure the load current and compare it to the motor's brand values.

Most mechanical problems in a 2500 kW motor show up as strange noises or vibrations. Grinding sounds in a 2500 kW motor mean a bearing is failing and needs replacement right away. Cyclic banging in a 2500 kW motor indicates an unbalanced rotor or loose components. Constant high-frequency noise from a 2500 kW motor may result from cooling fan blade damage or mechanical vibration.

When the cooling system doesn't work right, performance slowly gets worse. Blocked airways make cooling less effective, which causes temperatures to rise slowly. When cooling fans stop working, there is no forced air flow, which makes the temperature rise quickly when the machine is under load. Regular cleaning plans and checking the state of the fans stop problems that are caused by cooling.

Comparing 2500 kW Motor Types and Maintenance Considerations

Choosing the right motor technology affects how often upkeep needs to be done and how the equipment works over its entire life. Knowing the differences between motor types helps you make smart purchases that match the needs of your application and your ability to maintain them.

Synchronous Versus Induction Motor Characteristics

For business uses, induction motors are the best choice because they are durable, easy to maintain, and cheap. It is possible for these motors to work successfully with different loads without the need for external stimulation systems. With squirrel cage rotor designs, brushes and slip rings are not needed, so wear parts don't need to be replaced as often. Maintenance is mostly about protecting the rotor wire, lubricating the bearings, and keeping the cooling system in good shape.

Synchronous motors are more efficient and can fix problems with the power factor, which is especially useful in situations where accurate speed control is needed. These units have excitation systems that need extra care, like checking the brushes, cleaning the slip rings, and keeping an eye on the excitation circuit. Even though they are more complicated, synchronous motors work better in constant-speed uses like compressors and big pumps, so the extra money they cost at first is worth it because of how well they work.

Brand Selection Impact on Maintenance Support

The choice of motor name has a big effect on long-term maintenance because it affects the availability of parts, the speed with which technical help responds, and the ease of entry to the service network. Well-known brands offer detailed instructions, tools for fixing problems, and expert support that are necessary to fix complicated issues. The length of a warranty can be anywhere from 12 to 36 months, based on the maker and the type of application.

When buying things, you should carefully think about how available the parts are. Bearings, terminal blocks, and cooling fans are examples of common parts that should be easy to get through multiple supply routes so that fixes don't take too long. Specialized parts made by only a few makers may need longer lead times, so it's important to keep extra parts on hand for important uses.

Access to the service network affects how well repair is done, especially in places that don't have their own motor experts. Manufacturers with local service centers can respond more quickly to problems and help with the adoption of preventive repair programs. Technical training makes it possible for repair workers to learn skills that are specific to the tools they are working on. This makes troubleshooting more effective and cuts down on the need for outside companies.

Procurement Insights and Maintenance-Related Buying Tips for 2500 kW Motors

The total cost of ownership study for a 2500 kW motor gives a more accurate picture of value than just looking at the buying price. The upfront purchase cost of a 2500 kW motor only makes up 20 to 30 percent of total lifetime costs. The main long-term expenses for a 2500 kW motor are energy consumption and maintenance.

Evaluating motors requires examining efficiency ratings, expected maintenance intervals, and parts cost projections. Higher-efficiency motors justify premium pricing through reduced operating expenses, particularly in continuous-duty applications. Low noise and low vibration characteristics extend bearing life and reduce structural fatigue on mounting foundations, decreasing maintenance frequency and replacement part requirements.

Bulk purchasing opportunities emerge when planning facility expansions or fleet standardization initiatives. Volume commitments often secure preferential pricing, extended warranty terms, and priority parts availability. Standardizing on certain motor designs makes keeping track of spare parts easier and lets repair staff learn how to do their jobs at more than one location.

Customization choices meet the specific needs of a program that normal catalog items can't. Custom voltage specs, unique gear designs, and higher levels of environmental protection make sure that the right equipment is matched perfectly. If you're working with a 2500 kw motor provider, talking about specific operating factors during procurement saves you money and time compared to making changes in the field.

Strong ties with suppliers are a big part of the success of a repair program. After-sales support that is quick to respond, technical help during troubleshooting, and proactive contact about parts that are no longer being made or product changes all show that a provider is committed to more than just transactions. When judging a supplier's skills, you should look at their professional knowledge, the size of their service network, and how willing they are to work with you to improve your applications.

Conclusion

To maintain a 2500 kW motor well, you need to plan ahead, watch it in advance, and take action before problems happen. Understanding technical specs of a 2500 kW motor, recognizing common failure modes, and following organized preventive maintenance procedures help extend device life and reduce unexpected downtime. Advanced condition monitoring technologies enable data-driven decisions for a 2500 kW motor, improving upkeep resource allocation. Long-term reliable operations build on smart purchasing choices considering total ownership costs, maintenance needs, and supplier capabilities. Using thorough repair methods explained in this guide protects your 2500 kW motor investment and ensures smooth continuous operation.

FAQ

1. What are the most critical maintenance tasks for high-capacity motors?

The most important upkeep tasks are managing the lubrication of bearings, keeping the cooling system in good shape, and checking electrical connections. Bearing problems can be avoided by lubricating them at the right times and keeping the cooling system clean to make sure it gets rid of heat properly. Checking the tightness of the terminals on a regular basis stops connection resistance that causes hot spots and eventually fails.

2. How frequently should preventive maintenance be performed?

Visual checks once a month find obvious problems early. Bearing temperature tracking and vibration readings are part of detailed examinations that happen every three months. Every year, full inspections include trying the insulation, making sure the structure is straight, and a full check of the electrical system. If the application is severe, gaps may need to be set more often.

3. What symptoms indicate immediate repair needs?

Changes in noise that don't make sense, too much shaking, sudden temperature rises, or burning smells need to be looked into right away. Tripping safety devices over and over again means that problems are getting worse and need immediate attention. If you see smoke, sparks, or oil leaking, the machine needs to be shut down right away and checked out by an expert before it can be used again.

Partner with XCMOTOR for Reliable High-Capacity Motor Solutions

XCMOTOR offers complete options for power tools, backed by technical know-how and quick customer service. Our 2500 kw motor units meet the standards set by JB/T 12730 and JB/T 12729 and are used for a wide range of commercial tasks, from making electricity to making things. Voltage runs from 3000V to 11000V to work with a variety of distribution systems, and IP54 security makes sure they work well in harsh conditions.

Our dedication goes beyond just delivering tools. On the weekends, there is dedicated technology support that can answer questions about maintenance and help with problems when needed. Working directly with a reputable 2500 kw motor maker guarantees access to original parts, thorough instructions, and advice tailored to your unique needs.Email our team at xcmotors@163.com to talk about your needs and get cheap quotes. You can buy from us at any time for 30 days, and we'll send your items quickly. We also offer expert advice to help you reach your equipment reliability goals.
