Guide to IP23 Motor Protection Ratings & Uses
When choosing industrial tools for a range of working conditions, it's important to know about IP23 motor safety grades. An IP23 motor offers specialized security from solid particles bigger than 12.5 mm and water spray from any direction up to 60 degrees from vertical. These three-phase motors work great in dry, dust-free places where modest security is enough without the high cost of better grades. Manufacturing plants, power plants, and processing businesses depend on motors with an IP23 rating for tasks that need to be stable and cost-effective.

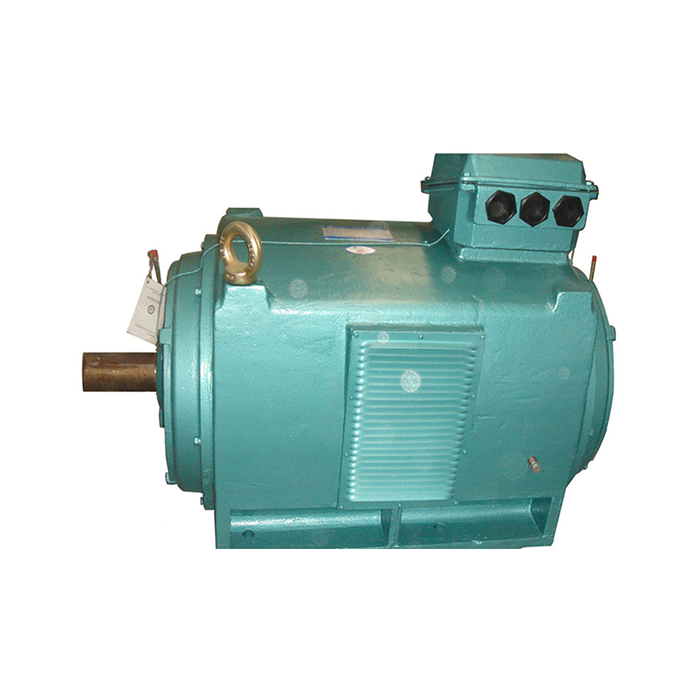

Series：Y
Voltage range: 380V±5%
Power range: 55~355 kW
Protection level：IP23
Application: This series of motors can be used to drive various machinery. Such as ventilators, compressors, water pumps, crushers, cutting machine tools and other equipment, and can be used as prime movers in coal mines, machinery industries, power plants and various industrial and mining enterprises.
Advantage: This series of motors has the advantages of high efficiency, energy saving, low noise, small vibration, light weight, reliable performance, and convenient installation and maintenance.
Certificate: The motor complies with JB5271-91
Others: SKF, NSK, FAG bearings can be replaced according to customer requirements.
Understanding IP Protection Rating Fundamentals
The International Safety (IP) rating system is a standard way to group the levels of safety for electrical equipment. This two-digit code tells you exactly how well an electric motor can handle problems in different environments.
The first number, from 0 (no protection) to 6 (full protection against dust), shows solid particle protection. With a "2" grade, an ip23 motor is safe from solid items bigger than 12.5 mm in diameter. This keeps bigger pieces of junk, tools, and other foreign items from getting to the inside parts while still letting controlled air flow for cooling. The second number, from 0 (no protection) to 8 (constant submersion protection), tells you about the safety against liquids getting in. The "3" in IP23 motors means that they are safe from water spray at angles of up to 60° from vertical. This level of safety is good for indoor uses where water sprays might happen sometimes during maintenance or cleaning.
Motor makers make tools with an IP23 rating just for controlled settings. There are open ventilation sections on these motors, and the cooling systems are usually IC11 (self-ventilated) or IC21 (externally ventilated). When compared to fully sealed options, this design method gets rid of 15-20% more heat.
Key Applications Across Industries
Manufacturing and Process Control
A lot of the time, IP23 motors are used in auto factories for precise machinery, robotic systems, and assembly line carts. The amount of safety works well in most original settings while still letting the air flow smoothly. These motors are useful in pick-and-place machines, testing tools, and quality control systems used in electronics manufacturing. IP23 motors are used in dry processing areas, packing machines, and systems for moving materials around in food processing plants. The security grade keeps bigger bits from getting in and helps with cleaning routines between production runs.
HVAC and Refrigeration Systems
IP23 motors are often used in commercial HVAC setups for air handlers, moving fans, and ventilation systems. The amount of security is good for machine rooms and industrial rooms where the air is managed. Centrifugal fans, rotary blowers, and circulation pumps all work well with these motors. In compressor systems, condenser fans, and evaporator units, IP23 motor technology is useful for refrigeration uses. The modest amount of security is good for most refrigerator equipment rooms and ensures long-term reliability.
Power Generation and Utilities
IP23 motors are used in power plants for cooling water pumps, fuel handling equipment, and air fans, among other things. The security grade works well in indoor power plants where conditions are controlled. This amount of safety is often required for cooling towers, systems that move coal, and equipment that gets rid of ash. IP23 motors are used in wind turbine speed control systems, solar panel tracking systems, and energy storage tools that use renewable energy. The security strikes a mix between resistance to the environment and the need for operating speed. These machines are used in closed parts of water treatment plants for chemical feed pumps, mixing equipment, and filtering systems. The IP23 grade takes into account the normal conditions in a water treatment plant while still guaranteeing solid performance.
Technical Specifications and Performance Characteristics
Power and Voltage Parameters
The IP23 motor range from XCMOTOR covers 55kW to 355kW, meeting middle to high-power industrial needs. The voltage range of 380V±5% works with most industrial power distribution systems around the world. This power range makes sure that it works with the electrical equipment that is already in place and gives reliable performance. The 50Hz frequency rate is in line with standards for foreign power grids, so these motors can be used anywhere in the world. Starting current limits of 6.5 times the maximum current keep the electrical system from being overloaded during motor starting processes.
Torque and Efficiency Features
Starting torque is more than 160% of maximum torque, which makes sure that the engine starts reliably even when it's heavy. The maximum torque is ≥200% of the rated torque, which means it can handle heavy loads in difficult situations. This power formula can handle different load situations without affecting the dependability of operation. Limits on temperature rise of ≤80K (Class B) make sure safe operation while increasing power output. The temperature control system strikes a balance between how well the motor cools and how well it protects itself, which greatly increases its lifespan.
Construction and Materials
The cast iron frame design makes it very durable while still being affordable. Precision die-casting methods make sure that the structure stays strong even in harsh operating circumstances. The strong frame design allows for flexible mounting in a wide range of situations. Precision winding methods are used on copper windings to improve their electrical and heat performance. The vacuum pressure impregnation (VPI) process improves shielding qualities, which greatly increases the useful life. Noise and shaking are lessened by using high-quality bearings from well-known brands.
Installation and Maintenance Considerations
Environmental Requirements
IP23 motors work best in dry, controlled indoor settings. To make sure effective function, temperature ranges should stay within certain limits. Enough air flow around the motor keeps the safety grade valid while ensuring proper heat removal. Places where things are mounted should keep them from being exposed to too much dust, water, or acidic air. The IP23 grade gives some security, but for the best performance, the surroundings need to be controlled properly.
Maintenance Protocols
Bearing cleaning, winding insulation testing, and vibration tracking should all be part of regular check plans. The open airflow design makes it easy to get to for regular upkeep tasks. Techniques for predictive maintenance help find problems before they happen. How often you need to change a bearing depends on how it is used and how it is loaded. Different types of bearings, like SKF, NSK, and FAG, give you choices for different uses. Choosing the right bearings and keeping them in good shape can greatly extend the life of a motor.
Safety and Compliance
Compliance with the JB5271-91 standard makes sure that quality and safety standards are met. Regular electrical checking makes sure that the insulation is still good and that the grounding is still working. During repair work, lockout/tagout methods should be covered in safety rules.
Advantages Over Alternative Protection Ratings
Cost-Performance Benefits
IP23 motors get rid of safety features that aren't needed and add to the cost of production without adding to the functionality. The modest amount of security gives you enough safety while keeping the price low. This method gives the best value for apps that need to be kept in a controlled setting. Lower starting spending costs because they need fewer materials than higher-rated options. Improving operating efficiency saves money on starting costs by using less energy over the motor's lifetime.
Thermal Management Superiority
Open-air designs are better at getting rid of heat than sealed designs. It is possible to have a higher power density while still keeping the working temperatures safe. This temperature benefit makes bearings last longer and requires less upkeep. Better heat transfer properties make steady tasks work well. The cooling design can handle different load situations without the risk of burning.
Selection Criteria for IP23 Motors
Application Assessment
Check the weather ranges, humidity levels, and the possibility of pollution in the surroundings. When choosing security levels, think about how often you need to clean and how easy it is to do upkeep. Look at the features of the load, such as starting torques, changes in speed, and duty cycles. Check to see if the electrical systems can work together by looking at things like voltage steadiness, harmonic content, and grounding setups. Make sure that the electrical system has enough power to start the motor and meet its operating needs.
Performance Requirements
Figure out how much power you need by looking at the real load instead of potential maximums. When comparing options, think about how much more efficient they will be over the motor's lifetime. Check the needs for speed control and see if they are compatible with current drive systems. Check to see what the work setting needs in terms of noise and shaking. When choosing motor power and mounting setups, think about how you will need to grow in the future.
Conclusion
XCMOTOR offers top-notch ip23 motor options that are made to work in tough industrial settings. Our skilled engineering team makes sure that the right motor is chosen for your needs based on your unique operating needs. Email our mechanical experts at xcmotors@163.com to talk about what you need for your project. We offer full expert support, quick shipping, and dependable after-sales service as a reputable IP23 motor provider to ensure long-term operating success.
