Critical Applications of 200HP DC Motors in Paper and Steel Mills
The 200hp dc motor is a useful tool for businesses that need power that can be controlled and is effective in harsh circumstances. These motors have exact speed control and a lot of power, which makes them essential in steel and paper factories where regularity has a direct effect on product quality and working efficiency. Procurement workers can make better choices that balance performance, reliability, and cost-effectiveness when they know how these motors work in tough industrial settings.

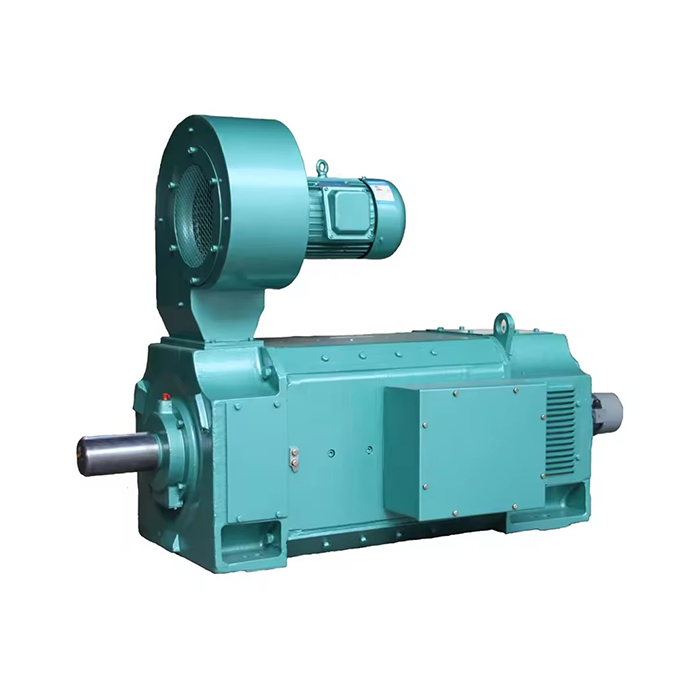

Series：Z4
Frame number: 100-450
Application:Z4 series motorsThis series of motors can be widely used in various industrial sectors such as metallurgical industrial rolling mills, metal cutting machine tools, papermaking, dyeing and weaving, printing, cement, and plastic extrusion machinery.
Power range：1.5-600kW
Voltage range: 160V,440V, etc.
Certificate: The performance of this series of motors not only complies with the national standard GB/T755 "Basic Technical Requirements for Rotating Electrical Machines", but also basically complies with the German VDE0530 standard.
Advantage:Z4 series DC motor has greater advantages than Z2 and Z3 series. It can not only be powered by DC unit power supply, but also suitable for static rectifier power supply. It has small moment of inertia, good dynamic performance, and can withstand high load change rates. It is especially suitable for control systems that require smooth speed regulation, high efficiency, automatic speed stabilization, and responsive response. It has reached the current international advanced level..
Others: SKF, NSK, FAG bearings can be replaced according to customer requirements.
Understanding 200HP DC Motors and Their Role in Paper and Steel Mills
A sizable mechanical output fit for big industrial gear is provided by the 200 hp DC motor, which works within a power range of about 150 kilowatts. These motors usually work on voltage levels that can be changed, such as 160V and 440V, which makes them compatible with a wide range of power infrastructure systems. One thing that makes these units unique is their torque traits. They have high starting torque and great speed control even when the load changes.
Core Specifications That Matter
At full load, operating efficiency can reach up to 95%, which means that less energy is used than with older motor technologies. The insulation class F grade (155°C) makes sure that the device can be used safely in high-temperature areas like those found in factories. Protection class IP23 provides basic defense against dust and water getting in, and better levels of protection can be used when the conditions call for them. Forced ventilation cooling systems keep the right temperature for operation even during heavy-duty rounds that go on and on.
How DC Motors Excel in Manufacturing Environments
Paper and steel mills have special problems, like loads that change often, speed changes, and the need to run all the time. These needs are met by 200 hp DC motor technology, which has better dynamic performance. The small moment of inertia makes it possible to quickly speed up or slow down, which is very important when working with different types of materials or changing production speeds. Compatibility with static rectifier power supplies increases installation options, letting buildings update their electrical systems without having to completely redo them.
Advantages Over Alternative Technologies
When smooth speed regulation and quick control are needed, 200 hp DC motors work better than AC motors. It is helpful to be able to handle high load change rates during the starting steps and process changes. Automatic speed stability keeps output constant even when mechanical loads change, which lowers the number of mistakes that happen when speeds change. These traits match control systems that need to be accurate, efficient, and reliable, which are basic needs in current steel and paper production.
Critical Applications of 200HP DC Motors in Paper Mills
Controlling motion at the same time in several working steps is necessary to make paper. The 200 hp DC motor powers important machines whose consistent speed has a direct effect on the end product's properties.
Paper Machine Drives
For paper machines to work properly, the speeds and web tension must be kept in sync during the making, pressing, and drying stages. With a 200hp dc motor, the speed can be changed easily during grade changes so that the paper 200hp dc motor web doesn't get wrinkled or torn. This response is needed to keep quality standards high on production lines that go faster than 1,000 meters per minute.
Pulper and Roller Drive Systems
As the raw materials break down into a grainy liquid, the mechanical pressure on the pulper drives change. 200 hp DC motors can handle these changing needs well because they have a high starting power. When calendering, roller drives need to make sure that the speeds of all the rollers are exactly the same so that the paper is the same thickness and finish all over. It is impossible to avoid precise control when there are even small differences in speed.
Addressing Common Performance Challenges
Paper mills have to deal with problems like changing loads while materials are being fed, changes in moisture content that cause friction, and the need to change speeds often. Motors that meet the national standards GB/T755 and the German VDE0530 standards show that they are reliable in these situations. When production facilities use motors with low moment of inertia and good dynamic performance, they report higher downtime. This is because these motors can respond quickly to changes in the process.
Real-World Impact on Production Efficiency
One paper company in the area changed its old motor systems to new 200-hp DC motor units that were rated at 200 horsepower for its main production line. Over eighteen months, the change cut unplanned downtime by 34% and made product consistency measures better. Energy use dropped by about 12% because operations were more efficient. This saved money that could be measured and paid for the capital investment within two years.
Essential Uses of 200HP DC Motors in Steel Mills
In steel factories, machines need to be able to handle a lot of mechanical stress, high temperatures, and constant working cycles. The 200 hp DC motor meets these needs because it is well-built and has a history of good performance.
Rolling Mill Operations
Rolling mills change the shape of steel by applying huge crushing forces that create high inertia loads and shock loading conditions. 200 hp DC motors with 200 horsepower ratings have enough force to handle these tough mechanical conditions while still keeping the speed accurate. Precise speed control makes sure that the reduction ratios stay the same between passes, which has a direct effect on the size and quality of the finished product.
Crane Hoists and Material Handling
Throughout steel plants, overhead lifts move liquid metal, heavy bars, and finished goods. For safe material placement, crane hoist motors need to be able to smoothly accelerate to stop loads from moving and precisely position themselves. 200 hp DC motors are safer to use and easier to handle because they can be controlled. This is especially true during repeated pulling processes.
Blast Furnace Auxiliary Equipment
Motors that work all the time in difficult conditions power fans in blast furnaces, material elevators, and charging systems. Resistance to heat, safety from dust, and tolerance for vibrations become important selection factors. Motors made with high-quality materials and higher safety grades keep working even when the temperature outside reaches 40°C and they are exposed to dust and dirt.
Durability Under Extreme Conditions
Every day, steel mills test the limits of their tools. Because they have to work continuously, motors may run for 8,000 hours or more a year with only a few repair windows. The strong construction with high-quality bearings—you can choose SKF, NSK, or FAG parts depending on your needs—extends the service life and lowers the number of unexpected repair events. Facilities say that when proper repair procedures are followed, it can be more than five years before big overhauls are needed.
Case Study: Improving Process Stability
A steel factory in the Midwest had problems with their main rolling mill's 200hp dc motor drive motors all the time, which stopped production and cost a lot of money. After a thorough evaluation of all the tools, they chose a 200 hp DC motor that met international standards and had better heat safety and gear systems. After the construction, tracking showed that there were no unexpected problems during the first thirty months of operation. This saved about $180,000 a year in lost production costs.
Selecting the Right 200HP DC Motor for Industrial Use: A Decision Support Approach
When making a procurement choice, you have to weigh technical requirements, source dependability, and the total cost of ownership. An organized review method helps find the best answer for each set of operating needs.
Critical Selection Criteria
Power flow must fit the needs of the application while leaving enough room for safety for peak loads. The starting and constant torque values of a motor show how well it can handle quick changes in load without stopping. Ratings for efficiency have a direct effect on how much it costs to run the motor over its lifetime. Voltage compatibility with current electricity equipment keeps power system changes from having to be expensive. Customizable power levels give installers more options for installing in a variety of settings.
Evaluating Supplier Capabilities
Warranty coverage shows that the company that made the product trusts it to work well. Quality building is shown by warranties that cover both parts and work for long periods of time. When technology problems happen, after-sales service is very important. Suppliers who give specialized support, including weekend hours, help keep downtime to a minimum when things go wrong. Long-term working stability is ensured by OEM assistance for upkeep advice and spare parts supply.
Matching Specifications to Operational Demands
Motors with good dynamic performance and low moment of inertia work best in situations where the speed needs to be changed often. Conditions where something is always running need better cooling systems and strong heat protection. Because of the harsh climate, devices need better IP security grades than the normal IP23. Facilities should choose which bearings to use based on how they are maintained and how easily new parts can be found.
Energy Efficiency and Lifecycle Costs
Initial purchase price is only a small part of what it costs to own the equipment. The amount of energy used over a normal ten-year service period is often several times the cost of the original equipment. Motors that are 95% efficient at standard load save a lot of money compared to motors that are 88–90% efficient. Lifecycle costs, such as energy use, upkeep, and expected downtime, can be accurately compared to help with purchasing choices.
Maintenance Tips and Best Practices for Maximizing 200HP DC Motor Lifespan
Preventive repair programs make equipment last longer and cut down on breakdowns that happen out of the blue and throw off production plans. Structured methods that are designed for business settings make reliability better in a way that can be measured.
Routine Inspection Protocols
Visual checks should be done once a month to check the stability of the fixing, the tightness of the connections, the 200hp dc motor, and any signs of odd wear or burning. Inspections every three months check the temperature of the bearings, look at the vibrations, and test the resistance of the electrical connections. Measurements of insulation resistance, state assessments of commutators, and inspections of brush wear are all part of annual thorough evaluations. By writing down what was found during a review, you can see patterns that show problems that are starting to form before they lead to crashes.
Early Warning Signs Requiring Attention
Strange sound patterns mean that bearings are wearing out or that the machine isn't aligned properly, which needs to be looked into right away. High running temperatures can mean that the cooling system isn't working properly or that there are electrical problems. Too much brush sparking means that the commutator is breaking down or the brush pressure is not right. Vibration makes signal mountings less stable or rotors less balanced. If you act quickly on these warning signs, small problems won't get worse and turn into big fails.
Preserving Operational Efficiency
Proper maintenance with items recommended by the maker keeps the bearings in good shape. Cleaning the air holes and making sure the fans work are part of maintaining a cooling system. Commutator care includes cleaning it every so often and repainting it when wear patterns show up. Replacing the brushes at the recommended times keeps the commutator from getting damaged by old brush material. These steps keep the motor's performance level high for as long as it lasts.
Workforce Training and Support
Maintenance workers need to be taught about certain motor features and the right way to service them. Technicians can do preventive maintenance well if they know what to check, how to spot problems, and when to call in an expert. Building ties with equipment sellers gives you access to professional help when you're trying to figure out what's wrong.
Leveraging Supplier Partnerships
Good providers offer maintenance advice, expert paperwork, and training materials to help with maintenance programs run by the company itself. Warranty services and service contracts protect you against unexpected repair costs and make sure you can get new parts. These relationships make things more reliable while keeping long-term costs down.
Conclusion
The exact control, strong build, and operating dependability of the 200hp dc motor make it an important part of the paper and steel industries. From drives in paper machines that need to be perfectly in sync with each other's speeds to rolling mills that have to handle huge mechanical loads, these motors provide performance that has a direct effect on the quality of the product and the efficiency of production. Choosing motors that meet recognized standards, putting in place organized repair programs, and working with dependable providers are all things that can help an industrial business stay successful over the long term.
FAQ
1. What voltage configurations are typical for 200HP DC motors in industrial applications?
Standard power setups include 160V and 440V systems, but they can be changed to work with the electrical equipment of the building already there. The choice of voltage depends on how the power is distributed and whether it works with the control systems that are already in place.
2. How does DC motor efficiency compare with AC alternatives in these applications?
At full load, high-quality 200 hp DC motors can be as efficient as 95%, which is about the same as high-end AC motor systems. The productivity benefit comes from better performance and controllability when the load changes, which is typical in steel and paper production settings.
3. What maintenance activities are essential for preventing unexpected failures?
The main parts of routine maintenance are lubricating the bearings, cleaning the cooling system, inspecting the commutator, and replacing the brushes on a regular basis. Visual checks once a month and performance tracking every three months find problems before they cause unplanned downtime.
Partner With XCMOTOR for Reliable Industrial Motor Solutions
Power options for industrial processes need to be backed by professional know-how and quick help. XCMOTOR specializes in making 200 hp DC motor systems that are built to work in tough paper and steel mills. Our goods meet foreign standards like GB/T755 and VDE0530, a 200hp DC motor, which means they are reliable and can be used over and over again.
We offer specs that can be changed to fit your exact working needs. These can include power settings, safety levels, and bearing choices. Before it is shipped, every motor goes through a lot of tests that make sure it meets speed and lifespan standards. As a well-known maker and seller, we keep products in stock so that we can ship them quickly anywhere in the world. Our products come with full warranties, and we offer expert help seven days a week.
Email our tech team at xcmotors@163.com to talk about the specifics of your idea. We'll help you choose the best motor setup, give you full technical paperwork, and make the buying process easier by giving you a clear price.
