Common Uses of YFBX4 Motors in Dust Explosion Environments
When working in places where flammable dust builds up, choosing the right motor isn't just about how well it works; it's also about avoiding disasters. This important need is met by the YFBX4 dust explosion-proof motor, which has special engineering that stops internal sparks and too much heat from setting off dangerous atmospheres. With explosion-proof certifications like Ex tD A21 and A22 grades, these motors are used in fields like pharmaceutical manufacturing and food processing where dust particles are always a risk of exploding. Because they are built to last and can handle voltages from 380V to 1140V and power rates from 0.55 kW to 315 kW, they can be used in a wide range of dangerous situations that need to ensure safety and dependability.

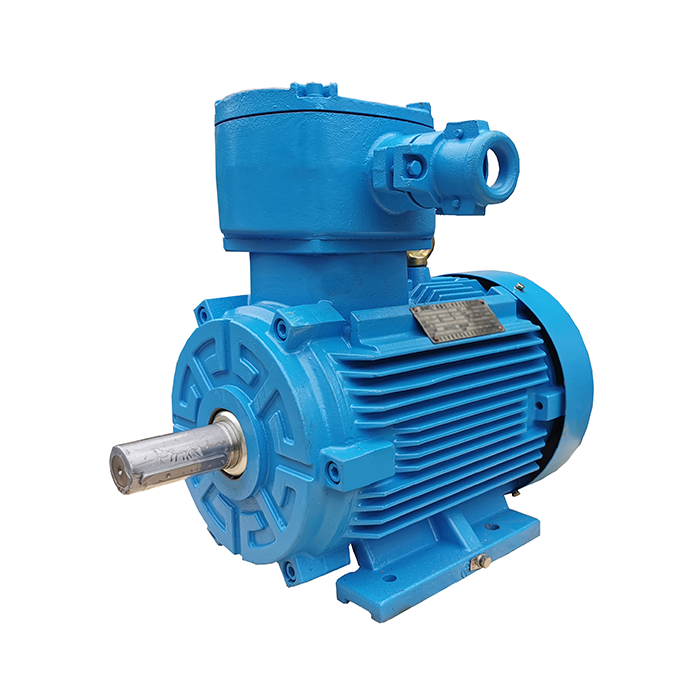

Series：YFBX4
Voltage range：380V，660V，415V，380/660V，660/1140V
Power range：0.55-315 kW
Application：medicine, textile, metallurgy, grain processing, feed processing, fertilizer, tobacco, papermaking, synthetic materials, building materials and other places where combustible dust exists.
Advantage: high efficiency, low noise, small vibration, excellent performance, safe and reliable use.
Others： SKF, NSK, FAG bearings can be replaced according to customer requirements.
Explosion-proof mark: Ex tD A21 IP65 T 130℃, Ex tD A22 IP65 T 130℃, Ex tD A22 IP55 T 130℃".
Understanding YFBX4 Dust Explosion-Proof Motors
Industrial sites that work with flammable materials have to deal with a constant problem: how to keep production going while reducing the number of fire sources? The YFBX4 dust explosion-proof motor series solves this problem with well-thought-out tech that gets to the bottom of why dust explodes.
Core Design Principles Behind Dust Ignition Prevention
The YFBX4 dust explosion-proof motor doesn't just keep dust out; it uses a storage approach instead. Its cast iron frame makes a strong shield that can handle changes in internal pressure and quickly removes operating heat. Specialised closing systems keep dust out of electrical areas where arcing could happen when the power is switched on or off. The motor's thermal management system keeps the surface temperatures below 130°C, which is much lower than the temperature needed for most flammable dusts to catch fire in industrial settings.
Certification Standards That Define Safety Compliance
International guidelines for explosion safety call for a lot of testing and paperwork. The YFBX4 dust explosion-proof motor line has explosion-proof marks, such as Ex tD A21 IP65 T130℃ and Ex tD A22 versions. These show that the products meet the standards for dust ignition protection in Zone 21 and Zone 22 dangerous areas. With these certificates, you can be sure that the motor has been tested for dust cloud ignition, surface temperature, and entry protection. The purchasing teams can choose motors based on the hazardous area rating of their building, knowing that the equipment meets the standards set by ATEX laws and IECEx schemes that are accepted in both North American and foreign markets.
Technical Specifications That Matter for Industrial Applications
When adding explosion-proof motors to current systems, being able to shift to different voltages is useful. The YFBX4 dust explosion-proof motor model works with 380V, 660V, 415V, and dual-voltage setups like 380/660V and 660/1140V. This lets electrical engineers match motor specs with building power systems without having to make expensive changes. The power range, from 0.55 kW to 315 kW, is wide enough to cover everything from small machines to big processing equipment. Speed ranges from 750 to 3000 rpm make them useful for both direct-drive and gear-reduced systems. Premium efficiency scores reduce the amount of energy used during constant operation, which lowers costs while keeping the safety features needed in dangerous places.
The motor's temperature class B design means it will work reliably in temperatures ranging from -20°C to +40°C, making it ideal for use in both climate-controlled spaces and outside. With an IP65 rating, the device is protected against dust buildup and water damage, which means that upkeep tasks can be put off longer. When the task cycle is high, insulation class F rated at 155°C gives you extra thermal safety.
Common Applications of YFBX4 Motors in Dust Explosion-Prone Industries
Applications in the real world show how specialised motor technology can improve operating safety and production efficiency in many areas where combustible dust is a risk.
Grain Processing and Agricultural Feed Production
Grain silos, bread mills and feed processing plants all work with things that make highly flammable organic dust. When the minimum explosive concentration of grain dust is reached in a small area, even small sources of ignition can cause huge blasts. The YFBX4 dust explosion-proof motor gets rid of this risk of starting a fire in places like bucket lifts, screw conveyors and hammer mills where mechanical equipment works in dusty environments. One Midwest grain cooperative said they had no more hot bearing accidents after upgrading their conveyor systems to ones with properly rated explosion-proof motors. This cut their insurance costs by a lot while keeping their flow rates the same.
The low vibration of the motors is especially helpful when moving grain, since too much vibration can loosen mounting gear and make upkeep harder. Their protected bearing setups with SKF, NSK, or FAG parts don't get messed up by flour dust and grain particles, which would quickly break down regular bearing assemblies. Feed mills that handle soybeans, corn and other goods benefit from the motors' continuous duty rates during the long harvest season, when equipment is used in twenty-hour shifts.
Chemical Manufacturing and Pharmaceutical Production
Explosions can happen in chemical plants that work with powdered materials because of things like medicine powders and industrial chemical intermediates. The YFBX4 dust explosion-proof motor is used in systems that mix powders, networks of air moving systems, and reactor feed mechanisms where safety must come first in the process control. Medicinal companies like how smoothly the motors work, which keeps products from getting contaminated by vibrations and meets strict explosion protection standards for handling active medicinal ingredients.
Metal powder activities in additive manufacturing and powder metallurgy are new fields where aluminium, titanium, and other metal dusts pose serious explosion risks. The YFBX4 dust explosion-proof motor line offers dependable motor options for sieving machines, powder classifiers, and systems that move materials in these specific industrial settings. Temperature tracking makes sure that the surface stays below the ignition thresholds for metal dusts, which are often much lower than the ignition thresholds for organic materials.
Textile and Synthetic Material Processing
During the carding, spinning, and finishing processes, textile plants make lint and fibre dust. When cotton, polyester, and synthetic fibre particles build up in air fans, material conveyors, and processing equipment, the YFBX4 dust explosion-proof motor powers them. One textile maker in the Southeast saw a 40% drop in unplanned downtime after upgrading their carding line from normal motors to explosion-proof units. This was because fibre infiltration into electrical components no longer caused motor failures.
Explosion-protected motor technology is also useful in factories that make synthetic materials like those that work with polymer powders, plastic pellets, and composite materials. The YFBX4 dust explosion-proof motor series' heat management features are especially useful for these tasks because they often involve high temperatures that make the risk of dust explosions higher. When the motors are running continuously in places where the temperature is getting close to their upper working limits, they keep up their performance.
Wood Processing and Furniture Manufacturing
Sawmills, particleboard factories, and woodworking shops all make fine wood dust when they cut, sand, and clean wood. There have been many recorded explosions in the wood products business involving this organic dust, making it one of the most dangerous hazards in manufacturing. In places where wood particles are common, like dust collection systems, material conveyors, and air transport networks, the YFBX4 dust explosion-proof motor is used. These motors are used in sanding booth exhaust fans and finishing line conveyors by furniture makers to keep workers safe and production plans on track.
How to Properly Install and Maintain YFBX4 Explosion-Proof Motors
For explosion protection to work properly, fitting details must be paid close attention to, and the motor's protective features must be maintained in a controlled way throughout its service life.
Pre-Installation Assessment and Site Preparation
Before putting up any explosion-proof gear, check the hazardous area classification to make sure that the motor's explosion-proof rating fits the zone name where it will work. Make sure the mounting surfaces are straight, rigid, and strong enough to hold operating loads without bowing too much. Clean the fitting area to get rid of any dust that might get in the way of fixing or cooling. Check the motor for damage from shipping, especially to the wire entryways, fan covers and junction box seals that keep the explosion safety in place.
Installation Procedures That Preserve Protection Integrity
To place the YFBX4 dust explosion-proof motor, use the tools that came with it and tighten the mounting bolts to the manufacturer's specs. Align linked equipment within acceptable ranges to avoid bearing loads that shorten the life of the equipment. Follow the steps in NEC Article 500 for making electrical connections in dangerous places, and make sure that tube seals are put correctly and at the right distances from motor enclosures. Make sure that the covers of the junction boxes fit flush against the closing surfaces and don't have any holes that let dust in. Before turning on the power, check the insulation resistance to make sure that the wiring wasn't damaged during installation.
Pay close attention to the patterns of wind that cool things down. Make sure that the fan covers are not blocked and that there are airflow ways that let heat escape. In places with a lot of dust, place the motors so that dust doesn't build up on the cooling surfaces and they are still easy to clean when needed. As a starting point for keeping track of upkeep, write down information about the installation, such as measurements of the coupler alignment, torque values, and insulation resistance readings.
Maintenance Schedules That Extend Service Life
The frequency of routine inspections depends on how the system is being used, but eye checks every three months are a good place to start for most situations. During checkups, look at the outside to see if dust has built up on the cooling fins, check the mounting hardware for looseness that could be caused by shaking, and listen for strange bearing noise that could mean the bearings are wearing out or not being properly oiled. Handheld vibration analysers can find worn-out bearings before they fail completely, so they can be replaced during planned breaks instead of having to be fixed quickly in an emergency.
Disassembly for an internal check, replacement or re-greasing of bearings based on working hours, and testing of insulation resistance should all be part of the machine's annual maintenance. Make sure that explosion-proof seals and gaskets stay in place, clean all the inside surfaces and check the rotor bars for damage. Apply the right sealants to the surfaces that will be joining and repair any damaged gaskets that could let dust in. After putting everything back together, test it's functionality by doing things like vibration analysis and thermal imaging to get new standard readings.
Comparing YFBX4 Motors with Other Explosion-Proof Options
By knowing how the different designs of explosion-proof motors stack up against each other, procurement teams can make choices that meet their business needs and safety responsibilities.
YFBX4 Advantages in Dust Explosion Environments
The YFBX4 dust explosion-proof motor is designed to keep dust from starting fires instead of gas vapour explosions, making the most of its features for particulate dangers. Class I Division 1 motors are made for environments with flammable gases. Dust ignition-proof design uses different sealing methods and temperature management methods that work better with the unique way that combustible dust starts fires. When you compare this focused design approach to motors that meet both gas and dust explosion safety standards, you'll often find that they cost less to buy.
Noise levels during operations are a useful factor that is often forgotten during design. Precision-balanced blades and improved cooling fan designs make the YFBX4 dust explosion-proof motor models very quiet when they're working. These sound properties can help manufacturing sites where workers are exposed for long periods of time, possibly lowering the need for hearing protection while still providing explosion safety. The strong cast iron construction also reduces vibrations, which makes the operation smooth and quiet, which is important in places where noise is a problem.
Performance Trade-offs in Alternative Motor Technologies
Since air engines don't have any electrical firing sources, they are naturally safe from explosions. This makes them useful in very dangerous situations. However, they need a lot of infrastructure for compressed air, have higher running costs because of energy transfer losses, and don't produce as much power as electric motors of the same size. The YFBX4 dust explosion-proof motor has a higher power density and better working economy. It also keeps the right safety levels for most situations involving industrial dust hazards.
Another option is to modify standard industrial motors with purge and pressurisation systems. These motors keep the inside of their environments clean by using constant positive pressure. These systems are more complicated because they need interlock controls, tracking of pressure, and purge gas sources. It gets harder to do maintenance, and if the pressurisation system fails, explosion safety is instantly lost. The YFBX4 dust explosion-proof motor series' self-contained explosion protection gets rid of the need for these extra systems, making installation easier and lowering the need for ongoing operating tracking.
Procurement Insights: Buying YFBX4 Motors for Your Business
When you're looking for explosion-proof motors, you need to do more than just compare prices. You also need to look at the skills of the suppliers, their after-sales support systems, and the total cost of ownership.
Supplier Selection Criteria Beyond Initial Pricing
Finding a trustworthy YFBX4 dust explosion-proof motor provider starts with making sure they are allowed to sell approved explosion-proof equipment. Ask for proof that the motors you want to buy have real approval marks and not fake ones that aren't approved, which puts your facility at risk of liability and safety issues. Check how good the supplier's technical support is, especially how well they can help you match motor specs to your unique working conditions and hazardous area classifications.
Lead times vary a lot between providers because they depend on where their product is located and when they make things. Standard frame sizes and volts usually ship within days. Custom designs that need special windings or voltage rates that aren't standard, on the other hand, might take weeks. Getting in touch with suppliers who keep stock in North America cuts down on supply chain delays compared to buying straight from makers overseas, where shipping times are longer.
Bulk Purchasing Strategies and Volume Pricing
Bulk purchasing of YFBX4 dust explosion-proof motors often includes tiered discounts, with price reductions at around 10 units and further savings at 25+ units. Large orders may also improve payment terms and include spare parts packages. Standardising motor sizes and voltages reduces inventory complexity, simplifies maintenance, and strengthens supplier negotiation power, often outweighing minor efficiency trade-offs.
Warranty Terms and Technical Support Expectations
The YFBX4 dust explosion-proof motor line typically includes a 12-month warranty from commissioning or 18 months from shipment, whichever comes first. Terms exclude issues from improper environment, installation, or maintenance. Extended warranties may be available. XCMOTOR (Shaanxi Qihe Xicheng Electromechanical Equipment Co., Ltd.) offers weekend technical support, 30-day returns, and fast, free delivery, reducing application and design risks.
Conclusion
In conclusion, the YFBX4 dust explosion-proof motor is used in places where flammable dust poses a threat and needs reliable explosion protection without affecting work performance. From factories that process grains to those that make medicines, these motors offer approved safety features like temperature-controlled surfaces, dust-tight construction, and strong mechanical design that keeps production going. If these motors are installed correctly and in line with the electrical rules for hazardous areas, and if they are maintained in a way that keeps the explosion safety intact, they will last for many years. When looking at explosion-proof motor choices, procurement professionals should compare the series' focused dust ignition protection to others, taking into account the total ownership costs that include energy use, maintenance needs, and the ability of the provider to provide support.
FAQ
1.What certifications do YFBX4 motors carry for hazardous locations?
The YFBX4 dust explosion-proof motor has explosion-proof marks, such as Ex tD A21 IP65 T130℃ and Ex tD A22 grades, which show that it meets international standards for protecting against dust burning. These licenses show that the motors have been through strict tests to be used in Zone 21 and Zone 22 hazardous areas, which are places where flammable dust levels are common or sometimes high during regular operations. The IP65 grade means that the device is safe from both dust and water jets, making it ideal for wash-down areas in pharmaceutical and food processing plants.
2.Can YFBX4 motors operate in combined dust and gas explosion risks?
The YFBX4 dust explosion-proof motor is designed to protect against dust ignition dangers. However, facilities that are concerned about both gas and dust explosions should talk to application experts to find out if they need to take any extra safety measures. For some tasks, motors may need to be approved for both Class I (gas) and Class II (dust) hazardous areas. The YFBX4 works really well in places with a lot of dust, like when dealing grains, working with wood or making metal powder, where there isn't much chance of a gas explosion.
3.What service life should be expected under heavy-duty industrial use?
When properly kept and used within their rated parameters, YFBX4 dust explosion-proof motors can usually last for 15 to 20 years of steady industrial duty. Bearings need to be replaced every 3 to 5 years, based on how often they are used and the weather. The strong cast iron construction doesn't wear down easily, and the high-quality insulation systems can handle heat cycles during frequent starts and heavy loads. By using predictive maintenance, facilities that use vibration tracking and temperature analysis can often make equipment last longer than expected.
Partner with XCMOTOR for Reliable Explosion-Proof Motor Solutions
To protect your building from explosions completely, you need to buy from makers who know both the technical needs and the practical facts of running a business. As a part of Shaanxi Qihe Xicheng Electromechanical Equipment Co., Ltd., XCMOTOR offers YFBX4 dust explosion-proof motor solutions and quick expert help, even on the weekends when production problems can't wait until business hours. Depending on the needs of your application, our stock includes high-quality bearings from SKF, NSK, and FAG. We are a reliable source for YFBX4 dust explosion-proof motors, and our clear prices, 30-day returns and free fast delivery take the guesswork out of how much freight will cost. You can email our team at xcmotors@163.com or go to motorxc.com to talk about your specific hazardous location motor needs and get full quotes that fit your budget and time frame for purchase.
References
1. National Fire Protection Association. "NFPA 654: Standard for the Prevention of Fire and Dust Explosions from the Manufacturing, Processing, and Handling of Combustible Particulate Solids." Quincy: NFPA, 2020.
2. International Electrotechnical Commission. "IEC 60079-31: Explosive Atmospheres - Part 31: Equipment Dust Ignition Protection by Enclosure 't'." Geneva: IEC, 2013.
3. Eckhoff, Rolf K. "Dust Explosions in the Process Industries: Identification, Assessment and Control of Dust Hazards." 3rd ed. Burlington: Gulf Professional Publishing, 2003.
4. Occupational Safety and Health Administration. "Combustible Dust in Industry: Preventing and Mitigating the Effects of Fire and Explosions." Washington: U.S. Department of Labor, 2019.
5. European Committee for Standardization. "EN 13463-1: Non-electrical Equipment for Use in Potentially Explosive Atmospheres - Basic Methods and Requirements." Brussels: CEN, 2009.
6. Chemical Safety Board. "Combustible Dust Hazard Study: Case Studies and Industrial Facility Assessments." Washington: U.S. Chemical Safety and Hazard Investigation Board, 2006.
