Best Medium Voltage Electric Motors for Heavy Industry

May 19, 2026

When procurement managers look for the best medium voltage electric motors for the overwhelming industry, they need to discover equipment that they can believe will work well indeed in intense circumstances. Electric engines with a voltage between 1 kV and 35 kV offer the best blend of control, effectiveness, and unwavering quality for a wide range of applications, from making cement to treating water. These AC acceptance engines can handle overwhelming loads whereas still adhering to assembly guidelines for vitality reserve funds that lower costs and bolster endeavors to make industry more ecologically friendly.

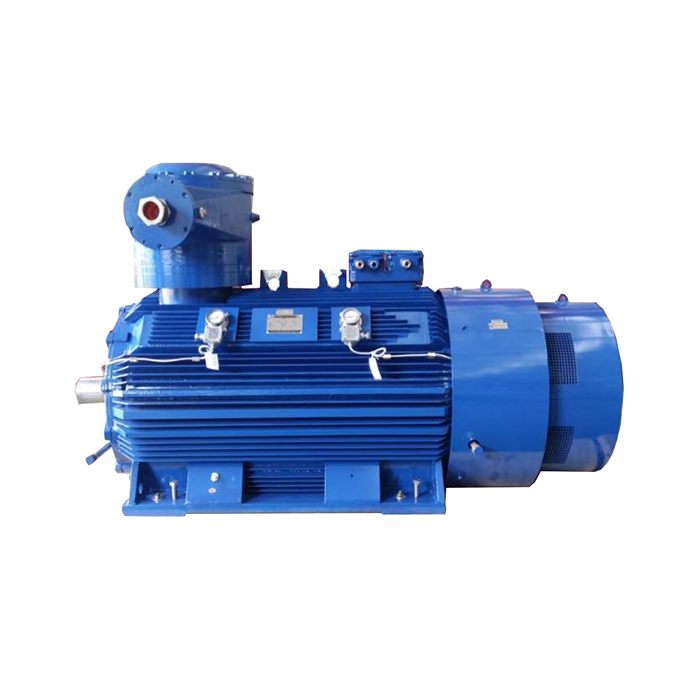

Series：YBBP-HV
Voltage range：3000V±5%,3300V±5%,6000V±5%,6600V±5%,10000V±5%,11000V±5%
Power range：185-1800 kW
Application：compressors, water pumps, crushers, cutting machine tools, transportation machinery.
Advantage: wide modulation range, high efficiency and energy saving, low noise, long life, high reliability.
Others： SKF, NSK, FAG bearings can be replaced according to customer requirements.

Understanding Medium Voltage Electric Motors

Defining Characteristics and Voltage Classifications

Medium voltage electric motors operate within the 1100 V to 7000 V range, with most industrial applications using 3000 V or 3300 V systems. The YAKK series spans 3000V±5% to 11000V±5%, covering diverse requirements. This category sits between low-voltage (<1000 V) and high-voltage (>10000 V) systems. The distinction matters because medium voltage electric motors use smaller winding currents, enabling more flexible coil design. Engineers optimize spacing between coils to improve airflow and heat dissipation. This enhances thermal performance and ensures stable operation, making these motors suitable for demanding industrial environments.

Core Components and Operating Principles

Medium voltage electric motors rely on electromagnetic induction to convert electrical energy into mechanical movement. When energized, stator windings produce a pivoting attractive field that acts to create current in the rotor, creating torque. Progressed plan apparatuses guarantee exactness in these components some time recently fabricating. The YAKK arrangement employs Lesson F and H cover frameworks to handle tall temperatures dependably. Assurance appraisals such as IP55, IP56, and IP65 shield against dirt and dampness. Coordinate cooling frameworks expel warm amid persistent operation, anticipating warm harm and amplifying benefit life, ensuring reliable long-term execution in mechanical applications.

Motor Types and Industrial Configurations

Squirrel cage designs dominate medium voltage electric motors due to their toughness and low support needs. Their rotor structure, with short-circuited bars, kills brushes and slip rings, rearranging operation. These engines serve fans, pumps, crushers, and transports viably. Control appraisals run from 200 kW to 3550 kW, assembly shifted mechanical requests. Speed alternatives like 3000 rpm, 1500 rpm, 1000 rpm, and 750 rpm permit legitimate stack coordinating. Commonplace beginning streams reach 5–7 times appraised current, whereas control components of 0.85–0.92 show effective vitality transformation. They can handle up to 150% stack briefly, advertising operational flexibility.

Benefits and Applications in Heavy Industry

Energy Efficiency and Cost Advantages

Medium voltage electric motors reduce energy losses compared to different low-voltage units performing the same task. Higher voltage operation brings down current, minimizing resistive misfortunes in cables and windings, which diminishes power utilization. Lesson F, which covers the Course B temperature rise gives warm edges that expand component life. Vacuum weight impregnation (VPI) reinforces the separator and keeps up dielectric execution over time. This plan highlights moving forward with unwavering quality and lower upkeep costs. As a result, businesses advantage from decreased add up to fetched of ownership and make strides in energy efficiency, aligning with both financial and environmental goals.

Heavy Industry Sector Applications

Medium voltage electric motors are basic in businesses requiring solid, high-power operation. In oil and gas, they drive pumps, compressors, and preparing frameworks. Mining operations utilize them for crushers, transports, and ventilation frameworks in cruel conditions. Control plants depend on them for auxiliary frameworks like evaporators, booster pumps, and cooling fans. Water treatment offices utilize these engines in pumping and air circulation systems. Cement plants depend on them over generation stages, whereas mash and paper businesses utilize them in refiners and machine drives. Their solidness makes them reasonable for persistent, heavy-duty applications.

Regulatory Compliance and Sustainability

Medium voltage electric motors support compliance with global energy efficiency standards by reducing energy consumption per output unit. Lower energy use leads to reduced cooling needs and extended maintenance intervals, minimizing waste generation. These benefits contribute to improved environmental performance and sustainability certifications. Companies adopting efficient motors can meet regulatory requirements while lowering operating costs. Durable motor design further reduces lifecycle impact by extending service life. Certifications such as ISO 9001:2015 ensure consistent quality, reinforcing confidence in performance and compliance across international industrial applications.

Choosing the Best Medium Voltage Electric Motor for Your Needs

Evaluating Power Requirements and System Compatibility

Selecting the right medium voltage electric motors requires understanding load characteristics, including continuous, intermittent, or variable duty cycles. Proper sizing ensures sufficient torque during startup, acceleration, and full operation without oversizing. Mechanical systems like gears and couplings influence speed and mounting choices. Electrical compatibility involves matching voltage, frequency, and fault current capacity. Variable frequency drives (VFDs) enable speed control and soft starting but require motors designed to handle harmonic stress. Careful evaluation ensures optimal performance, efficiency, and compatibility with existing infrastructure.

Technical Specifications and Performance Metrics

Key performance indicators help compare medium voltage electric motors across suppliers. Efficiency ratings directly impact lifetime energy costs, while power factor affects electrical system performance. Starting characteristics determine whether additional equipment is needed. Temperature rise and insulation class indicate reliability and thermal capacity. The YAKK series reflects decades of engineering expertise, with precise CNC machining ensuring dimensional accuracy. Each motor undergoes comprehensive testing throughout production, guaranteeing consistent quality and performance before delivery, making them suitable for demanding industrial environments.

Supplier Reliability and Support Services

Choosing medium voltage electric motors involves building a long-term partnership with a reliable supplier. Factors such as warranty coverage, technical support, and spare parts availability directly influence operational stability. Lead times affect project schedules, while service networks determine maintenance responsiveness. Access to global bearing brands like SKF, NSK, and FAG ensures flexibility in maintenance. Customization options allow solutions tailored to specific applications. Strong after-sales support, including troubleshooting and maintenance guidance, ensures maximum uptime and long-term reliability throughout the motor’s service life.

Maintenance, Troubleshooting, and Longevity

Proactive Diagnostic Practices

To make medium voltage electric motors as reliable as possible, they need to be systematically inspected and monitored. Vibration analysis finds worn bearings, misaligned shafts, and unbalanced rotors before they cause major problems. Thermal imaging finds areas that could mean that the insulation is breaking down, the cooling system is clogged, or there are electrical problems. Motor current signature research shows when flaws are starting to show up in the windings, connections, or driven equipment. Setting standard measures during commissioning gives you a way to look at how performance has changed over time. When normal working conditions aren't followed, investigations are started before small problems get worse. Inspections are done on a regular basis to check the state of the coupling, mounting gear, and external factors that affect how the motor works. Findings and corrected steps that are written down help build institutional knowledge that supports long-term asset management.

Routine Maintenance Procedures

When maintenance is done right, the number of interventions and the amount of downtime are balanced. Bearings should be oiled according to the manufacturer's instructions, which are based on speed, load, and the environment. Different types of bearings and how they are mounted affect how often and how much oil is needed. Too much oil speeds up wear and causes seals to fail, while not enough lubrication causes burning. Maintenance on the cooling system makes sure that air flows freely through the ventilation system. Building up debris on outside surfaces makes it harder for heat to escape, which raises working temperatures and puts stress on shielding systems. When you clean during planned downtime, you get rid of contaminants without putting water or other foreign materials in sensitive areas. By looking at the mounting bolts, wire connections, and protection covers, you can find broken or loose hardware that needs to be fixed.

Repair Strategies and Component Replacement

When things break down even though precautions were taken, repair choices are made by weighing the prices of repairs against the expected remaining service life. Replacement of bearings is the most usual repair task. When you use original parts from well-known makers, the original design gaps and compatibility are kept. When installing bearings, it's important to pay close attention to the fits, gaps, and cleaning instructions so that they don't fail again too soon. When windings fail, they need more complicated fixes like replacing the insulation system. Rewind services have to copy the original electrical features, like the number of turns, the size of the wires, and the way the connections were made. After the windings are installed, vacuum pressure impregnation makes sure that the insulation is as strong as it would be in a brand-new motor. Before putting motors back into service, testing procedures check their electrical performance, insulator resistance, and mechanical balance.

Future Trends and Innovations in Medium Voltage Electric Motors

Smart Motor Technologies and IoT Integration

Through built-in sensors and connection features, the digital revolution changes what kinds of medium voltage electric motors can be used in industry. Smart motors have temperature sensors, vibration monitors, and current transducers that send operating data to monitoring devices all the time. This real-time view makes it possible for condition-based maintenance methods to work, which choose the best time to fix something based on how the equipment is actually working instead of a random calendar. Internet of Things (IoT) platforms collect data from many assets and use analytics tools to find trends that show problems are starting to happen. Predictive maintenance methods cut down on unplanned downtime by organizing fixes for times when they don't interfere with production. Expert analysis can be done remotely with remote diagnostics, which speeds up fixing and cuts down on journey costs. These features give a clear return on investment by increasing access and lowering upkeep costs.

Advanced Materials and Design Innovations

As material science progresses, insulation systems get better at keeping heat in and last longer. High-performance magnetic steels cut down on core losses, which makes the system work better. Better bearing materials and coats make it possible to lubricate less often and run at higher temperatures. Using methods like additive manufacturing to make parts allows for shapes that improve airflow for cooling and lower mass. The main goal of design advances is to increase power efficiency, which means getting more power out of smaller, lighter packages. Simulations of computational fluid dynamics find the best ways to cool things down. With finite element analysis, you can guess what the mechanical pressures will be in different working situations. These engineering tools let you try out different versions of a design virtually before making a real prototype. This speeds up the development process and makes the end product work better.

Industry 4.0 Integration and Energy Management

Industry 4.0 ideas that connect physical tools with digital information systems are being used more and more in manufacturing sites. Communication interfaces on motors let supervisory control systems, building automation platforms, and business resource planning tools talk to each other and share data. This combination makes it possible for combined control strategies that react to production plans, electricity rates, and equipment conditions to use the least amount of energy possible across multiple systems. Energy management systems use operating data from motors to find ways to make them more efficient. By looking at trends of power use, you can see when equipment isn't working at its best or is doing work that it doesn't need to. Automated controls change the speeds of motors, plan the order of equipment, and use demand response techniques to lower peak power use. These features help factories meet goals for sustainability while keeping costs low in markets with lots of competition.

Conclusion

When looking for the best medium voltage electric motors for heavy industry uses, you need to balance technical specs, working needs, and long-term cost factors. Motors that work at voltages between 3 kV and 11 kV provide efficient and reliable power for difficult tasks in the utility, industrial, and processing industries. The YAKK line has been tested and proven to work well. It has power levels ranging from 200 kW to 3550 kW, speeds that can be changed, and protection grades that are good for harsh industrial settings. These motors meet the strict needs of modern heavy industry operations thanks to strict quality control, thorough testing, and obedience to international standards. They also help meet sustainable goals by being energy-efficient and long-lasting.

FAQ

1. What distinguishes medium voltage from low voltage motors?

The main difference between medium voltage electric motors and low voltage units is in the working voltage levels and the design features that come from them. Motors with low voltage work below 1000 V, usually between 380V and 690V. Medium voltage systems work with voltages between 1 kV and 35 kV. Most business uses 3 kV to 11 kV bands. Higher working voltages let you use less current to get the same amount of power, which reduces the size of the conductors and resistance losses. Smaller winding wires are used in medium voltage motors, which gives designers more options for making the best electrical performance. To safely handle higher voltages, insulation systems need to have better insulating strength.

2. How do I select appropriate motors for specific industrial applications?

Before choosing a motor, you need to know about the load's features, such as the power, speed, torque profile, and duty cycle that it needs. Protection class and cooling system needs are affected by things like the temperature, altitude, and the amount of wetness or contaminants in the air. Sizes and arrangements of shafts are affected by how they are mounted and how much room is available. Connection requirements are based on how well the electrical system works with other parts, such as power, frequency, and the ability to work with changing frequency drives. The right equipment is chosen by talking to experienced providers who know how to meet the needs of each application.

3. What practices extend motor service life in heavy industry environments?

Comprehensive repair programs that combine preventative tracking with regular checks make sure that equipment lasts as long as possible. Vibration analysis and thermal imaging can find problems before they break down. Bearings don't wear out as quickly if they are properly oiled according to the manufacturer's instructions. Keeping the cooling tubes clean makes sure that heat can escape properly. Making sure that motors and driven tools are properly aligned lowers mechanical stress. Thermal and electrical overstress can be avoided by keeping motors within their rated limits. Repairs that use original parts and approved service providers keep the design's purity.

Partner with XCMOTOR for Your Medium Voltage Motor Solutions

When looking for a medium voltage electric motors provider, we at Shaanxi Qihe Xicheng Electromechanical Equipment Co., Ltd. know that you need to be sure of the quality of the products and the help you will get in the future. Our YAKK line offers options that use less energy and are better for the environment. They are backed by strict quality control and thorough testing. We can make configurations that are specific to the oil and gas, mining, power production, water treatment, and manufacturing industries to meet their specific operating needs. Our focused technical team helps with everything from coming up with the initial specifications to installation and ongoing upkeep. With more than 20 years of experience handling tough industrial problems, we come up with new ways to make heavy industry processes run more smoothly. Get in touch with us at xcmotors@163.com to talk about your needs and find out how our medium voltage electric motors for sale can improve the performance and dependability of your facility.
