By adding a 2500 kW motor to high-voltage generator systems, manufacturing, power generation, and process control activities can significantly improve their efficiency. For the high performance, energy economy, and dependability that modern businesses need, these strong electric motors offer. Combining high-voltage systems with motors of the right size creates mutual effects that boost working output while lowering costs and servicing needs.

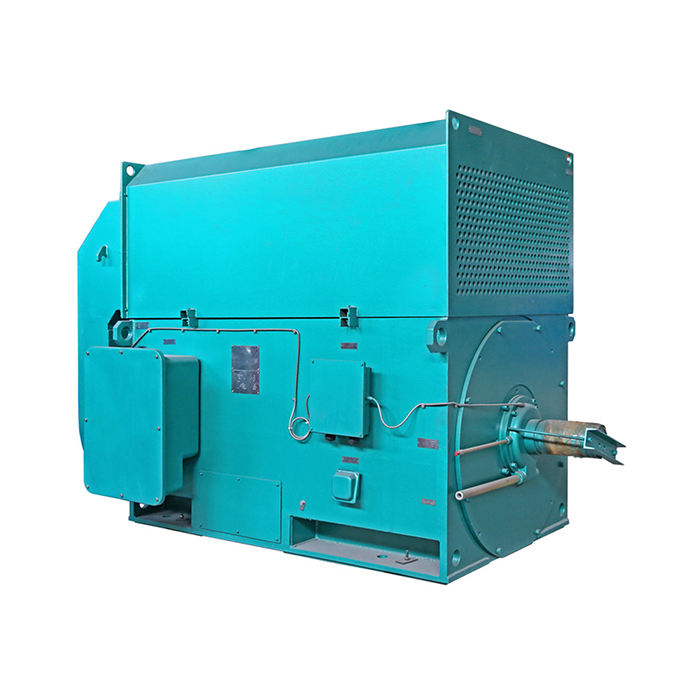

Series：YKK
Protection level：IP54
Voltage range：3000V±5%,3300V±5%,6000V±5%,6600V±5%,10000V±5%,11000V±5%
Power range：200-6300 kW
Application：fans, water pumps, compressors, crushers, cutting machine tools, transportation machinery, etc.
Advantage：low noise, low vibration, long service life, easy installation and maintenance.
Standard: This series of products complies with JB/T 12730 and JB/T 12729 standards.
Others： SKF, NSK, FAG bearings can be replaced according to customer requirements.
Figuring out what the key parameters and performance indicators are
When looking at motor specs for high-voltage uses, a few important factors are very important in deciding how well the motor will work. Here are the most important things to think about:
Power Rating and Capacity for Load
The power number of a motor is the main way to figure out how much mechanical energy it can keep up. For industrial equipment, it's important to choose motors that can handle large loads and keep working at the same level even when operating conditions change. A motor with the right power level will work reliably and effectively in tough conditions.
Range of Voltage and Class of Protection
Our motors can work with voltages between 3000V and 11000V, with a limit of ±5%. This means they will work perfectly with the electricity you already have. The motors also have an IP54 grade, which means they are well protected against dust and water splashes. This makes them perfect for harsh industrial settings.
Things to Know About RPM and Torque
RPM and power are very important for figuring out how well a motor moves tools like fans, water pumps, and cutting machines. Being able to keep RPM and torque constant makes sure that all linked machines run smoothly, which increases output and decreases wear.
Bearings and the cooling system
Managing heat well is important for keeping things at the right temperature, which in turn increases motor performance during hard processes and extends service life. Motors also come with SKF, NSK, or FAG bearings, so customers can pick the ones they want based on their maintenance preferences and operating needs.
Main Advantages of Adding a High-Voltage Motor
When paired with the right-sized motors, high-voltage motors, like 2500 kW motors, offer big working benefits. When motors are set up to work best with their load ranges, they use a lot less energy. Here are some of the main cons:
Energy Efficiency and Variable Frequency Drive Compatibility
Electric motors use a lot less energy when they are working within their ideal load range. Adding variable frequency drives (VFDs) to a motor lets you precisely control it, changing the power output to match real demand instead of always running the motor at full capacity. This makes sure that less energy is wasted and the system lasts longer.
Mechanical Drive Efficiency and System Longevity
The effectiveness of a mechanical drive is greatly improved by using the right size motor. When used in heavy-duty situations, motors that are the right size put less stress on drive parts, which helps the system last longer. This is very important for systems that work all the time or under a lot of stress.
Cutting down on noise and vibrations
Modern motor designs use high-tech materials and precise production methods to keep noise and shaking to a minimum. These changes lower the noise level, making workplaces more relaxed and reducing the stress on mounting systems and equipment that is attached to them.
Less maintenance and better dependability
Quality motors are made to work in tough situations, which means they don't need to be serviced as often. Because they are built to last and have improved gear systems, these motors need to be serviced less often, which means they have less downtime. This means lower operating costs and better dependability over longer service times.
XCMOTOR's Advanced Motor Solutions Versus Competitors
The motors that XCMOTOR sells stand out because of their excellent engineering and thorough customer service. As part of our manufacturing process, we use precision casting methods that guarantee the highest level of structural stability and correctness. Modern wrapping techniques make the electricity work more efficiently, and vacuum pressure impregnation protects the insulator very well.
Using dynamic balancing methods gets rid of shaking problems that many competing goods have. Our thorough testing methods mimic real-life situations, making sure that success is the same in all kinds of situations. When compared to other building methods, the strong cast frame form is better at removing heat.
XCMOTOR is different from other companies because they have great customer service. We offer tailored support seven days a week to make sure that expert help is always available when operating problems arise. Our 30-day return policy shows that we trust the quality of our products, and our fast delivery choices keep project delays to a minimum.
Original parts from well-known names make sure that the product will work well for a long time and that parts will be available. This dedication to quality goes all the way through our supply chain, from choosing the first parts to putting them together and checking them.
Getting the most benefits by choosing and using the right methods
To get the best results, you need to pay close attention to the 2500 kW motor's specs and how it is installed.
- Before choosing a motor, you should do a load study to make sure that the power number matches the real needs of the activity. Motors that are too big lose energy, and units that are too small break down too quickly when they are under too much stress.
- When doing electrical engineering, things to think about include power compatibility, frequency needs, and the right safety class for the surroundings. Motor control systems need to work well with the automation systems that are already in place and give operators the freedom they need to do their jobs.
- How something is installed has a big effect on how well it works in the long run. The right fixing stops vibrations from getting through, and the right position stops bearing wear and connection damage.
- For the cooling system to keep working at its best for as long as it's supposed to, the airflow must never be blocked.
- Scheduling regular repair keeps motors running well and increases their useful life. Inspection of electrical connections, cleaning of bearings, and tracking of temperatures can find problems before they become expensive to fix. Keeping records of repair tasks helps find patterns in performance and find the best service times.
Important Things to Think About for Installation and Use
Environmental factors have a big impact on the choice of motor and the fitting needs. The right safety rates and cooling needs are based on temperature fluctuations, humidity levels, and contamination exposure. Altitude changes how well cooling works and how far electrical wires can reach, so specifications need to be changed for sites that are high up.
The strength of the power source affects how well and how long a motor lasts. Unnecessary stress is put on motor parts by voltage changes, harmonic distortion, and phase mismatches. Power filtering tools might be needed to make sure that sensitive motor windings get a clean power source.
Safety rules need to cover risks related to high power and machines that spin. Correct exit methods, arc flash protection, and emergency stop systems keep workers safe while still allowing for freedom in how things are done. Training makes sure that workers know both how to do normal operations and what to do in an emergency.
Monitoring tools give you useful information about how well and how well your motors are working. Vibration analysis, heat images, and electrical signature analysis can all find problems before they break down. This method to predicted maintenance cuts down on unexpected downtime and makes the best use of maintenance resources.
Conclusion
When paired with the right motors, 2500 kW motors offer big operating benefits in a wide range of industrial settings. Improving energy efficiency, lowering the need for upkeep, and making things more reliable are all great benefits for modern production processes. XCMOTOR's dedication to top-notch engineering and full customer service guarantees a smooth motor coupling that yields observable outcomes. When you combine advanced motor design with strict testing methods and ongoing technical support, you have a recipe for long-term success in harsh industrial settings.
Frequently Asked Questions
Q1: What voltage ranges are compatible with 2500 kW motors?
A: Our motors support voltage ranges from 3000V to 11000V with ±5% tolerance, including common industrial voltages like 3300V, 6000V, 6600V, and 10000V. This flexibility ensures compatibility with most high-voltage industrial electrical systems.
Q2: How do I determine if a 2500 kW motor is appropriate for my application?
A: Load analysis should consider peak power requirements, duty cycle characteristics, and environmental conditions. Our technical team can assist with motor selection based on your specific application requirements, including fans, water pumps, compressors, and other industrial equipment.
Q3: What maintenance is required for high-voltage motors?
A: Regular maintenance includes bearing lubrication, electrical connection inspection, cooling system cleaning, and vibration monitoring. Our motors feature extended maintenance intervals due to high-quality components and robust construction, reducing operational costs.
Partner with XCMOTOR for Your High-Voltage Motor Needs
XCMOTOR stands ready to provide comprehensive motor solutions that transform your high-voltage generator systems. Our experienced engineering team understands the unique challenges facing modern industrial operations and delivers customized solutions that exceed performance expectations.
As a trusted 2500 kW motor manufacturer, we combine advanced manufacturing capabilities with exceptional customer service. Our commitment to quality ensures every motor meets rigorous performance standards while our support team provides ongoing assistance throughout the product lifecycle.
Take the next step toward optimizing your industrial operations. Our technical specialists can evaluate your specific requirements and recommend motor solutions that deliver measurable improvements in efficiency, reliability, and operational cost reduction. Contact us at xcmotors@163.com to discuss how XCMOTOR can enhance your high-voltage generator systems with our premium motor solutions.
