Key Factors Contributing to Motor Reliability
The reliability of 11kV motors is paramount for industries relying on continuous operation. Several factors contribute to the overall dependability of these high-voltage motors:
Robust Construction and Material Quality
An 11kV motor's dependability starts with its sturdy design and excellent material quality. High-voltage motors are made to withstand harsh industrial settings with frequent exposure to moisture, dust, and temperature changes. Usually composed of premium-grade silicon steel, the stator and rotor cores increase magnetic efficiency while reducing losses. Extra durability is also offered by strengthened end windings and sophisticated insulating coatings. From the shaft to the bearings, every part is meticulously designed to withstand mechanical stress, guaranteeing the motor's steady performance throughout long operating times.
Thermal Management

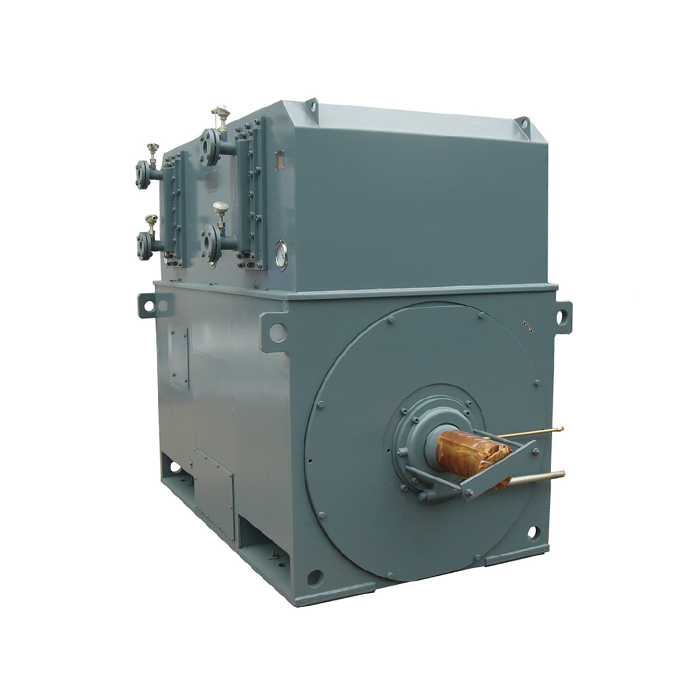

Effective heat control is essential to the dependability of 11kV motors. When operating, high-voltage motors produce a lot of heat, which can damage insulation and reduce service life if it is not adequately dispersed. To maintain ideal operating temperatures, modern 11kV motors use sophisticated cooling strategies such forced-air ventilation or the IC37W water-cooling approach. Heat exchangers and internal airflow channels are engineered to disperse cooling evenly, minimizing hot spots that could cause an early failure. These motors have a longer operating lifespan because they can maintain continuous duty cycles with less chance of overheating thanks to efficient thermal environment control.
Vibration Control
Reducing vibration is essential for 11kV motors to operate steadily and sustainably over time. Overvibration raises the possibility of alignment problems, accelerates bearing wear, and loosens structural elements. Rigid frames, premium bearing assemblies, and precisely balanced rotors are features that 11kV motors have to overcome these difficulties. In order to provide predictive maintenance prior to breakdowns, certain designs integrate vibration monitoring sensors that identify early indications of imbalance or misalignment. In addition to extending the motor's lifespan, lower vibration levels also make the industrial environment more stable overall, increase safety, and make operations quieter.
Insulation System
A high-performance insulating system is essential to 11kV motor longevity. Class F or H insulation, which offers exceptional resistance to electrical stress, thermal aging, and mechanical vibration, is frequently found in these motors. To guarantee a strong bond and moisture protection, several layers of insulating tapes, epoxy varnishes, and vacuum pressure impregnation (VPI) techniques are applied. Under high-voltage circumstances, its all-inclusive insulation system guards against partial discharge, phase-to-phase failures, and breakdowns. The insulation technology guarantees that the motor will continue to operate dependably and effectively for many years under demanding industrial workloads by shielding the windings from thermal and electrical deterioration.
Efficiency Ratings Explained: IE3, IE4, and Beyond
Energy efficiency is a crucial consideration in the selection and operation of 11kV motors. The International Electrotechnical Commission (IEC) has established efficiency classes to help users identify and compare motor efficiency levels:
Understanding IE3 and IE4 Ratings
IE3 (Premium Efficiency) and IE4 (Super Premium Efficiency) are two of the highest efficiency ratings for electric motors. These classifications indicate motors that operate with minimal energy losses, translating to lower operating costs and reduced environmental impact.
Factors Influencing Motor Efficiency
Several factors contribute to the efficiency of 11kV motors:
- Core material quality and design
- Copper losses in windings
- Friction and windage losses
- Stray load losses
Manufacturers of high-efficiency motors focus on optimizing these areas to achieve superior performance and energy savings.
Benefits of High-Efficiency Motors
Investing in high-efficiency 11kV motors offers numerous advantages:
- Reduced energy consumption and operating costs
- Lower carbon footprint
- Improved process stability
- Extended motor lifespan due to lower operating temperatures
Predictive Maintenance for Optimal Motor Performance
Implementing a robust predictive maintenance strategy is crucial for maximizing the performance and lifespan of 11kV motors. This proactive approach allows for early detection of potential issues, preventing unexpected downtime and costly repairs.
Advanced Monitoring Techniques
Modern predictive maintenance for 11kV motors incorporates various monitoring techniques:
- Vibration analysis
- Thermography
- Oil analysis (for motors with oil-lubricated bearings)
- Electrical signature analysis
These methods provide valuable insights into the motor's condition, allowing for timely interventions.
Data-Driven Maintenance Scheduling
By leveraging data collected through continuous monitoring, maintenance teams can optimize their scheduling. This approach ensures that maintenance activities are performed when necessary, rather than adhering to rigid time-based schedules. The result is reduced downtime and more efficient use of maintenance resources.
Extending Motor Lifespan
Predictive maintenance plays a crucial role in extending the operational life of 11kV motors. By addressing minor issues before they escalate, companies can avoid premature motor failures and the associated costs of replacement and downtime.
Integration with Industry 4.0
The integration of predictive maintenance strategies with Industry 4.0 technologies offers new possibilities for motor management. IoT sensors, coupled with machine learning algorithms, can provide real-time insights into motor performance and predict potential failures with increasing accuracy.
Conclusion
In conclusion, because of their high power output, dependability, and efficiency, 11kV motors are an essential part of many industrial applications. Industries can maximize their motor performance and reap major operational benefits by comprehending the elements that affect motor reliability, appreciating the significance of efficiency ratings, and putting strong predictive maintenance methods into practice.
Our specialty at Shaanxi Qihe Xicheng Electromechanical Equipment Co., Ltd. is offering premium power equipment solutions, such as cutting-edge 11kV motors. From manufacturing and process control to energy and utilities, our solutions are made to satisfy the exacting standards of a wide range of industries. We are aware of the particular difficulties that our clients in the power generating, water treatment, HVAC and refrigeration, and industrial automation industries confront. Our group is committed to providing power equipment with steady performance, low energy consumption, and high energy efficiency. We have the know-how to satisfy your unique needs, whether you work in robotics, automation, the automotive, aerospace, electronics, or food processing industries, or you are engaged in renewable energy initiatives. For personalized solutions and expert advice on selecting the right 11kV motor for your application, please don't hesitate to contact us at xcmotors@163.com. Let us help you enhance your operations with our reliable and efficient power equipment solutions.
