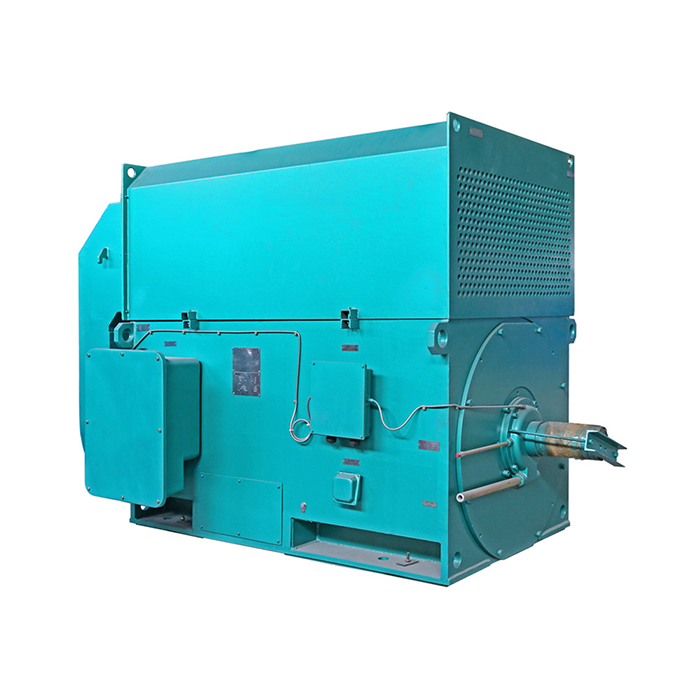

YXKK series high voltage and high efficiency motor: Key Benefits

The YXKK series high voltage and high efficiency motor is a purpose-built solution for heavy industrial applications where energy consumption and equipment reliability directly affect project profitability. Covering a power range of 200–3150 kW and voltage options from 3000V to 11000V, this motor series addresses the real demands of EPC procurement teams, OEM equipment manufacturers, and site engineers working across metallurgy, chemical processing, power generation, and water treatment. If you are evaluating high voltage motors for your next project, this guide walks you through the technical substance and procurement logic you need.



CONTACT US

Voltage range：3000V±5%,3300V±5%,6000V±5%,6600V±5%,10000V±5%,11000V±5%
Power range：200-3150 kW
Application：fans, water pumps, compressors, crushers, cutting machine tools, transportation machinery, etc.
Advantage：high efficiency and energy saving, low noise, small vibration, long service life, easy installation and maintenance.
Standard: This series of products complies with JB/T 12730 and JB/T 12729 standards.
Others： SKF, NSK, FAG bearings can be replaced according to customer requirements.

Understanding YXKK Series High Voltage Motors

Voltage and Power Coverage

There are six voltage classes in the YXKK series: 3000V±5%, 3300V±5%, 6000V±5%, 6600V±5%, 10000V±5%, and 11000V±5%. The power output ranges from 200 to 3150 kW. Because of this, one source can handle all of a big EPC package's electrical needs, from 200 kW drives for back-up pumps to over 2000 kW drives for main fans or compressors. This greatly lowers the risk of coordination for procurement teams that are combining vendor lists.

Standards and Engineering Basis

Every unit in this line meets JB/T 12730 and JB/T 12729, which are Chinese national industry standards for building and testing high voltage motors. These rules say what kind of protection is needed, how much the temperature can rise, how loud it can be, and what the mechanical tolerances are. The products also have CCC, CE, ISO9001:2000, and GOST approvals, which means they can be used in Chinese projects as well as Belt and Road building projects in Southeast Asia, Africa, and Central Asia.

Real-World Application Scope

When it comes to fans, water pumps, compressors, crushers, cutting tools, and transportation equipment, the YXKK series high voltage and high efficiency motor is the better choice. In real life, this means big induced-draft fans in power plants, high-pressure process pumps in chemical plants, ore crushers in mines, and motors that move belts at port terminals. In these situations, motor downtime directly leads to contract penalties, so dependability is a requirement rather than a choice.

Advantages of YXKK Series High Efficiency Motors

Energy Savings That Affect the Bottom Line

When compared to regular YKK motors working at the same load points, the YXKK series high voltage and high efficiency motor has losses that can be measured. Even a 1.5-percentage-point increase in efficiency for a 1000 kW motor that runs 8,000 hours a year at $0.08/kWh would save each unit about $9,600 in energy costs each year. That number grows big enough in a ten-pump system to make the YXKK's premium worth it to end-use owners. This directly addresses the EPC procurement worry about explaining price differences to clients during talks.

Here are the main operational and mechanical benefits that back up this claim of efficiency:

• Low noise and minimal vibration: Precision-balanced rotors and tight manufacturing tolerances keep vibration within acceptable limits for sensitive industrial environments. Noise levels meet JB/T 12729 specifications, which matters for facilities with occupational safety requirements.
• Extended service life: High-grade insulation materials, optimized winding configurations, and thermal management design collectively reduce internal stress on the motor. This directly extends mean time between maintenance intervals.
• Bearing flexibility: SKF, NSK, or FAG bearings can be fitted per customer specification. For OEM manufacturers standardizing on a particular bearing brand across their equipment range, this removes a common integration friction point.

Collectively, these performance traits lower unplanned downtime and the total cost of ownership over the working lifespan of a motor. This is the number that project owners care about most when they look at long-term energy spending.

Maintenance Simplicity

The YXKK design puts outdoor serviceability first. You don't need any special tools to get to bearing housings, terminal boxes, and cooling assemblies. Each motor comes with a factory test report that includes data on vibration, insulation resistance, winding resistance, and no-load current. Site engineers can use this report during commissioning, and owners should keep it for guarantee and safety purposes.

Voltage Tolerance and Field Durability

In industrial places, operating voltage rarely stays within the limits shown in textbooks. Each YXKK rating class has a voltage tolerance of ±5%, which is a useful safety net against the grid changes that are common in infrastructure projects in emerging markets. It's not a small thing—when voltage drops or spikes take a regular motor outside of its design range, winding stress increases and insulator life decreases. The YXKK series is made to take this into account.

Comparing YXKK Motors with Standard High Voltage Options

YXKK vs. YKK: What the Data Shows

As the most energy-efficient version of the YKK base, the YXKK series high voltage and high efficiency motor YXKK is meant to be the best choice. Both have the same frame shape and mounting specs, which makes it easier to update or add to systems that are already in place. The YXKK has a measurable difference in its electromagnetic design. It uses premium core materials and optimized stator geometry to cut down on iron and copper losses. The result is efficiency numbers that have been checked and show they are higher than the YKK average at normal load points.

Total Cost of Ownership Perspective

Buying things based only on unit price usually doesn't lead to good results for the project. For most industrial usage cycles, a motor that costs 8% more up front but saves 12% a year in energy costs pays for itself in just 14 months. When negotiating with project owners, EPC procurement directors who show them lifecycle cost data have a lot more power than those who only talk about purchase price. Documented performance statistics for the YXKK supports this kind of owner-facing reasoning.

Adaptability Across Project Types

The YXKK range has six voltage classes, which means that the same motor series can work with both 6kV standard plant infrastructure and 10kV or 11kV high voltage distribution networks that are common in large power plant auxiliary systems. Because of this, an EPC contractor doesn't have to handle as many motor sources for a single job.

Procurement and Supply Chain Insights for YXKK Series Motors

Lead Times and Production Planning

XCMOTOR's standard production lead time for YXKK motors is about 60 days from the time an order is confirmed. After that, most international destinations are shipped by ocean freight, which takes another 25–30 days. To keep the plan, it is best to place the motor order when the design is finished instead of waiting for full purchase approval for EPC projects with 8–10 month total cycles.

Customization and OEM Matching

To match OEM equipment drawings, XCMOTOR lets you change the voltage class, the length of the shaft extension, and the orientation of the terminal boxes. For fan and pump makers who want to add these motors to their own products, being able to match motor sizes to machine frame needs without having to go through a full custom building cycle cuts down on both cost and time-to-market.

Risk Management in Procurement

XCMOTOR has a 30-day return policy and will handle the shipping for free, which gives you a lot of freedom during the project acceptance stages. Every shipment comes with a factory test record, and XCMOTOR experts can help with commissioning on-site if needed. These terms make it much less risky for EPC procurement teams to go into client acceptance reviews when it comes to technical and contractual issues.

Why Choose YXKK Series High Voltage Motors

The YXKK series high voltage and high efficiency motor is a good choice for commercial projects that care about energy efficiency, good documentation, and being able to buy things in a variety of ways. Shaanxi Qihe Xicheng Electromechanical Equipment Co., Ltd. has been supplying power equipment for more than 20 years, has an ISO9001:2000-certified quality system, and offers technical support on the weekends, which is a useful feature for projects with tight commissioning schedules. Verified data on efficiency, full-range power coverage, and factory tests give procurement teams the proof they need to explain the specification to project owners and other people in the company.

Conclusion

The YXKK series high voltage and high efficiency motor saves energy, has been tested and proven to work, and can be used in a wide range of situations, from 200 to 3150 kW across six voltage classes. The series gives EPC procurement teams and OEM equipment makers a way to lower lifetime costs and make better project proposals that is based on facts. The procurement risk profile is reasonable because the test documentation meets standards, there are different bearing options, and you have 30 days to return the item. The YXKK line is worth a close look if you are looking for high voltage motors for an industrial job.

FAQ

1.What power range does the YXKK series cover?

Four voltage classes—3000V, 3300V, 6000V, 6600V, 10000V, and 11000V—with a ±5% range each make up the YXKK series high voltage and high efficiency motor. It can handle 200 to 3150 kW.

2.Can the motor dimensions be customized for OEM integration?

Yes, the position of the terminal box, the size of the shaft extension, and the mounting arrangements can all be changed to match drawings of OEM equipment. This is especially important for companies that make fans and pumps because they need motor connections that work with frame designs that are already in place.

3.What documentation ships with each motor?

There is a factory test record that comes with every YXKK motor. It has measures of vibration, insulation resistance, winding resistance, and no-load current. This paperwork helps with the commissioning of the site, making warranty claims, and the owner acceptance process.

4.How does the YXKK handle site voltage fluctuations?

There is a ±5% working limit for each YXKK voltage class. This includes the normal grid changes that happen on most industrial sites, even those in infrastructure-poor developing markets where power stability may not be stable all the time.

5.What bearing brands are available?

Bearings from SKF, NSK, and FAG can be installed based on what the customer wants. Since this is the case, OEM makers and EPC contractors can use the same brand of bearings for all of their tools.

Start Your YXKK Series Motor Inquiry with XCMOTOR

XCMOTOR sells the YXKK series high voltage and high efficiency motor. All orders come with free shipping, factory test reports, and 30 days to return items. As a reliable provider of YXKK series high voltage and high efficiency motors, we help EPC procurement teams and OEM makers with detailed paperwork and on-site commissioning. To get a price that fits the needs of your project, email us at xcmotors@163.com or go to motorxc.com.
